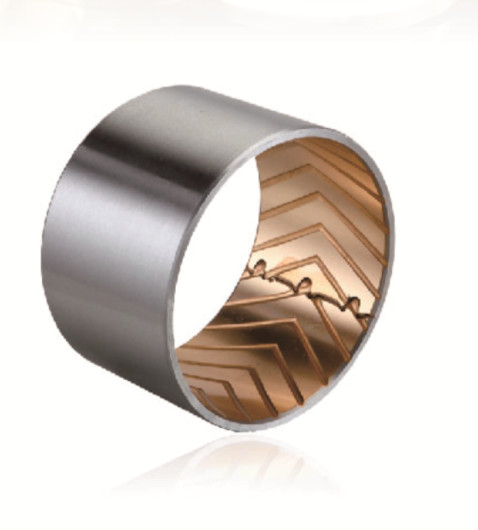

JF 720 Bimetallic Bearing Bimetal Bushings

  • JF 720 Bimetallic Bearing Bimetal Bushings
  • JF 720 Bimetallic Bearing Bimetal Bushings
  • JF 720 Bimetallic Bearing Bimetal Bushings
Place of Origin China
Brand Name VIIPLUS
Certification ISO9001
Model Number Self-lubricating bearing
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 7-25 work days
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Cylinder Bushing Material Steel＋CuPb24Sn4
Origin China Sample Available
Standard ISO,DIN1494 Application Auto/Engine Parts/Machinery Parts
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

JF 720 Bimetallic Bearing

,

Stee CuPb24Sn4 Bimetal Bushings
Leave a Message
Product Description

JF 720 Bimetallic Bearings, also known as bimetal bushings, are composite bearings consisting of two different metals bonded tog to form a single component. These bearings are designed to provide exceptional wear resistance, corrosion resistance, and mechanical strength.

The bimetallic construction of JF 720 bearings typically consists of a steel backing with a layer of softer, more wear-resistant material such as bronze, brass, or copper alloy. This combination allows the bearing to withstand heavy loads and impact while maintaining smooth operation.

JF 720 Bimetallic Bushings are widely used in various industries, construction, agriculture, and manufacturing. They are suitable for applications requiring high-performance bearings that can handle extreme temperatures, pressures, and harsh environments.

The bimetallic design of JF 720 bearings also enables them to provide superior lubrication properties. The softer outer layer can be impregnated with oil or grease to create a self-lubricating bearing that reduces friction and wear.

As a trusted supplier of JF 720 Bimetallic Bearings, we offer a wide range of sizes, shapes, and materials to meet your specific application needs. Our experienced team can provide expert advice and customized solutions to ensure you get the best bearing for your application.

Contact us today to learn more about JF 720 Bimetallic Bearings and how they can enhance the performance and reliability of your equipment.



Bimetallic Bearing Bimetal Bushings,steel bushing sleeve,Steel＋CuPb24Sn4



Experienced Manufacturer & Supplier in China. Guaranteed Top Quality & Service. Quality steel bushing sleeve Supplier & Manufacture in China, Contact Now! Advanced Technology.Wholesale Price.Quality Assurance.



JF720 bi-metal bushing is backing on low carbon steel, sintered with CuPb24Sn4 bronze powder, which has fairly good performance in anti-fatigue and load capacity, fit for middle speed and middle load working situation.



When soft alloy is plated on the bushing surface and with oil lubrication, it can be applied in high speed internal-combustion engine and connect-rod.



Large Inventory of Bronze Bushings, Bronze Bearing and Self-lubricating Wear Plates. Gleitlager. Bushing Sleeve bearing. Bushes Catalogs and Brochures Available.



bushing catalog.pdf



Bimetal Bushes For Gearbox Brake Pedal Bush Motorcycle Connecting Rod Bearings Engine Bushings



Specification



Performance index Data
Liner materia CuPb24Sn4
Load capacity 38N/mm²
Temperature 170℃
Liner hardness HB45~70



Features:



  1. Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.

  2. Sintered bronze lazer: God wear resistance and excellent load carrying capacity.

  3. Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



Technical Parameters



Data Code jf-720
Material Steel＋CuPb24Sn4
Applications   Products applicable to high-speed, heavy-duty internal combustion engine shaft and gears.
Max Load Capacity P N/mm²   120
Max Line Speed V Grease Lubrication m/s 2.5
Fluid Lubrication m/s 10
PV Value Limit Grease Lubrication m/s N/mm²·m/s 2.8
Fluid Lubrication m/s N/mm²·m/s 10
Friction Coefficient u Grease Lubrication 0.05~0.15
Fluid Lubrication 0.04~0.12
Mating Axis Hardness HRC ≥48
Roughness Ra 0.32~0.63
Working Temperature℃ Grease Lubrication 150
Fluid Lubrication 250
Alloy Layer Hardness HB   45~70
Thermal Conductivity W/mk   60
Coefficient Of Linear Xpansion   19×10-6/K
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.



Joint Types of steel bushing sleeve



bimetal bushing



Steel bushing sleeve Material Characterisitc



Material Trademark Alloy Composition Alloy Hardness
JF-800 CuPb10Sn10 70~100HB
JF-720 CuPb24Sn4 45~70HB
JF-700 CuPb30 30~45HB
JF-20 AlSn20Cu 30~40HB
JF-930 CuPb6.5P0.1 69~90HB



Technical Data



Type/Performance Index JF-800 JF-720 JF-700 JF-20 JF-930
Max Load Capacity P(N/mm²) 150 130 120 100 150
Tensile Strength(N/mm²) 185 150 200 200 185
Max Sliding Speed(Oil Lubrication)V(m/s) 5 10 15 25 5
Friction Coefficient 0.05~0.20 0.06~0.16 0.08~0.16 0.08~0.17 0.06~0.16
Max PV Value Limit(Grease) 2.8 2.8 2.5 - 2.8
Max PV Value Limit(Oil) 10 10 8 6 -



Application Characteristics



Material Trademark Using Conditions Use Occasions
JF-800 High resistance to fatigue strenth and load capacity,with high shock resistance good wearing and good corrosion resistance. Fit for middle load,high speed,bushes,washer and connecting rod bearing in internal combustion engine used in machinical equipment and high shock bushing.
JF-720 Good resistance to fatigue strength and high load capacity,good performance of sliding,liable to be corrupted by lubricationg oil. Middle load middle speed,principle axis of internal combustion engine.
JF-700 Good resistance to fatigue strength,load capacity,shock resistance. Principle axis of internal combustion engine, connecting rod bushing.
JF-20 Good performance of anti-seizing,covering eyewinker, soft alloy be plated on working surface. High speed, middle or low load,principle axis internal combustion engine.
JF-930 Moderate fatigue strength, and load capacity, good wrrosion resistance good performance of bearing sliding. High speed, low load, internal combustion engine half bearing,bushing used in compressing and refrigerating machine.



Standard Tolerance Dimension Table
