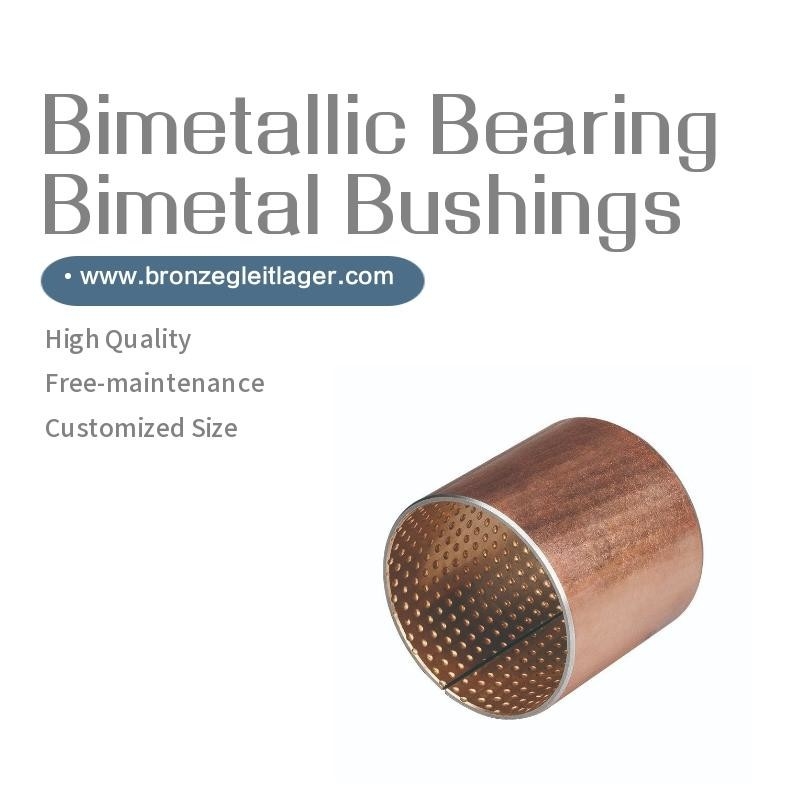

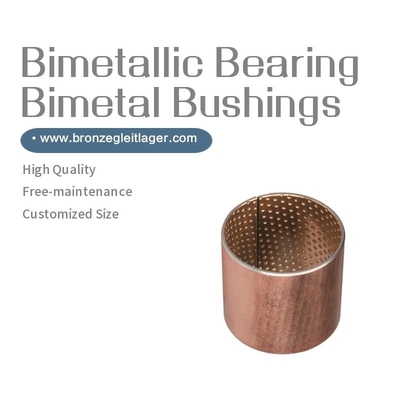

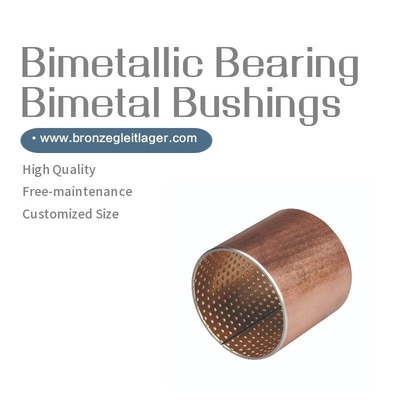

JF 800 Bimetallic Bearing Bimetal Bushings

Place of Origin	China
Brand Name	VIIPLUS
Certification	ISO9001
Model Number	Self-lubricating bearing
Minimum Order Quantity	Negotiable
Price	Negotiable
Packaging Details	Export Carton Wood Pallet Wooden Case
Delivery Time	7-25 work days
Supply Ability	casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	Cylinder Bushing	Material	Steel+CuPb10Sn10
Origin	China	Sample	Available
Standard	ISO,DIN1494	Application	Auto/Engine Parts/Machinery Parts
Bearing Bushing Factory Price	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	Steel Backed Bronze Bushing, Bimetallic Bushes	Bimetallic Bearing Bushing	Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light	JF 800 Bimetallic Bearing , DIN1494 Bimetallic Bearing , Steel CuPb10Sn10 Bimetal Bushings

Leave a Message

Product Description

Bimetallic Bearing Bimetal Bushings,Steel＋CuPb10Sn10

China Jf800 Bimetal Bearing, Find details about China steel bushing sleeve, High Quality Bimetal Bearing from Jf800 Bimetal Bearing - bronzegleitlager.com

JF-800 Bimetal Bearings is based on low carbon steel plate material, the surface sintered CuPb10Sn10 or CuSn6Zn6Pb3 material steel copper alloy products. The products are double-bearing bearing capacity in the strongest of a heavy-duty vehicles, the balance bridge bushings, gaskets; bulldozers driven wheel; automotive steel bushings, are using the product.

It is a widely used high-speed low-speed sliding bearings.

Large Inventory of Bronze Bushings, Bronze Bearing and Self-lubricating Wear Plates. Gleitlager. Bushing Sleeve bearing. Bushes Catalogs and Brochures Available.

Technical Parameters

Data	Code	jf-800
Data	Material	Steel＋CuPb10Sn10
Applications		Products applicable to the car engine Lian Xuan, engineering machinery, agricultural machinery.
Max Load Capacity P N/mm²		140
Max Line Speed V	Grease Lubrication m/s	2.5
Max Line Speed V	Fluid Lubrication m/s	＞5
PV Value Limit	Grease Lubrication m/s N/mm²·m/s	2.8
PV Value Limit	Fluid Lubrication m/s N/mm²·m/s	10
Friction Coefficient u	Grease Lubrication	0.05~0.15
Friction Coefficient u	Fluid Lubrication	0.04~0.12
Mating Axis	Hardness HRC	≥53
Mating Axis	Roughness Ra	0.32~0.63
Working Temperature℃	Grease Lubrication	150
Working Temperature℃	Fluid Lubrication	250
Alloy Layer Hardness HB		60~90
Thermal Conductivity W/mk		47
Coefficient Of Linear Xpansion		18×10-6/K
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.

Features

Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.

Structure

1. Sinter bronze powder: good wear resistance and excellent load carrying capacity

2. Steel backing: provides exceptionally high load carrying capacity, excellent heat dissipation.

3. Copper plating thickness 0.002mm provides good corrosion resistance.

Application

Construction Equipment: Track chassis running gear wheel set, towing wheel set, the tension wheel set;

Automotive industry: balance shaft bush, steel pin bushing, Shaw kingpin bushings, rod bushings, valve rocker bushings, camshaft bushings, bushings differential, gearbox bushings, engine main bearing , thrust washers;

And a piston side panels, side panels and other gear pump.

Bimetal bushing Metric Size

d	D	Axle h8	Housing bore	Installed bearing d	Wall thickness		Oil hole	f1	f2	L 0-0.40
d	D	Axle h8	Housing bore	Installed bearing d	Min.	Max.	Oil hole	f1	f2	10	15	20	25	30	40	50	60
10	12	10-0.022	12+0.018	+0.148 +0.010	0.995	0.935	4	0.5	0.3	1010	1015	1020
12	14	12-0.027	14+0.018							1210	1215	1220
14	16	14-0.027	16+0.018							1410	1415	1420
15	17	15-0.027	17+0.018							1510	1515	1520
16	18	16-0.027	18+0.018					0.8	0.4	1610	1615	1620
18	20	18-0.027	20+0.021	+0.151 +0.010						1810	1815	1820	1825
20	23	20-0.033	23+0.021	+0.181 +0.020	1.490	1.430				2010	2015	2020	2025
22	25	22-0.033	25+0.021				6			2210	2215	2220	2225
24	27	24-0.033	27+0.021					1.0	0.5	2410	2415	2420	2425	2430
25	28	25-0.033	28+0.021								2515	2520	2525	2530
26	30	26-0.033	30+0.021	+0.205 +0.030	1.980	1.920					2615	2620	2625	2630
28	32	28-0.033	32+0.025								2815	2820	2825	2830	2840
30	34	30-0.033	34+0.025					1.2	0.6		3015	3020	3025	3030	3040
32	36	32-0.039	36+0.025								3215	3220	3225	3230	3240
35	39	35-0.039	39+0.025									3520	3525	3530	3540	3550
38	42	38-0.039	42+0.025				8					3820	3825	3830	3840	3850
40	44	40-0.039	44+0.025				8					4020	4025	4030	4040	4050

d	D	Axle h8	H7 Housing bore	Installed bearing d	Wall thickness		Oil hole	f1	f2	L 0-0.40
d	D	Axle h8	H7 Housing bore	Installed bearing d	Min.	Max.	Oil hole	f1	f2	25	30	40	50	60	80	90	100
45	50	45-0.039	50+0.025	+0.205 +0.030	2.460	2.400	8	1.5	1.0	4525	4530	4540	4550
50	55	50-0.039	55+0.030	+0.210 +0.030							5030	5040	5050	5060
55	60	55-0.046	60+0.030								5530	5540	5550	5560
60	65	60-0.046	65+0.030								6030	6040	6050	6060
65	70	65-0.046	70+0.030								6530	6540	6550	6560
70	75	70-0.046	75+0.030								7030	7040	7050	7060	7080
75	80	75-0.046	80+0.030				9.5				7530	7540	7550	7560
80	85	80-0.046	85+0.035	+0.215 +0.030								8040	8050	8060	8080
85	90	85-0.054	90+0.035								8530		8550	8560	8580		85100
90	95	90-0.054	95+0.035										9050	9060	9080		90100
95	100	95-0.054	100+0.035											9560	9580	9590	95100
100	105	100-0.054	105+0.035											10060	10080	10090	100100
105	110	105-0.054	110+0.035											10560	10580		105100
110	115	110-0.054	115+0.035											11060	11080		110100
115	120	115-0.054	120+0.035										11550		11580
120	125	120-0.054	125+0.040	+0.220 +0.030									12050	12060			120100
125	130	125-0.063	130+0.040														125100
130	135	130-0.063	135+0.040											13060			130100
135	140	135-0.063	140+0.040											13560	13580
140	145	140-0.063	145+0.040											14060	14080		140100
150	155	150-0.063	155+0.040											15060	15080		150100
