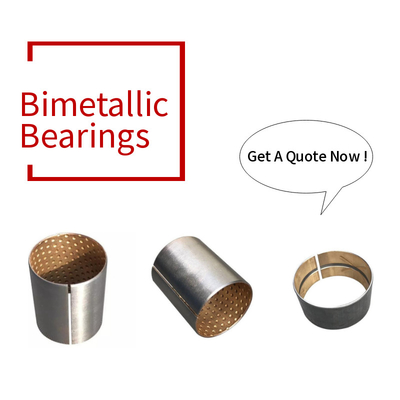

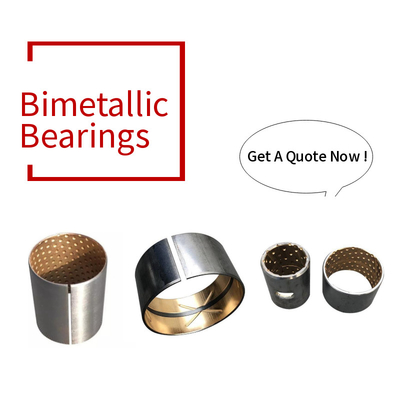

Bimetallic Bearing Vehicles Bushings CuPb10Sn10 Or CuSn6Zn6Pb3
| Place of Origin | China |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO9001 |
| Model Number | Self-lubricating Bimetallic Bearing |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Export Carton Wood Pallet Wooden Case |
| Delivery Time | 7-25 work days |
| Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Bimetallic Bearing Vehicles Bushings | Material | Steel+CuPb10Sn10, Steel + CuSn6Zn6Pb3 |
|---|---|---|---|
| Origin | China | Sample | Available |
| Application | Internal Combustion Engine Connecting Rod, Plate Spring Bushing, Steel Pin Bushing, Bimetal Plate Spring | Size | Metric Size, Or Customize Size |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | CuSn6Zn6Pb3 Bimetallic Bearing,Self Lubricating Bimetallic Bearing,Vehicles Bushings CuPb10Sn10 |
||
Product Description
Bimetallic bearing bushings for vehicles, specifically CuPb10Sn10 or CuSn6Zn6Pb3 alloys, are designed to provide superior performance in automotive applications. These bushings consist of a base metal layer bonded to a wear-resistant alloy layer, creating a unique bimetallic construction.
The CuPb10Sn10 alloy, also known as leaded tin bronze, offers excellent wear resistance and lubricity. The lead content provides self-lubricating properties, reducing friction and wear during operation. This alloy is commonly used in automotive bushings and bearings where smooth and reliable operation is crucial.
The CuSn6Zn6Pb3 alloy, also known as high-lead tin bronze, exhibits similar properties to CuPb10Sn10 but with a slightly different composition. It provides excellent wear resistance, lubricity, and corrosion resistance, making it suitable for demanding automotive applications.
The bimetallic construction of these bushings combines the strength and durability of the base metal with the wear resistance and self-lubricating properties of the alloy layer. This ensures smooth operation, reduced maintenance requirements, and extended service life in various vehicle applications.
Our range of bimetallic bearing bushings for vehicles includes CuPb10Sn10 and CuSn6Zn6Pb3 alloys in various sizes and specifications to meet your specific requirements. We offer customized solutions to ensure the perfect fit and performance for your automotive application.
Contact us today to learn more about our bimetallic bearing bushings for vehicles and how they can enhance the performance and reliability of your automotive components.
China Bimetallic Bushing & Bearings - self-lubricating bearing Sale
Steel bushing sleeve
Plate spring bushing, steel pin bushing, bimetal plate spring, internal combustion engine connecting rod
BIMETAL BEARINGS CUPB30 CATALOG.pdf
800 bimetallic bearings
Model: 800 bimetallic bearings
The bimetal bearing is made of high-quality low carbon steel, and its inner surface is sintered with a bronze alloy layer and rolled with a hemispherical oil hole, which is convenient for oil storage and can effectively reduce wear. The outer surface of the product can be selected as natural color, copper-plated, or tin-plated according to the demand. This product is one of the bearing capacity of double alloy bearings. It is widely used in balancing bridge bushings of heavy vehicles. It is a kind of high load and low-speed motion bearings with wide applications.
Product introduction

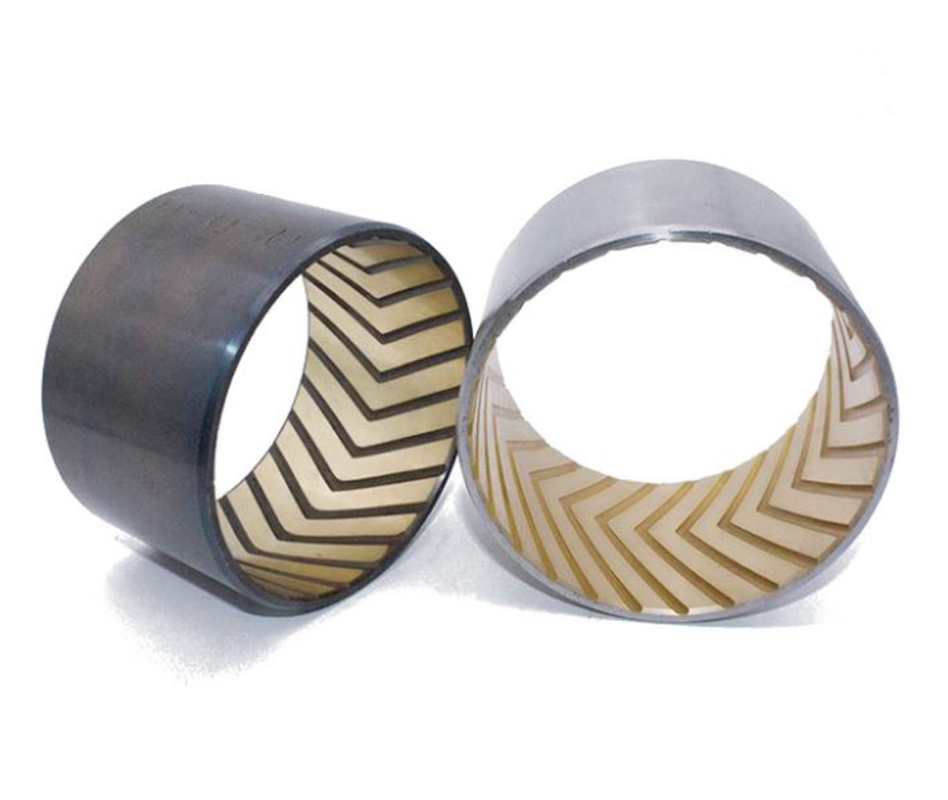

JF bimetal composite bearings with high-quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy (CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as a wear-resisting layer of bearing, can need according to the operating conditions of copper alloy surface processing of various types of the oil tank, oil hole, hole, etc., in order to suit to cannot continue to go hard or go occasion. The material can obtain good bonding strength and the best bearing capacity through two times sintering and two times extrusion.
The product application
Construction machinery: chassis walking mechanism supporting wheel shaft cover, towing wheel shaft cover, tensioning wheel shaft cover; Automotive industry: balance bushing, steel plate pin bushing, steering knuckle main Shaw bushing, connecting rod bushing, valve rocker arm bushing, camshaft bushing, differential bushing, gearbox bushing, internal combustion engine spindle bush, thrust gasket; And piston pump side plate, gear pump side plate, etc.
China self-lubricating bimetal bearing, Similar To DEVA Metal. Maintenance Free Slide Plates Within Tire Mold Container, Factory Price, Contact Us! View News. Read News. Custom Auto Engine Parts Con Rod CuPb10Sn10 Bering Bushing
Bimetallic bearings to the high-quality low-carbon steel substrate, the surface of the sintered copper alloy having a low friction characteristic (CuPb10Sn10, CuPb6Sn6Zn3, CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as a wear layer bearing copper alloy surfaces can be processed in accordance with the use of a variety of conditions need type tank, oil hole, oil hole, so as to fit in unsustainable fuel refueling or difficult situations. Secondary extrusion material through the secondary sintering can be a good bonding strength and optimum carrying capacity.
|
Material |
Steel + CuPb10Sn10 |
|
Typical Application |
con-rod of automobile engines, engineering, and agriculture machinery, heavy-duty construction machinery, etc. |
|
Max Dynamic Load |
140N/mm² |
|
Max Line Speed (Grease) |
2.5m/s |
|
Max PV Value Limit (Grease) |
2.8N/mm².m/s |
|
Friction Coefficient (Grease) |
0.05~0.15 |
|
Max Line Speed (Oil) |
5m/s |
|
Max PV Value (Oil) |
10N/mm².m/s |
|
Friction Coefficient (Oil) |
0.04~0.12 |
|
Max Working Temperature |
Grease 150ºC, Oil 250ºC |
|
Mating Axis |
Hardness ≥53HB, Roughness Ra=0.32~0.63 |
|
Alloy Layer Hardness |
60-90HB |
|
Thermal Conductivity |
47W/MK |
|
Coefficient Of Linear Expansion |
18×10-6/K |
|
We can also develop according to customers special request while out of this table |
|
Tolerances Of Machined And Non - machined Thickness
| Nominal Thickness | Tolerances+ of Series B (non-machinable) | Tolerances of Series C (non-machinable) |
| 1.0 | -0.025 | +0.25 +0.15 |
| 1.5 | -0.030 | +0.25 +0.15 |
| 2.0 | -0.035 | +0.25 +0.15 |
| 2.5 | -0.040 | +0.30 +0.15 |
| 3.0 | -0.045 | +0.30 +0.15 |
| 3.5 | -0.050 | +0.30 +0.15 |
Oil Hole Form
Buckle Form
Characteristics
Bimetal bearing with steel backing and bronze overlay
Particularly suitable for high specific loads with oscillating motion and low frequency
Applicable in rough operation conditions
High load capacity, very good resistance to fatigue strength at higher temperatures
Bimetal-bearing is a bimetal bearing, wrapped of steel sheets with a layer of lead bronze.
The standard sizes are fitted with lubrication indents on the running surface. For standard bearings is normally the steel backing copper plated to improve the corrosion resistance. The layer of lead bronze makes it possible to use these bearings with relatively long lubrication intervals.
Bimetal-bearings can be manufactured with a thicker lead bronze layer for applications where the bearing has to be machined after mounting. The material of the layer can be fitted to the special needs of the application in question.
Structure And Composition
Steel Backing and Leaded Bronze Overlay
Steel + CuPb10Sn10 with indents
Technical data
| Material: | Copper plated steel backing, lead bronze layer (CuPb10Sn10) |
| Yield point: | (Rp0,2) ca 240 N/mm2 |
| Tensile strength: | (Rm) ca 350 N/mm2 |
| Hardness: | ca 90 – 110 HB |
| Friction: | Depends on the material and the performance of the layer. |
| Max speed: | 3,0 m/s |
| Temperature range: | -100 / +260 °C |
| Load | Speed |
| Ca: 240 N/mm2 | 0 m/s |
| 120 N/mm2 | 0,01 m/s |
| 40 N/mm2 | 2,0 m/s |
Benefits:
Rather a high load capacity.
Possibility to machine the inside diameter after mounting.
High-level thermal conductivity.
Good chemical resistance.
Wide range of temperature.
Operating Performance
| Dry | Poor |
| Oil-lubricated | Good |
| Grease lubricated | Very Good |
| Water lubricated | Poor |
| Process fluid lubricated | Poor |
