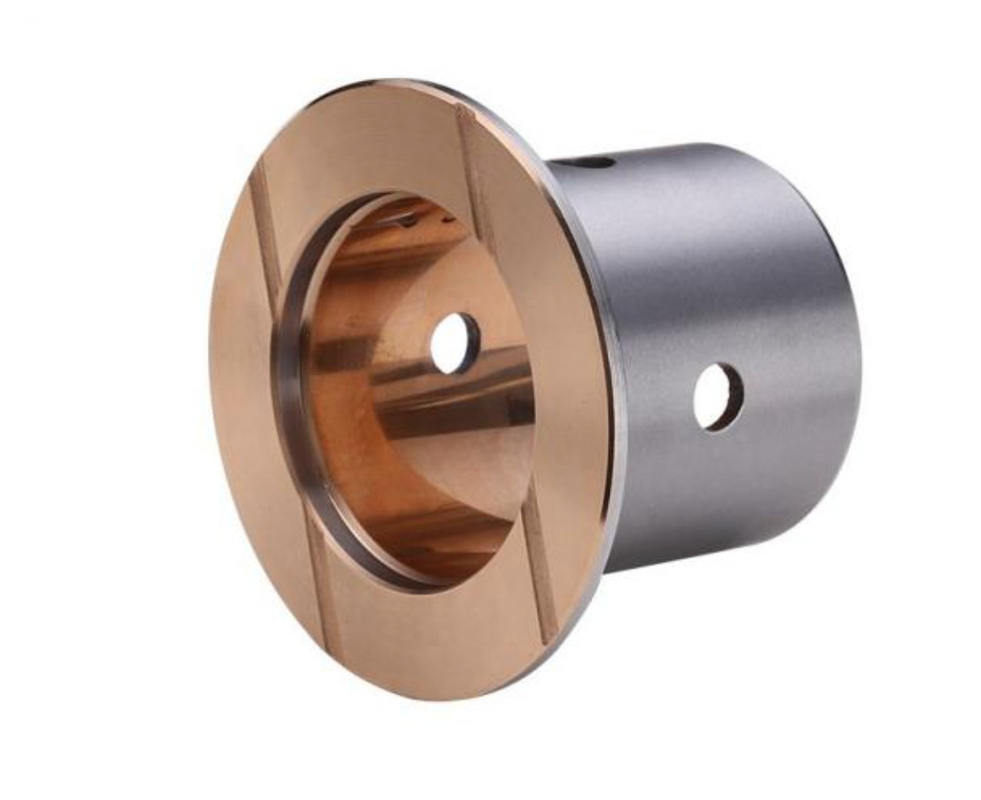

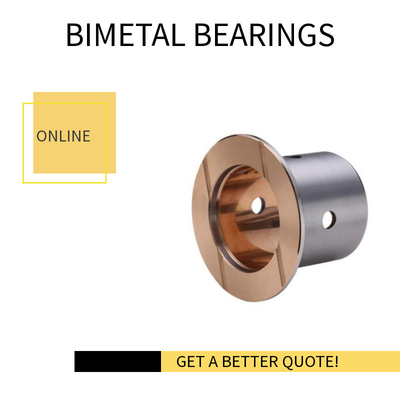

Friction Welding Bimetal Metric Flange Bushing

  • Friction Welding Bimetal Metric Flange Bushing
  • Friction Welding Bimetal Metric Flange Bushing
Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number friction welding bimetal bushing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing
Product Details
Material Bimetal Bushing Type Flange Bushing
Alloy CuSn10Pb10 Size Metric Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Bimetal Metric Flange Bushing

,

Friction Welding Metric Flange Bushing

,

Welding Bimetal Metric Flange Bushing
Leave a Message
Product Description

Metric Flange Bimetal Bushing bimetal bearings are backed with high-quality low carbon steel with tin-lead- bronze alloy (CuSn10Pb10) sintered on its surface.

ISO3547/DIN1494 standard size, KINGPIN KIT BUSHING, PISTON BUSHINGS, HYDRAULIC PUMP BUSHING, GEAR PUMP, FUEL PUMP BUSHINGS



VIIPLUS a professional bimetal bushings bearing manufacturer, Our goal is to continuously contribute to society through technological innovation.

Self-lubricating bearing series
Engine parts

Cooling parts
Steering parts
Drive parts
Brake parts
Traveling parts
Agricultural machinery parts
Construction machinery parts



Material steel＋CuPb10Sn10 Bimetal bushing


the bimetal bushing is backed with high-quality low carbon steel with tin-lead-bronze alloy(CuSn10Pb10)sintered on its surface. It has high fatigue strength, load capacity, and impact strength. The product is applied to track roller, air compressor, especially replaced the Centrifugal casting bimetal bushing for the track roller application. the alloy thickness becomes uniform comparing with the centrifugal casting bimetal bushing and saves a lot of material, which makes the product cost performance higher.



Typical application



Application: con-rod of automobile engines, engineering, and agriculture machinery, heavy-duty construction machinery etc.



Performance Data
Max dynamic Load P   140N/mm²
Max line speed V Grease lubrication 2.5m/s
Max PV value Grease lubrication 2.8N/mm²·m/s
Friction coef μ Grease lubrication 0.05~0.15
Max line speed V Oil lubrication 5m/s
Max PV value Oil lubrication 10N/mm²· m/s
Friction coef μ Oil lubrication 0.04~0.12
Max Working temperature Greaes lubrication 150℃



































Performance Data
Max Working temperature Oil lubrication 250℃
Mating Axis Hardness ≥53HB
Mating Axis Roughness Ra=0.32~0.63
Alloy Hardness 80~120
Heat-conducting Coefficient 47W/(m·k)
Coefficient of linear expansion 18×10-6K-1
according to customer's special request while out of this table.





























bimetal bushing flange size



ENGINE PARTS TRANSMISSION PARTS HYDRAULIC PRODUCTS ELECTRIC PRODUCTS UNDERCARRIAGE WORK EQUIPMENT SEALS AND GASKETS

BUSHING FRICTION PLATE OIL PUMP WATER PUMP FUEL PUMP PISTON PISTON RING LINER ENGINE BEARING ENGINE VALVE CRANKSHAFT GASKET OIL SEAL SPROCKET ROCKER ARM HYDRAULIC PUMP BELT TENSIONER



Bimetal Bushing Widely used in the hydraulic industry, forging machine tool industry, plastics machinery industry port machinery, office, fitness machinery, textile machinery, food package, filling machinery, chemical machinery, automobile, shipbuilding industry, construction machinery and so on.



CuPb10Sn10 Chemical Composition ( % ):


Cu Pb Sn Zn P Fe Ni Sb other
rest 9-11 9-11 ≤ 0.5 ≤ 0.1 ≤ 0.7 ≤ 0.5 ≤ 0.2 ≤ 0.5





bimetal bearings
