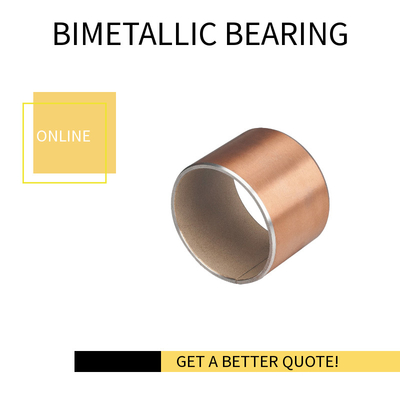

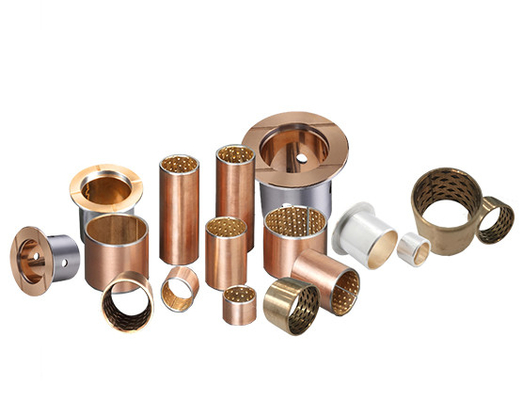

Bimetallic Bearing Bronze Metric Cylindrical Bushes
| Place of Origin | Bimetal Bearing Manufacturers |
|---|---|
| Brand Name | bimetal |
| Certification | ISO 9001 |
| Model Number | Bimetallic bearing bronze |
| Minimum Order Quantity | 800 Piece/Pieces (Min. Order) |
| Price | $0.20 - $2.00 / Pieces ,Negotiable |
| Packaging Details | export & import bimetal bushings International carton standard |
| Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Bimetal Bushing CuPb10Sn10 Or CuSn6Zn6Pb3 | Characteristic | Plain Bearings And Sleeve Bearings |
|---|---|---|---|
| Size | Standard Size Available | Quality | OEM High Quality Bushings |
| Type | Metal Split Bushes, Open | Application | Heavy-duty Trucks, Track Roller Of Bulldozers |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | Metric Cylindrical Bushes,Bimetallic Cylindrical Bushes |
||
Product Description
Bimetallic bearing bronze metric cylindrical bushes are precision-engineered components that offer superior wear resistance and durability in a wide range of applications. These bushings are constructed using a bimetallic design, typically combining a steel backing with a bronze alloy overlay.
The bronze alloy, often CuSn10Pb10 or a similar composition, provides excellent self-lubricating properties and resistance to wear, corrosion, and fatigue. This allows the bushings to maintain a smooth and reliable surface for rotating components to operate on, even under heavy loads and high-speed conditions.
The metric cylindrical design of these bushings ensures a precise fit and alignment in metric-sized shafts and housings. This precision allows for reduced friction, vibration, and noise, resulting in improved efficiency and longer service life.
Bimetallic bearing bronze metric cylindrical bushes are commonly used in industrial machinery, automotive components, and other demanding applications where reliability and durability are crucial. They are suitable for applications with varying loads, speeds, and operating conditions, making them a versatile and reliable choice for a wide range of industries.
Wh you need replacements for worn-out bushings or are looking for new bushings for a new machine, bimetallic bearing bronze metric cylindrical bushes offer an excellent solution. Contact your trusted supplier today to learn more about these precision-engineered components and how they can improve the performance of your equipment.
Bimetallic Bearing Bronze Metric Cylindrical Bushes
Metric Cylindrical Bushes & Welding Flange Type Bushes, Bimetallic bearing bronze, Split Open Type. Metric Dimensions for heavy-duty trucks, track roller of bulldozers sleeve bushings.
Bushing Type: Sleeve; Dimensions: Design Units: Metric; Material: Bearing Surface: Leaded Bronze (Lined Bearing Surface); Body: Steel; Additional.
bimetallic bearings with steel backed bronze bushings are ideal for applications with high loads & rough operating conditions. Wear resistance.
bimetal bearing is made of steel sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. This type of bushing shows its best performance among bushings made of Cu-lead alloy material in this product range. It suits most for middle speed and high impact conditions.
| Lead bronze alloy | CuPb10Sn10 or CuSn6Zn6Pb3 | ||
| Load capacity | 65N/mm² | Hardiness alloy | HB70~100 |
| Temperature Max | 260℃ | ||
Bi-Metallic Bushings
Steel backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery, etc.
| Chemical Compositions | |||
| Material | Alloy composition | International standard | Alloy hardness |
| BIMETAL BUSHINGS 800 | JIS-LBC3/SAE-797 | CuPb10Sn10 | HB70-100 |
| BIMETAL BUSHINGS 720 | JIS-LBC6/SAE-799 | CuPb24Sn4 | HB45-70 |
| BIMETAL BUSHINGS 700 | JIS-KJ3/SAE-48 | CuPb30 | HB30-45 |
| BIMETAL BUSHINGS 20 | JIS-AJL/SAE-783 | AlSn20Cu | HB30-40 |
| Tech. Data | ||||
| Max. load | Static | 120N/mm2 | Alloy hardness | 240N/mm2 |
| Dynamic | 60N/mm2 | Temp. | -40°C~+250°C | |
| Max. speed (Lubricated) | 2m/s | Friction coefficient | 0.08~0.20 | |
| Max. PV | 2.8N/mm2*m/s | Thermal conductivity | 60W(m*k)-1 | |
| Breaking Load | 350N/mm2 | Coef. of thermal expansion | 14*10-6*k-1 | |

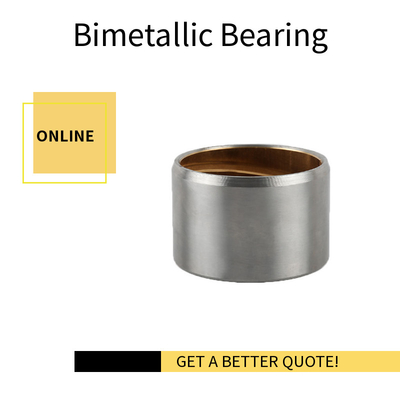

Bi-metal Steel Backed Leaded Bronze Bushing
Bimetal Bushing-800 Feature
Bimetal Bushing material made of leaded bronze backed with bimetal steel, which is suitable for oil-lubricated applications This material has a high load-bearing capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gears, power steering, pedal bushings, kingpin bushings, tailgate trunnions, mechanical handling and lifting equipment, hydraulic motors and pumps, agricultural machinery, etc.
Bi-Metallic Composite Bushings Structure
1.Bi-metal sintered bronze layer: good wear resistance and excellent load capacity.
2. Steel Support: By laying the foundation of the bushings, the steel support offers exceptional stability, load and heat dissipation characteristics.

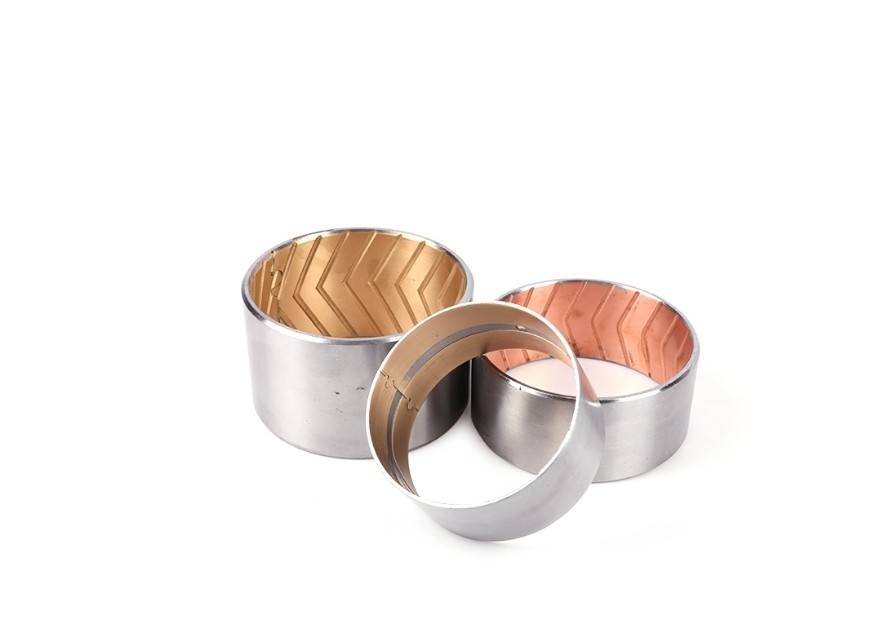

Bimetal Bushing Split Gap Design
Bimetal Bushing-800 Metric Cylindrical Bushes Size Chart
|
Di |
DO |
Shaft DS h8 |
Housing H7 DH | ID after fixed Di, a |
Clearance CD |
Wall thickness S3 |
Oil hole dL |
B 0 -0.40 |
||||||
| 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||||||||
| 10 | 12 | 10 -0.022 | 12 +0.018 |
+0.148 +0.010 |
0.170 0.010 |
0.995 0.935 |
4 |
Bimatal Bushing-800 1010 | Bimatal Bushing-800 1015 | Bimatal Bushing-800 1020 | ||||
| 12 | 14 | 12 -0.027 | 14 +0.018 |
0.175 0.010 |
Bimatal Bushing-800 1210 | Bimatal Bushing-800 1215 | Bimatal Bushing-800 1220 | |||||||
| 14 | 16 | 14 -0.027 |
+0.018 16 |
Bimatal Bushing-800 1410 | Bimatal Bushing-800 1415 | Bimatal Bushing-800 1420 | ||||||||
| 15 | 17 | 15 -0.027 |
+0.018 17 |
Bimatal Bushing-800 1510 | Bimatal Bushing-800 1515 | Bimatal Bushing-800 1520 | ||||||||
| 16 | 18 | 16 -0.027 |
+0.018 18 |
Bimatal Bushing-800 1610 | Bimatal Bushing-800 1615 | Bimatal Bushing-800 1620 | ||||||||
| 18 | 20 | 18 -0.027 |
+0.021 20 |
+0.151 +0.010 |
0.178 0.010 |
Bimatal Bushing-800 1810 | Bimatal Bushing-800 1815 | Bimatal Bushing-800 1820 | Bimatal Bushing-800 1825 | |||||
| 20 | 23 | 20 -0.033 |
+0.021 23 |
+0.161 +0.020 |
0.194 0.020 |
1.490 1.430 |
Bimatal Bushing-800 2010 | Bimatal Bushing-800 2015 | Bimatal Bushing-800 2020 | Bimatal Bushing-800 2025 | ||||
| 22 | 25 | 22 -0.033 |
+0.021 25 |
6 |
Bimatal Bushing-800 2210 | Bimatal Bushing-800 2215 | Bimatal Bushing-800 2220 | Bimatal Bushing-800 2225 | ||||||
| 24 | 27 | 24 -0.033 |
+0.021 27 |
Bimatal Bushing-800 2410 | Bimatal Bushing-800 2415 | Bimatal Bushing-800 2420 | Bimatal Bushing-800 2425 | Bimatal Bushing-800 2430 | ||||||
| 25 | 28 | 25 -0.033 |
+0.021 28 |
Bimatal Bushing-800 2515 | Bimatal Bushing-800 2520 | Bimatal Bushing-800 2525 | Bimatal Bushing-800 2530 | |||||||
| 26 | 30 | 26 -0.033 |
+0.021 30 |
+0.181 +0.040 |
0.214 0.040 |
1.980 1.920 |
Bimatal Bushing-800 2615 | Bimatal Bushing-800 2620 | Bimatal Bushing-800 2625 | Bimatal Bushing-800 2630 | ||||
| 28 | 32 | 28 -0.033 |
+0.025 32 |
+0.185 +0.040 |
0.218 0.040 |
Bimatal Bushing-800 2815 | Bimatal Bushing-800 2820 | Bimatal Bushing-800 2825 | Bimatal Bushing-800 2830 | Bimatal Bushing-800 2840 | ||||
| 30 | 34 | 30 -0.033 |
+0.025 34 |
Bimatal Bushing-800 3015 | Bimatal Bushing-800 3020 | Bimatal Bushing-800 3025 | Bimatal Bushing-800 3030 | Bimatal Bushing-800 3040 | ||||||
| 32 | 36 | 32 -0.039 |
+0.025 36 |
0.224 0.040 |
Bimatal Bushing-800 3215 | Bimatal Bushing-800 3220 | Bimatal Bushing-800 3225 | Bimatal Bushing-800 3230 | Bimatal Bushing-800 3240 | |||||
| 35 | 39 | 35 -0.039 |
+0.025 39 |
Bimatal Bushing-800 3520 | Bimatal Bushing-800 3525 | Bimatal Bushing-800 3530 | Bimatal Bushing-800 3540 | Bimatal Bushing-800 3550 | ||||||
| 38 | 42 | 38 -0.039 |
+0.025 42 |
8 |
Bimatal Bushing-800 3820 | Bimatal Bushing-800 3825 | Bimatal Bushing-800 3830 | Bimatal Bushing-800 3840 | Bimatal Bushing-800 3850 | |||||
| 40 | 44 | 40 -0.039 |
+0.025 44 |
Bimatal Bushing-800 4020 | Bimatal Bushing-800 4025 | Bimatal Bushing-800 4030 | Bimatal Bushing-800 4040 | Bimatal Bushing-800 4050 | ||||||
|
Di |
DO |
Shaft DS h8 |
Housing H7 DH | ID after fixed Di, a |
Clearance CD |
Wall thickness S3 | Oil hole dL |
B 0 -0.40 |
|||||||
| 25 | 30 | 40 | 50 | 60 | 80 | 90 | 100 | ||||||||
| 45 | 50 | 45 -0.039 | 50+0.025 |
+0.225 +0.080 |
0.264 0.080 |
2.460 2.400 |
8 |
Bimatal Bushing-800 4525 | Bimatal Bushing-800 4530 | Bimatal Bushing-800 4540 | Bimatal Bushing-800 4550 | ||||
| 50 | 55 | 50 -0.039 | 55+0.030 |
+0.230 +0.080 |
0.269 0.080 |
Bimatal Bushing-800 5030 | Bimatal Bushing-800 5040 | Bimatal Bushing-800 5050 | Bimatal Bushing-800 5060 | ||||||
| 55 | 60 | 55 -0.046 | 60+0.030 |
0.276 0.080 |
Bimatal Bushing-800 5530 | Bimatal Bushing-800 5540 | Bimatal Bushing-800 5550 | Bimatal Bushing-800 5560 | |||||||
| 60 | 65 | 60 -0.046 |
+0.030 65 |
Bimatal Bushing-800 6030 | Bimatal Bushing-800 6040 | Bimatal Bushing-800 6050 | Bimatal Bushing-800 6060 | ||||||||
| 65 | 70 | 65 -0.046 |
+0.030 70 |
Bimatal Bushing-800 6530 | Bimatal Bushing-800 6540 | Bimatal Bushing-800 6550 | Bimatal Bushing-800 6560 | ||||||||
| 70 | 75 | 70 -0.046 |
+0.030 75 |
Bimatal Bushing-800 7030 | Bimatal Bushing-800 7040 | Bimatal Bushing-800 7050 | Bimatal Bushing-800 7060 | Bimatal Bushing-800 7080 | |||||||
| 75 | 80 | 75 -0.046 |
+0.030 80 |
9.5 |
Bimatal Bushing-800 7530 | Bimatal Bushing-800 7540 | Bimatal Bushing-800 7550 | Bimatal Bushing-800 7560 | |||||||
| 80 | 85 | 80 -0.046 |
+0.035 85 |
+0.235 +0.080 |
0.281 0.080 |
Bimatal Bushing-800 8040 | Bimatal Bushing-800 8050 | Bimatal Bushing-800 8060 | Bimatal Bushing-800 8080 | ||||||
| 85 | 90 | 85 -0.054 |
+0.035 90 |
0.289 0.080 |
Bimatal Bushing-800 8530 | Bimatal Bushing-800 8550 | Bimatal Bushing-800 8560 | Bimatal Bushing-800 8580 | Bimatal Bushing-800 85100 | ||||||
| 90 | 95 | 90 -0.054 |
+0.035 95 |
Bimatal Bushing-800 9050 | Bimatal Bushing-800 9060 | Bimatal Bushing-800 9080 | Bimatal Bushing-800 90100 | ||||||||
| 95 | 100 | 95 -0.054 |
+0.035 100 |
Bimatal Bushing-800 9560 | Bimatal Bushing-800 9580 | Bimatal Bushing-800 9590 | Bimatal Bushing-800 95100 | ||||||||
| 100 | 105 | 100-0.054 |
+0.035 105 |
Bimatal Bushing-800 10060 | Bimatal Bushing-800 10080 | Bimatal Bushing-800 10090 | Bimatal Bushing-800 100100 | ||||||||
| 105 | 110 | 105-0.054 |
+0.035 110 |
Bimatal Bushing-800 10560 | Bimatal Bushing-800 10580 | Bimatal Bushing-800 105100 | |||||||||
| 110 | 115 | 110-0.054 |
+0.035 115 |
Bimatal Bushing-800 11060 | Bimatal Bushing-800 11080 | Bimatal Bushing-800 110100 | |||||||||
| 115 | 120 | 115-0.054 |
+0.035 120 |
Bimatal Bushing-800 11550 | Bimatal Bushing-800 11580 | ||||||||||
| 120 | 125 | 120-0.054 |
+0.040 125 |
+0.240 +0.080 |
Bimatal Bushing-800 12050 | Bimatal Bushing-800 12060 | Bimatal Bushing-800 120100 | ||||||||
| 125 | 130 | 125-0.063 |
+0.040 130 |
0.303 0.080 |
Bimatal Bushing-800 125100 | ||||||||||
| 130 | 135 | 130-0.063 |
+0.040 135 |
Bimatal Bushing-800 13060 | Bimatal Bushing-800 130100 | ||||||||||
| 135 | 140 | 135-0.063 |
+0.040 140 |
Bimatal Bushing-800 13560 | Bimatal Bushing-800 13580 | ||||||||||
| 140 | 145 | 140-0.063 |
+0.040 145 |
Bimatal Bushing-800 14060 | Bimatal Bushing-800 14080 | Bimatal Bushing-800 140100 | |||||||||
| 150 | 155 | 150-0.063 |
+0.040 155 |
Bimatal Bushing-800 15060 | Bimatal Bushing-800 15080 | Bimatal Bushing-800 150100 | |||||||||
Bimetallic Bearing Application
Its application including balance suspensions of heavy-duty trucks, track roller of bulldozers, auto chassis, etc.
