SAE 1010 Bimetallic Slotted Self Lubricated Bearings

Place of Origin gleitlagerbuchsen china
Brand Name viiplus bimetal bushing
Certification iso 9001
Model Number SAE 1010 bimetal bushing
Minimum Order Quantity According to the size of the product
Price According to the size of the product
Packaging Details Cartons are packed in wooden case
Delivery Time 5-25 works day
Payment Terms L/C, T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SAE 1010+copper Price Can Discuss
Size Customer Transportation Air Sea Train
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

sintered bronze bushing

,

sae 1010 sintered bushing

Leave a Message
Product Description

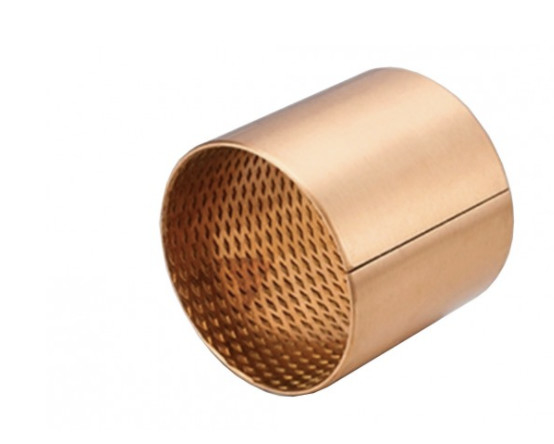

SAE 1010 Bimetallic Slotted Self-Lubricated Bearings are a type of specialized bearing designed for applications requiring high load-bearing capacity, durability, and self-lubrication properties. These bearings are composed of two distinct metal layers, typically a softer bearing alloy bonded to a harder steel backing. The combination of these materials provides optimal performance in demanding environments.

The SAE 1010 material, often used in the bearing alloy layer, is a carbon steel grade with good machinability and weldability. It is chosen for its strength and ductility, which contribute to the overall performance of the bearing.

The key feature of bimetallic slotted self-lubricated bearings is the inclusion of oil-filled slots or pores within the bearing alloy layer. These slots allow for the storage and gradual release of lubricant, ensuring continuous lubrication between the bearing and the mating surface. This self-lubrication capability significantly reduces friction and wear, extending the service life of the bearing.

In addition to the self-lubrication properties, bimetallic bearings offer several other advantages. The harder steel backing provides excellent support and resistance to deformation, while the softer bearing alloy layer ensures smooth operation and good conformability to the mating surface. The combination of these materials results in a bearing that can handle high loads and impact forces while maintaining low friction and wear.

Overall, SAE 1010 bimetallic slotted self-lubricated bearings are an excellent choice for applications requiring high performance and durability in demanding environments. Their unique design and material composition make them ideal for use in a wide range of industries, including automotive, construction, and heavy machinery.



VIIPLUS offers basically the same bearing characteristics:


but is capable of even higher loadsand offers an economic solution to many bearing problemsBimetal bushings application for Water turbines, injection moulding machinery, packing machinery, printing machines, construction equipment, shut-off valves, tire moulds and many more.



Schematic diagram of bimetal bearing interior













Structure



1. Low-friction surface film

2. Bearing layer (bronze)

3. Solid lubricant (graphite)

4. Steel backing



Bimetallic bearing is briefly introduced

Bimetal sliding bearings are made from bronze and steel alloy. The soft bronze inner layer can provide good lubricating performance with oil grease, hard steel back can provide good support on the whole bearing and cut down the cost.
These bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow.



This is a bimetal bearing material in which bronze alloy comprise a two layer structure with a steel backing. This structure, whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation. It can be made from a variety of different materials, depending on the application, use conditions and lubrication.



Sintered SAE797 Layer + Steel Backed + Copper Plating / Tin-Plating(CuPb10Sn10)
Sintered SAE799 Layer + Steel Backed + Copper Plating / Tin-Plating(CuPb24Sn4)
Sintered SAE48 Layer + Steel Backed + Copper Plating / Tin-Plating (CuPb30)
Sintered SAE783 Layer + Steel Backed+ Copper Plating / Tin-Plating (AlSn20Cu)



Bimetal bearing supplier



Bimetallic Self Lubricated Bearings With Lubrication Pockets



Wrapped composite sliding bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets
TECHNICAL DETAILS
Specific load capacity static ≤ 250 [N/mm2] Temperature strain - 40 [°C] to + 250 [°C]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 2.5 [m/s] Max. PV-value 2.8 [N/mm² x m/s]
Friction value 0.04 [µ] to 0.12 [µ] Percentage contact area > 75 [%]
MATERIALS
Support material Steel copper-plated or tin-plated Sliding layer CuPb10Sn10
TOLERANCE DETAILS
Housing Ø H7 Shaft tolerance f7 to h8
Bushing inner-Ø after mounting H9
SHAFT MATERIAL
Steel, hardened or untempered
Surface roughness ≤ Ra 0.8
PROPERTIES
For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
RANGE OF APPLICATION
Track rollers, construction machines, crane construction, agricultural machines (impact loading)
MAINTENANCE
It is a low-maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory.
MOUNTING ADVISE
Housing Mounting bevel min. 1.5 mm x 15-45°
Shaft Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.
Gluing Adhesive should not contact the sliding surface!



Types of Oil Grooves for bimetal bushings



bimetal bushing oil tank oil holes

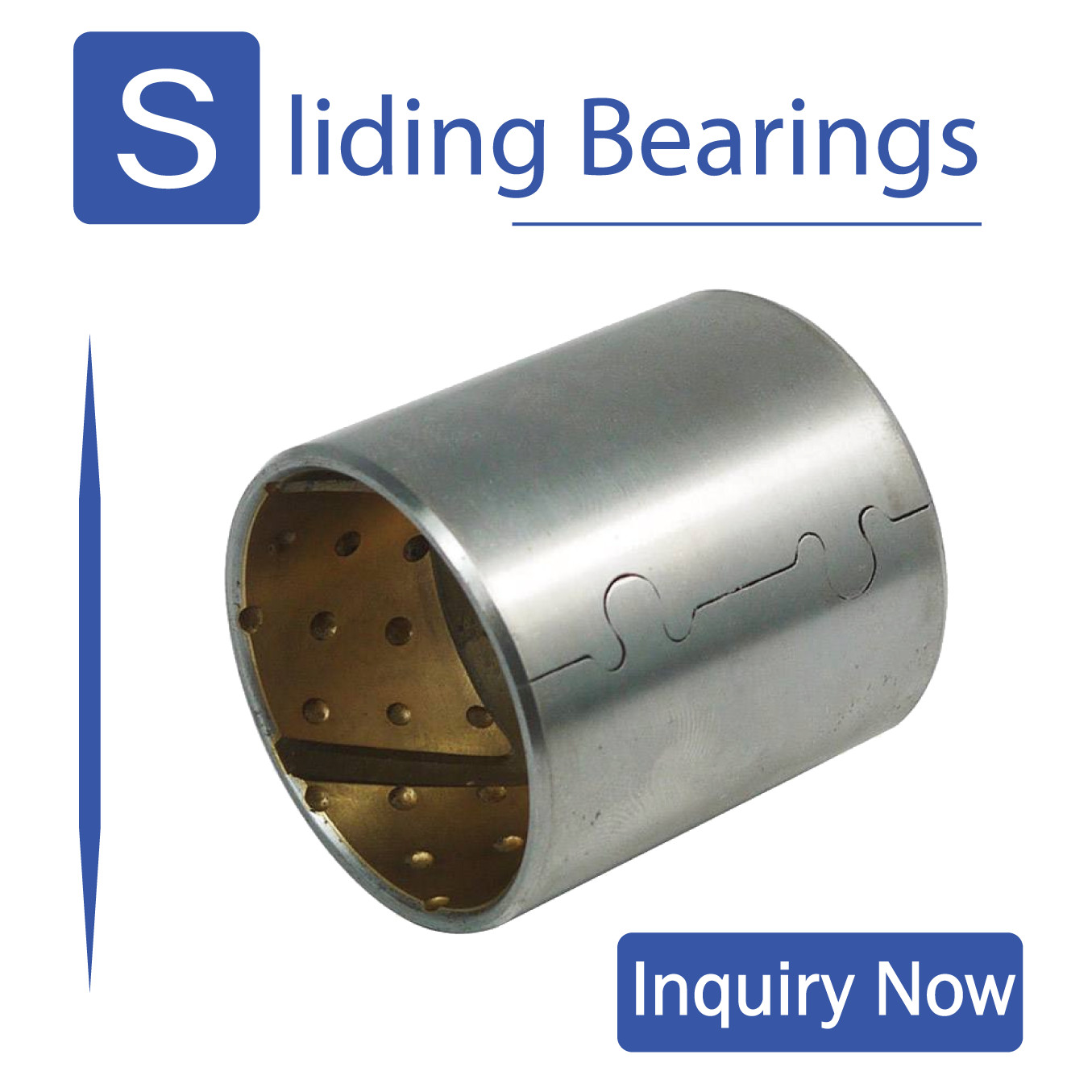

Types of Butt Jionts for bimetal bushings (Slit & Clinch)



Bimetal Bearings Bushings Buckle Form



Bushing Company, Sintered SAE-799 CuPb24Sn4 bimetal bushing Supplier.Working tog to create solutions for the most demanding BIMETAL applications.Need Help Finding the Right Bimetal Bushing Products?Our Plain Bearings Parts Experts Can Help. Call for immediate assistance.Ask for a qoute for material Steel+CuPb10Sn10,Steel+CuPb24Sn4,Steel+CuPb24Sn,Steel+CuPb30,Steel+CuPb10Sn10+GRAPHITE.

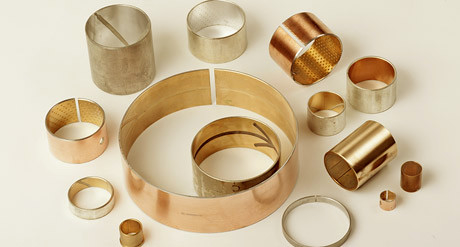

This Bi-metal Bushing can be manufactured in various type or customized.



-Thrust or Bearing Plates Type of bearing structure
-Flanged Bushing
-Welded Joint Bushing
-Split Joint Bushing
-Clench Lock Bushing
-Specialized machined features









bimetal bushing buckle
