Oil Free Slide 20mm Self Lube Wear Plates, china supply, Graphite Plug Oilless Copper Slide Plate

Oil Free Slide 20mm Self Lube Wear Plates, china supply, Graphite Plug Oilless Copper Slide Plate

Brand Name: bronzelube.com
Model Number: Wear Plates - SelfLube Mold and Die Products
MOQ: Bronze Precision Wear Plates & Lubricating Parts made to order
Price: US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: Self Lube Bearing Manufacturing Dimensions Tolerance Assembly
Detail Information
Place of Origin:
Self Lube Wear Plate Made in china
Certification:
industry standards (VDI, JIS, NAAMS, SMC).
Bearings:
Slide Plate Continuous Casting
Type:
Solid Lubricating Bearings, Thrust Bearing Washer
Quality:
Wear Plates - SelfLube Mold And Die Products
Uses:
Metal Stamping Dies,plastic Molding,molds, Special Machines And Heavy Equipment
Production Feature:
Casting Bronze Wear Plate Parts
Material:
Copper Alloy+Special Solid Lubricant, With Or Without Self-lubricating Graphite.
Size:
Wear Plates Come In A Broad Range Of Standard Inch And Metric Sizes
Custom Configurations For Special Sizes:
Hole Patterns Or Graphite Patterns.
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Bronze Wear Plates , Self Lubricating - Special Brass Alloy
Self Lubricating Graphite Plugged Bronze Plate:
Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
Cartons with good information lable
Supply Ability:
Self Lube Bearing Manufacturing Dimensions Tolerance Assembly
Highlight:

20mm slide plates

,

CuSn6Zn6Pb3 Bronze Slide Bearing Plates

Product Description

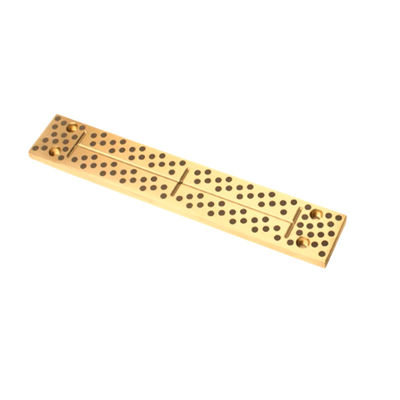

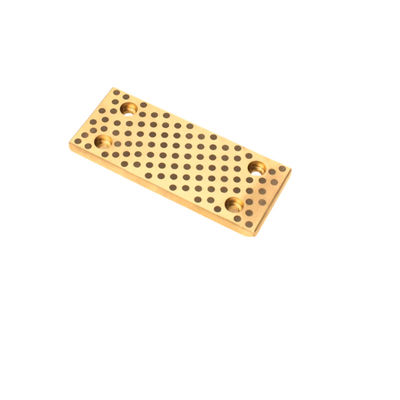

These oil-free, self-lubricating wear plates with a thickness of 20mm are designed to provide superior wear resistance without the need for external lubrication. Made from graphite-plugged copper, they are ideal for applications where oil or grease lubrication is not feasible or desired. The China-supplied plates are known for their durability, reliability, and cost-effectiveness. The graphite plugs enhance the self-lubricating properties of the copper, allowing for smooth and efficient operation with minimal wear.


Oil-Free Slide Plate (Thickness 20mm 10mm 5mm) High Strength Brass / Copper Alloy + Solid Lubricant


Material : #500SP
Oil-Free Slide Plate for universal use in many dry applications such as die/mold, machinery, automation, construction, automobile. Oil-Free is self-lubrication and work without grease.


Standard Components


Standard parts for automation machinery


Slide Plates


Oil-Free plain bearing slide plates brass, sintered, and other materials
Shop from bronzegleitlager.com for all your Oil-free Slide Plates Type·2 Bolt Holes / 3 Bolt Holes / 4 Bolt Holes and Guide Components needs from China. We offer free CAD download, short lead times, competitive pricing, and small minimum order.
Guide to oil-free slide plates. bronze lube oil-free components are produced by embedding a special solid lubricant at appropriate locations.



Oil-Free Slide Plates - Oil-free Slide Plates With Lubricating Holes


Copper alloy+Special solid lubricant



(High Strength Brass / Copper Alloy + Solid Lubricant)



Composition and properties
  dg DIN Material
No.
delivery form1)
Designation ASTM standard Proportional weights Physical properties (min.)
          Standard Alloy
No.
DIN ASTM Density 0.2%
Strain
Tensile
strength
Strain Emodulus Hardness Application
Symbol                 ρ δy δT
Unit             % % g/cm³ MPa MPa % MPa HB
  01 1705 2.1090.01 CuSn7ZnPb B 584 C932 00 Cu 81 - 85
Sn 6 - 8
Zn 3 - 5
Pb 5 - 7
permissible
max. portions
Ni 2.0
Sb 0.3
Cu 81 - 85
Sn 6.3 - 7.5
Zn 2 - 4
Pb 6 - 8
Ni 1
Sb 0.35
8.8 120 240 15 106.000 65 Standard
material for the
most applications
international
standardized
2.1090.03 CuSn7ZnPb B 271 C932 00 8.8 130 270 13 106.000 75
2.1090.04 CuSn7ZnPb B 505 C932 00 8.8 120 270 16 106.000 70
02 1705 2.1061.01 CuSn12Pb not yet standardized Cu 84 - 87
Sn 11 - 13
Pb 1 - 2
permissible Ni 0.8 - 1.5
max. portions
Ni 2.0
Sb 0.2
P 0.2
Cu 85 - 88
Sn 10 - 12
Pb 1 - 1.5
8.7 140 260 10 112.000 80 Material for high
loads and/or
corrosion stress
attack international
only partially
standardized
2.1061.03 CuSn12Pb not yet standardized 8.7 150 280 5 112.000 90
2.1061.04 CuSn12Pb B 505 C925 00 8.7 140 280 7 112.000 85
03 1714 2.0975.01 CuAl10Ni B 584 C955 00 C u min. 75
Al 8.5 - 11.0
Ni 4.0 - 6.5
Fe 3.5 - 5.5
permissible
max. portions
Mn 3.3
Cu min. 78
Al 10 - 11.5
Ni 3 - 5.5
Fe 3 - 5
Mn max. 3.5
7.6 270 600 12 122.000 140 Material for
extreme loads
and/or high
corrosive
environments
international
standardized
2.0975.02 CuAl10Ni B 30 C955 00 7.6 300 600 14 122.000 150
2.0975.03 CuAl10Ni B 271 C955 00 7.6 300 700 13 122.000 160
2.0975.04 CuAl10Ni B 505 C955 00 7.6 300 700 13 122.000 160
04 1709 2.0598.01 CuZn25Al5 B584 C863 00 Cu 60 - 67
Al 3 - 7
Fe 1.5 - 4
Mn 2.5 - 5
Zn rest
permissible
max. portions
Ni max. 3
Cu 60 - 66
Al 5 - 7.5
Fe 2 - 4
Mn 2.5 - 5
Zn 22 - 28
Ni max. 1
8.2 450 750 8 115.000 180 Material for
highest loads
without
corrosive attack.
international
partially
standardized to
a large extend
2.0598.02 CuZn25Al5 B 30 C863 00 8.2 480 750 8 115.000 180
2.0598.03 CuZn25Al5 B 271 C863 00 8.2 480 750 5 115.000 190
05 1705 2.1052.01 CuSn12 not yet standardized Cu 84 - 88
Sn 11 - 13
Pb 1
Ni 2.0
Sb 0.2
P 0.2
Cu 85 - 88
Sn 10 - 12
Pb 1 - 1.5
Ni 0.8 - 1.5
8.6 140 260 12 110.000 80 Material with
good wear resis-
tance. corrosion
and seawater
resistant
international
partially
standardized
2.1052.03 CuSn12 not yet standardized 8.6 150 280 8 110.000 90
2.1052.04 CuSn12 not yet standardized 8.7 140 280 8 110.000 95
  1 ) delivery form: .01 = sand casting. .02 = gravity casting. .03 = centrifugal casting. .04 = continuous casting



Technical data



Base material CuSn6Zn6Pb3 Maximum use temperature ℃ 350
Extreme dynamic load N/mm² 60
Coefficient of friction u <0.15 Maximum sliding speed m/s 2
Basic hardness HB 80~100




Alloy



Model / corresponding grade JDB-1 JDB-2 JDB-3 JDB-4 JDB-5
JDB-2 JDB-22 JDB-23
International brand GB1776-87 ZCuZn25
Al6Fe3Mn3
ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 Steel+ ZCuSn6Zn6Pb3 HT250 GCr15
International ISO1338 GCuZn25
Al6Fe3Mn3
GCuSn6Zn6Pb3 GCuAl10Fe3 - Steel+ CuSn6Zn6Pb3
Fe3Ni5
- B1
Germany DIN G-CuZn25
Al5
GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 Steel+ CuSn6Zn6Pb3Ni - 100Cr6
Japan JIS HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2
United States ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100
British standard(BS) HTB2 LG2 AB1 PB4 LG2 - -



Material composition and performance table



Material code JDB (600#) JDB (600#S1) JDB (600#S2) JDB (600#S3) JDB (600#S4) JDB (HT250) JDB (Gcr15)
Chemical composition CuZn25Al5Mn3Fe3 CuZn25Al5Mn3Fe3 CuAl9Fe4Ni4Mn2 CuSn5Pb5Zn5 CuSn12 HT250 Gcr15
Density(g/cm³) 8.0 8.0 8.5 8.9 9.05 7.3 7.8
Hardness (HB) >210 >250 >150 >70 >80 >190 HRC>58
Tensile strength (N/mm²) >750 >800 >800 >200 >260 >250 >1500
Elongation (%) >12 >8 >15 >10 >8 >5 >15
Linear expansion coefficient 1.9 1.9 1.9 1.8 1.8 1.0 1.1
Operating temperature(℃) -40~+300 -40~+150 -40~+400 -40~+400 -40~+400 -40~+400 -40~+400
Maximum dynamic load(N/mm²) 100 120 150 60 70 80 200
Maximum line speed(m/min) 15 15 20 10 10 8 5
Maximum PV value Lubricating
(N/mm²*m/min)
200 200 60 60 80 40 150
Permanent compression deformation
300N/mm²
<0.01 <0.005 <0.04 <0.05 <0.05 <0.015 <0.002


Self Lubricating Bronze Wear Plate, bronze slide plates, slide plates, Oil-free slide plates.
Many of the fully machined bronze Oil-free slide plates with copper alloys wear plates that we manufacture are self-lubricating. This is achieved by a process of plugging the bronze plate with plugs of graphite. We offer a full line of plug graphite bearings. More information on our graphite plugged parts can be found here.


Wear Plates - SelfLube Mold and Die Products, plugged graphite bronze Oil free slide plates with copper alloys wear plates are available in a broader range of sizes.


custom configurations for special sizes, hole patterns, or graphite patterns.made in china. Cast Bronze Wear Plate Oil-free slide plates with copper alloys
Our Cast Bronze Wear Plate is produced by a method known as continuous casting. The fine grain structure obtained through continuous casting virtually eliminates casting defects associated with static casting methods. This dense structure is free from porosity which in turn prolongs the life of your tooling.
Solid lubricating plate
Metal-based self-lubricating bearing
Dawn provides high-quality self-lubricating products for all industries worldwide


Alloys


Our cast bronze wear plates Oil-free slide plates with copper alloys can be supplied in the following bronze alloys:

• C95400Manganese Bronze: C954 Manganese Bronze Bus...

• C93200Manganese Bronze : C932 Manganese Bronze bea...

• C86300 Manganese Bronze: C863 Manganese Bronze gr...


Oil Free Slide Plate (20mm)
