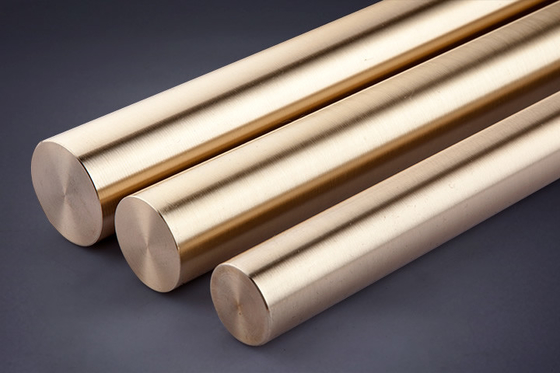

Machined Bushings C93200 Rg7 Tin Bronze Bronze Gleitlager Raw Material

  • Machined Bushings C93200 Rg7 Tin Bronze Bronze Gleitlager Raw Material
  • Machined Bushings C93200 Rg7 Tin Bronze Bronze Gleitlager Raw Material
Place of Origin gleitlagerbuchsen china
Brand Name viiplus Bearing raw material
Certification ASTM B 505/B505M
Model Number C93200(RG7) Lead tin bronze
Minimum Order Quantity A minimum of/25kg
Price discuss
Packaging Details Wooden play box
Delivery Time 5-25 works day
Payment Terms T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material C93200 RG7 Choose Shape Billet/billet, Hexagonal, Sheet
Features High Lead And High Abrasion Resistance Item CuSn7Zn4Pb7 Bronze Bushing
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

C93200 Raw Material

,

bronze bearing Raw Material
Leave a Message
Product Description

Machined Bushings made from C93200 (RG7) Tin Bronze are commonly used as Gleitlager (sliding bearing) raw material due to their exceptional properties. This alloy, which is also known as SAE660 RG7, is a lead-tin bronze that is widely recognized as a "standard" bearing material.

C93200 RG7 Tin Bronze exhibits high strength and hardness, making it suitable for applications that require bearing bushings to withstand heavy loads and complex stress conditions. It also demonstrates excellent corrosion resistance, able to maintain its integrity in various acidic, alkaline, and saline environments.

The machining process allows for precise shaping and finishing of the bushings, ensuring a smooth and consistent surface for optimal sliding performance. The alloy's good casting and processing properties further contribute to the manufacturing of bushings with superior mechanical properties.

In summary, C93200 RG7 Tin Bronze is an excellent choice as Gleitlager raw material for machined bushings, offering high strength, hardness, corrosion resistance, and superior machinability.



C93200(RG7)Bearing raw material supply,Tin bronze raw materials can be used in auto parts, bearings and other fields



Composition (standard values) Sn 7 % Pb 7 % Zn 4 % Cu balance

RG7(C86300) bearing raw materials, lead tin bronze raw materials

Continuously cast OD up to 200 mm




CuSn7Zn4Pb7(GB/T 1176-1987)= G-CuSn 7 ZnPb(DIN)=C93200(SAE660 RG7)Chemical composition quality/%
Cu Sn Al Fe Mn Ni Pb Si P Zn
81.0-85.0 6.3-7.5 0.01 0.2 - 1 6.0-8.0 0.01 1.5 2.0-4.0



Note: The raw material contains lead, which has a high content and is likely to pollute the environment. Please use it according to the actual situation



RG7(C86300) bearing raw materials, lead tin bronze raw materials Mechanical Properties



Tensile Strength,  Yield Strength, at 0.5% Extension Under Load,  Elongation, in 2 in. or 50 mm min Brinell Hardness (500 kg load) Remarks
ksi MPa ksi MPa % typical BHN
35 241 20 138 10 65





RG7(C86300) raw materials Physical Properties



  USA Customary Metric
material Melting Point - Liquidus 1730 °F 976 °C
material Melting Point - Solidus 1570 °F 854 °C
Density 0.322 lb/in3 at 68 °F 8.91 gm/cm3 at 20 °C
Specific Gravity 8.91 8.91
Electrical Conductivity 12% IACS at 68 °F 0.07 MegaSiemens/cm at 20 °C
Thermal Conductivity 33.6 Btu/sq ft/ft hr/°F at 68 °F 58.2 W/m at 20 °C
Coefficient of Thermal Expansion 68-212 10 · 10-6 per °F (68-212 °F) 17.3 · 10-6 per °C (20-100 °C)
Specific Heat Capacity 0.09 Btu/lb/°F at 68 °F 377.1 J/kg at 20 °C
Modulus of Elasticity in Tension 14500 ksi 100000 MPa





RG7(C86300) raw materials Bearing raw material application field







  • The materials used to The hydraulic system

    Hydraulic

    Used in the manufacture of hydraulic valves, stem, gear pumps, vane pumps, piston pumps, oil cylinders and so on

  • RG7 materials are used to make cars

    The Car

    Automobile: Turbocharger, engine, automobile air conditioning compressor, vehicle bridge

  • RG7 materials are used in basic industries



    Basic industries



    Basic industry: bearing retainer, bearing bush, bolt, nut, washer, worm wheel

  • RG7 materials are used in ships



    The shope



    Ship: propeller, propeller cap, worm wheel, Marine copper flange, copper shaft rod, copper sleeve

  • RG7 materials are used in construction machinery



    Engineering machinery



    Construction machinery: rock drilling nuts, copper sleeve drill shank, wear-resistant sleeve moving parts

  • RG7 materials are used for railway transportation



    The railway



    Railway: conductor bar, line guide, brake valve



RG7(C86300) raw materials Product size selection



Product description: lead tin bronze

Pipe :25.4 to 406.4mm outside diameter

Rectangle: Maximum 508mm

Standard length :381mm

Shape/form: semi-finished product, coarse or nearly clean, anode, bar, billet/flower, square, hexagonal, plate, profile or

Structural type, flat/elongated

  •
  •
  •
