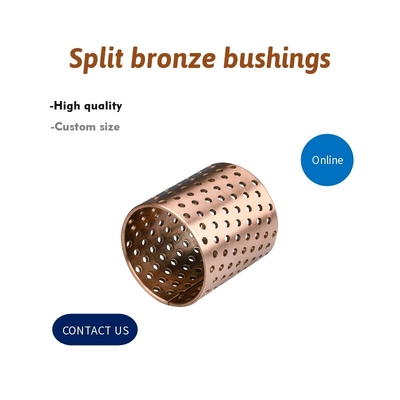

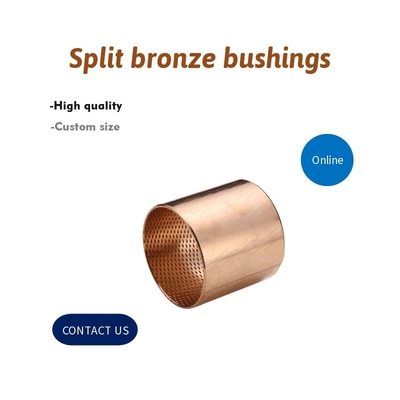

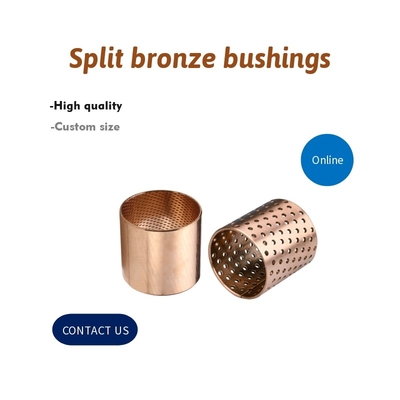

Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush

  • Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush
  • Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush
  • Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush
  • Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush
  • Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush
Place of Origin Made in China
Brand Name VIIPLUS
Certification ISO 9001
Model Number bushings
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability 7000000 Piece/Pieces One week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand VIIPLUS Material Bronze
Type Sleeve Size Customized Size
Product Name Split Bronze Bushings Quality High Quality
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

wrapped bronze bushings

,

graphite sleeve bearings
Leave a Message
Product Description

Diamond oil and spherical oil split bronze sleeve bushings are precision-engineered components designed for superior performance in various industrial applications. These bushings are self-lubricating, reducing friction and wear while ensuring smooth and efficient operation.

The diamond oil grooves integrated into the bushing's surface provide a continuous supply of lubrication to the contact areas, ensuring optimal lubrication and reduced wear. Similarly, the spherical oil grooves enhance lubrication further, ensuring a more uniform distribution of oil and minimizing friction.

The split bronze sleeve design allows for easy installation and removal, reducing maintenance time and effort. The high-quality bronze material used in the bushings offers excellent wear resistance, corrosion resistance, and mechanical strength, ensuring reliable and long-lasting performance.

Wh used in heavy machinery, motor vehicles, or other industrial systems, these diamond oil and spherical oil split bronze sleeve bushings offer a cost-effective and maintenance-friendly solution for reducing friction and wear. Their self-lubricating design and precision manufacturing ensure optimal performance in various applications.





Diamond Oil & Sphercial Oil Split Bronze Sleeve Bushings , Self Lubricating Bush





Check Out Our Inventory. Stock Bronze Parts China Factory Directly Price. Order Online Today. Stock Size Ship Today. Types: Tin Bronze CuSn8 Standard Material, Metric Bushings, Oil-Less Type Bushing, Split Bronze Bushings, Dia,ond Oil Indentations/Holes



Wrapped Bronze Bushings.pdf

Diamond Oil & Sphercial Oil High Quality Bronze Material Split Bronze Sleeve Bushings gleitlagerbuchsen made in china

A Professional Manufacturer of bronze plain bearings and wear plates

Search High Quality FB090 FB092 Bronze bushing Manufacturing and Exporting supplier from china: https://www.viiplus.com

Bronze wrapped Bushing E90F/E92F Flange Bronze Bushing made to order standard size from china.

Dry Bushing, Prelubricated sliding bearings

090 Split Bronze Bushings, with tin bronze alloy CuSn8 as the material, surface rolling diamond oil hole, plays the role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.Widely used in agricultural machinery, construction machinery, construction machinery and other high-load low-speed occasions.Download Download bush bearing catalogue, FB-090 series bronze bushing.pdf.

bronze sleeve bushings



092 Split Bronze Bushings is made of tin-bronze alloy CuSn8. The working surface is evenly arranged with lubrication through holes according to a certain Angle and density. It is easy to form an oil film when starting, so as to reduce the starting friction coefficient.It has good resistance to fatigue, corrosion and wear.This series of bronze bushings are widely used in agricultural machinery, construction machinery, construction machinery and other high-load low-speed occasions.Download bush bearing catalogue,FB092-200100pdf.pdf.



bronze sleeve bushings





Chemical composition



Part No.

Material

Cu

Sn

P

Pb

Zn

090

CuSn8

91.3%

8.5%

0.2%

/

/

092

CuSn8

91.3%

8.5%

0.2%

/

/









Technical Data



Max. Load Capacity





Static Load

N/mm2

120

Dynamic Load

N/mm2

40

Max. Speed





090

m/s

2.0

092

m/s

>2.5

Max. PV Value

N/mm2·m/s

2.8

Tensile Strength

N/mm2·m/s

450

Mpa

N/mm2·m/s

250

Hardness

HB

90-120

Elongation



40%

Coefficient of Friction

μ

0.08~0.25

Operation Temperature Range

℃

-100~200

Thermal Conductivity

W/(m · k)

60

Thermal Conductivity

k-1

15×10-6







Standard oil hole





            090 Oil Indentations Holes                                              092 Oil Indentations Holes







Bronze Bushings Diamond Oil Indentations Holes                                            Oil Indentations Holes

090 bronze bushing size chart
[mm] d D L D1
BRONZE BUSHING-FBB090-2515 25 28 15 35
BRONZE BUSHING-FBB090-2525 25 28 25 35
BRONZE BUSHING-FBB090-3020 30 34 20 45
BRONZE BUSHING-FBB090-3030 30 34 30 45
BRONZE BUSHING-FBB090-3520 35 39 20 50
BRONZE BUSHING-FBB090-3530 35 39 30 50
BRONZE BUSHING-FBB090-4025 40 44 25 55
BRONZE BUSHING-FBB090-4040 40 44 40 55
BRONZE BUSHING-FBB090-4530 45 50 30 60
BRONZE BUSHING-FBB090-4545 45 50 45 60
BRONZE BUSHING-FBB090-4550 45 50 50 60
BRONZE BUSHING-FBB090-5030 50 55 30 65
BRONZE BUSHING-FBB090-5050 50 55 50 65
BRONZE BUSHING-FBB090-5530 55 60 30 70
BRONZE BUSHING-FBB090-5550 55 60 50 70
BRONZE BUSHING-FBB090-6030 60 65 30 75
BRONZE BUSHING-FBB090-6035 60 65 35 75
BRONZE BUSHING-FBB090-6060 60 65 60 75
BRONZE BUSHING-FBB090-6530 65 70 30 80
BRONZE BUSHING-FBB090-6560 65 70 60 80
BRONZE BUSHING-FBB090-7040 70 75 40 85
BRONZE BUSHING-FBB090-7070 70 75 70 85
BRONZE BUSHING-FBB090-7540 75 80 40 90
BRONZE BUSHING-FBB090-7570 75 80 70 90
BRONZE BUSHING-FBB090-8040 80 85 40 100
BRONZE BUSHING-FBB090-8080 80 85 80 100
BRONZE BUSHING-FBB090-9050 90 95 50 110
BRONZE BUSHING-FBB090-9070 90 95 70 110
BRONZE BUSHING-FBB090-9090 90 95 90 110
BRONZE BUSHING-FBB090-10050 100 105 50 120
BRONZE BUSHING-FBB090-10090 100 105 90 120
BRONZE BUSHING-FBB090-11050 110 115 50 130
BRONZE BUSHING-FBB090-11090 110 115 90 130
BRONZE BUSHING-FBB090-12050 120 125 50 140
BRONZE BUSHING-FBB090-12090 120 125 90 140
BRONZE BUSHING-FBB090-13060 130 135 60 155
BRONZE BUSHING-FBB090-13090 130 135 90 155
BRONZE BUSHING-FBB090-14060 140 145 60 165
BRONZE BUSHING-FBB090-14090 140 145 90 165
BRONZE BUSHING-FBB090-15060 150 155 60 180
BRONZE BUSHING-FBB090-15090 150 155 90 180
BRONZE BUSHING-FBB090-16060 160 165 60 190
BRONZE BUSHING-FBB090-16090 160 165 90 190
BRONZE BUSHING-FBB090-17060 170 175 60 200
BRONZE BUSHING-FBB090-17090 170 175 90 200
BRONZE BUSHING-FBB090-18060 180 185 60 215
BRONZE BUSHING-FBB090-18090 180 185 90 215
BRONZE BUSHING-FBB090-19060 190 195 60 225
BRONZE BUSHING-FBB090-19090 190 195 90 225
BRONZE BUSHING-FBB090-20060 200 205 60 235
BRONZE BUSHING-FBB090-20090 200 205 90 235
BRONZE BUSHING-FBB090-22560 225 230 60 260
BRONZE BUSHING-FBB090-22590 225 230 90 260
BRONZE BUSHING-FBB090-25060 250 255 60 290
BRONZE BUSHING-FBB090-25090 250 255 90 290
BRONZE BUSHING-FBB090-26560 265 270 60 305
BRONZE BUSHING-FBB090-26590 265 270 90 305
BRONZE BUSHING-FBB090-28560 285 290 60 325
BRONZE BUSHING-FBB090-28590 285 290 90 325
BRONZE BUSHING-FBB090-30060 300 305 60 340
BRONZE BUSHING-FBB090-30090 300 305 90 340
092 bronze bushing size chart
[mm] d D L D1
BRONZE BUSHING-FBB092-2515 25 28 15 35
BRONZE BUSHING-FBB092-2525 25 28 25 35
BRONZE BUSHING-FBB092-3020 30 34 20 45
BRONZE BUSHING-FBB092-3030 30 34 30 45
BRONZE BUSHING-FBB092-3520 35 39 20 50
BRONZE BUSHING-FBB092-3530 35 39 30 50
BRONZE BUSHING-FBB092-4025 40 44 25 55
BRONZE BUSHING-FBB092-4040 40 44 40 55
BRONZE BUSHING-FBB092-4530 45 50 30 60
BRONZE BUSHING-FBB092-4545 45 50 45 60
BRONZE BUSHING-FBB092-4550 45 50 50 60
BRONZE BUSHING-FBB092-5030 50 55 30 65
BRONZE BUSHING-FBB092-5050 50 55 50 65
BRONZE BUSHING-FBB092-5530 55 60 30 70
BRONZE BUSHING-FBB092-5550 55 60 50 70
BRONZE BUSHING-FBB092-6030 60 65 30 75
BRONZE BUSHING-FBB092-6035 60 65 35 75
BRONZE BUSHING-FBB092-6060 60 65 60 75
BRONZE BUSHING-FBB092-6530 65 70 30 80
BRONZE BUSHING-FBB092-6560 65 70 60 80
BRONZE BUSHING-FBB092-7040 70 75 40 85
BRONZE BUSHING-FBB092-7070 70 75 70 85
BRONZE BUSHING-FBB092-7540 75 80 40 90
BRONZE BUSHING-FBB092-7570 75 80 70 90
BRONZE BUSHING-FBB092-8040 80 85 40 100
BRONZE BUSHING-FBB092-8080 80 85 80 100
BRONZE BUSHING-FBB092-9050 90 95 50 110
BRONZE BUSHING-FBB092-9070 90 95 70 110
BRONZE BUSHING-FBB092-9090 90 95 90 110
BRONZE BUSHING-FBB092-10050 100 105 50 120
BRONZE BUSHING-FBB092-10090 100 105 90 120
BRONZE BUSHING-FBB092-11050 110 115 50 130
BRONZE BUSHING-FBB092-11090 110 115 90 130
BRONZE BUSHING-FBB092-12050 120 125 50 140
BRONZE BUSHING-FBB092-12090 120 125 90 140
BRONZE BUSHING-FBB092-13060 130 135 60 155
BRONZE BUSHING-FBB092-13090 130 135 90 155
BRONZE BUSHING-FBB092-14060 140 145 60 165
BRONZE BUSHING-FBB092-14090 140 145 90 165
BRONZE BUSHING-FBB092-15060 150 155 60 180
BRONZE BUSHING-FBB092-15090 150 155 90 180
BRONZE BUSHING-FBB092-16060 160 165 60 190
BRONZE BUSHING-FBB092-16090 160 165 90 190
BRONZE BUSHING-FBB092-17060 170 175 60 200
BRONZE BUSHING-FBB092-17090 170 175 90 200
BRONZE BUSHING-FBB092-18060 180 185 60 215
BRONZE BUSHING-FBB092-18090 180 185 90 215
BRONZE BUSHING-FBB092-19060 190 195 60 225
BRONZE BUSHING-FBB092-19090 190 195 90 225
BRONZE BUSHING-FBB092-20060 200 205 60 235
BRONZE BUSHING-FBB092-20090 200 205 90 235
BRONZE BUSHING-FBB092-22560 225 230 60 260
BRONZE BUSHING-FBB092-22590 225 230 90 260
BRONZE BUSHING-FBB092-25060 250 255 60 290
BRONZE BUSHING-FBB092-25090 250 255 90 290
BRONZE BUSHING-FBB092-26560 265 270 60 305
BRONZE BUSHING-FBB092-26590 265 270 90 305
BRONZE BUSHING-FBB092-28560 285 290 60 325
BRONZE BUSHING-FBB092-28590 285 290 90 325
BRONZE BUSHING-FBB092-30060 300 305 60 340
BRONZE BUSHING-FBB092-30090 300 305 90 340

E90F E92F Flange Bushing Specification Tolerance



  • Bronze Bushing Housing ØH7
  • Bushing Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8













Feature



090 Split Bronze Bushings are made of entirely bronze CuSn8. Because of material properties, the working surface rolled with diamond Indentations (standard Indentations) or stamped oil grooves according to detailed application. And it also has good Performance of anti-corrosion caused by chemical and environments. During the operation, the grease & oil will be released from the Indentations, which allow for long-term lubrication. Compare with Machined bronze bearings; 090 can offer some advantages including thin wall, lower weight, cheaper cost, high load etc. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.



092 Split Bronze Bushings is deriving from 090; the difference between 090 & 092 is Indentations on working surface, which substituted by Through-holes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.



Advantages



1.Good fatigue resistance

2.High load capacity

3.Corrosion resistance

4.Abrasion resistance







Application



090 has been widely used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry and mining machinery, but also can be made into bearing bush, flanged bushing, thrust gasket and ball bowl and other forms.



092 has been used in conveyors, elevators, rolling machine, leveling machine, such as medium load, low speed occasions.





Viiplus strengthens the self-lubricating bearing with impact resistance, the dust resistance not only solved the lubrication difficulties but also reduced the operating noise and therefore prolonged the service life of the bearing, especially in critical environments such as than mining applications and outdoor operations.

· Backhoe Loader
· Bulldozer
· Undercarriage
· Excavator

application





Cusn6.5 & Cusn8 Tin Copper Bronze Bushing 090 & 092 China Viiplus Bearing Cylindrical & Flanged Inch Size, Find details about China Self-Lubricating bearings supplier

VIIPLUS constantly study new bronze bushings materials and new sliding bearings bronze bushes development

Wb700 Wb702 Wb800 Wb802 Fb090 Fb092 Fb090f Fb092f bronze bushings metal split straight bushing / cusn8 gap bronze bearing / flange bushes ... E90 E92 Copper Sleeve Slide Bearing E90F E92F Flange Bronze Bushing
