Material Steel Sintered Bushing Bronze Powder Or Rolled Aluminium Tin Alloy

Place of Origin China
Brand Name VIIPLUS
Certification ISO9001
Model Number Self-lubricating bearing
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 7-25 work days
Payment Terms T/T, Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing
Product Details
Material Steel Type Bimetal Bushing
Size Metric Size Feature Good Fatigue Strength And Bearing Capacity
Item BOCCOLE BIMETALLICHE BM Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Steel Backed Bronze Bushing, Bimetallic Bushes
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

Bimetal Bearing, BM BIMETAL BUSHES, Factory Direct & Fast Shipping



VIIPLUS is a growing manufacturer of self-lubricating bearings products tailored to meet the needs of various industry requirements with primary focus within the sliding bearings parts oil and gas industry.It is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.



Bimetal Bearing has high performance environmental friendly dual metal bearings are customer-specified products. Bimetal Bearing uses low-carbon steel plate as supporting base and powder metallurgy sintering and rolling processes to form a leadless CuSn8Ni steel-copper alloy product. The materials in this product meet RoHS directory/regulation/rule , under certain circumstances can substitute for JF800 products. Bimetal Bearing has high load bearing capacity and good wear-resistance. Its shortcoming is that it cannot be used without oil lubrication. In places where oil lubrication is sufficient, Bimetal Bearing has superior performance.



Base materoal CuSn8Ni Temperature 200℃
Load capacity 140N/mm² Alloy layer hardness HB90~120





Technical Data



    BM800 BM801 BM700 BM701
Material Steel+CuSn6Zn6Pb3 Steel+CuPb10Sn10 Steel+CuPb30 Steel+CuPb24Sn4
Bronze Hardness HB70-HB100 HB60-HB90 HB30-HB45 HB45-HB70
Max. Load Pressure 150 N/mm2 150 N/mm2 120 N/mm2 130 N/mm2
Max. Linear Speed 4m/s 5m/s 15m/s 10m/s
Max. PV 8 N/mm2 * m/s 10 N/mm2 * m/s 8 N/mm2 * m/s 10 N/mm2 * m/s
Tensile Strength 185 N/mm2 185 N/mm2 200 N/mm2 150 N/mm2



Products Standard: ISO3547 (Replaces DIN1494)

Bimetallic composite bearings to high-quality low-carbon steel substrate, the surface of the sintered copper alloy having a low friction characteristics (CuPb10Sn10, CuPb6Sn6Zn3, CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as bearing wear layer, copper alloy surface may need to use conditions processing various types of sump hole, oil hole, so as to not be suitable for continuous refueling refueling or difficult situations.



Product introduction



Bimetallic Bearingb Bushings :Bimetal series products are based on carbon steel, surface sintered bronze powder or rolled aluminum tin alloy.Oil groove or oil hole can be arranged on the working surface for lubrication when oil is available.Bimetallic Bearing Bushings Can replace the general sliding parts of the copper sleeve.





bimetal bearing bushes,self lubrication bearings



Advantages



Thin wall, light weight, good fatigue strength and bearing capacity



Buckles Form



BIMETAL BEARING BUSHES



Product Buckle Oil Hole Design



In product design,If the recommended oil hole is used, bimetallic bearing bushings can be fully lubricated during use.If there are no special requirements.The same applies.



Bush foreign economic (D) Φ14>D ≤ 22 Φ22>D ≤ 40 Φ40>D ≤ 50 Φ50>D ≤ 100 Φ100>D ≤ 180
Oil hole diameter (mm) 3 4 5 6 7





Oil holes should be located away from joints and loading areas and should be conducive to oil intake.



Technical parameters



Technical parameters bimetallic bearing bushings other bimetallic bearing bushings
bimetallic bearing bushings Product structure Bimetal Bearing Bushes. bimetal bronze bushing
Steel + CuPb10Sn10  Steel + AlSn20Cu
The corresponding code SAE-792(SAE797).
JIS-LBC3.
SAE-783. JIS-AJL.

Clevite F100. GGB-SY. Daido L10.
Federal Mogul HF-2F.

Glyco 66.

Federal Mogul TR-20.
Glyco 74.
Maximum bearing pressure(P) 150N/mm2 100N/mm2
Grease lubrication
Maximum linear velocity( V) 2.5m/s
High PV value 2.8N/mm2 · m/s
Friction coefficient (u) 0.05~0.15
Fluid (oil) lubrication
Maximum linear velocity (V) 10m/s 25m/s
High PV value 10N/mm2 · m/s 6N/mm2 · m/s
Friction coefficient (u) 0.05~0.12 0.06~0.17
The highest temperature
Grease lubrication 150℃ 150℃
Fluid lubrication 250℃ 250℃
Metal hardness 60~100HB 30~40HB

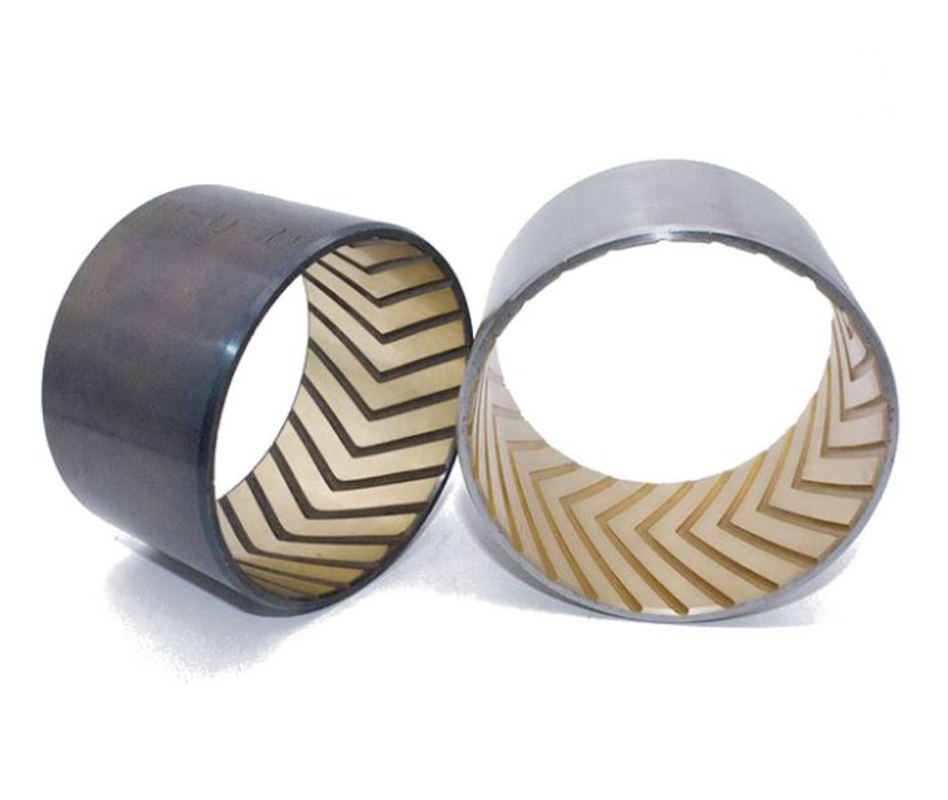

Lubrication design



bimetal bearing bushes



Application



bimetallic bearing bushings
CuPb10Sn10
It has a high fatigue strength, a high load-bearing capacity, a high impact resistance and wear resistance, suitable for medium-high speed applications such as gear box, rocker arm sleeve, main pin, transmission device, common sleeve and so on
bimetallic bearing bushings
CuPb24Sn4
It has high fatigue resistance, load-bearing capacity and impact strength and good surface sliding performance. It is suitable for medium speed and medium load. When the surface is coated with soft alloy, it can be used for high speed internal combustion engine spindle sleeve and connecting rod sleeve.
bimetallic bearing bushings
CuPb30
Has very good sliding performance, good bite resistance.It is a kind of special material, the surface is not suitable for processing oil groove and oil hole, generally need to be plated with soft alloy.It is suitable for high speed, medium and low load internal combustion engine spindle sleeve and connecting rod shaft sleeve. It can also be used for hydraulic pump, automatic gear box, etc.
bimetallic bearing bushings
AlSn20Cu
With moderate fatigue strength and load capacity, good sliding performance, the product is suitable for the bearing bush for high-speed internal combustion engines with low load, air compressor, refrigerator, hypoid gear, hydraulic pump, gear, etc.
