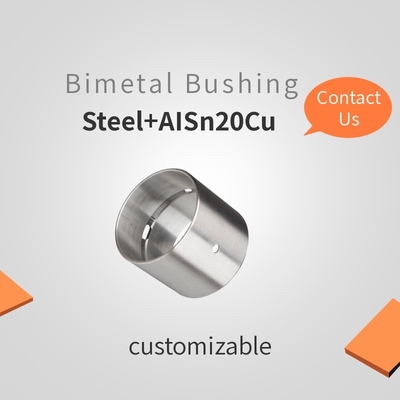

Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating

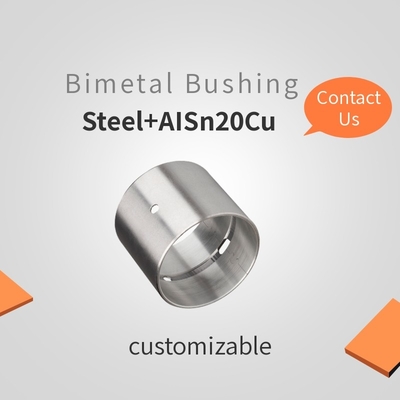

Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating

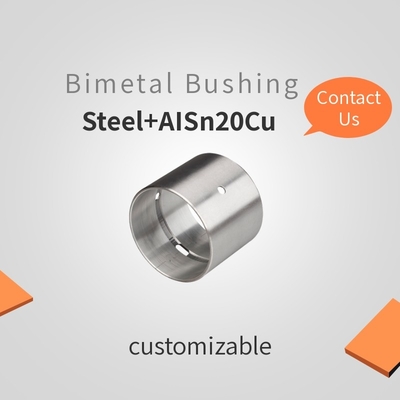

Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating

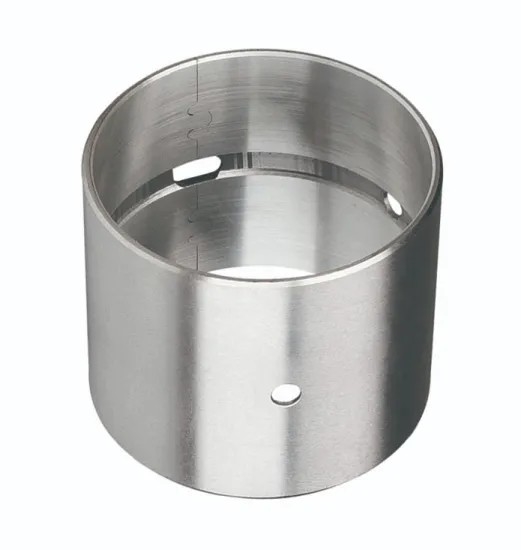

Large Image :  Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating

Product Details:
Place of Origin: Bushing Manufacturer
Brand Name: viiplus
Certification: ISO9001
Model Number: Steel+AISn20Cu
Payment & Shipping Terms:
Minimum Order Quantity: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Bushing Sleeve Price Made in china
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 3 - 15 BUSINESS DAYS
Payment Terms: T/T, Western Union
Supply Ability: casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Steel + AISn20Cu , Bimetal Bearing Bushes , china supplier, high quality, Copper Plating/Tin Plating

Description
Material: Steel+AISn20Cu Type: Sleeve
Size: Customizable Surface Treatment: Copper Plating/Tin Plating
High Light:

bimetal bush

,

bimetal bearings

Bimetal Bushing



VIIPLUS is a professional supplier of self - lubricating bearings, providing the world with high quality self - lubricating products.

Bimetal bearing is made of steel sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer.This type of bushing show its best performance among bushings made of Cu-lead alloy material in this product range.It suits most for middle speed and high impact conditions.Its application including balance suspensions of heavy-duty trucks, track roller of bulldozers,auto chassis etc.



Lead bronze alloy CuPb10Sn10 or CuSn6Zn6Pb3
Load capacity 65N/mm² Harderness alloy HB70~100
Temperature Max 260℃



bimetal bushing



Product Introduction


High tin aluminum bearing, is based on steel matrix, the surface of roller AISn20Cu material products. This product has the secondary fatigue strength and bearing capacity, good corrosion resistance, good sliding properties, etc. This product is used for medium and small power of internal combustion engine bearing shell machine collar axis, the train engine bearings, air, is replacing babbitt novel products.



Technical Data



Maximum dynamic load 90P N/mm² The highest temperature(°C) Grease lubrication 150°C
Maximum linear velocity Grease lubrication —— Fluid lubrication 250°C
High PV value —— Match the diameter of axle hardness HRC ≥270
The coefficient of friction(μ) ——

roughness

Ra

0.16~0.63
Maximum linear velocity Fluid lubrication 15 Alloy layer hardness 30~40
High PV value 8 Coefficient of thermal conductivity 47W/mk
The coefficient of friction(μ) 0.04~0.12 Linear expansion coefficient (axial) 18×10-6/K





Thickness Tolerance Between Inner Hole Machining And Non-machining




Norminal Thiickness

Tolerances of Series B (non-machinable)

Tolerances of Series C (non-machinable)
1.0 -0.025 +0.25
+0.15
2.0 -0.030 +0.25
+0.15
2.5 -0.035 +0.25
+0.15
3.0 -0.040 +0.30
+0.15
3.5 -0.045 +0.30
+0.15
3.5 -0.050 +0.30
+0.15



Application Field


Engineering machinery: end of popular institutions supporting wheel shaft sleeve, towing axle sleeve, tensioning shaft sleeve; Auto industry: the balance shaft lining, steel pin bushing, steering knuckle main shaft sleeve shaw, connecting rod bushings, valve rocker arm shaft sleeve, CAM shaft collar, differential bushings, transmission shaft sleeve, the internal combustion engine spindle watts, thrust washers, And plunger pump side piece, such as piece of gear pump side.



Oil Holes Form



bimetal bushing



Buckles Form



bimetal bushing







Size Customizable
Certification ISO9001, TS16949
Processing methods Cold-extrusion
Operating temperature 150℃(Grease lubrication),250℃(Oil lubrication)
Material Steel+AlSn20Cu
Surface treatment Copper Plating/Tin Plating
Typical Application High speed,heavy load engine main shaft and air compressor ,cooling machine ,etc.





Other Bimetal Boundary Lubrication Bearings



1. It is a steel and copper alloy product with low carbon steel plate as the matrix material and surface sintered CuPb10Sn10 or CuSn6Zn6Pb3 material. The product is a kind of balance bridge bushing and gasket for heavy duty vehicles with the strongest bearing capacity among the double alloy bearings.The slave wheel of a bulldozer;Automotive steel bushing, all used in this product. It is a widely used high - load low - speed sliding bearing.



2. The product is made of CuPb24Sn4 alloy sintered on the surface of a steel plate.The product has good anti-fatigue strength and bearing capacity.Suitable for medium speed medium load.There are occasions for oil sliding.When the surface is plated with soft alloy, it can be used as bearing and connecting rod bushing for high speed internal combustion engine to achieve good wear resistance and fatigue resistance.



3. The product is made of CuPb30 material sintered on the surface with steel plate as the matrix.Due to the high lead content, the product has good bite resistance and foreign body embedding.If the working surface is plated with soft alloy material, it can be used as high speed, medium and low load internal combustion engine spindle, connecting rod bushing, rocker arm bushing;Oil mercury side friction sheet.



4. Lead-free bimetal bearing, is an environmentally friendly bimetal bearing, it is based on low carbon steel plate as the matrix, the surface of the sintered CuSn6.5P0.1 steel copper alloy products.The product has high fatigue strength and bearing capacity, good sliding performance, in many cases can replace the lead bimetal bearing or copper sleeve.
