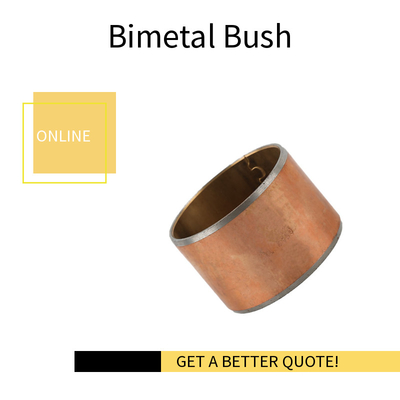

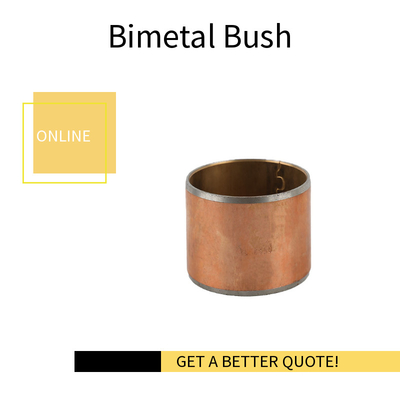

Connecting Rod Bushing Bimetal Bushes

Place of Origin Bimetal Bearing Manufacturers
Brand Name VIIPLUS
Certification ISO 9001
Model Number Bimetal Bushing
Minimum Order Quantity negotiable
Price Negotiable
Delivery Time 7-20 work days
Payment Terms MoneyGram, Western Union, T/T
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
BiMetal Bushings Material Bimetal Bearing,Steel Backed Bronze Bushings Bushing Type Engine Bearings, Bushes And Thrust Washer Manufacturing
Bushing Feature Thin Walled Bearings Copper Steel Backed Alloy CuPb24Sn4,Bimetal
Bushing Design Groove Or Lubricating Holes, Oil Tank, Bimetal Bushing Application Connecting Rod Bushing
Plating Copper Plating / Tin-Plating Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Steel Backed Bronze Bushing, Bimetallic Bushes
Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush


bimetal bearings

Leave a Message
Product Description

Connecting Rod Bushing Bimetal Bushes are a type of bushing specifically designed for use in connecting rods of engines and other mechanical systems. These bushings are made from a bimetal material, which combines two different metals to create a unique combination of properties that enhance their performance and durability.

The bimetal construction offers excellent wear resistance and load-bearing capacity, making these bushings suitable for high-stress and high-temperature environments. They also provide good thermal conductivity, which helps dissipate heat generated during operation, reducing the risk of thermal damage to the connecting rod and other components.

Connecting Rod Bushing Bimetal Bushes are precision-manufactured to ensure a tight and secure fit within the connecting rod. This ensures smooth and reliable operation, minimizing friction and wear while maximizing the efficiency of the engine or mechanical system.

The use of these bushings can significantly extend the lifespan of connecting rods and other components, reducing the need for frequent maintenance and repairs. They are also relatively easy to install and replace, further reducing downtime and operational costs.

If you are looking for a high-quality, durable, and reliable bushing solution for your connecting rods, Connecting Rod Bushing Bimetal Bushes are an excellent choice. Contact us today to learn more about our range of products and how we can help you improve the performance and lifespan of your engine or mechanical system.


Connecting Rod Bush Supply, Bimetal Bearing Bushing Manufacturer Type of Bimetal Alloy Linings


Find here online price details of bimetal bushings which are produced from bimetallic strips with sintered copper-lead-bronze coating and steel as support material.The steel back provides extra strength, while the sintered bronze coating provides a bearing surface which results in reduced friction and wear. Bimetal bushings are widely used for applications with vibrating loads, impacts and friction area.


Types of Oil Pockets for bimetal bushings


Sintered Bimetal Bearings SAE799 Layer + Steel Backed Bushings + Copper Plating / Tin-Plating

Bimetal bearing is a steel-backed bushing plate as the matrix, the surface of sintered CuPb24Sn4 alloy material products. The bimetal bushings have good anti-fatigue strength and bearing capacity. Suitable for medium speed medium load. There are occasions for oil sliding. When the surface is plated with soft alloy, it can be used as bearing and connecting rod bushing for the high-speed internal combustion engines to achieve good wear resistance and fatigue resistance.



Technical parameters


Maximum dynamic load 120P N/mm² MAX Temperature°C Grease lubrication 150°C
Maximum linear velocity Grease lubrication 2.5Vm/s Fluid lubrication 250°C
MAX PV 2.8N/mm². m/s Match the diameter of axle HRC ≥ 48
μ 0.05~0.15 Ra 0.16~0.63
Maximum linear velocity Fluid lubrication 10 Alloy layer hardness 45~70
MAX PV 10 Coefficient of thermal conductivity 60W/mk
μ 0.04~0.12 Linear expansion coefficient (axial) 19×10-6/K


Thickness tolerance between inner hole machining and non-machining for bimetal bearings


Nominal Thickness

Tolerances of Series B (non-machinable)

Tolerances of Series C (non-machinable)
1.0 -0.025 +0.25
2.0 -0.030 +0.25
2.5 -0.035 +0.25
3.0 -0.040 +0.30
3.5 -0.045 +0.30
3.5 -0.050 +0.30

Bimetallic boundary lubricated bearings, engine bearings


Manufacturer of Self Lubricating Bushing - Self Lubricating Graphite Bush, Self Lubricating Bimetal Bushings

We take quality as the core value of the enterprise.


Bimetal Bearing Material


Bimetal composite bearings with high-quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy CuPb24Sn4 as wear-resisting layer of bearing.


Bimetal Bearing Raw material to produce

Bimetal Bearing Design


We can design bimetal bearings according to the operating conditions of copper alloy surface processing of various types of oil tank, oil hole, hole, etc., in order to suit cannot continue to go hard or go occasion. Good bonding strength and optimum bearing capacity can be obtained by secondary sintering and secondary extrusion.


Types of Oil Pockets for bimetal bushings

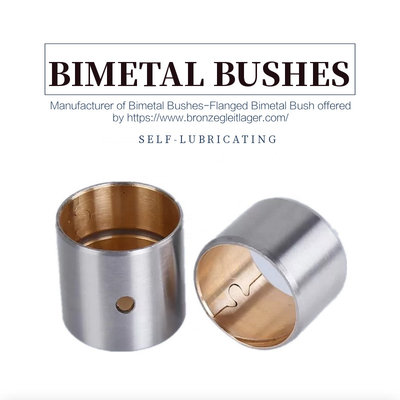

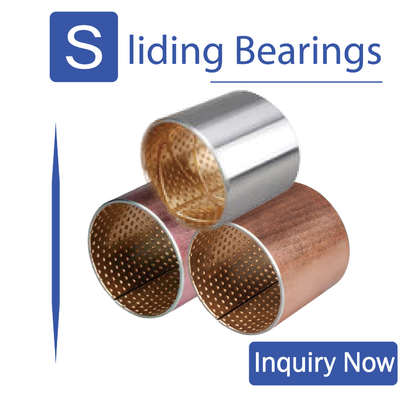

  1. Oil Holes Form
  2. Diamond Form
  3. Smooth (No Oil Pocket)

Types of Oil Grooves for bimetal bushings


bimetal bushing oil tank oil holes

Types of Butt Jionts for bimetal bushings (Slit & Clinch)

Bimetal Bearings Bushings Buckle Form



bimetal bushing buckle
