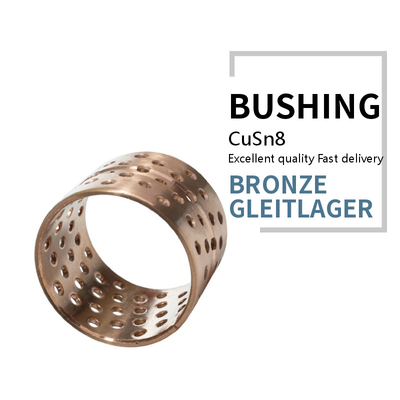

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Large Image :  High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Product Details:
Place of Origin: gleitlagerbuchsen china
Brand Name: REPLACEMENT PLAIN BEARINGS
Certification: DIN 1494 / ISO 3547
Model Number: Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Payment & Shipping Terms:
Minimum Order Quantity: MATE-TO-ORDER CUSTOM BUSHINGS
Price: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time: 3 - 15 BUSINESS DAYS
Payment Terms: T/T
Supply Ability: bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Description
Bushing Material: TIN BRONZE CUSN8 CUSN6 Feature: High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance: High Load Capacity And Long Life Type: Sleeve,Flange,Thrust Washer
Bushings Thinkness: Bushing Thickness Of 1.0,1.5,2.02.5mm. Self-lubricating Bushings: 2015 Plain CuSn8 Bronze Bushing
Application: Agricultural Machinery, Brakes And Certain Construction Machinery. Bushing Size: Special Dimensions And Imperial Sizes Are Available On Request
Model Number:: BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS
High Light:

graphite bronze bushing

,

graphite plugged bronze bushings

Wrapped Bronze Bushing



20 ID 23 OD x 15mm Long, FB092-2015.pdf,Choose from our selection of bronze bushings, including sleeve bearings, flanged sleeve bearings, and more. In stock and ready to ship.Online bronze bushing and bronze bearing catalog.wrapped CuSn8 bronze bush with lubrication holes.Bronze Bearings 2015 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:

BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS Bronze bushing straight F092 ID100 OD105 L50.pdf

Bronze Bushing 20-23-15mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery.Flange Bronze Bushing also can manufacture

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547

092 Bornze Gleitlager CuSn8 Chemical Composition

Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.



WRAPPED BRONZE BUSHING

Bronze Bearing Dimension

Metric / Imperial: Metric (mm)
Internal Diameter: 20mm
Outside Diameter: 23mm
Length: 15mm

Bronze Bearing Tolerance

Length tolerance: Min: 14.75mm Max: 15.25mm
Recommended shaft tolerance: Min: 19.959mm Max: 19.98mm (f7)
Recommended housing tolerance: Min: 23mm Max: 23.021mm (H7)
ID when fitted: Min: 20mm Max: 20.052mm

  •

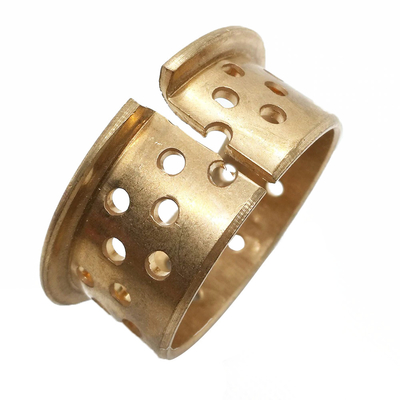

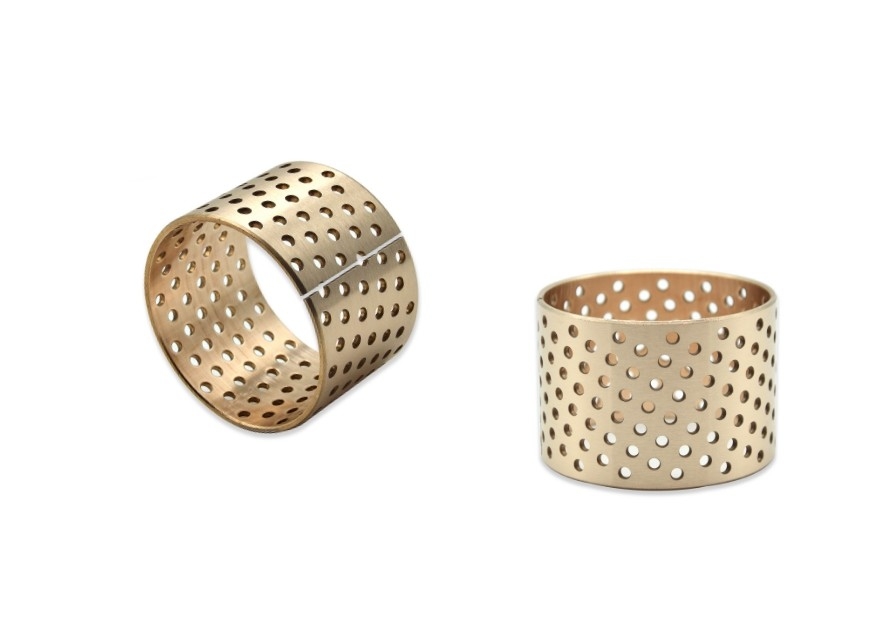

FB092 bronze bushing with holes
Product description:
FB092 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

MATERIALS

  • Support materialCuSn8P (DIN 17662)

  • alternative CuSn6P available



Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

MateialGleitlagerbuchsen

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

RANGE OF APPLICATION

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

cusn8 bronze bushing

Technical Details

  • Specific load capacity static< 120 [N/mm2]

  • Specific load capacity dynamic< 40 [N/mm2]

  • Sliding speed≤ 2.5 [m/s]

  • Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

  • Temperature strain- 40 [°C] to + 250 [°C]

  • Max. PV-value2.8 [N/mm² x m/s]

  • The percentage of contact area on the ID is > 75%
