Stamping Die Bronze Gleitlager Machining Bushings Standard Oilless Duide Elements
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | Met ,PUNCHI,MISUMU Standard |
| Model Number | Stamping Die Standard Part Series |
| Minimum Order Quantity | made to order from china no MOQ |
| Price | china factory prices |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | fast delivery online sale |
| Payment Terms | T/T, Western Union |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Stamping Die Standard Bronze Bearing Graphite,Slide Plates | European And American Standards | MET NAAMS VOESTALPINE DANLY FIBRO LAMINA |
|---|---|---|---|
| Material | Bronze Gleitlager | Quality | High Quality |
| Size | Custom Size | Lubricant | Graphite |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | graphite bronze bushing,bronze plain bearing |
||
Product Description

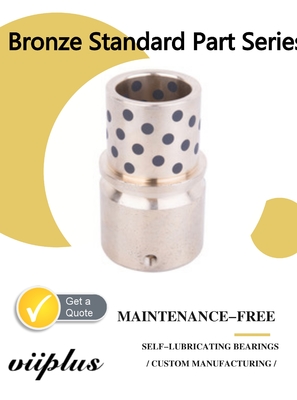

Stamping Die Bronze Gleitlager Bushings, also known as Oilless Guide Elements, are precision-machined components made of bronze Gleitlager material. These bushings are designed to provide a smooth and reliable operation without the need for lubrication, making them ideal for stamping dies and other applications where oil-free operation is crucial. The standard design of these bushings ensures compatibility with various machinery and equipment, while the bronze Gleitlager material offers superior wear resistance and durability.

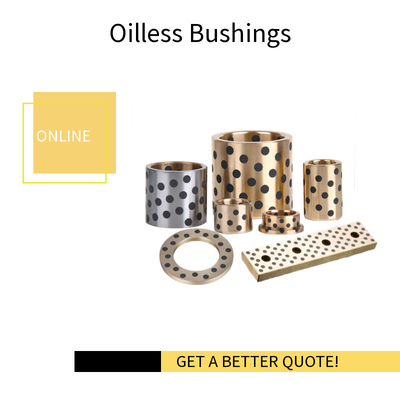

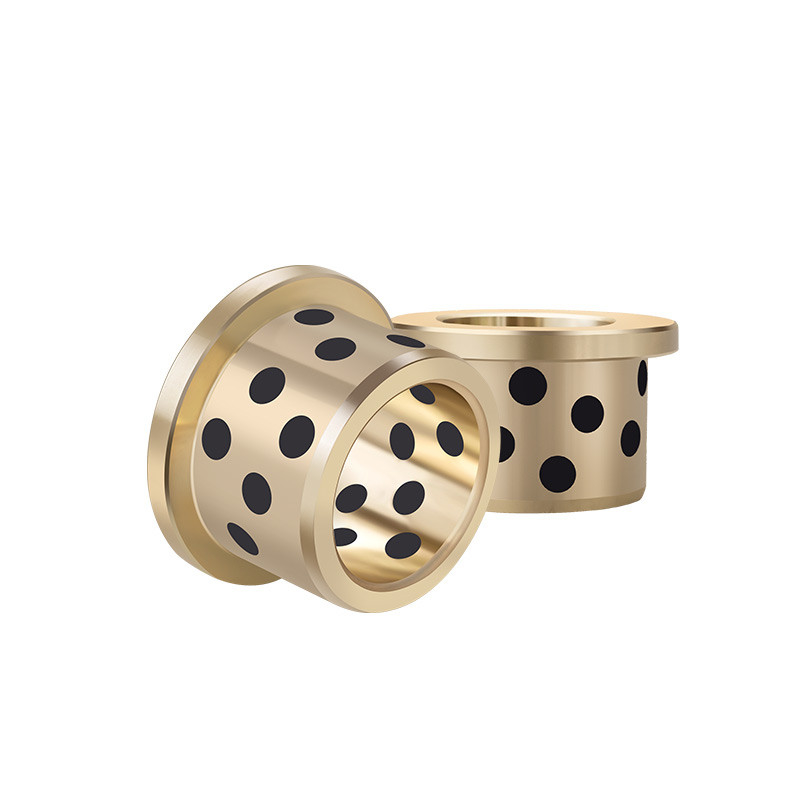

Graphite plugged tin bronze oiles bushing is based on tin bronze material. This type of self-lubricating bearing is also called #500 oilless bushing,brass bearing,cooper bushing,solid sliding bearing,guide bushing and graphite filled bearing.
Bronze Gleitlager
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Stamping Die Bronze Gleitlager Machining Bushings Standard Oilless Duide Elements
Manganese Bronze Bushing Manufacturers,Buy Stamping Die Bronze Bearings Standard Part Series Online,Get A Quote Today!Discovery More Oilless Duide Elements.Met ,Punchi,Misumu Standard & European And American Standards Naams Voestalpine Danly Fibro Lamina.
MACHINING BRONZE BEARING MADE-TO-ORDER FROM CHINA.
A professional automotive mold guide parts, plastic mold guide parts, solid self - lubricating bearings and oil - free self - lubricating bearings enterprises.VIIPLUS has a sound technology research and development system and high-quality production personnel, and constantly introduces advanced technology and automatic assembly line production equipment at home and abroad, in order to pursue better quality and constantly improve product quality.Has become one of the leading manufacturers of standard mould parts and self-lubricating bearings in China.The products have been sold at home and abroad, and have been recognized by international customers.VIIPLUS will continue to work hard, with the "heart to do a good job every product, sincerely treat every customer" as the business philosophy, for the majority of customers and provide
Precision Sliding Bearings Manufacturing
Graphite plugged oiles bushing Technical Data
| Grade | JDB-10 | JDB-20 | JDB-30 | JDB-40 | JDB-50 |
| Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | HT250 | CuSn12 |
| Density | 8 | 8.9 | 7.8 | 7.35 | 8.9 |
| Hardness | ≥210 | ≥70 | ≥150 | ≥160 | ≥75 |
| Tensile strength | ≥750 | ≥250 | ≥500 | ≥150 | ≥270 |
| Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | |
| Elongation | ≥12 | ≥13 | ≥10 | ≥12 | ≥5 |
| Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 0.8×10-5/℃ | 1.8×10-5/℃ |
| Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+150℃ | -40~+400℃ |
| Max.dynamic load | 100 | 60 | 50 | 70 | 70 |
| Max.speed(Dry) | 15 | 10 | 20 | 0.15 | 10 |
| N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 0.8 | 80 |
| Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm |
