C93200 SAE660 Bronze Sleeve Bearing

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve & Bearing
Certification FIBRO Standard
Model Number C86300 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Product Details
Material Aluminum-Bronze With Solid Lubricant C86300 & C95400 Model Number Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Bearings Lubrication Graphite
Application Injection Molding Of Plastics, Pressure Diecast Home > Application Fields > Injection Molding Of Plastics, Pressure Diecast TYPE FLANGED Self Lubricating Flange Bearings In Extra Durable Bronze.
High Light

bronze plain bearing

,

graphite plugged bronze bushings

Leave a Message
Product Description

Oilless Bushing Oilless Metal Sliding Materials

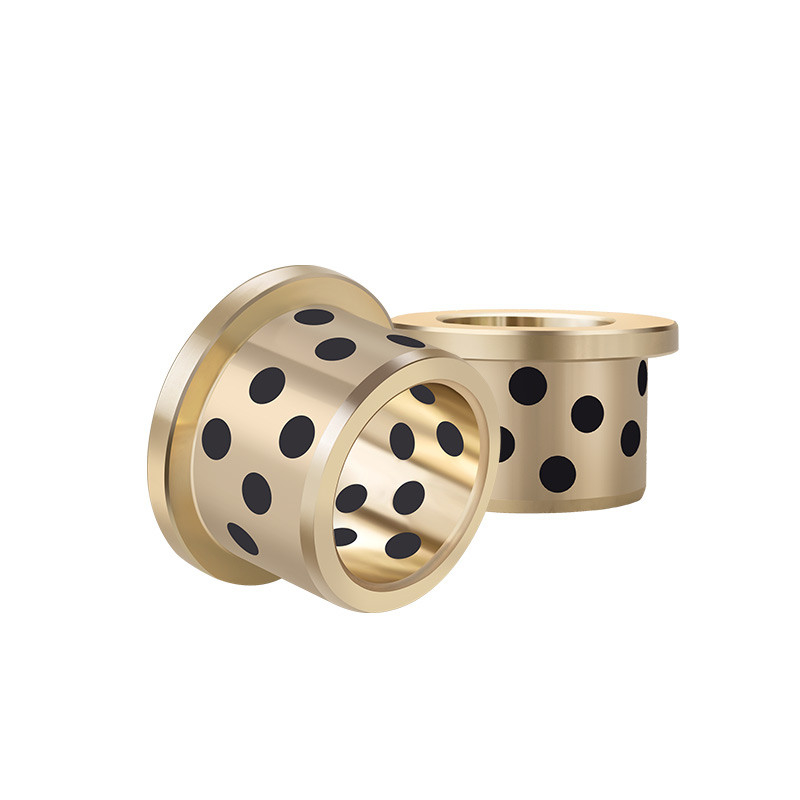

C93200 SAE660 Bronze Sleeve Bearing

High Quality Oilless Bushes With Competitive Price

C93200.pdf

Maintenance-free flange bushing, thin-walled, bronze with solid lubricant. Very wear and dirt-repellent, can be used at high temperatures.



We are leading manufacturer and supplier of Oilless Bush and our product is made up of good quality.



  • Oilless Metal Sliding Materials



C93200 SAE 660 BEARING BRONZE GET A QOUTE

Bronze Shoulder Bushing Choose Your Material / Alloy Graphite Plugged Bronze Bushings / Bearings Extra Durable Bronze Sleeve Flanged Bushes

C86300 - SAE430B Manganese bronze SLEEVE BEARINGS bushings plug graphite or without graphite Cast Bronze bearings / C93200 SAE660 Bronze standard Bushings product sizes in china factory. Every product in our warehouse is available for immediate shipment. We consistently monitor our standard-stocked bushingh inventory options and production processes to ensure that we remain the supplier of choice for our customers.Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.



C93200 (SAE 660) Tin Bronze Bushings inch size is available.

High Leaded Tin Bronze

High speed bearings, pump parts, general utility bearings, bushings & wear plates

C93200 High Leaded Tin Bronze

✔ STANDARD-BRONZE BUSHINGS WITH GRAPHITE SLIDING BEARING



graphite plugged bronze bushing

Cast Bronze Bushings



The lead content in high leaded tin bronze alloys is between 7.00% and 15.00%. These alloys are free cutting and retain favorable thermal conductivity and good lubricity due to the lead content. Alloy C93200, also termed C932, bearing bronze, SAE 660, SAE 660 bronze, and SAE 660 bearing bronze, is considered this family’s workhorse alloy and is widely used in many bearing applications.



Graphite Lubricating Bronze Bushing - Bearing


Cast bronze bushing is based on high strength brass or other material based on your choice, lubricating by oil added in the oil grooves. This type cast bronze sleeve bushing has the same performance with other oiles bearing.but with much higher hardness, twice life time for low speed application compared with tin bronze bushing.



The material C93200 tin bronze copper sleeve mechanical properties and USES With high strength, good sliding friction resistance, excellent cutting performance and good welding performance, in the atmosphere, fresh water has good corrosion resistance.Mainly used in manufacturing aviation,
Parts that bear the brunt of friction in automobile and other industrial sectors, such as cylinder piston pin bushing, bearing and bushing linings, secondary connecting rod bushing, disc and washer, etc.We viiplus international manufactured from a variety of Bronze Alloys, including: C95400 Aluminum Bronze bushings, C93200 graphite Bearing Bronze and C86300 Manganese Bronze bushings.

Graphite Plugged Bushings are a complete line of Self-Lubricating Bushings that excel whenever standard lubrication is impractical, including heavy load, high temperature applications.

graphite plugged bushing

C93200 Bearing Bronze bushings Chemistry

  • C86300 Manganese Bronze bushings

  • C93200 Bearing Bronze bushings

  • C95400 Aluminum Bronze bushings



Cu(1)

Al

Sb

Fe

Pb

Ni(2)

P(3)

Si

S

Sn

Zn

Min./Max.

81.0-85.0

.005

.35

.20

6.0-8.0

1.0

.15

.005

.08

6.3-7.5

1.0-4.0

Nominal

83.0

-

-

-

7.0

-

-

-

-

6.9

2.5



C95400 Aluminum Bronze Bushings Chemistry  (%max., unless shown as range or min.)Gleitlagerbuchsen




Cu

Al

Fe

Mn

Ni(1)

Min./Max.

83.0 min

10.0-11.5

3.0-5.0

.50

1.5

Nominal

83.2

10.8

4.0

-

-



C86300 - Manganese bronze bushings cast Bronze bearings

C86300 Manganese Bronze bushings Chemistry

(%max., unless shown as range or min.)




Cu(1)

Al

Fe

Pb

Mn

Ni(2)

Sn

Zn

Min./Max.

60.0-66.0

5.0-7.5

2.0-4.0

.20

2.5-5.0

1.0

.20

22.0-28.0

Nominal

63.0

6.2

3.0

-

3.7

-

-

25.0



Metallic self-lubricating bearings Standard Components solid self-lubricating bearing materials | VSB-50



Structure Characteristics



BRONZE Gleitlager VIIPLUS Bearing solid self-lubricating bearing materials consist of high strength metal with solid lubricants embedded, the metal hashigh load capacity and solid lubricants provided low friction during the operation, this construction reduces maintenance costfor both bearing and machinery. Based on the above technique theory, we developed BRONZE Gleitlager VIIPLUS Bearing steel shell cast bronze withgraphite plug bearings for economic and impact load application,BRONZE Gleitlager VIIPLUS Bearing steel with graphite plug bearings and BRONZE Gleitlager VIIPLUS Bearing dispersed solid lubrication bearings for lower friction applications.



Material Properties



Allows maintenance-free and long-life operation;
● Suitable for high static and dynamic loads;
● With low and smoothly coefficient of friction and without stick-slip effects;
● Suitable for dirty, corrosion, impact load and edge loading;
● The base material provided a good shock-absorbing capacity;
● Can be used over a large temperature range;
● Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
● With low wear rate and long life service.



Application



Injection molding machine, automotive moulds, hydrocylinder, gear case, gas turbine, water turbine, Crane support...|
According to the different working conditions, different type of alloy can be chosen.

STRUSTURE

VSB-50 material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

TECHNICAL DATA



Performance

Data

emp. Limits



-40~+400℃

Max. Dynamic Load



50N/mm²

Max.speed V



20m/min

Max.PV



60N/mm²*m/min

Besides the standard products displayed in the list of this catalogue, we can also supply non-standard products or develop according to customer design.



 AVAILABILITY

Bushings forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates


Bronze Plug Graphite Bushing Areas Of Use

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...


CUSTOMER CAST BRONZE BUSHINGS WITH OR WITHOUT GRAPHITE SIZE
