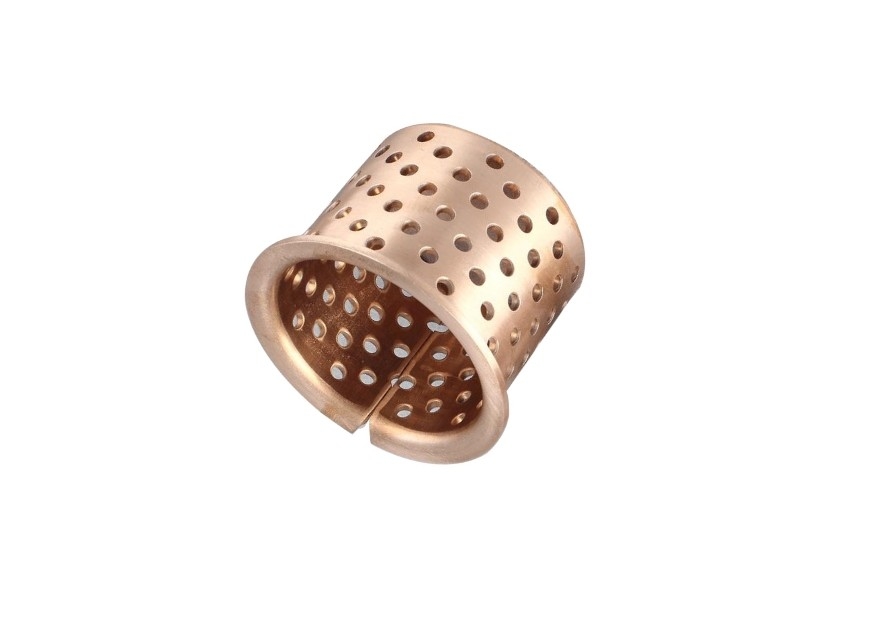

The 180100 metric flanged sleeve bearing, measuring 180-185-100mm and perforated for optimal lubrication and heat dissipation, is a high-quality component designed to meet the demands of various industrial applications. This bearing, compliant with the ISO 3547 standard, ensures precision and reliability in even the most challenging environments.
The flanged design of this bearing provides enhanced stability and support, reducing the risk of misalignment or movement during operation. The perforated surface promotes efficient lubrication, reducing friction and wear, while also allowing for better heat dissipation, ensuring optimal performance even under high loads and temperatures.
The bearing's metric size and dimensions make it a convenient choice for a wide range of machinery and equipment. Whether you're upgrading existing systems or building new ones, this bearing offers a reliable and cost-effective solution for enhancing performance and extending equipment lifespan.
Backed by strict quality control measures and adhering to international standards, the 180100 metric flanged sleeve bearing is a trusted component for industrial applications. Contact us today to learn more about this bearing and how it can improve the efficiency and reliability of your equipment.


Flanged Sleeve Bearings - Bushings & Bearings - Metric & Inch Size

Oil Impregnated Bronze Flanged Bushing, wrapped bronze bearing with through holes

Flange bushings are sleeve type bearings with a “flange” or “shoulder” on one end. The flange serves multiple functions.

Wrapped Bronze Bushing BRONZE WRAPPED BUSHING WITH OIL HOLES.pdf

180 ID 185 OD x 100mm Long wrapped CuSn8 bronze bush with lubrication holes.Contact Us
Special Part Enquiry.Item No. d D L [mm]

Special Offer: Discounts of 15%, 30%, 50% and 55% are available when you order .Bronze Bearings 180100 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:

Bronze Bushing 180-185-100mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery.Flange Bronze Bushing also can manufacture

1. Self lubricating,
2. High speed and high load applications,
3. Can operate at a wide range of temperature ranges,
4. Corrosion resistance,
5. Product range ,flange size available ,Easily customized

Bronze Bushing Mateiral

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547


The bronze bearings,bronze gleitlager are produced from phosphor bronze alloy rolled strip which is hard and has an excellent finish.

The material composition is as follows:

Bronze Bearing Dimension


Metric / Imperial: Metric (mm)
Internal Diameter: 180mm
Outside Diameter: 185mm
Length: 100mm

Bronze Bearing Tolerance


Length tolerance: Min: 99.75mm Max: 100.25mm
Recommended shaft tolerance: Min: 179.917mm Max: 179.957mm (f7)
Recommended housing tolerance: Min: 185mm Max: 185.046mm (H7)
ID when fitted: Min: 180mm Max: 180.155mm



Bronze Wrapped Washers
Bronze Wrapped Bearing Strip
Bronze Wrapped Plain Bearings
Bronze Wrapped Flanged Bearings

Feature:


1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings


The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application


Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances


Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:


It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale


Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing
Please contact our technical sales for more information.

Technical Details

• Specific load capacity static< 120 [N/mm2]

• Specific load capacity dynamic< 40 [N/mm2]

• Sliding speed≤ 2.5 [m/s]

• Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

• Temperature strain- 40 [°C] to + 250 [°C]

• Max. PV-value2.8 [N/mm² x m/s]

• The percentage of contact area on the ID is > 75%
