Steel Copper Plated Or Tin Plated Dry Sliding Bearing Bushings CuPb10Sn10 Material

  • Steel Copper Plated Or Tin Plated Dry Sliding Bearing Bushings CuPb10Sn10 Material
  • Steel Copper Plated Or Tin Plated Dry Sliding Bearing Bushings CuPb10Sn10 Material
  • Steel Copper Plated Or Tin Plated Dry Sliding Bearing Bushings CuPb10Sn10 Material

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Steel Copper-plated Or Tin-plated,CuPb10Sn10 Size Standard Size Available
Type Bushes, Flanged Bushes,Thrust Washer,Special Designs Application Track Rollers, Construction Machines, Crane Construction, Agricultural Machines (impact Loading)
Name Steel Backed Lead Bronze Bimetal Self-lubricating Bearing Bushing Bushing Standard Bimtel Bearing: BM JF600 JF650 JF700 JF720
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze Bushings, Dry Bearing Dry Slide Bushings Bearing The Dry Slide Bushings Trademark Identifies A Whole Range Of Self-lubricated Dry Sliding Bushings And Bearings.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

plain bearing bush

,

bronze flanged sleeve bearings
Leave a Message
Product Description

These steel dry sliding bearing bushings are plated with copper or tin for enhanced wear resistance and lubricity. The CuPb10Sn10 material, which stands for a copper-based alloy containing 10% lead and 10% tin, provides excellent sliding properties and durability, making it suitable for dry sliding applications. The plating further improves the bearing's performance by reducing friction and wear, extending its service life.

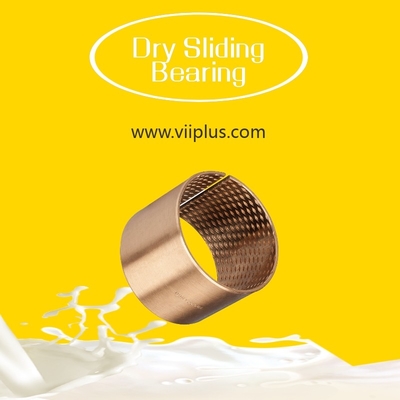

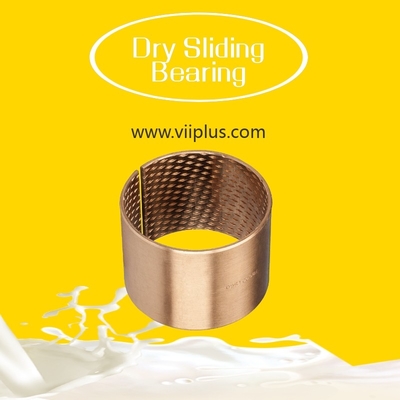

Dry Sliding Bearing

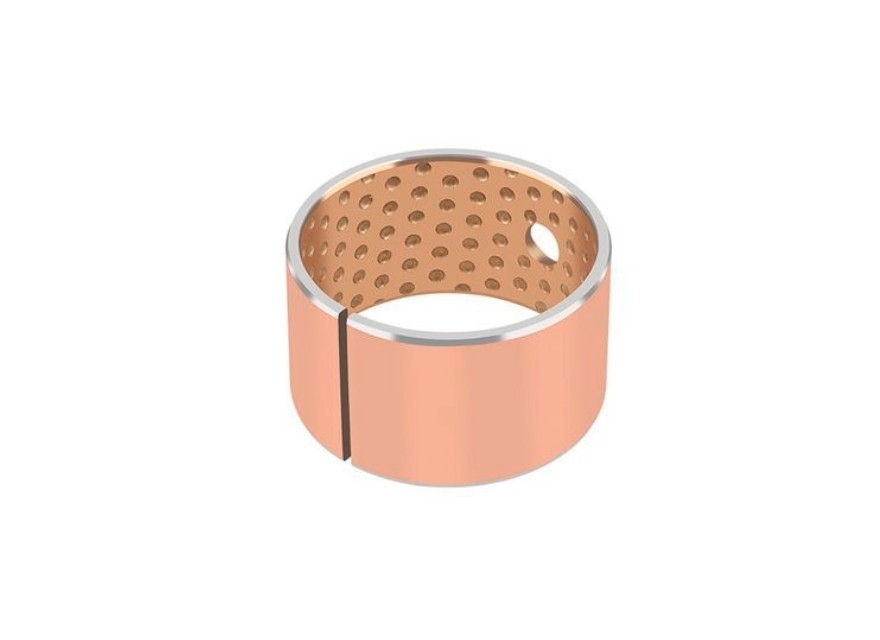

Wrapped composite sliding bearing,Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets.Metal Bushing and Bimetal Bearings is a wrapped bushing material consisting of a steel backing material and a bronze sliding layer.



wrapped bronze bushings



Application


Track rollers, construction machines, crane construction, agricultural machines (impact loading)



Bimetal Bushing Bearings Materials



  • Support materialSteel copper-plated or tin-plated
  • Sliding layerCuPb10Sn10
  •

DIN-G-CuPb10Sn



Pb(%)

Fe(%)

Ni(%)

Zn(%)

Cu(%)

8.0-11.0

≦0.25

≦1.5

≦2.0

78.0-87.0

Other



  • Sn : 9.0-11.0

  • Sb : ≦0.5

  • impurities

  •

Referance of BIMETAL BUSHINGS Material Standard Code

Material

Alloy composition

Alloy hardness

International standard

BI-METAL BUSHINGS

CuPb10Sn10

80~120HB

JIS-LBC3. JIS-LBC3. SAE-797. DIN CuPb10Sn. UNS C93700. CLEVITE F100.

CC495KDAIDO L10. D. A. B. D57. Federal Mogul HF2. Low Friction Bushing SY. GLYCO66. ACL F100

CuPb24Sn4

45~70HB

JIS-LBC6. JIS-LBC6. SAE-799. GLYCO 68. DAIDO L23. Clacie rsx. ACL F250

CuPb6Sn6Zn3

70-100HB

Din17670

CuSn10

70-100HB

Din G-CuSn10 ;BS PB1

CuSn6.5P

70-100HB

DIN CuSn6(2.1020); JIS H3110

AlSn20Cu

30~40HB

JIS-AJL. SAE-783. GLYCO74. Low Friction Bushing AS15. ACL820





Product Type:
dry sliding bearing
Application :
hoisting, mining machinery,
forest machinery, agricultural machinery etc.
Material:
CuSn8P
Density:
8.8g/cm3
Max Dynamic Load:
100N/mm²
Max Linear Velocity(Grease):
2m/s
Max PV Value Grease :
2.8N/mm²·m/s
Pressure Strength
>460N/mm²
Yield Strength N/mm2
>280N/mm2
Hardness:
90-150
Mating Axis
Hardness ≥50, Roughness 0.4-1.0
Working Temperature
-40~+150℃
Friction Coefficient
0.06~0.15
Linear Expansion Coefficient
18.5×10-6/K
coefficient of heat conduction
58W/m·K

In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.



Product Description

BASE MATERIAL HARDNESS TEMPERATURE
RANGE		 RESILIENCE SLIDING SPEED
LIMIT
CuSn8P0.3 / CuSn6.5P0.1 HB90 HB120 -100°C +200°C 60 N/mm2 × m/s 2.5 m/s



Characteristics



  • Wear resistant bearing made of solid bronze strip with perforation for lubricated applications

  • Improved performance compared with PVB092 bronze bearings : larger grease reservoirs increase maintenance intervals, dirt and debris swept into perforations, thereby reducing wear

  • Optimum performance under relatively high loads and low speeds



Bearing Properties

GENERAL   Unit Value
Maximum load, p

Static

Dynamic

N/mm2

N/mm2

120

40
Operating temperature

Min

Max

°C

°C

- 40

150
