Dry Sliding Bearings | Coiled Steel Backing Bushing

Plain Bearings,Sleeve bearings,Flanged sleeve bearings & Thrust bearings made to order from china.For Shaft Diameter,Length,Dynamic Radial Load Capacity,ID,For Housing ID,OD,Maximum Temperature,Find a sleeve bushings.

VIIPLUS plain bearings is the complete source for your Sleeve Bushing & Self -Lubricating Bearings products. Order online for stock size and custom sizes.With no moving parts, plain bearings are the simplest type of bearing. Compared to ball and roller bearings, they generally handle higher temperatures and perform better in dirty environments.

Port and terminal cranes sleeve bushing for high winds, UV rays, saltwater and extreme temperatures

Plain bearing materials PAP10 PAP20 bush Plain bearing Strips, Slide paths PAS Strips Material in detail  Strip Metric Streifen, Gleitbahnen | VSB-10


VSB-10 Strips, Slide paths PAS



Table of Contents
Material information
Plain bearing production
Characteristics : maintenance-free and robust
Material composition
Models and tables of dimensions
More information

Plain bearing Bearing Material   production



Standard designs are:

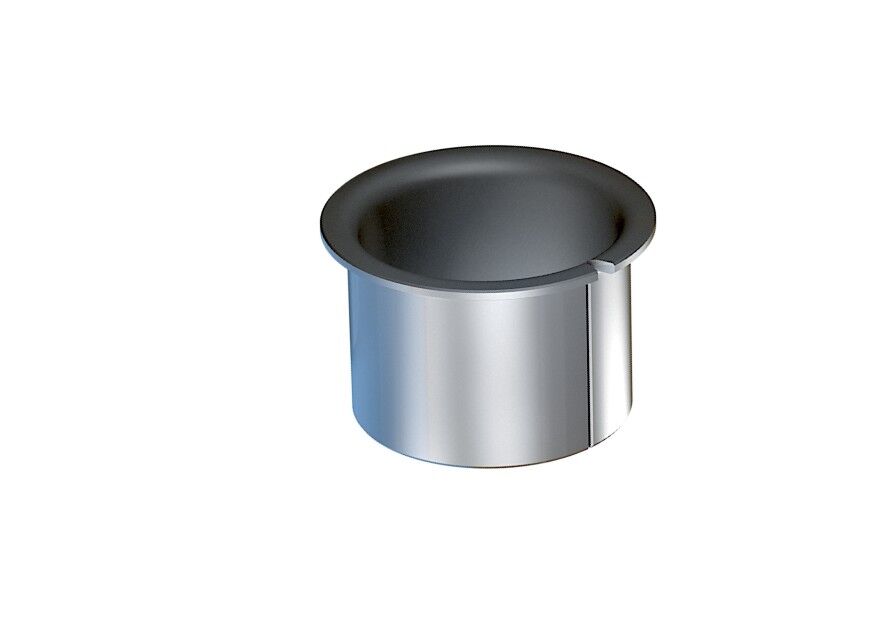

Bushes PAP...

Cylindrical bushes







Flange liners PAF..

Collar bushes







Thrust washers PAW..

Thrust washers







Strips





Characteristics of VSB-10 strips material



• Very low stick-slip tendency
• Low wear
• Good chemical resistance
• Low friction value
• No tendency to weld to metal
• Extremely swell-resistant
• Does not absorb water



Preferred areas of application



• Maintenance-free operation under dry-running conditions
• Rotating or oscillating movements
• Up to a velocity of 2 m/s
• Linear movements
• Temperature range -200 °C to 280 °C



Material composition



Strips Material composition



Layer system 10 srtips



1. Running-in layer

matrix with bulking agent¹
Layer thickness [mm]:	max. 0.03

2. Sliding layer

Tin-lead-bronze
Layer thickness [mm]:	0.20–0.35
Pore volume [%]:	approx. 30

3. Bearing back

Steel
Steel thickness [mm]:	Variable
Steel hardness [HB]:	100–180





1 The pores of the sliding layer are also filled with this lubricant mass.

---



Models and tables of dimensions



with steel back, maintenance-free





If these material sections are used to create slide paths, they have the following main functions:



• Absorbing and transferring forces acting vertically to the running surface
• Fixing moving components to each other
• Ensuring guidance accuracy for axial movements over the entire service life

Strusture


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.

3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Technical Data

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead

​

Microsection

Sliding layer + Lead   Porous Bronze Sinter Steel Backing

Bearing Properties

Availability

Bearing forms available in standard dimensions

· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs





This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.

Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
