Guide Self Lubricated Bronze Self Lube Wear Plates Inch & Metric Sizes

Place of Origin Made in China
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Brass,Bronze, C86300,C93200,C95400 Aluminum Bronze Types Bronze, Self Lubricating Wear Plates
Description Self-lubricating Graphite Plugs Application Products Catalog For Specifications And Applications.
Size Standard,Drawings Production Feature Casting Bronze
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze wear plate

,

brass wear plate

Leave a Message
Product Description

"Guide Self Lubricated Bronze Self Lube Wear Plates Inch & Metric Sizes" refers to a type of self-lubricating bronze wear plate that has self-lubricating properties and is available in both inch and metric sizes for guidance and friction reduction. Here are some detailed points about this product:
Self-Lubricating Bronze Material: These wear plates are made from bronze, a copper alloy that typically contains tin or other alloying elements. Bronze is widely used in the manufacture of bearings and wear-resistant parts due to its durability and self-lubricating characteristics.
Self-Lubricating Features: Self-lubricating bronze materials contain dispersed solid lubricants such as graphite or molybdenum disulfide (MoS2), which form a lubricating film on the material's surface to reduce friction and wear.
Wear Plates: Designed to withstand high loads and wear, these wear plates can be used in machinery, conveyor systems, sliding parts, etc., to reduce maintenance requirements and extend equipment life.
Inch and Metric Sizes: Available in a variety of sizes to meet the needs of different customers. Inch sizes are commonly used in the United States and some countries that use traditional imperial units, while metric sizes are widely used in countries that have adopted the International System of Units (SI).
Application Fields: Self-lubricating bronze wear plates can be applied in a variety of industrial fields, including automation equipment, food processing machinery, agricultural machinery, conveyor systems, mining equipment, etc.
Reduced Maintenance: Due to their self-lubricating properties, these wear plates reduce the need for regular lubrication, thereby reducing maintenance costs and downtime.
Durability and Reliability: Bronze wear plates are favored for their durability and reliability, providing long-term service in harsh working environments.
Installation and Use: These wear plates can be customized according to specific application requirements to ensure they are installed correctly and perform at their best.
When selecting and using self-lubricating bronze wear plates, factors such as operating conditions, load requirements, temperature range, chemical environment, and expected service life should be considered.


Guide self lubricated wear plates Available include imperial and metric (NAAMS) sizes. Materials include Brass,Bronze, C86300 manganese bronze ,C93200 Tin Bronze,C95400 bronze and Self Lubricating Products,plugged graphite wear plate Products.

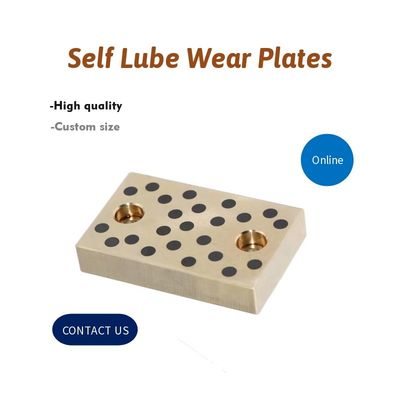

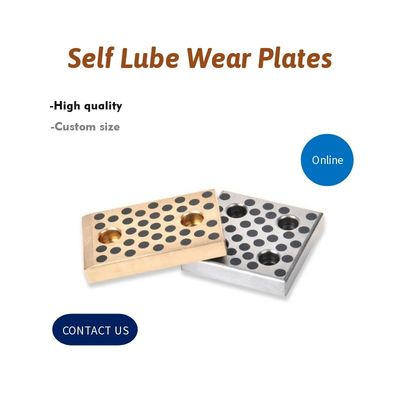

Bronze wear plates with solid lubricant plug (graphite)



Included in our full line offering are wear plates, wear strips, guide blocks, and bushings in both inch and metric sizes and are available in brass, bronze and self-lubricating materials. Designed for maintenance free production the product line features high strength quality and reliability.



guide self lubricated wear plates, guide wear plates, self lubricated wear plates manufacturers China, factory, low price, customized, buy, made to order online.View more:www.viiplus.com




self lubricated bearing



TECHNICAL DATA



Graphite Plugged Bronze Bushings | Slide Plates | Washers | Slide Guides



Density

8.0 g/cm3

Hardness

>210 HB

Tensile strength

>750 N/mm2

Yeild strength

>450 N/mm2

Elongation

>8

Coefficient of linear expansion

1.9x10-5/°C

Operating temperature

-40°C~+300°C

Max. Dynamic Load

120

Max. Speed

Dry

0.4 m/s

Oil

1.0 m/s

Max. PV limit

Dry

1.5 N/mm2.m/s

Oil

3.25 N/mm2.m/s

Friction

Dry

0.12~0.16 μ

Oil

0.03~0.08 μ




Features



1.No oil supply device, oil hole, oil groove
The cost of the fuel supply system, the cost of processing, assembling, and so on, can greatly reduce the cost of manufacturing.


2.Operation cost reduction
Greatly reduce the use of lubricating oil and equipment maintenance costs, but also exempt from the risk caused by the shortage of oil.


3.Design time shortened
No oil can make the design, structure is greatly simplified, reduce costs, save design time. In addition, using self-lubricating bearings can also improve the mechanical properties and prolong get remarkable results using life and improve the reliability.


4.Recovery and environmental protection of lubricant
No need to waste oil recycling, is conducive to environmental protection.


Use notes



1.In the possible case, the design uses the standard specification as far as possible;

2.Please note that there is no foreign body in the assembly;

3.After using the sliding surface, formed by solid lubricant oil film in surface with black or gray black phenomenon, please do not scrub, as usual.

4.Before the assembly, if the lubricating oil applied to the grinding parts, can shorten the running in period, conducive to the operation of machinery, operation;

5.When the assembly should be slowly pressed into, it is strictly forbidden to beat, so as to avoid damage to the bearing and deformation;

6.Design, different parts should be selected with appropriate material, in order to improve the mechanical performance, to extend the service life of the bearing;

7.In the high load, reciprocating motion, the proposed use of screw fixation;

8.In fresh water, sea water and in the sea, on the use of stainless steel or surface plating.



Advantages



1. Flexible design, simple, convenient with wide applications

2. FunctionaI in absence of oiI

3. Cost efficiency Iubricating costs as well.

4. Excellent performance under high-load, Iow-speed circumstances

5. In circumstances where it is difficult for the oiI films to generate, such as the alternative movements, swinging movements and frequent on-and-off, SLBs highlights their excellent resistance to abrasion.

6. Excellent chemical resistance and corrosion resistance

7. The cost of the products is more competitive and compared with other products of the same kind, the SLB features in longer service hours, less maintenance, longer replacement period and better performance.


application



Application



At present, the product has been used in metallurgical continuous casting machines, train supports, steel rolling equipment, mining machinery, ships, gas turbines and other occasions such as high temperature, high load, low speed and heavy loads.
