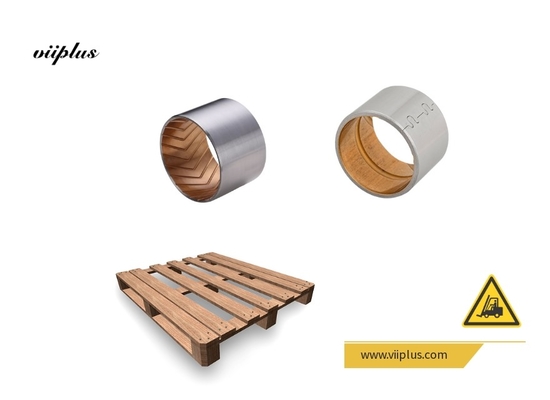

Bimetal 800 Split Type Bimetal Bearing Bushes Buckle Steel Backed Solid Sleeve Bushing

Place of Origin Bimetal Bearing Manufacturers
Brand Name VIIPLUS
Certification ISO 9001
Model Number Bimetal Bushing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms MoneyGram, Western Union, T/T
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
BiMetal Bushings Material Bimetal Bearing,Bimetall Gleitlager Application Bimetal Bearing Used In Starting Motor Machinery
Bushing Feature High Hardness Copper Allpy CuSn10Pb10,other
Type Bi-Metallic Bearings,flange Bearings Bushing Size Metric Size And Inch Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

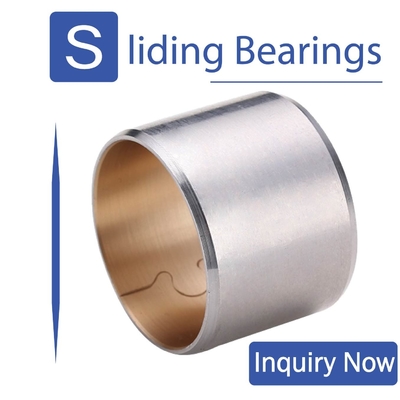

Bimetal 800 Split Type Bimetal Bearing Bushes are a unique and versatile solution for bearing applications. These bushings feature a bimetallic construction, combining the benefits of two different metals to create a high-performance bearing component.

The split type design allows for easy installation and removal, making maintenance and replacement a breeze. The bimetallic material used in these bushings typically consists of a softer, more wear-resistant metal on the sliding surface, such as copper or bronze, and a harder, more durable metal as the backing, often steel.

The steel-backed solid sleeve bushing provides excellent support and structural integrity, ensuring the bushing can withstand high loads and frequent friction. The buckle design, if present, further enhances the bushing's stability and prevents it from slipping or moving out of position during operation.

Overall, Bimetal 800 Split Type Bimetal Bearing Bushes offer a reliable and long-lasting bearing solution that is suitable for a wide range of applications, including heavy-duty machinery, automotive components, and industrial equipment.



Split Type Bimetal Bearing Bushes Buckle Steel Backed Solid Sleeve Bushing,Bimetall-Gleitlager



Bimetallic steel backed bronze bearings bushing copper sleeve,Bimetallic bearing | bimetallic copper set | bimetallic products | bimetallic manufacturers
The bimetal bearings is made of high quality low carbon steel with the surface of sintered lead-tin bronze alloy CuSn10Pb10. The surface of the alloy can be processed into oil groove to facilitate oil storage and effectively reduce wear.The steel back can be plated with anti-corrosion coating as required.This series of products are often used in internal combustion engine spindle and connecting rod bearing, thrust gasket, roll bearing and so on.





Bimetal Bearing-800 Chemical composition



CuSn10Pb10



Pb(%) Fe(%) Ni(%) Zn(%) Cu(%)
8.0-11.0 ≦0.25 ≦1.5 ≦2.0 78.0-87.0
(Tensile strength)σb (MPa) ≥220
(The yield strength)σ (MPa) ≥140
(Elongation) δ5 (%) ≥5
(hardness) ≥70HBW





Bimetal 800 Physical & Mechanical Properties



Items Value Unit
Maximum Operating Temperature Tmax-greased 150 °C
Maximum Operating Temperature Tmax-oil lubricated 250 °C
Minimum Operating Temperature Tmin -40 °C
Maximum Static Load Psta,max 300 N/mm2
Maximum Dynamic Load Pdyn,max 140 N/mm2
Maximum Sliding Speed V-greased 2.5 N/mm2 * m/s
Maximum PV Factor-greased 2.8 N/mm2 * m/s
Coefficient of friction f-greased 0.05-0.12
Coefficient of friction f-oil lubricated 0.04-0.12



Bimetal Bearing-800 Technical parameters



Maximum dynamic load 140P N/mm² MAX Temperature°C Grease lubrication 150°C
Maximum linear velocity Grease lubrication 2.5Vm/s Fluid lubrication ——
MAX PV 2.8N/mm². m/s Match the diameter of axle HRC ≥ 53
μ 0.05~0.15 Ra 0.32~0.63
Maximum linear velocity Fluid lubrication —— Alloy layer hardness 80~120
MAX PV —— Coefficient of thermal conductivity 47W/mk
μ —— Linear expansion coefficient (axial) 18×10-6/K







Norminal Thiickness
Tolerances of Series B (non-machinable)

Tolerances of Series C (non-machinable)
1.0 -0.025 +0.25
+0.15
2.0 -0.030 +0.25
+0.15
2.5 -0.035 +0.25
+0.15
3.0 -0.040 +0.30
+0.15
3.5 -0.045 +0.30
+0.15
3.5 -0.050 +0.30
+0.15



Standard Tolerance Dimension Table



d
D
相配轴径
公差( h8)
相配座孔
公差(H7)
压入H7座孔
内径公差
Wall thickness
壁厚
注油孔
f1
f2
L 0
-0.40
min
max
10
15
20
25
30
40
50
60
10
12
10-0.022
12+0.018
+0.148
+0.010









0.995





0.935






4
0.5






0.3
1010
1015
1020





12
14
12-0.027
14+0.018
1210
1215
1220





14
16
14-0.027
16+0.018
1410
1415
1420





15
17
15-0.027
17+0.018
1510
1515
1520





16
18
16-0.027
18+0.018
0.8






0.4
1610
1615
1620





18
20
18-0.027
20+0.021
+0.151
+0.010
1810
1815
1820
1820




20
23
20-0.033
23+0.021



+0.181
+0.020



1.490



1.430
2010
2015
2020
2020




22
25
22-0.033
25+0.021







6
2210
2215
2220
2220




24
27
24-0.033
27+0.021
1.0






0.5
2410
2415
2420
2420
2430



25
28
25-0.033
28+0.021

2515
2520
2520
2530



26
30
26-0.033
30+0.021
+0.205
+0.030












1.980
1.920







2615
2620
2620
2630



28
32
28-0.033
32+0.025

2815
2820
2820
2830
2840


30
34
30-0.033
34+0.025
1.2




0.6





3015
3020
3020
3030
3040


32
36
32-0.039
36+0.025

3215
3220
3220
3230
3240


35
39
35-0.039
39+0.025


3520
3520
3530
3540
3550

38
42
38-0.039
42+0.025

8


3820
3820
3830
3840
3850

40
44
40-0.039
44+0.025


4020
4020
4030
4040
4050

d
D
相配轴径公差(h8)
相配座孔公差(H7)
压入H7座孔内径公差
Wall thickness
壁厚
注油孔
f1
f2
L 0
-0.40
min
max
25
30
40
50
60
80
90
100
45
50
45-0.039
50+0.025
+0.205
+0.030
2.460





2.400
8
1.5
1.0
4525
4530
4540
4550




50
55
50-0.039
55+0.030





+0.210
+0.030

5030
5040
5050
5060



55
60
55-0.046
60+0.030

5530
5540
5550
5560



60
65
60-0.046
65+0.030

6030
6040
6050
6060



65
70
65-0.046
70+0.030

6530
6540
6550
6560



70
75
70-0.046
75+0.030

7030
7040
7050
7060
7080


75
80
75-0.046
80+0.030
9.5

7530
7540
7550
7560



80
85
80-0.046
85+0.035







+0.215
+0.030


8040
8050
8060
8080


85
90
85-0.054
90+0.035

8530

8550
8560
8580

85100
90
95
90-0.054
95+0.035



9050
9060
9080

90100
95
100
95-0.054
100+0.035




9060
9080
9090
90100
100
105
100-0.054
105+0.035




10060
10080
10090
100100
105
110
105-0.054
110+0.035




10560
10580

105100
110
115
110-0.054
115+0.035




11060
11080

110100
115
120
115-0.054
120+0.035



11550

11580


120
125
120-0.054
125+0.040





+0.220
+0.030



12050
12060


120100
125
130
125-0.063
130+0.040







125100
130
135
130-0.063
135+0.040




13060


130100
135
140
135-0.063
140+0.040




13560
13580


140
145
140-0.063
145+0.040




14060
14080

140100
150
155
150-0.063
155+0.040




15060
15080

150100





Select your tank form and buckle form



You can choose the structure of the self - lubricating bearing







You can choose the structure of the self - lubricating bearing



Use Range



dry poor
oil lubricated good
grease lubricated very good
water lubricated poor
process fluid lubricated poor



Application





High-load low-speed plain bearing, supporting wheel shaft sleeve, towing wheel shaft sleeve and tensioning wheel shaft sleeve of chassis running mechanism;Automobile industry: balance shaft bushing, steel plate pin bushing, steering knuckle-main shaft bushing, connecting rod bushing, valve rocker arm bushing, camshaft bushing, differential bushing, gearbox bushing, internal combustion engine spindle bushing, thrust gasket



Mechanical equipment self - lubricating bearings
