Track Roller Flange Bimetal Bearing Bushes , Steel Bronze Bimetal Bush

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces (Min. Order)
Price $0.20 - $2.00 / Pieces ,Negotiable
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT IN ADVANCE Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Bimetal ,CuSn10Pb10 Alloy Characteristic Thin Walled Bearing,Low-maintenance And Maintenance-free Plain Bearings
Size IMPERIAL & METRIC SIZES,Standard Size Available Type Cylindrical Bushes Thrust Washers, Strips Or Special Designs
Bearing Bimetal Bronze Steel Bearing Bushing Sample Available Imetal Bushing Bearing Manufacturer | Cylindrical Steel Bronze Bushing Series
Bimetal Bearings Application Excavators, Rollers, Carrier Rollers, Wheels, Guide Wheels, Bimetal Bushings With Non-standard Dimensions, RoHS Customized Bearing Designs
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush


bimetal bearings

Leave a Message
Product Description

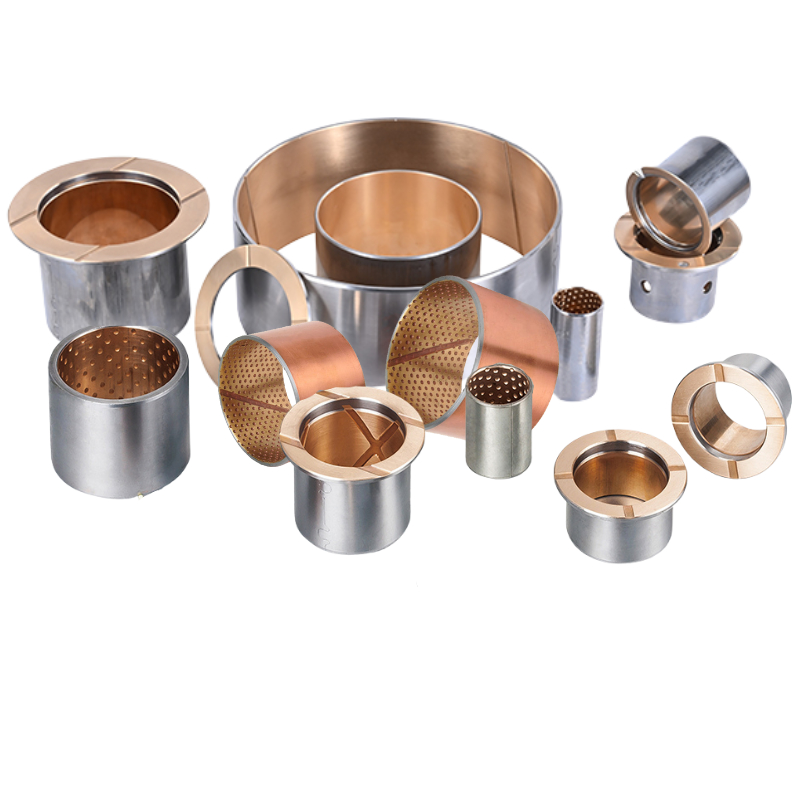

Our track roller flange bimetal bearing bushes, specifically the steel bronze bimetal bush, are precision-manufactured components designed to offer superior wear resistance and durability in various industrial applications.

The unique bimetal construction of these bushes combines the strength and rigidity of steel with the excellent wear resistance and lubricating properties of bronze. This innovative combination results in a bush that is not only robust but also highly resistant to friction and wear.

The track roller flange design ensures a secure and stable fit, making it suitable for use in high-speed and high-load applications. The bush's ability to withstand extreme conditions and maintain smooth operation makes it a reliable choice for track rollers and other critical components in industrial machinery.

Our steel bronze bimetal bushes are easy to install and replace, minimizing downtime and maintenance costs. They also offer long service life and reduced friction, which contributes to improved efficiency and reduced energy consumption.

Whether you're upgrading existing equipment or developing new machinery, our track roller flange bimetal bearing bushes are an excellent choice. Contact us today to learn more about our products and how they can enhance the performance and reliability of your industrial applications.


Bimetal bearing applications


Bimetal Bushings, Bimetal Bushings Suppliers, Professional Manufacture for Bimetal Bearings,Track roller bushing flange bimetal bushing , steel bronze bimetal bush, sleeve bi metal bushings.agricultural vehicles excavator bucket track roller excavator undercarriage parts jcb repuestos bushing.Get a Quote Today.
It is made of high quality low-carbon steel, sintered copper alloy of CuPbSn10, the alloy surface is rolled to diamond oil grooves. The special lubricant is embedded in the grooves. It has good lubricating and corrosion resistance property, it can work in the condition of little of oil or none of oil. It is particularly applied to high temperature, water solution and the occasions where cannot be added oil.

Material organization

1. Sintered copper alloy layer CuSn10Pb10: it has good wear resistance and excellent bearing capacity, low friction factor and good bite resistance.
2. Carbon steel substrate: provide bearing capacity and good heat transfer.


Pb(%) Fe(%) Ni(%) Zn(%) Cu(%)
8.0-11.0 ≦0.25 ≦1.5 ≦2.0 78.0-87.0



Bimetallic material diagram


Tech. Data

Max.Load Static 250N/mm² Alloy Hardness HB 60-100
Temp -40℃~+250℃
Coefficient of friction 0.05~0.12
Max.Speed Max.Speed 2.5m/s Thermal conductivity 60W(m*k)-1
Max.PV Max.PV 2.8N/mm²*m/s
Shear strength Shear strength 170N/mm²
Coef.of yhermal exoansion 14*10-6K-1


Type:-Flanged    Bimetal type selection
-Solid Bronze
-Welded Joint
-Split Joint
-Clench Lock
-Sintered / Powder Metal
-Graphite Impregnated




Type Spec Type Spec
BIMETAL BUSHINGS 1010 12×10×10 BIMETAL BUSHINGS 2830 32×28×30
BIMETAL BUSHINGS 1015 12×10×15 BIMETAL BUSHINGS 2840 32×28×40
BIMETAL BUSHINGS 1020 12×10×20 BIMETAL BUSHINGS 3015 34×30×15
BIMETAL BUSHINGS 1210 14×12×10 BIMETAL BUSHINGS 3020 34×30×20
BIMETAL BUSHINGS 1215 14×12×15 BIMETAL BUSHINGS 3025 34×30×25
BIMETAL BUSHINGS 1220 14×12×20 BIMETAL BUSHINGS 3030 34×30×30
BIMETAL BUSHINGS 1410 16×14×10 BIMETAL BUSHINGS 3040 34×30×40
BIMETAL BUSHINGS 1415 16×14×15 BIMETAL BUSHINGS 3215 36×32×15
BIMETAL BUSHINGS 1420 16×14×20 BIMETAL BUSHINGS 3220 36×32×20
BIMETAL BUSHINGS 1510 17×15×10 BIMETAL BUSHINGS 3225 36×32×25
BIMETAL BUSHINGS 1515 17×15×15 BIMETAL BUSHINGS 3230 36×32×30
BIMETAL BUSHINGS 1520 17×15×20 BIMETAL BUSHINGS 3240 36×32×40
BIMETAL BUSHINGS 1610 18×16×10 BIMETAL BUSHINGS 3520 39×35×20
BIMETAL BUSHINGS 1615 18×16×15 BIMETAL BUSHINGS 3525 39×35×25
BIMETAL BUSHINGS 1620 18×16×20 BIMETAL BUSHINGS 3530 39×35×30
BIMETAL BUSHINGS 1810 20×18×10 BIMETAL BUSHINGS 3540 39×35×40
BIMETAL BUSHINGS 1815 20×18×15 BIMETAL BUSHINGS 3550 39×35×50
BIMETAL BUSHINGS 1820 20×18×20 BIMETAL BUSHINGS 3820 42×38×20
BIMETAL BUSHINGS 1825 20×18×25 BIMETAL BUSHINGS 3825 42×38×25
BIMETAL BUSHINGS 2010 23×20×10 BIMETAL BUSHINGS 3830 42×38×30


Typical applications

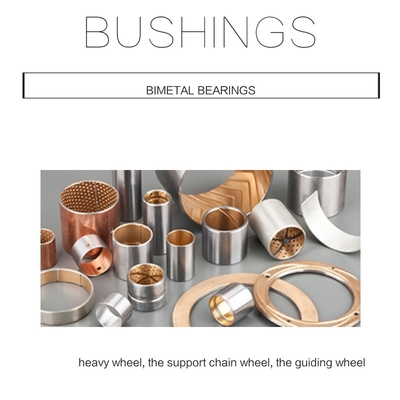

The BIMETAL BUSHINGS is mainly used for medium load and medium speed oil lubrication or grease lubrication.Its typical application mainly has the engine connecting rod, the pin shaft, the engineering machinery chassis support heavy wheel, the support chain wheel, the guiding wheel, the hydraulic oil cylinder guide sleeve, the oil earring, the logistics machinery, the agricultural machinery and so on.Because the sintered copper alloy layer contains lead, the use of this product under certain conditions will be limited according to relevant laws and regulations.


The mode of transportation



Bearing mode of transport
