| Brand Name: | VIIPLUS |
| Model Number: | Bronze Wear Plates |
| MOQ: | NEGOTIABLE |
| Price: | Price Graphite Wear Plate Parts Factory Price |
| Payment Terms: | TT IN ADVANCE, Western Union |
| Supply Ability: | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |

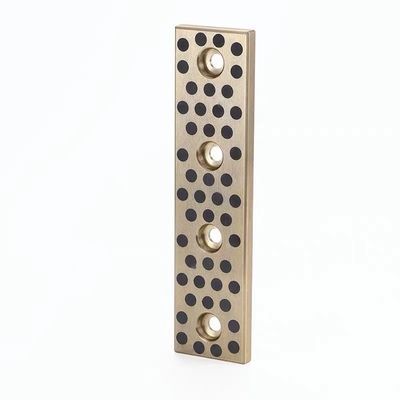

Oilless bronze wear plates are highly versatile components used in various industries where friction reduction and wear resistance are crucial. They offer a unique combination of strength, durability, and self-lubricating properties, eliminating the need for external lubrication, making them ideal for applications where oil or grease is not feasible or desirable.

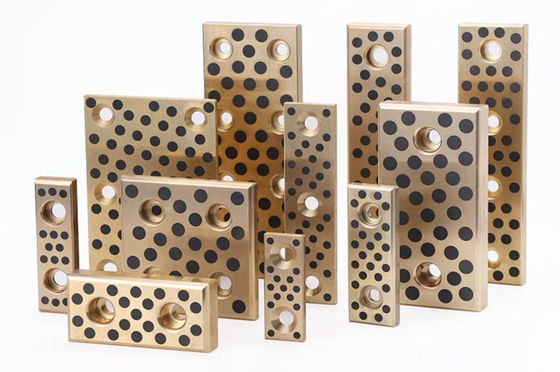

These wear plates come in both standard and custom sizes to cater to a wide range of applications and requirements. Standard sizes typically adhere to industry norms and are readily available, ensuring quick delivery and cost-effectiveness. However, custom sizes offer the flexibility to tailor the plates to specific dimensions, shapes, and hole patterns, ensuring a perfect fit for unique or specialized applications.
Standard Sizes:
Standard sizes for oilless bronze wear plates vary depending on the manufacturer and the intended application. However, common dimensions include various thicknesses ranging from a few millimeters to several centimeters, with widths and lengths adjusted accordingly to meet the requirements of the application. These standard sizes are often listed in catalogs or on manufacturers' websites, making it easy for customers to select the most suitable option.
Custom Sizes:
Custom sizes for oilless bronze wear plates are designed to meet specific requirements that go beyond standard dimensions. Customers can provide detailed specifications, including thickness, width, length, hole patterns, and any other unique features, and the manufacturer will create custom-made plates to fit those specifications. This customization process ensures that the wear plates integrate seamlessly into the application, optimizing performance and reducing the need for modifications or adaptations.
Whether you're looking for standard or custom sizes, oilless bronze wear plates offer a reliable and effective solution for reducing friction and wear in various industrial applications. They are widely used in food processing, packaging machinery, mining equipment, and other industries where durability and performance are critical. With their self-lubricating properties and resistance to corrosion and wear, these plates are an excellent choice for applications that require long-lasting and reliable performance.

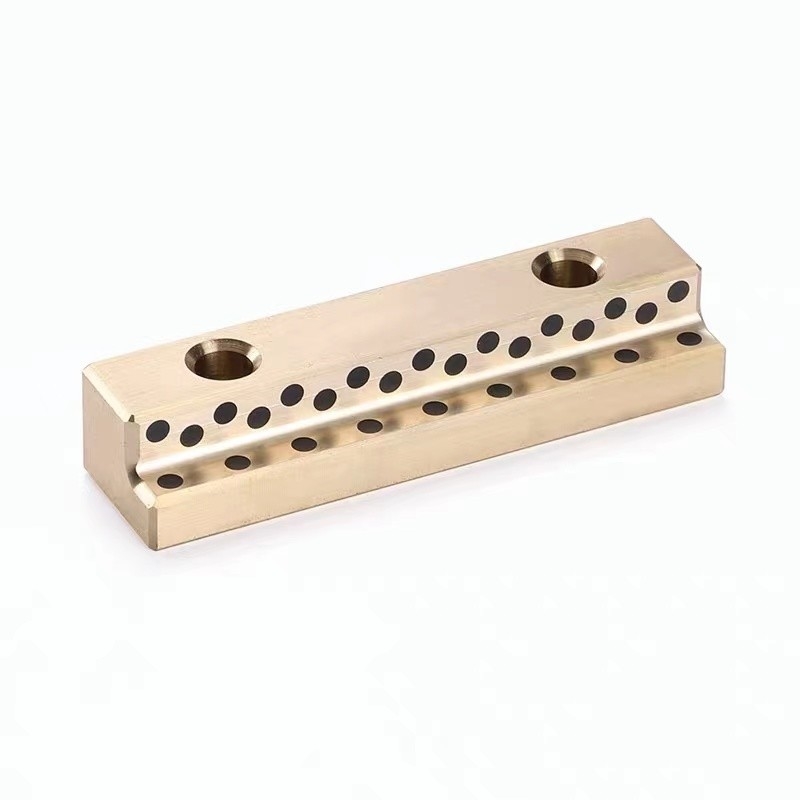

Bronze Precision Wear Plates, Finished Machined Bronze Wear Plates, Cast Bronze Wear Plate, Special Shape Manufactured by VIIPLUS Precision wear plates available in standard and custom sizes.
1.bronze wear plate
2.bronze round bar suppliers
3.wear plates
4.precision ground plate
5.Self Lubricating Bronze Wear Plate
Standard Size Phosphor Bronze Wear Plates Graphite CuSn6Zn6Pb3 Material LG2 C83600Order today! Made in China.Manufacturer of Bronze sleeve bushings and graphite wear plate & thrust washer in various bronze alloy material. Bronze Graphite Bearings is Suited for High-Temperature Applications. Increased productivity. Reduced costs & downtime. Offering Custom Designed Shape Bearings.
DIN GB-CuSn5Zn5Pb5 Graphite Phosphor Bronze Wear Plate, Graphite Copper Oilless Plate C83600 Special Brass Sliding Plate made to order from china. Get a quote today!tolerance sizes plate, material CHEMICAL ANALYSIS, and price for your application. Bronze Wear Plate In All Industrial Fields Have A Wide Range Of Applications.
Widely used in the hydraulic and pneumatic industries, forging machine tool industry, plastic machinery industry, lifting handling machinery, port machinery, office machinery, textile machinery, food machinery, food machinery, chemical machinery, printing and packaging, paper machinery, Steam locomotive, shipbuilding industry, press industry, metallurgical machinery, engineering machinery and so on.
Material: DIN GB-CuSn5Zn5Pb5
ZCuSn5Zn5Pb5 cast copper alloy has good wear resistance and corrosion resistance, easy to process, good casting performance and airtightness, cast copper alloy is used for wear-resistant and corrosion-resistant parts working under high load and medium sliding speed, such as axle bush, liner, cylinder liner, piston clutch, pump gland and worm gear.
ZCuSn5Zn5Pb5 corresponds to domestic brand: qsn5-5-5
• Our cast bronze wear plates can be supplied in the following bronze materials:
• C95400 Aluminum Bronze
• C93200 SAE 660 Bearing Bronze Plate
• C86300 Manganese Bronze Oilless Plate
• C95900 Aluminum Bronze Wear Plate
| Composition and properties | ||||||||||||||||
| dg | DIN | Material No. delivery form1) |
Designation | ASTM standard | Proportional weights | Physical properties (min.) | ||||||||||
| Standard | Alloy No. |
DIN | ASTM | Density | 0.2% Strain |
Tensile strength |
Strain | Emodulus | Hardness | Application | ||||||
| Symbol | ρ | δy | δT | |||||||||||||
| Unit | % | % | g/cm³ | MPa | MPa | % | MPa | HB | ||||||||
| 01 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | C932 00 | Cu 81 - 85 Sn 6 - 8 Zn 3 - 5 Pb 5 - 7 permissible max. portions Ni 2.0 Sb 0.3 |
Cu 81 - 85 Sn 6.3 - 7.5 Zn 2 - 4 Pb 6 - 8 Ni 1 Sb 0.35 |
8.8 | 120 | 240 | 15 | 106.000 | 65 | Standard material for the most applications international standardized |
||
| 2.1090.03 | CuSn7ZnPb | B 271 | C932 00 | 8.8 | 130 | 270 | 13 | 106.000 | 75 | |||||||
| 2.1090.04 | CuSn7ZnPb | B 505 | C932 00 | 8.8 | 120 | 270 | 16 | 106.000 | 70 | |||||||
| 02 | 1705 | 2.1061.01 | CuSn12Pb | not yet standardized | Cu 84 - 87 Sn 11 - 13 Pb 1 - 2 permissible Ni 0.8 - 1.5 max. portions Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 |
8.7 | 140 | 260 | 10 | 112.000 | 80 | Material for high loads and/or corrosion stress attack international only partially standardized |
|||
| 2.1061.03 | CuSn12Pb | not yet standardized | 8.7 | 150 | 280 | 5 | 112.000 | 90 | ||||||||
| 2.1061.04 | CuSn12Pb | B 505 | C925 00 | 8.7 | 140 | 280 | 7 | 112.000 | 85 | |||||||
| 03 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | C955 00 | C u min. 75 Al 8.5 - 11.0 Ni 4.0 - 6.5 Fe 3.5 - 5.5 permissible max. portions Mn 3.3 |
Cu min. 78 Al 10 - 11.5 Ni 3 - 5.5 Fe 3 - 5 Mn max. 3.5 |
7.6 | 270 | 600 | 12 | 122.000 | 140 | Material for extreme loads and/or high corrosive environments international standardized |
||
| 2.0975.02 | CuAl10Ni | B 30 | C955 00 | 7.6 | 300 | 600 | 14 | 122.000 | 150 | |||||||
| 2.0975.03 | CuAl10Ni | B 271 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
| 2.0975.04 | CuAl10Ni | B 505 | C955 00 | 7.6 | 300 | 700 | 13 | 122.000 | 160 | |||||||
| 04 | 1709 | 2.0598.01 | CuZn25Al5 | B584 | C863 00 | Cu 60 - 67 Al 3 - 7 Fe 1.5 - 4 Mn 2.5 - 5 Zn rest permissible max. portions Ni max. 3 |
Cu 60 - 66 Al 5 - 7.5 Fe 2 - 4 Mn 2.5 - 5 Zn 22 - 28 Ni max. 1 |
8.2 | 450 | 750 | 8 | 115.000 | 180 | Material for highest loads without corrosive attack. international partially standardized to a large extend |
||
| 2.0598.02 | CuZn25Al5 | B 30 | C863 00 | 8.2 | 480 | 750 | 8 | 115.000 | 180 | |||||||
| 2.0598.03 | CuZn25Al5 | B 271 | C863 00 | 8.2 | 480 | 750 | 5 | 115.000 | 190 | |||||||
| 05 | 1705 | 2.1052.01 | CuSn12 | not yet standardized | Cu 84 - 88 Sn 11 - 13 Pb 1 Ni 2.0 Sb 0.2 P 0.2 |
Cu 85 - 88 Sn 10 - 12 Pb 1 - 1.5 Ni 0.8 - 1.5 |
8.6 | 140 | 260 | 12 | 110.000 | 80 | Material with good wear resis- tance. corrosion and seawater resistant international partially standardized |
|||
| 2.1052.03 | CuSn12 | not yet standardized | 8.6 | 150 | 280 | 8 | 110.000 | 90 | ||||||||
| 2.1052.04 | CuSn12 | not yet standardized | 8.7 | 140 | 280 | 8 | 110.000 | 95 | ||||||||
| 1 ) delivery form: .01 = sand casting. .02 = gravity casting. .03 = centrifugal casting. .04 = continuous casting | ||||||||||||||||
|
Chemical Composition mass/% |
|
Material:ZCuSn5Zn5Pb5 |
|
Chemical Composition: |
|
Copper Cu: the rest |
|
Sn: 4.0 ~ 6.0 |
|
Zinc Zn: 4.0 ~ 6.0 |
|
Pb: 4.0 ~ 6.0 |
|
P: ≤0.05(impurity) |
|
Nickel Ni: ≤2.5(excluding total impurities) |
|
Aluminum Al: ≤0.01(impurities) |
|
Iron Fe: ≤0.3(impurities) |
|
Silicon Si: ≤0.01(impurities) |
|
Sb: ≤0.25(impurity) |
|
Sulfur S: ≤0.10(impurities) |
|
Note: total impurities ≤1.0 |
high-precision bronze bushings & wear plate parts, high-level management team and high-quality staff, and continuously improve the production process and refine management platform, in strict accordance with the global quality certification system to do every detail, Lubricating bearing products.”Note:
1, In Chemical Composition, Single values represent maximums.
2, Mechanical performance of hardness value is only for reference
