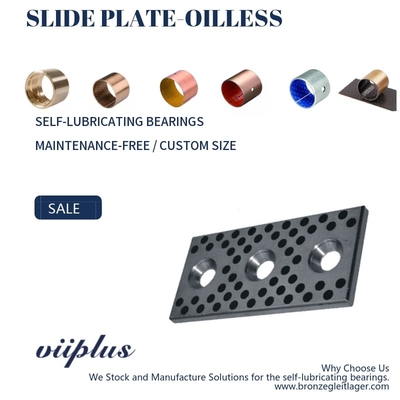

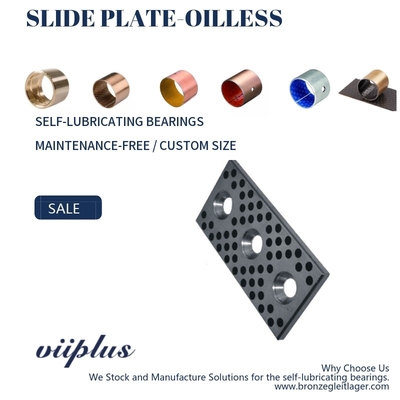

S45C Oilless Slide Plate , Self Lube Wear Plates Special Steel Graphite

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification ISO 9001
Model Number graphite Slide Plate
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price factory cheap price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time fast delivery
Payment Terms T/T, Western Union, MoneyGram
Supply Ability stock size

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel With Graphite Application 1: DIE MAKING 2: CAM SLIDES 3: MOULD MAKING 4: GENERAL MACHINERY
Lubrication Graphite Place Of Origin China
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Manufactures Wear Plates Industry Standards (VDI, JIS, NAAMS, SMC). Our Wear Plates Come In A Broad Range Of Standard Inch And Metric Wear Plate High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze wear plate

,

brass wear plate

Leave a Message
Product Description

Oilless Slide Plate Products for Hardened steel sliding plate steel graphite plates PRECISION PARTS.


Standard Cast Iron Guide Graphite Plate
The cast iron guide plate is made of HT250 cast iron as the base material, with holes machined in its working surface and filled with solid lubricant in a certain ratio according to the working conditions. The gray cast iron material provides a high load-bearing capacity while the solid lubricant creates a low friction substrate, showing its excellent self-lubrication performance under high load and low speed conditions. The material provides a self-lubricating solution that combines the wear resistance and mechanical strength of cast iron with the self-lubricating properties of solid lubricants, allowing it to be used without or with little oil maintenance; it is particularly suitable for high load and low speed and intermittent oscillating conditions such as automotive overlay dies, hardware stamping dies, injection molding machinery and metallurgical equipment.

The sliding surface can be applied with lubrication graphite. To improve tribological behavior. The sliding plate steel graphite plates products in the series of hardened steel bushings are mainly applied to construction machinery.

Long Working Life oilless wear plate ,S45C Oilless Slide Plate Special Steel Graphite made to order from china.Cast graphite Inlaid slide plate



Material:S45c With Graphite

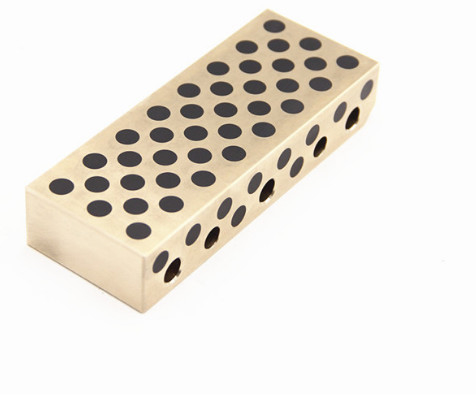

Oilless Slide Plate components are produced by embedding a special solid lubricant at appropriate locations. The metal base material supports the load while the embedded solid lubricant provides lubrication, resulting in superior oil-free durability even under harsh conditions.



Chemical Composition
Steel Layer(45 Steel) Copper Layer(And Japan CAC304 Considerable)
Fe C Si Mn S.P Cu Fe Mn Ai Zn
Margin 0.45~0.50 0.17~0.37 0.50~0.80 ≤0.040 60~66 3~8 2.25~5 5~7.5 Margin





graphite plugged bushing



Mechanical Behavior
Bond Strength Of Steel And Copper(N/mm²) Copper Layer Hardness HB Steel Layer Hardness
Not heat-treated state Surface high-frequency quenching after the cylindrical surface
≥300MPa >210 0≤241HBS ≥45HRC
Solid Lubricants
Solid Lubricants Features
Graphite+add Good wear performance and chemical stability, Suit for general machines and under atmosphere
temperature limit 400℃
PTFE+add Lowest friction coefficient and good water lubrication, temperature limit 300℃ Suit for water and seawater lubricant, such as ship
Technical Parameters
Grade graphite plate
Material graphite plate
Density g/cm³ 6.8
Hardness HB >160
Tensile Strength N/mm² >150
Yeild Strength N/mm² -
Elongation % -
Coefficient of linear expansion 10-5/℃ -
Heat-conducting CoefficientW(/m.k) -
Flexibility Coefficient KN/mm² -
Temp. Limits ℃ 1
Max. Dynamic Load 0.8
Max.speed m/s Dry Lubrication 1.55
Oil Lubrication 0.13~0.2
Max.PV N/mm²*m/s Dry Lubrication 0.04~0.08
Oil Lubrication -
Friction Dry Lubrication -
Oil Lubrication -



1: Die Making
2: Cam Slides
3: Mould Making
4: General Machinery



Features


①These products are most effective at locations where require a constant supply of lubricant, eciprocating motion or frequent start and stop occurs and oil film is difficult to form.
②Because these products are used under oil-free conditions, no lubrication equipment is needed. This shortens the assembly time and results in a cleaner environment by preventing oil pollution and other problems.
③These products have excellent seizure resistance.
