Metric Sizes Standards Bronze Gleitlager Split Bushing CuSn8 50x55x30 BMZ 5030
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | Cu Sn8. DIN 17662. CW453K |
| Model Number | Bronze Slit Bushing |
| Minimum Order Quantity | Standard Size Bushing No Minimum Order Quantity |
| Price | Bushings High Quality Price Ratio B2B |
| Packaging Details | STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE |
| Delivery Time | 2-3 Weeks |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Qsn8-0.3 | Type | Cylindrical Bushing ,Flange Bearings |
|---|---|---|---|
| Internal Surface | Bronze Bearings Made Of CuSn8 With Diamond Lubrication Indents,with Grease Reservoirs | Bearings Size | Metric Sizes,Cylindrical Bushes With Non-Standard Dimensions, Customized Bearing Designsavailable From Stock,Dxdxl Flange Bushings |
| Tollerances | H9,H7,e7 Or F7 Bushings Tolerance | Application | Agricultural, Building And Engineering Machines, Etc |
| Standard Dimensions Bushing | Bronze Bushing FB090 FB092 90F 92F WB802, WB800, WB702, WB700, B92 I B90 | CHARACTERISTICS | Bearing Material Made Of Solid Bronze Strip With Indents For Lubrication |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | graphite bronze bushing,bronze plain bearing |
||
Product Description
Bronze split bushings, also known as Gleitlager in German, are designed with a slit to allow for easy installation and slight expansion or contraction to accommodate shaft movements or misalignment. These bushings are manufactured in accordance with metric size standards and are typically made from CuSn8 material, which is a type of phosphor bronze alloy that offers excellent corrosion resistance, strength, and wear properties.

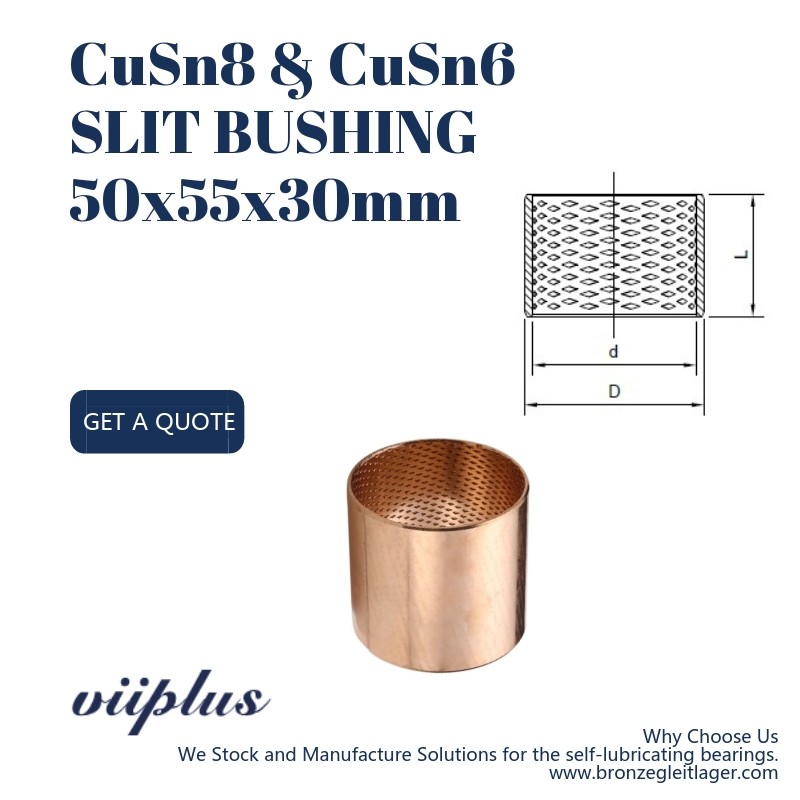

The 50x55x30 (BMZ 5030) size refers to the outer diameter (55mm), inner diameter (50mm), and length (30mm) of the bushing. This specification ensures that the bushing will fit correctly into the intended application and provide the required clearance and support for the rotating shaft.
It is important to note that when selecting a bronze split bushing, it is crucial to ensure that the material, size, and tolerance specifications meet the requirements of the specific application to ensure optimal performance and longevity.

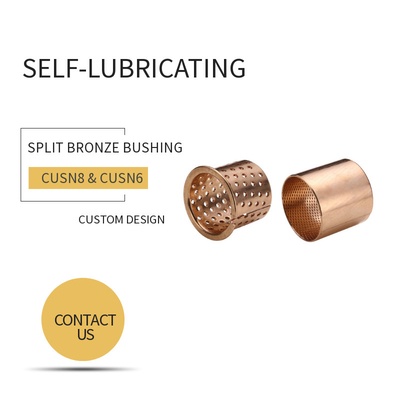

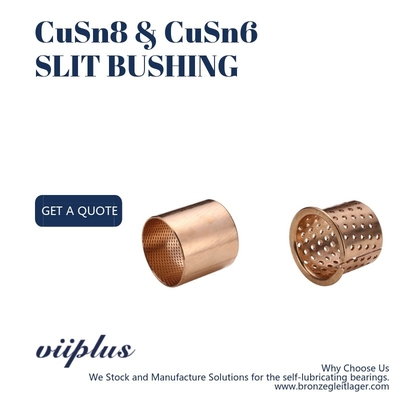

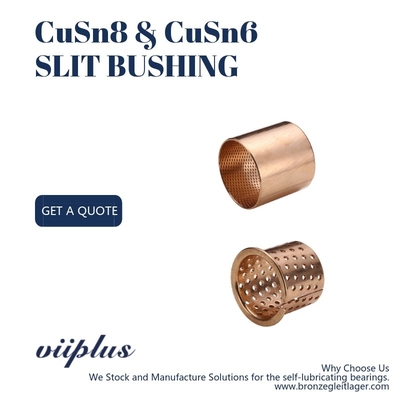

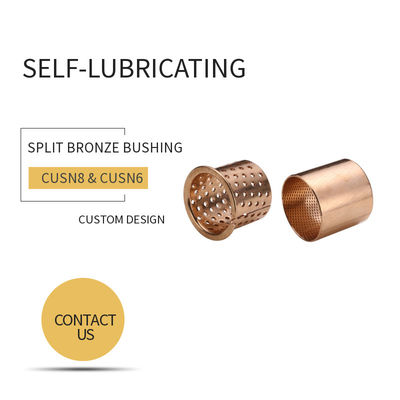

Bronze bushings | CuSn8 & CuSn6 Material Split Bronze Bushings - Metric Size
Bronze gleitlager Manufacturers and Supplier from China
Bronze split bearings are half bushings, also called hydrostatic bearings, with or without a flange, which can be divided into two, three or even four parts.
Metric Sizes Standards Bronze Gleitlager Split Bushing CuSn8 50x55x30 BMZ 5030,bronze bushing suppliers
High quality standards Bronze Slit Bushing, 40x44x40 BMZ 4040 bronze bushing and size 50x55x30 BMZ 5030 bronze bushing with tin bronze alloy CuSn8P DIN 17662. CW453K as material, rolled diamond on the surface, plays a role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.Widely used in agricultural machinery, construction machinery, construction machinery and other high load and low speed occasions.
Chemical Compositions
| 090 bronze bushing | Cu | Sn | P |
| rest | 7~9% | 0.2~0.4% |
lubrication Bushing
Lubrication shall be achieved by passing the shaft or radial through the bearing housing.All common grease types or oils can be used.
Non-standard custom
We can recommend the appropriate size, shape, and shape or length upon request.Please contact us for quotation or more information.
The installation
The bearing shall be pressed into the bearing seat of tolerance H7.Bearing bore tolerance H9.
Shaft - bearing fit
For bearing with tolerance H9, we recommend e7 or f7 as the tolerance for the shaft.If h axis is selected, it is recommended that the bearing inner diameter tolerance be F7.

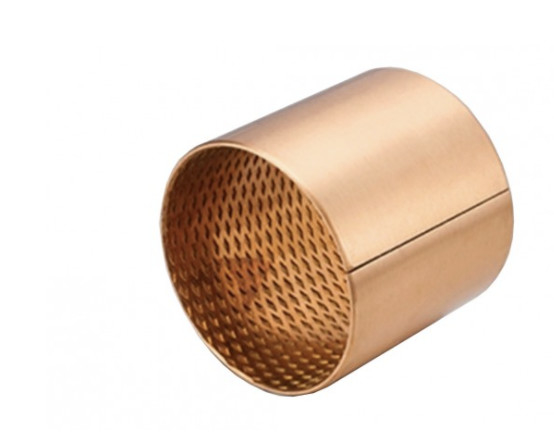

It's a kind of bush wrapped by bronze strip. The bronze is made of particular formulation with high specific gravity and its surface can be incorporated with spherical or diamond shaped indentations or oil grooves as required by customers. It is of high load capacity and long life. Compared with tradtional cast bronze bush, it is more cheap and more compact. Wrapped bronze bush is widely used in hoisting machines, construction machines, automobiles, trucks, machine tools, mineral equipments and etc.
| Performance | Data | |
| Max Dynamic Load | 100N/mm² | |
| Max Linear Velocity(Grease) | Grease lubrication | 2m/s |
| Max PV value | Grease lubrication | 2.8N/mm²·m/s |
| Tensile Strength | 460N/mm² | |
| Yield Strength | 280N/mm² | |
| Hardness | 90~150HB | |
| Performance | Data | |
| Mating Axis | Hardness | ≥50HRC |
| Mating Axis | Roughness | 0.4~1.0 |
| Working Temperature | -40~+150℃ | |
| Friction Coefficient μ | 0.06~0.15 | |
| Heat Conducting Coefficient | 58W(m·k) | |
| Heat Expansion Coefficient | 18.5×10-6K-1 | |
