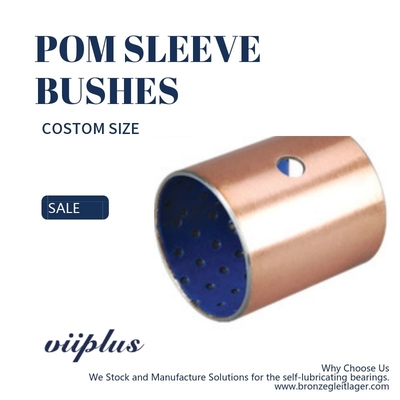

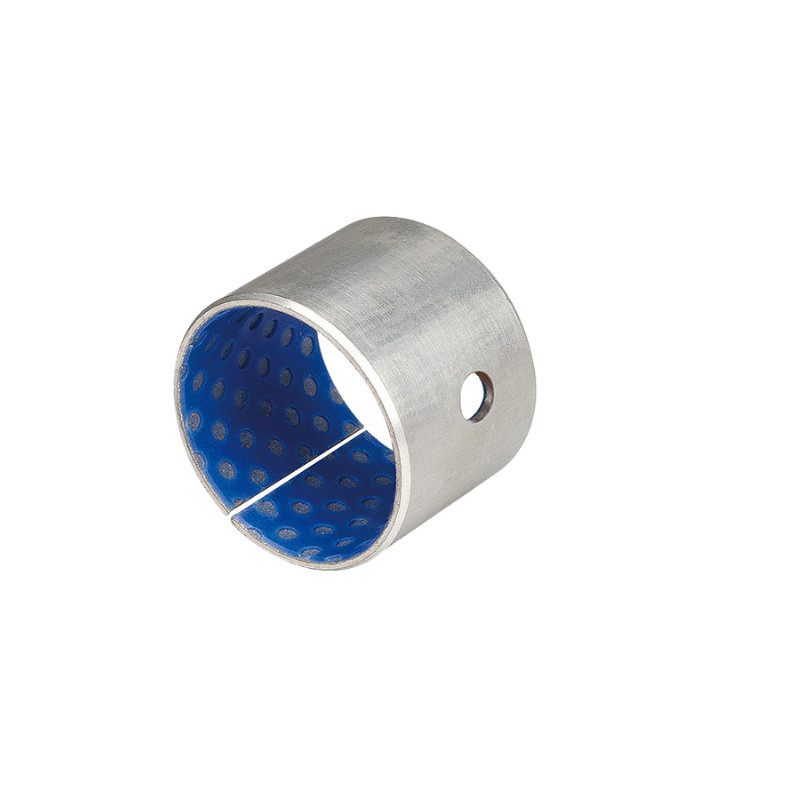

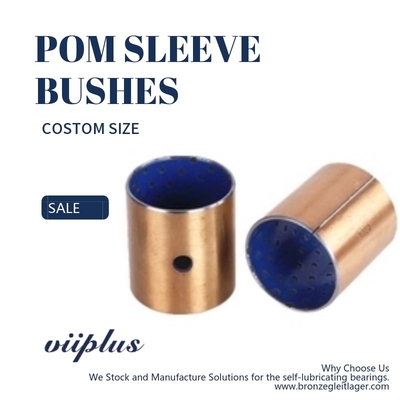

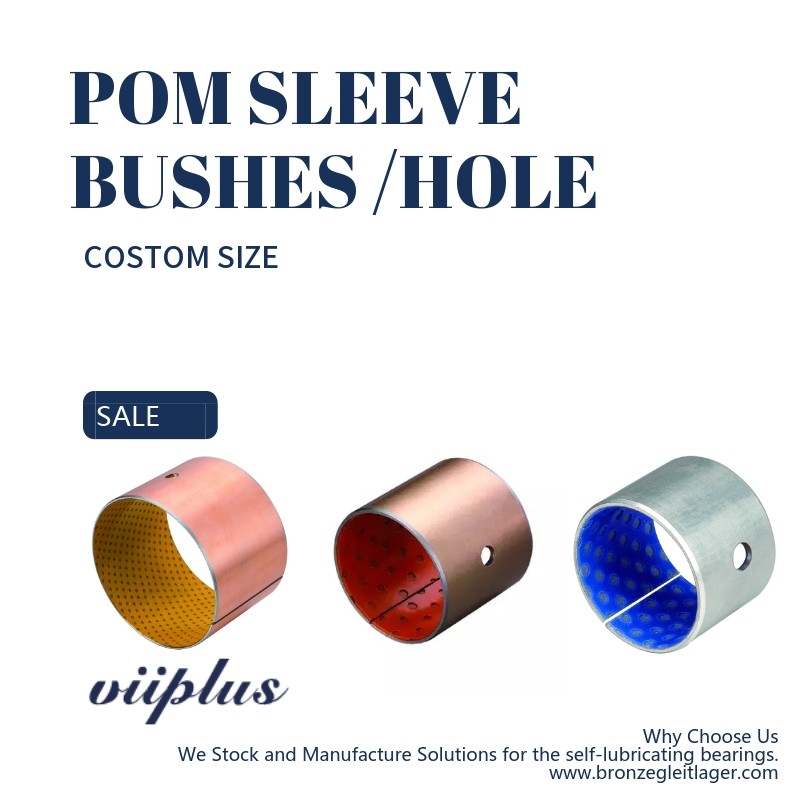

POM Blue Sleeve Plain Bushing Boundary Lubricating Bronze Bush
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | REPLACEMENT PLAIN BEARINGS |
| Certification | ISO 9001 |
| Model Number | Split Bushings |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 4 - 20 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | POM Blue Sleeve Plain Bushing , Steel Base+ Bronze Powder+ POM | Type | Sleeve Bushing |
|---|---|---|---|
| Price | Fob Shanghai,stock Price,factory Price | Size | Customizable |
| Surface Treatment | Copper Plating/Tin Plating /Zinc Plating | Application | Vehicle Chassis, Forming Machine Tools, Steel Metallurgical Machinery, Mineral Mountain Machinery, Hydraulic Industry And Rolling Steel Industry |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | oil embedded sleeve bearing,graphite sleeve bearings |
||
Product Description
The POM Blue Sleeve Plain Bushing, combined with a boundary lubricating bronze bush, offers a unique combination of properties for various industrial applications. POM, or polyoxymethylene, is a thermoplastic material known for its excellent mechanical strength, rigidity, and abrasion resistance. The blue color often indicates a specific grade or formulation of POM, often with enhanced properties such as improved wear resistance.
The bronze bush, on the other hand, is designed with boundary lubrication characteristics. Boundary lubricants create a thin film between the moving surfaces, reducing friction and wear. Bronze bushings, specifically, are known for their high strength, corrosion resistance, and self-lubricating properties, making them ideal for demanding applications.
The combination of the POM blue sleeve and the boundary lubricating bronze bush provides a robust and reliable bearing solution. The POM sleeve offers good mechanical properties and wear resistance, while the bronze bush ensures smooth operation with reduced friction and wear. This combination is particularly suitable for applications where high loads, high speeds, or harsh operating conditions are present.
In summary, the POM Blue Sleeve Plain Bushing with Boundary Lubricating Bronze Bush offers a superior bearing solution for demanding industrial applications, combining the excellent properties of POM and bronze to provide improved performance and reliability.
Bronze Sleeve Bushings
Viiplus is a professional supplier of self - lubricating bearings, providing high quality self - lubricating bearings.
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Product introduction
boundary lubrication lead-free bearings has function of environmental protection, under the condition of boundary lubrication can be use for a long time without refueling, wear-resisting layer surface has oil storage pit. Products are widely used in metallurgical machinery, mining machinery, water conservancyMachine, automobile, construction machinery, agricultural machinery, steel rolling industry, food machinery, pharmaceutical machinery, tobacco machinery, etc.
FOB Reference Price:Get Latest Price POM Blue Sleeve Plain Bushing Boundary Lubricating Bronze Bush
Oilless composite Sliding Self Lubricating Bearing Bushing
Its material structure is Steel base + Bronze powder + POM (blue). It has good load capacity and wear-resistant.Because of without lead, this product is according with environmental requirement.
Product Description
|
Size
|
Customized POM SLEEVE BUSHINGS
|
|
Material
|
Steel + Bronze powder +POM
|
|
Color
|
BLUE POM
|
|
Certification
|
ISO9001
|
|
Outside surface Plating
|
copper/tin
|
|
Max load capacity P
|
Static Load 140N/mm²,Dynamic Load 70N/mm²
|
|
Max line speed V
|
Grease Lubrication 2.5m/s
|
|
PV value limit
|
Grease Lubrication 2.8N/mm²· m/s
|
|
Friction coef u
|
Grease Lubrication 0.06~0.12
|
|
Max Working temperature
|
-60~120℃
|
|
Mating Axis
|
Hardness >270 HB,Roughness Ra=0.4~1.25
|
|
Thermal conductivity
|
52W/(m·k)
|
|
Coefficient of linear expansion
|
11×10-6/K
|
|
Application
|
vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry
|
Explanation: Its material structure is Steel base + Bronze powder + POM (blue). It has good load capacity and wear-resistant.Because of without lead, this product is according with environmental requirement.
