Customized Metric Bushings 40-44 L40mm For Heavy Construction Machinery
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | REPLACEMENT PLAIN BEARINGS |
| Certification | ISO 9001 |
| Model Number | FB090 BRONZE BUSHINGS，BMZ bronze bushing |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 3 - 15 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Material | TIN BRONZE CUSN8 CUSN6 | Feature | High Temperature Resistance,Wear Resistance,corrosion Resistance |
|---|---|---|---|
| Performance | High Load Capacity And Long Life | Type | Sleeve,Flange,Thrust Washer |
| Bushing Size | 40-44 L40MM,INCH SIZE ALSO CAN MANUFACTURE | Lubricating | Diamond Oil Holes |
| Other Code | BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700 | Bearings Tolerance | F7 H7 |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | wrapped bronze bushings,graphite sleeve bearings |
||
Product Description
Customized Metric Bushings 40-44 L40mm are specifically designed for heavy construction machinery. These bushings are manufactured to precise specifications, ensuring a perfect fit and optimal performance in demanding construction applications. Their durable construction and precision engineering make them ideal for withstanding the high loads and vibrations encountered in heavy machinery. Wh you need bushings for excavators, loaders, or any other type of heavy equipment, our customized metric bushings 40-44 L40mm are a reliable choice for ensuring smooth and efficient operation.
Bronze Sleeve Bushings
Products Bearings, units and housings Plain bearing Bushings, thrust washers and strips Bushings.made to order from china.
Cylindrical Bushing BMZ Metric Bushings Size ID40-OD44 L40MM made to order online from china,www.bronzegleitlager.com

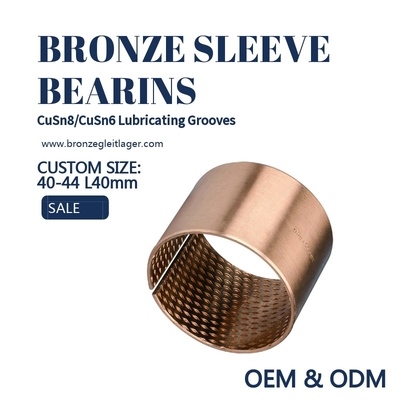

Customized Metric Bushings 40-44 L40MM
Sleeve Bushing,Flange,Washer for Heavy Construction Machinery
VIIPLUS is always focused on foreign markets, meeting the increasing demands of modernization of customers. We could supply Sliding Bearing & Bronze Sleeve Bushing according to international standards, and could also supply as per customers' requests. With stable bushing quality and best level of service, our self-lubricating bearing have been exported to dozens of countries and regions in Europe, the United States and Southeast Asia, etc.

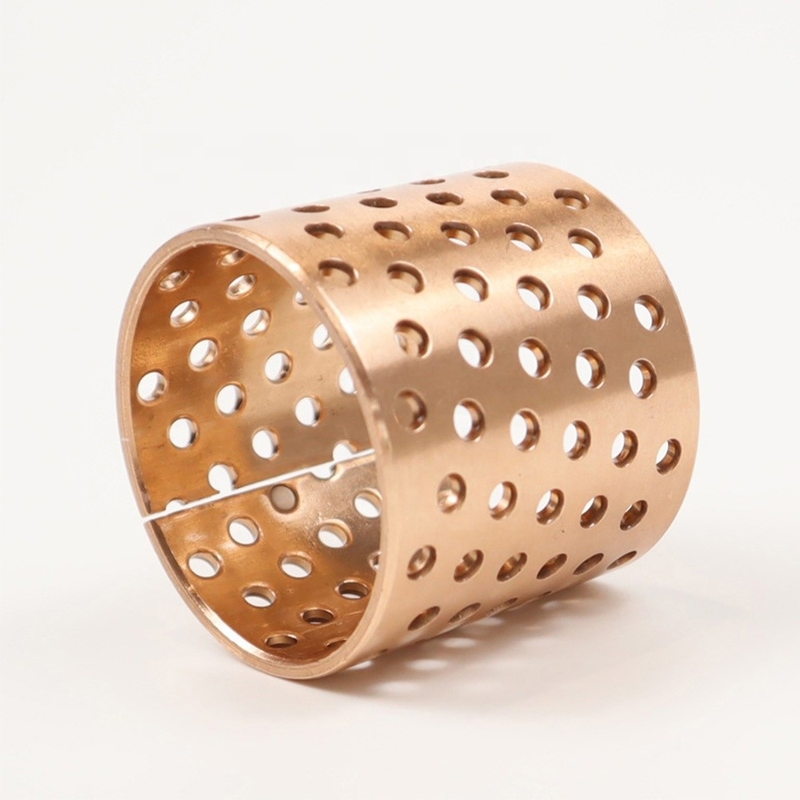

Bronze Sleeve bushing, with diamond-oil socket for the preservation of oil grease. It has good anti-fatigue, anti-erosion and anti-abrasion and resilience. Its material is CuSn8 / CuSn6. It can be made of different tin bronze material and the surface can be made with a different type of oil and an oil groove in different operating conditions.
Material: CuSn8,CuSn6 Brass,Copper,Bronze sliding bearings
Type: sleeve,flange bearing,thrust washer,strip,plate,sheet,custom-made
|
BRONZE BUSHING MATERIAL |
CUSN8 /CUSN6 |
|
Density |
8.8g/cm3 |
|
Hardness |
90-150HB |
|
Working Temperature Limit |
-40~150℃ |
|
Max. Dynamic Load |
100N/mm² |
|
Max Linear Velocity(Grease) |
2m/s |
|
Max PV value Grease |
2.8N/mm2·m/s |
|
Friction Coefficient |
0.06~0.15 |
|
Pressure strength |
>460N/mm² |
|
Yield Strength |
>280 N/mm2 |
|
Mating Axis |
Hardness≥50, Roughness 0.4~1.0 |
|
Coefficient of heat conduction |
58W/m·K |
|
Linear Expansion Coefficient |
18.5×10-6/K |
|
Application |
hoisting, mining machinery,forest machinery, agricultural machinery |
Bushings Application:
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
Bushing Types For Sale
bronze shrouded rings cusn8 bushing bushing bushing bushing bushing self-lubricating bushing bushing bushing auto ring steel bushing back self-lubricating bushing bushing scraper bronze graphite hole bushing bushing bronze filled with graphite bushing foundry ring cast bronze graphite bushing bronze graphite eccentric bushing bronze bronze bushing
