CuSn8 / CuSn6 Tin Bronze Bushings Diamond & Ball Shaped Indents Self Lubricating Oil indentation

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO 9001
Model Number Metal Bronze Bushings
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-20work days
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS
Product Details
Material CUSN8/CUSN6 Feature Diamond & Ball Shaped Indents
Quality Free-maintenance
High Light

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description

Bronze Sleeve Bushings

Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.


Cusn8 / Cusn6 Oil indentation Tin Bronze Bushings Diamond & Ball Shaped Indents Self Lubricating

Type | Thickness of Bronze Bushing Oil Depth1 mm 0.3 – 0.4mm 1.5 mm 0.4 – 0.5mm 2 mm 0.5 – 0.6mm 2.5 mm 0.6 – 0.7mm,Gleitlager | China Sliding Bearings





Bronze Sleeve Bushings







The bronze sleeve bushings 092 range consists of sliding bearings made entirely of bronze
(CuSn8). These products are derived from the bronze bushings - 090 sliding bearings.
The only difference is the fact that the arched sections in the sliding surface have been replaced by holes with a greater lubricant intake capacity.

High load capacity
• Minimal space requirement
• Very good resistance to chemical corrosive agents
• Very good thermal conduction capacity
• Simple installation and maintenance



Extract technical information CuSn8

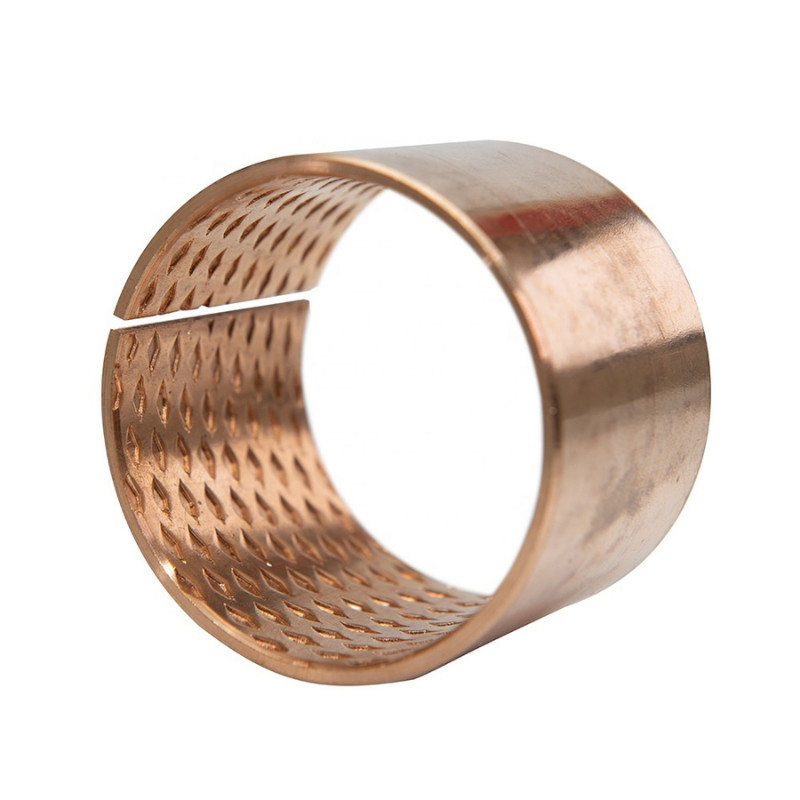

Wrapped Bronze Bearings Products PRECISION PART made to order from china factory.Bronze Sleeve Bushing 090 is a CuSn8P/CuSn6 tin-bronze alloy based product. In order to improve tribological behavior the sliding layer is applied with diamond- or ball shaped indents to retain oil or grease. It shows good anti-fatigue- and anti-erosion behavior as well as a good wear resistance and high load capacity. Products of bronze sleeve bushing 090 series are applied under operating conditions such as high loads and low running speeds, for example in agricultural and construction machines.



090 Technical data

Performance indicators

data

Maximum load

Static load

120N/mm²

Dynamic load

40N/mm²

Maximum linear velocity

2.5m/s

High PV value

2.8N/mm²・m/s

Coefficient of friction

0.08~0.25

The use of temperature

-100℃~+200℃

Coefficient of thermal conductivity

60W/m・K

Coefficient of thermal expansion

15×-6/K



Hot Products Sliding Bearings Series



O92 bronze bearing, is a bronze material as the matrix, processing and uniform and orderly oil injection hole, the rolling into a thin wall bearing, lubricating grease injection after assembly, configuration end face seal and use again. The bearing has a large amount of remaining oil and the advantages of small volume, easy installation, design and can replace copper set to use, can greatly reduce the cost. Has the product has been used in conveyor, elevator, roll machine, leveling machine, etc in the occasion of load and low speed.



O90 bronze bearing, the use of special high density copper alloy strip of formula for matrix, the surface can be rolling diamond according to the requirements of customers or hemispherical oil hole, groove. With high density, large carrying capacity, good wear resistance, long life and other advantages, to replace the traditional copper casting sets, can reduce the size of our machinery, reduce the cost. O90 has been widely used in hoisting machinery, construction machinery, automobile tractor chassis, machine tool industry and mining machinery, also can be made into bearings, flanged bushes, thrust washers and the ball bowl, etc.
