| Brand Name: | bimetal SAE-797 SAE 48 SAE-799 bushings |
| Model Number: | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
The thin-wall construction of ROHS-compliant bimetal sleeve bushings offers a compact and efficient solution for precision bearing assemblies. These bushings are designed with a unique combination of materials that possess excellent wear resistance and self-lubricating properties.
The bimetal sleeve bushings are composed of a steel backing with an overlay of a softer, lubricious metal such as bronze or lead alloy. This combination ensures high strength and durability while providing smooth and reliable operation. The thin-wall design further reduces the overall size and weight of the bushings, making them suitable for applications where space is limited.
The ROHS (Restriction of Hazardous Substances) compliance ensures that the materials used in the manufacturing of these bushings are environmentally friendly and free from hazardous substances. This not only reduces the environmental impact of the products but also ensures compliance with international regulations and standards.
The precision machining process ensures that the bushings meet strict dimensional tolerances and surface finish requirements. This precision is crucial for applications where precise alignment and fit are necessary, such as in automotive transmissions, industrial machinery, and other high-precision equipment.
The compact size and superior performance of these ROHS-compliant bimetal sleeve bushings make them an ideal choice for precision bearing assemblies. They provide smooth and reliable operation with minimal friction and wear, resulting in longer service life and reduced maintenance requirements.

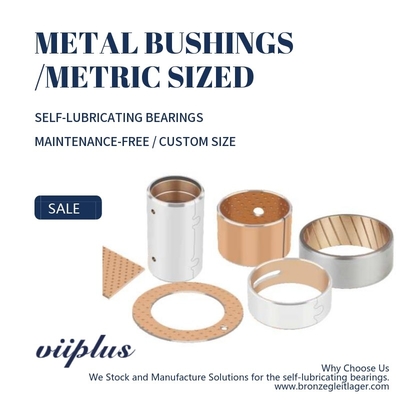

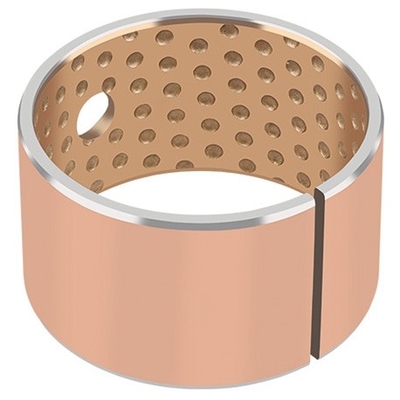

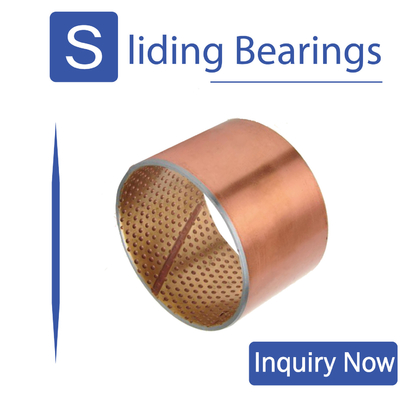

Thin-Wall Construction Permits Compact Rohs Bimetal Sleeve Bushes Indents Bearing Assembly Design freedom – customizable to meet specific indentation and shape needs.Bimetal Steel Bronze Bushing to high-quality low-carbon steel substrate, the surface of the sintered copper-lead alloy as the face, according to conditions and can be processed using all types of sump hole or oil hole in the surface of the alloy layer.Metal and bi-metal bearings.
Bimetallic bearings are able to withstand heavy loads and shock load conditions.
The internal surface of the bimetal bushes can include different types of channels, so as to satisfy the various types of applications and lubrication conditions in which the bushes may be used.
Bronze Bearings.
Sintered Bearings.
Steel Rings.
Our self-lubricating bearings are given on the chassis of the walking mechanism, body elements and hydraulic components. Includes bimetallic lubrication of rolling bearings, self-lubricating metal-based bearings and self-lubricating plastic rolling bearings.
These bearings have material under high load, excellent wear resistance and anti-dust effect, and the technology of self-lubricating bearings allows much longer maintenance cycles, improves the use of equipment, reduces maintenance costs.
VIIPLUS CHINA offers a comprehensive selection of sleeve bushing to meet the world’s most demanding surface engineering needs.

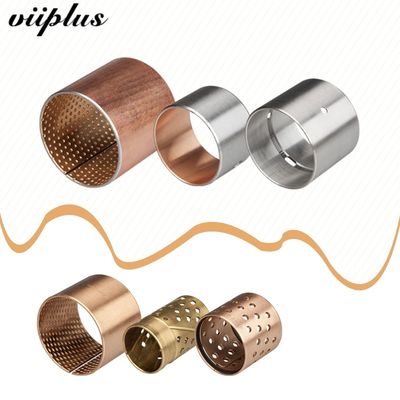

We manufacture metal-polymer, engineered bushing, fiber reinforced composite stainless steel 316 or 304 bushing, metal and bimetal bearings and polymer coatings along with a range of supporting assemblies, bushing blocks and thrust plates.Visit our online tstar.com
technical PDFBIMETAL PLAIN BEARINGS AND SLEEVE BEARINGS MADE IN...
| Technical Data | |||||||
| Data | BIMETAL BUSHING METAL BEARINGS | ||||||
| SAE-797 | SAE-799 | DIN17670 | BS PB1 | CuSn6(2.1020) | SAE-783 | ||
| CuPb10Sn10 | CuPb24Sn4 | CuPb6Sn6Zn3 | CuSn10 | CuSn6.5P | AlSn20Cu | ||
| Material | Steel+ | Steel+ | Steel+ | Steel+ | Steel+ | Steel+ | |
| CuPb10Sn10 | CuPb24Sn4 | CuPb6Sn6Zn3 | CuSn10 | CuSn6.5P | AlSn20Cu | ||
| Alloy layer hardness HB | 80~120 | 45~70 | 70~100 | 70~100 | 70~100 | 30~40 | |
| Max dynamic Load P N/mm² | 150 | 130 | 130 | 130 | 130 | 100 | |
| Max.Speed V m/s | Grease lubrication | 3.5 | 2.5 | 2.5 | 2.5 | - | - |
| Max.PV limit N/mm²·m/s | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | - | |
| Friction Coefficient u | 0.05~0.10 | 0.05~0.15 | 0.05~0.15 | 0.05~0.15 | 0.05~0.15 | - | |
| Max.Speed V m/s | 8 | 10 | 5 | 5 | 5 | 15 | |
| Max.PV limit N/mm²·m/s | Oil lubrication | 10 | 10 | 10 | 10 | 10 | 8 |
| Friction Coefficien u | 0.04~0.12 | 0.04~0.12 | 0.04~0.12 | 0.04~0.12 | 0.04~0.12 | 0.05~0.02 | |
| Max Working temperature ℃ | Grease lubrication | 150 | 150 | 150 | 150 | 150 | 150 |
| Oil lubrication | 250 | 250 | 250 | 250 | 250 | 250 | |
| Thermal conductivity W/mk | 60 | 60 | 60 | 60 | 60 | 47 | |
| Coefficient of linear expansion | 18×10-6/K﹣¹ | 19×10-6/K﹣¹ | 18×10-6/K﹣¹ | 18×10-6/K﹣¹ | 19×10-6/K﹣¹ | 18×10-6/K﹣¹ | |
| Match the axis | Hardness HRC | ≥53 | ≥45 | ≥53 | ≥53 | ≥53 | ≥270 |
| Roughness Ra | 0.32~0.63 | 0.32~0.63 | 0.16~0.63 | 0.32~0.63 | 0.16~0.63 | 0.16~0.6 |
|
— Aerospace
— Automotive
— Industrial
— Agricultural
— Construction
— Oil and Gas
— Energy
— Fluid Power
Advantage of Bimetal Bushings
low friction, high wear resistance
low coefficients of friction eliminate the
need for lubrication while reducing wear
and extending service life.
Maintenance-Free
Ideal for applications requiring long service
life without regular maintenance or operating
conditions with little or no lubrication.
Reduce shaft costs by eliminating the need
Lower System Cost
for hardening and machining grease paths.
Compact, one-piece construction provides
space and weight savings and simplifies
assembly.
Environmental
Greaseless, lead-free solutions comply
with increasingly stringent environmental
regulations such as the RoHS directive for
electrical and electronic equipment.

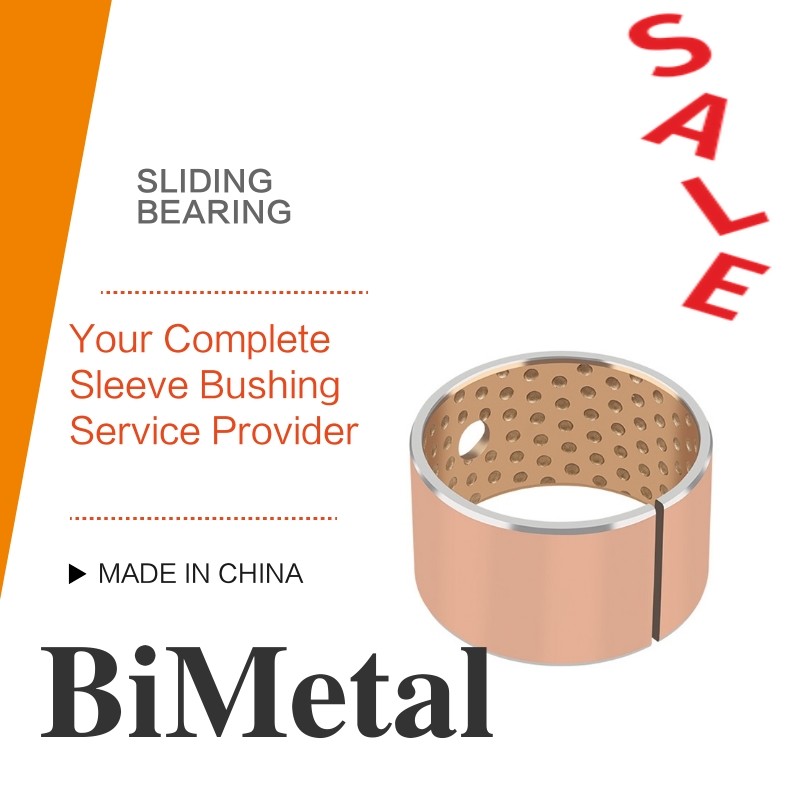

Bimetal Bushings Competitive Price,High Quality Standard SAE-797 bimetal bushing is based on steel and sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. The strongest type of bimetal bushings and widely applicated in so many fields.
This type has the best performance within the range of Cu-Pb alloy constructured bushing.Thereforce it has a wide application and is mostly suitable for where is middle speed and high impact etc.
The bimetal bearing specialist with custom material manufacture design size
VIIPLUS has been proving its vast experience and technical know-how in manufacturing and marketing bimetal bearings bushings and drive units. Benefit from experts who seek the perfect sliding bearing solution for you, designed for your special applications.
CuPb10Sn10 is a higher lead content giving it a better advantage for higher rotational speeds. Also, the bimetal sliding layer has lubrication pockets that are also suitable for oil lubrication and thus allowing this bushing material to run at much higher rotational speeds.
| Specifications for Bi-Metal Bronze Alloys: | ||||
| Material Type | Specification of Bronze Alloy | Hardness of Bronze Alloy HB | Allowable Max Dynamic Load | Max. Temperature °C |
| Bi-Metal-800 | CuPb10Sn10 or CuSn6Zn6Pb3 | 70~100 | 65 | 260 |
| Bi-Metal-720 | CuPb24Sn4 | 45~70 | 38 | 200 |
| Bi-Metal-700 | CuPb30 | 30~45 | 25 | 170 |
| Bi-Metal-20 | AlSn20Cu | 30~40 | 30 | 150 |
| Bi-Metal-930 | CuSn6.5P0.1 | 60-90 | 65 | 200 |
Contact your china sales representative for
product selection and design assistance.
