SAE-797 / CuPb10Sn10 | Bimetal Bearings - VIIPLUS SELF-LUBRICATING BRONZE BUSHING

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT in advance,Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing
Product Details
Meterial Copper Plated Steel Shell With Sinered Bronze Liner Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Type Bushes, Flanged Bushes, Special Designs
Bushing Sample Available,bi-metal, Bushings, Sintered Bronze, Cast Bi-metal, Bushings Application Con Rod Bushing Truck Roller Bearing , Handling And Lifting Equipment, Hydraulic Motors & Pumps, Agricultural Machinery Etc.
Name Steel Backed Lead Bronze Bimetal Self-lubricating Bearing Bushing Bushing Standard Bimtel Bearing: BM JF600 JF650 JF700 JF720
Brand Www.viiplus.com Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Steel Backed Bronze Bushing, Bimetallic Bushes
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

Bimetal bearings from China,  hydraulic boom lifting cylinder Kanglim ks1256. 65x70x60 bi-metallic.

Hydraulic Cylinders for Offshore Applications Your Partner for ...

hydraulic boom cylinders - from the manufacturer



Thin-walled Bimetallic Bearings with Bronze, Bearing forms made to order: cylindrical bearings, flanged bearings, sliding plates, half shells, plain bearings, customized bearing forms Steel Type Bimetal Bushings G-CuPb10Sn DIN 1716 SAE-797 / CuPb10Sn10 |  - VIIPLUS Self-Lubricating Bronze Bushing



bimetallic bushing bearing

Steel Backed+ Tin Bronze Lead Alloy

Bushing Company, Sintered SAE-799 CuPb24Sn4 bimetal bushing Supplier.Working together to create solutions for the most demanding BIMETAL applications.Need Help Finding the Right Bimetal Bushing Products?Our Plain Bearings Parts Experts Can Help. Call for immediate assistance.Ask for a qoute for material Steel+CuPb10Sn10,Steel+CuPb24Sn4,Steel+CuPb24Sn,Steel+CuPb30,Steel+CuPb10Sn10+GRAPHITE.

This Bi-metal Bushing can be manufactured in various type or customized.



-Thrust or Bearing Plates         Type of bearing structure
-Flanged Bushing
-Welded Joint Bushing
-Split Joint Bushing
-Clench Lock Bushing
-Specialized machined features







Manufacturers of Bimetal Trimetal Bearing & Bushings & Cast Solid Bearing & Bushings Alloy Reference And Material Characteristics.Sae-797 / Cupb10sn10 | Bimetal Bearings - Viiplus Self-Lubricating Bronze Bushing,Sae-797 bimetal bushing is based on steel and sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer.

The strongest type of bimetal bushings and widely applicated in so many fields. This type has the best performance within the range of Cu-Pb alloy constructured bushing.Thereforce it has a wide application and is mostly suitable for where is middle speed and high impact etc.We have many of experience the Manufacturing and supplying Customized Bimtel Bushing and Bearings.

DIN-G-CuPb10Sn



 Other

  • Sn : 9.0-11.0

  • Sb : ≦0.5

  • impurities

Country Code

  • DIN

Standard

  • 1716

Steel Type

  • G-CuPb10Sn

Bimetal Wrapped Steel with Bronze Series - Metric Bushings If you need help in selecting the best bimetal bushing and flanged bearings products for your particular application,Click here to go to our online catalog bimetal bushing specifier for the sliding bearings Series Bushings with size including types downloads.BIMETAL CUSN10PB WRAPPED STEEL WITH BRONZE STRIPS ...



CuPb10Sn10 | Bimetal Bearings

Wrapped composite sliding bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets
TECHNICAL DETAILS
Specific load capacity static ≤ 250 [N/mm2] Temperature strain - 40 [°C] to + 250 [°C]
Specific load capacity dynamic ≤ 140 [N/mm2]
Sliding speed ≤ 2.5 [m/s] Max. PV-value 2.8 [N/mm² x m/s]
Friction value 0.04 [µ] to 0.12 [µ] Percentage contact area > 75 [%]
MATERIALS
Support material Steel copper-plated or tin-plated Sliding layer CuPb10Sn10
TOLERANCE DETAILS
Housing Ø H7 Shaft tolerance f7 to h8
Bushing inner-Ø after mounting H9
SHAFT MATERIAL
Steel, hardened or untempered
Surface roughness ≤ Ra 0.8
PROPERTIES
For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
RANGE OF APPLICATION
Track rollers, construction machines, crane construction, agricultural machines (impact loading)
MAINTENANCE
It is a low-maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory.
MOUNTING ADVISE
Housing Mounting bevel min. 1.5 mm x 15-45°
Shaft Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.
Gluing Adhesive should not contact the sliding surface!

Specifications


Bimetal Bearing Type steel with bronze Copper plated steel shell with sinered bronze liner If you need help in selecting the best bimetal bushing and sliding bearing for your particular application, please remember that design engineering and application assistance are available from VIIPLUS CHINA as part of our value-added services designed to make your purchase online from china easier.



Click here to go to our online sliding bearings catalog and Sleeve bushing product below specifier for the Bimetal Series Bushings with nearly 100 products including free CAD downloads.



Bushings Material,Tolerances and Precision,Internal Clearance,Lubrication,Fitting and Mounting Load and Life Calculation Information Shaft Dia.Shaft Size,Housing Bore Dia.  Bearing Outside Diameter,Bearing Bore after Mounting Clearance,Wall Thickness ,Bearing Length Tolerance



Bushings (also referred to as plain bearings, plane bearings, sleeve bearings or linear sleeve bushings) operate with sliding motion between the moving surfaces. Bushings are selected based on the velocity and the applied load. Maintenance-free bushings do not require additional lubrication to operate. VIIPLUS supplies more than 3,000 different high-quality self-lubricating bearings bushing models made from a variety materials including all metal, plastics, and composite materials.





Referance of BIMETAL BUSHINGS Material Standard Code

Material

Alloy composition

Alloy hardness

International standard

BI-METAL BUSHINGS

CuPb10Sn10

80~120HB

JIS-LBC3. JIS-LBC3. SAE-797. DIN CuPb10Sn. UNS C93700. CLEVITE F100.

CC495KDAIDO L10. D. A. B. D57. Federal Mogul HF2. Glacier SY. GLYCO66. ACL F100

CuPb24Sn4

45~70HB

JIS-LBC6. JIS-LBC6. SAE-799. GLYCO 68. DAIDO L23. Clacie rsx. ACL F250

CuPb6Sn6Zn3

70-100HB

Din17670

CuSn10

70-100HB

Din G-CuSn10 ;BS PB1

CuSn6.5P

70-100HB

DIN CuSn6(2.1020); JIS H3110

AlSn20Cu

30~40HB

JIS-AJL. SAE-783. GLYCO74. Glacier AS15. ACL820



BiMetal Bushing & Self-lubricating Bearings Precision Industrial Sliding Bearings





VIIPLUS MADE IN CHINA Sliding Bearings is the complete, one-stop supplier to SME and OEM's and to wholesalers sourcing high-precision,self-lubricating bearings, bronze sleeve bushing washer and related products, and associated professional services including world-class engineering and design. Our bearing products and design solutions will enhance your product performance; make your company more competitive, and make your purchase easier. Discover which of our extensive products or services is just right for your application. Experience firsthand how plain Bearings provides easy install



Technical Data

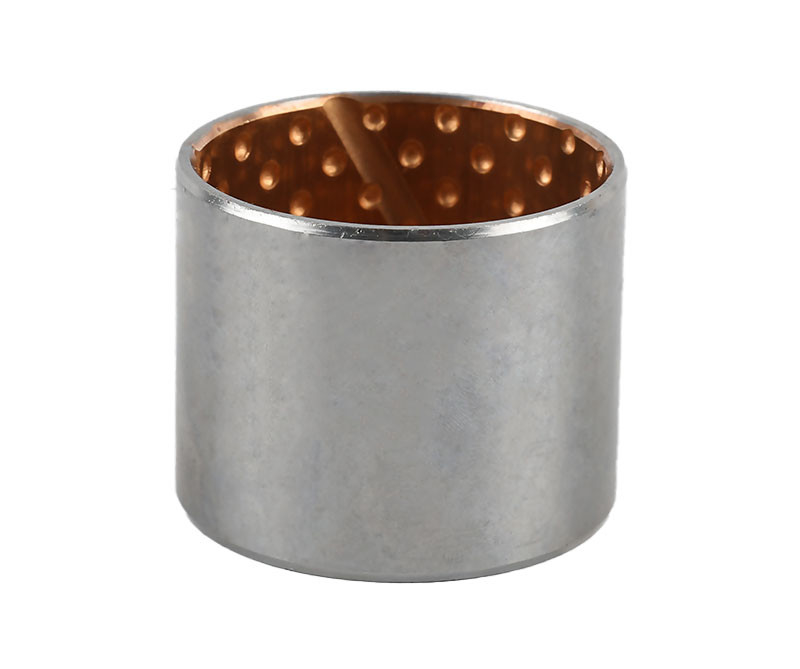

BiMetal Series Bushings Series Structure are made of Steel backed lead bronze lined bushings and have the following layers:

  1. Sinter bronze powder: good wear resistance and excellent load carrying capacity.

  2. Steel backing: gives exceptionally high load carrying capacity, excellent heat dissipation.

  3. Copper plating 0.002mm, good corrosion resistance.





Dynamic load limit

60N/mm²

Static Load

120N/mm²

frictional coefficient

0.08~0.2

PV limit

2.8N/mm²*m/s

Max Speed

>2m/s

Temp.limit

-40°C~+250°C



Bushings & Plain Bearings Application



Series Bushings feature steel backed lead bronze lined material specially developed for lubricated applications, high load capacity, excellent heat dissipation, and good fatigue properties. They have been widely used in automotive industry, and general industrial applications including steering gears, power steering, pedal bushes, king-pin bushes, tailgate pivots, mechanical handling, lifting equipment, hydraulic motors, agricultural machines etc.



Agricultural machinery bushings

Properties

  • For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.

Materials

  • Support materialSteel copper-plated / tin-plated

  • Sliding layerCuPb10Sn10

Tolerance Details

  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8

Maintenance

  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!

Caption

Special dimensions are available on request
