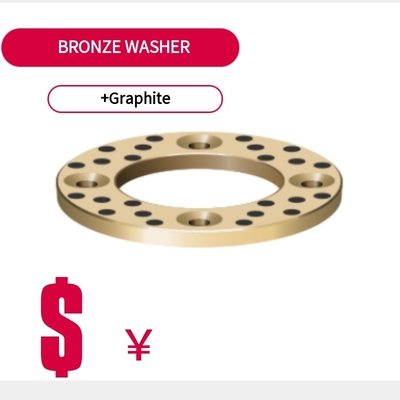

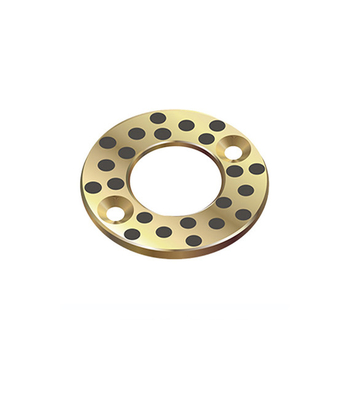

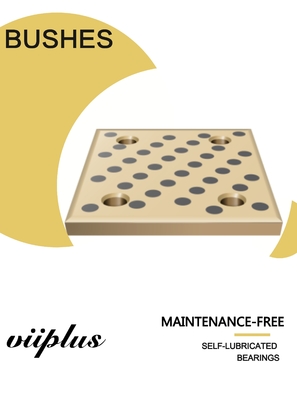

Our company is renowned for manufacturing high-quality blanking dies wear plates and washers, equipped with graphite-plugged bushings made of 660 bronze in inch size. These precision-crafted components are designed to withstand high loads and deliver exceptional performance in blanking operations.

The wear plates and washers are made from durable materials that can withstand the rigorous demands of blanking processes, ensuring long-lasting performance and reliability. The graphite-plugged bushings, made of 660 bronze, provide excellent lubrication and reduce friction, thereby enhancing the overall efficiency of the die system.

The inch-sized bushings are precision-machined to ensure a perfect fit within the die system, ensuring smooth and accurate operation. The use of graphite plugs further improves lubrication and wear resistance, allowing the bushings to handle heavy loads without failure.

Our commitment to quality and precision is reflected in every component we produce. We employ advanced manufacturing techniques and strict quality control measures to ensure that our products meet the highest standards of performance and reliability.

Wh you need replacement wear plates and washers for your existing die system or are looking to upgrade to more durable components, we have the solution for you. Contact us today to learn more about our blanking dies wear plates, washers, and graphite-plugged bushings, and how we can help improve the performance of your blanking operations.

Graphite Plugged Bushings

China in fabrication and stamping solutions | bronze bushings & plate ,made to order from china wide industry in the production of catalog and special punches bearings, punch and die bushing, die bushing components, die flange bearing & plate details.The Chinese Supplier & Manufacturer of Precision Mold and Die Components.High hardness C86300 Graphite Plugged Bushings Oilless Plain Bearings Manganese Bronze Thrust Washer

High Strength Brass Sliding Plug Graphite Bearing & Bushings

Chemical composition

Colliers brass chemical formula for  zCuZn24A6Fe4Mn3 copper content about 65%, zinc is about 24%.Aluminum improves the strength, hardness and corrosion resistance of brass.
There are three kinds of room temperature structure of brass: brass containing less than 35% zinc, the microscopic structure at room temperature consists of single-phase alpha solid solution, called alpha brass

Pressure working performance

Colliers brass has good plasticity, can withstand the cold and hot processing, but now in forging the hot work such as easy to file a medium temperature brittleness, the specific temperature range with Z eta content
It varies, usually between 200 and 700C.Therefore, the temperature should be higher than 700C during hot processing

Mechanical properties of

For alpha brass, the sigma b and delta are getting higher and higher as the zinc content increases.So the zinc content
More than 45% of the copper and zinc alloys are of no practical value.Standard brass brinell hardness HB > 200, compressive strength > 600MPa, elongation > 10%.

Overview

Blanking die sleeve bronze bushings & bearing in stamping production, blanking die used as blanking die.The main task of blanking die is to separate materials, under this premise, blanking die classification there are many ways.According to the nature of the process, blanking die can be divided into blanking die, punching die, cutting die, refurbishing die, fine die.


High load bearing, high wear resistance, high temperature resistance and high hardness

Material:Manganese Bronze with Graphite Plugs Bushings

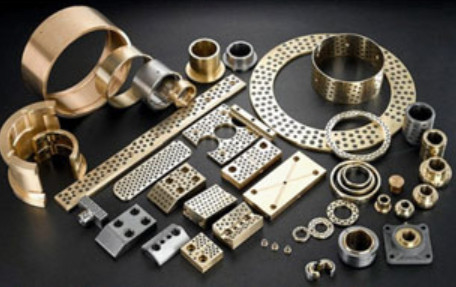

As a profession supplier we focusing on supply quality C86300 solid bronze bushing, wear plate, oilless bearing and oilless guide components with our competitive price to whole world.

Detail Display
Technical Data

C86300 (SAE 430B) Manganese Bronze Bushings

C86300 Manganese Bronze (SAE 430B) is a high strength alloy used as bushings, bearings, gears, gibs, screw down nuts, bridge pins, valve stems and hydraulic cylinder parts.

Graphited bearings should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.

New Collections

Productcategory

Sele Ction Of Recommended

Application

Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.

Discover More

How To Place An Order

• Step1 Choose the Bushing & Self-lubricating Bearings you need. Do you need different type bearings.
• Step2 Choose the standard self-lubricating bearings & bushings size you need.
• Step3 Confirm the material and bushings size you need.
• Step4 Select the shipment terms.
• Step5 Contact our salesperson to get the latest quote.
• Step6 Ask for a FREE sample to check the quality of the products.
• Step7 Confirm the sample quality and the quantity & price of the bulk order. Place the order with the salesperson.
• Step8 Arrange a 30% deposit prior to production.
• Step9 Electronic photos or shipping samples will be sent before shipment in accordance with your request.
• Step10 Settle the 70% balance before the bulk order is finished.
• Step11 Shipment will be arranged upon receipt of the balance and completion of the order.
• Step12 CI, PL, BL and CO (if necessary) are sent for custom clearance on your end.
• Step13 End of the order.

Shipping Information

Our service:
Fast delivery by air with our own account (DHL, UPS, FedEx, TNT) or customers' account, save your time.
1)by express to door(DHL/FEDEX/UPS/TNT)
2)by air to airport
3)by sea to port

Products Packaging

Standard Export Packing:Cartons / Pallets /Woode Cases
