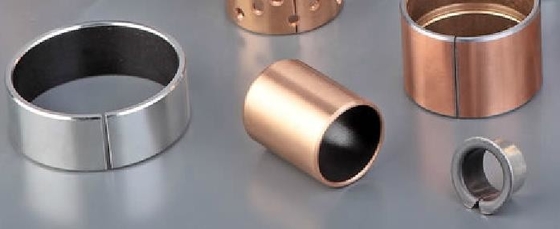

Precision Parts Sintered Tin Lead Bronze Alloy Bimetal Steel Bushings Split Joint Flanged

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces (Min. Order)
Price $0.20 - $2.00 / Pieces ,Negotiable
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT IN ADVANCE Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear & Corrosion Resistant Superalloy Material Bimetal CuPb10Sn10
Standard DIN1494 Bush Types Sliding Bearings
Shaped Diamond Oil Hole With Lubricate Customized Available As Per Drawing Or Sample, As Drawing, Welcome Customized Drawings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

Precision parts, such as sintered tin-lead bronze alloy bimetal steel bushings with a split joint and flanged design, are crucial components in various industrial applications where high performance and durability are essential. These bushings are constructed using a unique bimetal process that combines the outer steel shell with an inner lining of sintered tin-lead bronze alloy.

The sintered tin-lead bronze alloy provides exceptional wear resistance, ensuring that the bushings can withstand heavy loads and high-speed operations with minimal wear. The alloy also exhibits good corrosion resistance, making it suitable for use in environments with moisture or chemicals.

The split joint design allows for easy installation and removal, without the need for dismantling the entire machinery. This significantly reduces downtime and maintenance costs, while the flanged design ensures secure fitment and positioning of the bushings.

The steel shell provides structural strength and rigidity, ensuring that the bushings can withstand the rigors of continuous operation. The combination of the sintered tin-lead bronze alloy lining and steel shell creates a bushing that is both durable and reliable, making it an excellent choice for precision applications.

Overall, sintered tin-lead bronze alloy bimetal steel bushings with a split joint and flanged design offer a robust and efficient solution for precision applications requiring high wear resistance and durability.



Bimetal Bearing Bushes



Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.





Bimetal bushing is based on steel and sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer.



Alloy CuPb10Sn10 Chemical Composition ( % ):


Cu Pb Sn Zn P Fe Ni Sb other
rest 9-11 9-11 ≤ 0.5 ≤ 0.1 ≤ 0.7 ≤ 0.5 ≤ 0.2 ≤ 0.5







The strongest type of bimetal bushings and widely applicated in so many fields. This type has the best performance within the range of Cu-Pb alloy construcured bushing. Therefor it has a wide application and is mostly suitable for where is middle speed and high impact etc.





Load capacity   150N/mm2
Speed limit Oil lubricating 2.5m/s
Dry Friction 0.4m/s
PV value limit Oil lubricating 10N/mm2.m/s
Dry friction 2.8 N/mm2.m/s
Mating axis required Hardness >=48~53HRC
Roughness Ra=0.16~0.63
Friction coef   0.05-0.22
Working temperature max.   200°C







FLANGE BIMETAL BEARING






Copper-based Alloys Steel backed bronze sintered Bi Metal bushings.Metal Sleeve Bushing,Sliding layer can be machined with lubricating grooves or with grease indents Very good corrosion resistance.Bimetal Bushings has a bi-layer structure of low carbon steel backing and copper alloy sliding layer. This product is lead-free and RoHS compliant. To decrease abrasion, oil grooves can be formed on the surface of alloy. According to the requirement, the steel back can be plated with anticorrosive coating.We are constantly exploring the technical data of Plain Bearing such as customer drawing size tolerance,friction, wear, and self-lubrication in depth, to develop SLIDING BEARINGS products that anticipate and meet the needs of the times. Outstanding services and quality second to none will always be our hallmark. We are also highly aware of the fragility of the global environment that surrounds us.



bimetal bushing



High temperature resistance Bimetal Diamond-shaped Bushings & Sliding Bearing

Overview



It is based on high density copper alloy of special formula. The alloy surface is rolled to diamond or global oil grooves.

Made of wrapped bronze strip. The bronze is of particular formulation, on its surface incorporated with spherical or diamond shaped indentations or oil grooves. Bimetal Bushing German DIN standard, European EN standard and international ISO standard, etc can be produced and provided.

The product is based on high quality low carbon steel and sintered lead tin bronze alloy CuSn10Pb10.The spherical oil cavity rolled on the surface of the alloy is convenient for storing oil and effectively reducing wear.The steel back can be plated with anticorrosive coating as required.Suitable for medium, medium to high speed, and bearing with large impact load, used for rolling bearing, thrust gasket, internal combustion engine connecting rod piston pin shaft sleeve.







Maximum dynamic load 140P N/mm² Maximum temperature °C Grease lubrication 150°C
Maximum linear velocity Grease lubrication 2.5Vm/s Fluid lubrication 250°C
High PV value 2.8N/mm². m/s Match the diameter of axle Hardness HRC ≥ 53
Coefficient of friction 0.05~0.15 Roughness Ra 0.32~0.63
Maximum linear velocity Fluid lubrication 5 Alloy layer hardness 80~120
High PV value 10 Coefficient of thermal conductivity 47W/mk
Coefficient of friction 0.04~0.12 Linear expansion coefficient (axial) 18×10-6/K



Standard



The VIIPLUS quality of sliding bearing CHINA NATIONAL to be reached the standard of U. S. and GERMANY DIN 1494



DIN1494 standard bimetal bushing supplied by VIIPLUS.Our main oil-free bearing related products sales and services.For DIN1494 bimetallic bushing inquiries welcome to contact or online message

Material: steel + copper alloy (CuSn6Zn6Pb3 / CuPb10Sn10)


The product is based on high quality low carbon steel and sintered lead tin bronze alloy CuSn10Pb10.The diamond hole is rolled on the surface of the alloy and filled with special solid lubricant to effectively reduce wear.The steel back can be plated with anticorrosive coating as required.It is suitable for high temperature, water solution infiltration or other occasions where oil cannot be added or where oil is difficult.





Bimetal Bearing Bushes















































































Technical parameters



  • The highest PV value is 2.8 N/mm2·m/s for grease lubrication

  • Matching shaft hardness 53 HRC

  • Oil lubrication 10 N/mm2·m/s roughness Ra=0.16~0.63

  • Maximum linear velocity V dry grease lubrication 2.5 m/s highest use temperature 150 ℃

  • Grease lubrication 5 m/s lubrication 250 ℃

  • Tensile strength 185 N/mm 2 friction coefficient 0.05~0.15

  • Hard alloy degrees

  • HB 60~90 thermal conductivity 47w/(m·k)

  • Coefficient of thermal expansion

  • 18· 10-6k-1 maximum bearing pressure P 150 n/was



Bimetal Bushing Size



Available as per drawing or sample, as drawing, Welcome Customized Drawings



Bimetal bushing VIIPLUS provides products with high compressive strength, small friction coefficient, good wear resistance, reduce the cost of machinery manufacturing, its performance has reached the level of similar products at home and abroad.The products are widely used in construction machinery, textile machinery, automobile industry, machinery industry and other fields, especially for the parts that are difficult to oil and can not oil have a good effect, free from oil pollution.
