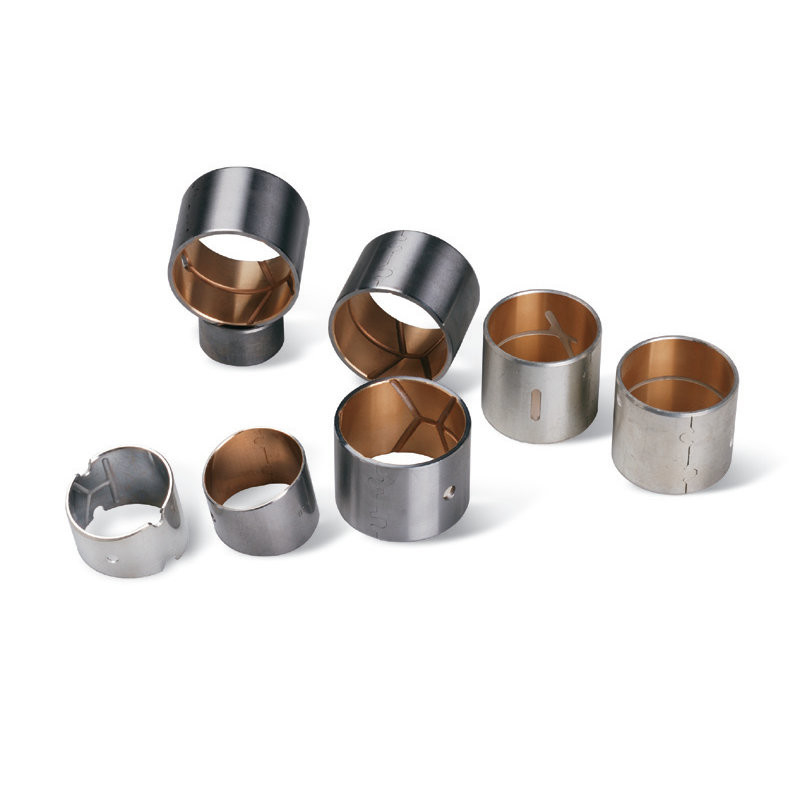

Bimetal Bushing 800 Bimetal sleeve 72Bimetal Bushes Material Strips Steel Copper Alloy CuSn4Pb24

Place of Origin CHINA,ZHEJIANG
Brand Name VIIPLUS
Certification ISO9001
Model Number VSB-80 BIMETAL Steel copper alloy (CuSn4Pb24)
Minimum Order Quantity 500pcs
Price $1.00~$100.00
Packaging Details Box Packing+Carton+Pallets
Delivery Time 10-20 work days
Payment Terms T/T, Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Facilitate Oil Storage Material Bimetal Steel Copper Alloy (CuSn4Pb24)
Standard JF High Lead Series CuSn4Pb24 Bush Types Trust Washer ,metal, Sliding Bearings
Shaped Oil Groove Customized Available As Per Drawing Or Sample, As Drawing, Welcome Customized Drawings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

Bimetal bushings and sleeves, specifically the 800 series and 72 model, are precision-engineered components made of a unique combination of materials to achieve optimal performance in various industrial applications. The key material in these components is a copper alloy known as CuSn4Pb24.

CuSn4Pb24 is a bronze alloy composed of copper, tin, and a small amount of lead. The composition of this alloy provides several key benefits:

Wear Resistance: The addition of tin and lead to copper results in an alloy that is highly resistant to wear. This makes it an excellent choice for bushings and sleeves, where continuous friction and abrasion are common.
Self-Lubricating: CuSn4Pb24 exhibits excellent self-lubricating properties, meaning it can lubricate itself under operating conditions, reducing the need for external lubricants. This further enhances its wear resistance and longevity.
Corrosion Resistance: The alloy is also resistant to corrosion, making it suitable for use in environments where exposure to moisture, chemicals, or other corrosive agents is possible.
The bimetal construction of these bushings and sleeves combines the wear resistance and self-lubricating properties of CuSn4Pb24 with the strength and rigidity of a steel backing. This results in a component that is both durable and reliable, able to withstand the rigors of continuous use in demanding industrial environments.

In summary, bimetal bushings and sleeves made from CuSn4Pb24 and steel offer an exceptional combination of wear resistance, self-lubrication, and corrosion resistance. These properties make them ideal for use in a wide range of applications, including but not limited to machinery, automotive components, and precision instruments.



Steel copper alloy CuSn4Pb24 JF720 JF high lead series Bimetal Bushes



depending on lubrication conditions. In some cases, a dry bearing can also be used under lubricated conditions.With our wide stock availability, daily updated on our website,https://www.viiplus.com we are able to satisfy promptly every customer’s needs.







Alloy grade  Name  Main chemical composition % Alloy hardness HB  Steel layer hardness HB  Main use occasion
cu pb sn zn ni Bi
CuPb24Sn4 JF720 margin 19.0~27.0 3.0~4.5 55~80 110~140 Bushing, bearing bush, thrust washer



Overview


The bimetal bushings product is based on high quality low carbon steel, with sintered lead-tin bronze alloy CuSn4Pb24 on the surface. The alloy surface can be processed into oil groove, which is convenient for oil storage and effectively reduces wear.The steel back can be plated with anticorrosive coating as required.This series of products are often used in internal combustion engine spindle and connecting rod bearings, thrust pads, rolling bearings and so on



Standard

We can manufacture our bimetal bushings products according to different international standards such as GB, ISO, DIN, ANSI, BS, JIS as well as customers' special demand.


DIN1494 standard bimetal bushing supplied by VIIPLUS.Our main oil-free bearing related products sales and services.For DIN1494 bimetallic bushing inquiries welcome to contact or online message



Material: steel + copper alloy (CuSn4Pb24)


The product is based on high quality low carbon steel and sintered lead tin bronze alloy CuSn10Pb10.The diamond hole is rolled on the surface of the alloy and filled with special solid lubricant to effectively reduce wear.The steel back can be plated with anticorrosive coating as required.It is suitable for high temperature, water solution infiltration or other occasions where oil cannot be added or where oil is difficult.



bimetal bushing Structural components





Technical parameters



The highest PV value is 2.8 N/mm2·m/s for grease lubrication
Matching shaft hardness 48 HRC
Oil lubrication 10 N/mm2·m/s roughness Ra=0.16~0.63
Maximum linear velocity V dry grease lubrication 2.5 m/s highest use temperature 150 ℃
Grease lubrication 10 m/s lubrication 250 ℃
Tensile strength 150 N/mm 2 friction coefficient 0.05~0.15
Hard alloy degrees
HB 45~70 thermal conductivity 60 W/ (m·k)
Coefficient of thermal expansion
19· 10-6k-1 maximum bearing pressure P 130 n/was


Standard Tolerance Dimension Table



d
D
相配轴径
公差( h8)
相配座孔
公差(H7)
压入H7座孔
内径公差
Wall thickness
壁厚
注油孔
f1
f2
L 0
-0.40
min
max
10
15
20
25
30
40
50
60
10
12
10-0.022
12+0.018
+0.148
+0.010









0.995





0.935






4
0.5






0.3
1010
1015
1020





12
14
12-0.027
14+0.018
1210
1215
1220





14
16
14-0.027
16+0.018
1410
1415
1420





15
17
15-0.027
17+0.018
1510
1515
1520





16
18
16-0.027
18+0.018
0.8






0.4
1610
1615
1620





18
20
18-0.027
20+0.021
+0.151
+0.010
1810
1815
1820
1820




20
23
20-0.033
23+0.021



+0.181
+0.020



1.490



1.430
2010
2015
2020
2020




22
25
22-0.033
25+0.021







6
2210
2215
2220
2220




24
27
24-0.033
27+0.021
1.0






0.5
2410
2415
2420
2420
2430



25
28
25-0.033
28+0.021

2515
2520
2520
2530



26
30
26-0.033
30+0.021
+0.205
+0.030












1.980
1.920







2615
2620
2620
2630



28
32
28-0.033
32+0.025

2815
2820
2820
2830
2840


30
34
30-0.033
34+0.025
1.2




0.6





3015
3020
3020
3030
3040


32
36
32-0.039
36+0.025

3215
3220
3220
3230
3240


35
39
35-0.039
39+0.025


3520
3520
3530
3540
3550

38
42
38-0.039
42+0.025

8


3820
3820
3830
3840
3850

40
44
40-0.039
44+0.025


4020
4020
4030
4040
4050

d
D
相配轴径公差(h8)
相配座孔公差(H7)
压入H7座孔内径公差
Wall thickness
壁厚
注油孔
f1
f2
L 0
-0.40
min
max
25
30
40
50
60
80
90
100
45
50
45-0.039
50+0.025
+0.205
+0.030
2.460





2.400
8
1.5
1.0
4525
4530
4540
4550




50
55
50-0.039
55+0.030





+0.210
+0.030

5030
5040
5050
5060



55
60
55-0.046
60+0.030

5530
5540
5550
5560



60
65
60-0.046
65+0.030

6030
6040
6050
6060



65
70
65-0.046
70+0.030

6530
6540
6550
6560



70
75
70-0.046
75+0.030

7030
7040
7050
7060
7080


75
80
75-0.046
80+0.030
9.5

7530
7540
7550
7560



80
85
80-0.046
85+0.035







+0.215
+0.030


8040
8050
8060
8080


85
90
85-0.054
90+0.035

8530

8550
8560
8580

85100
90
95
90-0.054
95+0.035



9050
9060
9080

90100
95
100
95-0.054
100+0.035




9060
9080
9090
90100
100
105
100-0.054
105+0.035




10060
10080
10090
100100
105
110
105-0.054
110+0.035




10560
10580

105100
110
115
110-0.054
115+0.035




11060
11080

110100
115
120
115-0.054
120+0.035



11550

11580


120
125
120-0.054
125+0.040





+0.220
+0.030



12050
12060


120100
125
130
125-0.063
130+0.040







125100
130
135
130-0.063
135+0.040




13060


130100
135
140
135-0.063
140+0.040




13560
13580


140
145
140-0.063
145+0.040




14060
14080

140100
150
155
150-0.063
155+0.040




15060
15080

150100


Available


as per drawing or sample, as drawing, Welcome Customized Drawings


Bimetal bushing VIIPLUS provides products with high compressive strength, small friction coefficient, good wear resistance, reduce the cost of machinery manufacturing, its performance has reached the level of similar products at home and abroad.The products are widely used in construction machinery, textile machinery, automobile industry, machinery industry and other fields, especially for the parts that are difficult to oil and can not oil have a good effect, free from oil pollution.
The enterprise takes "pursue excellence, keep improving" as the management objective, and strives to provide customers with first-class products and services.




Bimetal Bushing 800 Bimetal sleeve 72Bimetal Bushes Material Strips Steel Copper Alloy CuSn4Pb24 1
