The C86300 Slide Bearing, also known as a Turned Bronze Bushing with Solid Lubricant Embedded, is a precision-manufactured component used in various applications where high wear resistance and smooth sliding properties are essential. This bearing material, typically composed of tin-based bronze alloy, is specifically designed to withstand heavy loads and frequent sliding motions while minimizing friction and wear.

The solid lubricant embedded within the bronze alloy provides a continuous lubrication layer that reduces the need for external lubrication. This self-lubricating feature makes C86300 slide bearings ideal for applications where lubrication is difficult or not feasible, such as in high-temperature or contaminated environments.

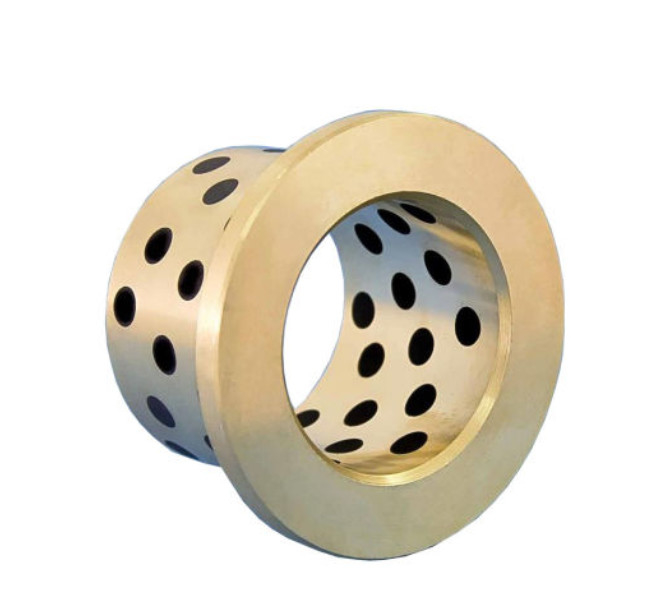

The flanged design of the bushing provides additional stability and prevents unwanted movement within the housing. The solid bronze construction ensures durability and long-lasting performance, even under demanding conditions.

Overall, C86300 Slide Bearings with Solid Lubricant Embedded are a reliable choice for applications requiring smooth, wear-resistant sliding surfaces. They are commonly used in machinery, equipment, and automotive components where precision and reliability are crucial.

Graphite Plugged Bushings, Bushing Price


VIIPLUS CHINA is the china supplier of continuous cast bushing & flange bearings with graphite and a major distributor of bronze alloys bushings. Our customers rely on us for high quality materials that help increase their profitability.REQUEST A QOUTE
Designing – Production – Assembling – Bronze Bushings Components for Industry



Bushing & Bearings Metal Cutting

Order the exact size, length and quantity of bronze sleeve bushing plugged graphite required for your job, saving time and money.

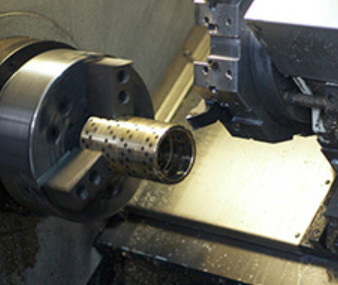

Metal Bushing & Bearings drilled by VIIPLUS Services
Drilling & Turning
Material processed to meet your exact requirements.

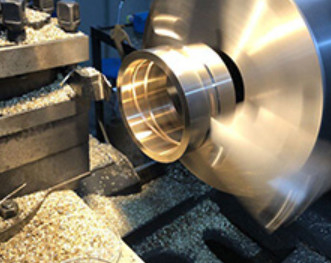

Bronze Metal Services milling a bar
Milling
Receive pre-machined bushing and reduce your processing time to manufacture bearings parts.
VIIPLUS CHINA EXPORT Manufacturing, produces precision bushings, spacers, sleeves, and specialty machined parts servicing the global valve industry. Capable of offering specialized materials self-lubricating bearing strips, proficient with stainless steel, carbon steel, C86300 bronze, aluminum bronze and plug graphite bushing materials.
Main advantages of solid bronze bearings include:Not affected by impurities Suitable for corrosive environments Suitable for impact loads and vibrations at low speeds Has a groove to retain the lubricant
Sliding bearings with or without flange are made of casted bronze material with special solid lubricant embedded.
Sliding Bearings specialist with technical expertise, good service and excellent delivery precision.
Extremely high load capacity; May be used without additional lubrication. Excellent for constructions with low speeds and high loads. Products Slide bearings bronze & Flange Bushings. Bronze Bearings Product Find your dimensions .


Description


The base metal is aimed for high loads and the solid lubricant makes it possible to use BRONZE-bearings without additional lubrication. BRONZE GRAPHITE BUSHING-bearings show excellent performance without lubrication under conditions of low speeds and extreme high or low temperatures. The lubrication reservoirs are dispersed in a special way over the bearing surface, therefore the whole bearing surface is lubricated when the movement occurs. These lubrication reservoirs cover about 25-30% of the sliding surface.
Standard technical data is shown below. More information





Graphited bearings should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.


Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

• Inch Sleeves
• Metric Sleeves
• Metric Flanges
• Metric Washers

Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings


Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.

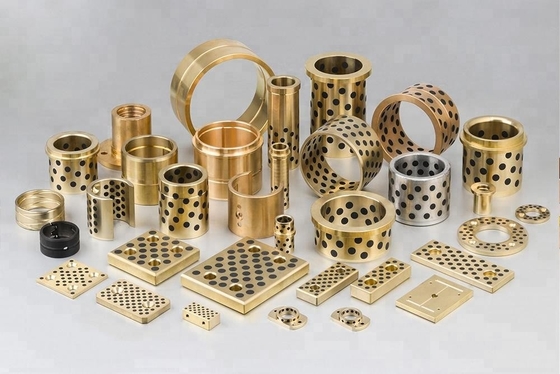

• Wear Plates
• Wear Strips
• Bushings
• Slide Assemblies
• Guide Components

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing

• Inch Sized Bushings
• Metric Sized Bushings

Material


Bronze:CuZn25Al5

Bronze sleeve bearings flanged bronze bushings for sale

Performance


Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2


Technical Data

Applications


Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
