Groove Split Bimetal Wrapped Bearings Steel Backing Copper Plating

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces (Min. Order)
Price $0.20 - $2.00 / Pieces ,Negotiable
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT IN ADVANCE Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bimetal Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Port Shanhai,or Ningbo
Quality OEM Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Bearing Oilless Application Agricultural Machine
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

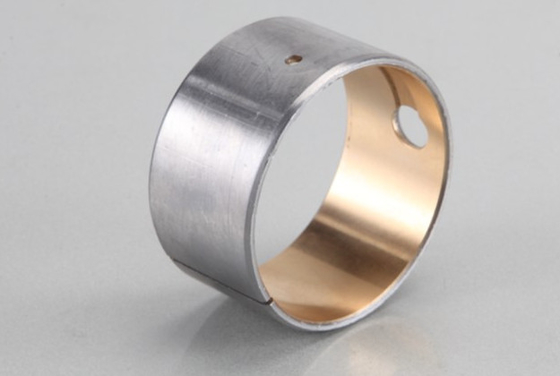

Groove Split Bimetal Wrapped Bearings with Steel Backing and Copper Plating are a type of bearings that combine the durability of steel with the wear-resistant properties of copper plating. These bearings are designed with a split or segmented structure, often referred to as "groove split," which allows for easier installation and removal, especially in tight spaces or applications where traditional bearings may not fit.
The steel backing provides the necessary strength and rigidity to support the bearing and handle the loads and stresses it encounters. The copper plating, on the other hand, acts as the wear surface and is chosen for its excellent wear resistance and ability to withstand friction and abrasion. The combination of steel and copper plating results in a bearing that is strong, durable, and able to handle high loads and harsh operating conditions.
Groove Split Bimetal Wrapped Bearings are commonly used in a wide range of applications, including machinery, construction equipment, automotive components, and more. They are particularly suited for applications where traditional bearings may not be feasible due to space constraints or installation challenges. The split design allows for installation without disassembling the entire machine or component, saving time and effort during installation and maintenance.
In summary, Groove Split Bimetal Wrapped Bearings with Steel Backing and Copper Plating offer a durable and wear-resistant bearing solution for applications requiring strength, reliability, and ease of installation.


Leaf Spring Bushing Manufacturer


Viiplus Bimetal Bronze Bushing.Sintered Bi-Metal Bushing.BiMetal Bushing Technologies .Bimetal Bronze Cylindrical Bushings SAE799 797 In Oil & Gas Hydraulics Industry.We Stock and Manufacture Bimetal Lead-Free Plain Bearings Solutions
Bimetallic bearing Oil Tank Form Buckle Form
Bimetallic bearings with steel backing are ideal for applications with high loads & rough operating conditions. Wear resistance. Consult VIIPLUS CHINA PURCHASEING for a quote.

Bimetal bearing with steel back and sintered CuPb24Sn4 as lining.This type has fairly good performance in anti-fatigue and heavy load capacity.It is suitable for middle speed and middle load.When soft alloy is plated on the bushing surface and with oil lubrication,it can be applied in high-speed internal combustion engine and connect-rod.


Joint Bushings & Bi-Metal Bushes

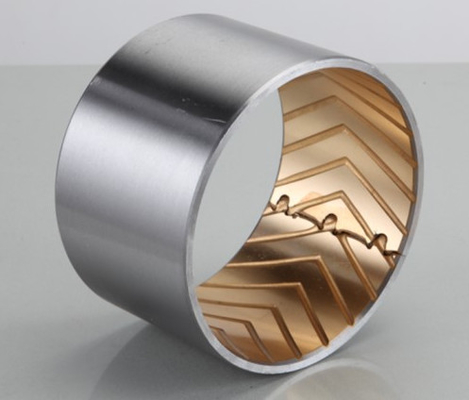

Groove Split Bimetal Wrapped Bearings Steel Backing Copper Plating
Bimetal bearing, is a steel plate as the matrix, the surface sintered CuPb24Sn4 material products, the product due to high lead content, so it has a good anti-bite shaft and different physical buried, if the surface of the work of soft alloy material, can be used as high-speed, low load internal combustion engine spindle bush, connecting rod bushing, rocker arm bushing;Friction disc on pump side.
bimetal bearing is a kind of bimetal bush. This type self-lubricating bearing has common structure with other bimetal bearings.

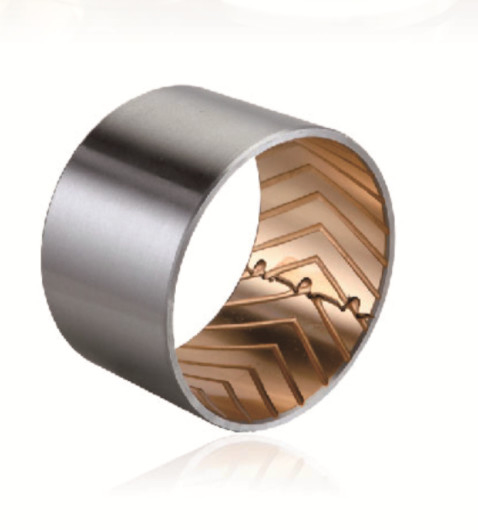

Groove Split Bimetal Wrapped Bearings Steel Backing Copper Plating





Material Structure



Low carbon steel + bronze alloy (CuPb24Sn4)


Characteristics



Good anti-fatigue strength and carrying capacity

Suitable for middle speed and middle loading, oil lubrication situation


Availability



When soft alloy is plated on the bushing surface and with oil lubrication, PVB033 bimetal bushing can be applied in high speed internal-combustion engine and connect-rod.


Technical Data



(JF-720) Alloy CuPb24Sn4 Chemical Composition ( % )


Cu

Pb

Sn

Zn

P

Fe

Ni

Sb

other

rest

21-27

3-4.5

≤ 0.5

≤ 0.1

≤ 0.7

≤ 0.5

≤ 0.2

≤ 0.5



Load capacity

38N/mm2

Max. Temperature

170 [ °C ]

Liner Hardness

HB 45-70



Tolerance Details



  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8



Maintenance



  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!



Caption


Special dimensions are available on request
