Thrust Washer With Steel Backed PAW32P10 INA Part Number

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze + Plating Tin Or Copper
Types WASHER/FLANGE/SLEEVE/ Application Valve Washer,Shock Absorbers Washer,pump Washer
Advantage Unbeatable Prices, Wear Resistant And Long Service Life, High Performance Size Inch Size Washer,Standrad Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze wear plate

,

brass wear plate

Leave a Message
Product Description

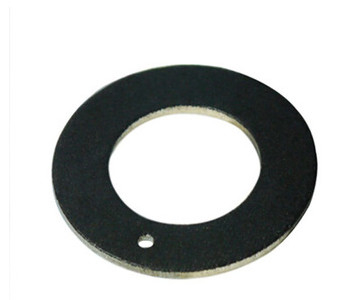

The Thrust Washer with Steel Backed, designated with the INA part number PAW32P10, is a high-performance bearing component designed for use in various applications requiring low friction and excellent wear resistance. The thrust washer features a steel backing plate that provides structural support and rigidity, while the (polytetrafluoroethylene) lining ensures smooth operation and reduced friction.

The combination of steel and materials in this thrust washer offers several advantages. The steel backing plate ensures durability and stability, while the lining provides excellent lubrication and resistance to wear. This makes the PAW32P10 thrust washer suitable for use in demanding environments where high loads, temperatures, or chemical exposure are present.

INA, as a leading manufacturer of bearings and related products, ensures that the PAW32P10 thrust washer meets strict quality standards. With its precise dimensions, smooth surface finish, and reliable performance, this thrust washer is an excellent choice for applications requiring precise axial positioning and smooth, reliable operation.



Thrust Bearings & Washers - Washer Supply, PAW20P10 WASHER, PAW32P10 WASHER, PAW62P10 WASHER, Thrust Washer



Thrust Washer With Steel Backed INA



Composite thrust gasket & wear plate made to order from china Metal composite solution



Description ID OD T
PAW 12 P10 12 24 1,5
PAW 42 P10 42 66 2,0
PAW 48 P10 48 74 1,5
PAW 14 P10 14 26 1,5
PAW 28 P10 28 48 1,5
PAW 26 P10 26 44 1,5
PAW 20 P10 20 36 1,5
PAW 22 P10 22 38 1,5
PAW 38 P10 38 62 1,5
PAW 18 P10 18 32 1,5
PAW 32 P10 32 54 1,5
PAW 52 P10 52 78 2,0
PAW 16 P10 16 30 1,5
PAW 10 P10 10 20 1,5
PAW 62 P10 62 90 2,0





VIIPLUS thrust washers and thrust bearings MADE TO ORDER From China. This means that they have many of the same properties as our cylindrical plain bearings, such as excellent wear resistance and low coefficients of friction. Thrust washers are designed to carry high axial loads and are used in applications where axial loads are expected. Polymer Coated Bearings high-performance polymeric coatings provide reduced friction and greater wear resistance.
Bearings, Bushings and Thrust Washers Made to Order From China
Special sliding layer covers two surfaces
Excellent impact resistance
High load capacity
Excellent deviation resistance
Excellent pollution resistance
Good surface speed capability
Excellent friction and abrasion resistance
Good resistance to chemical corrosion


sliding bearing



Applications



  • Diesel
  • Gasoline (petrol)
  • Hybrid/electric vehicles



THRUST WASHER / ROUND / COMPOSITE /


Sliding Bearings, Bushings and Washers
VIIPLUS CHINA thrust washer & bearing: double-sided filled tape liner on fiberglass core with excellent shock, misalignment, contamination resistance.Plain Thrust Bearing Washer inch size metal Bronze alloy high-temperature resistant thrust Gasket sf-1 oilless Washer custom self-lubricating composite bearing.



  • High precision
  • High speed
  • Low noise
  • Wear resistance

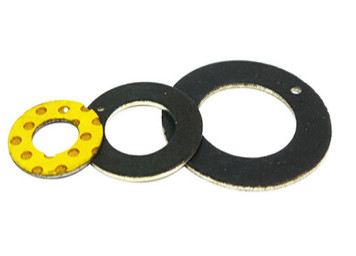

Composite Thrust Washer


Woven Pfte Thrust Washer Self Lubrication Thrust Bearings Stainless Steel Backing
Metal-Backed
series thrust bearings offer an economical approach to obtaining self-lubrication where high loads are encountered. They are comprised of zinc-plated mild steel with woven PFTE laminated to one face. These bearings are recommended for use as an alternate to LTD washers in applications where metal backing is preferred.
The maximum compressive strength is 30,000 psi, with an operating temperature range of -320°F to 300°F. Friction coefficients as low as 0.03 with no added lubricants are obtainable.
Liners can also be supplied. For special applications, consult the Transport Dynamics Engineering Department. These thrust bearings can also be supplied with special metals and with liners on both sides.viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner, and so on.
All Size Customized Steel Composite Material Sliding Washer






Split Bush Washer, Self lubricated plain bearing



Product Name

 Washer

Max Load Capacity

Static load 250N/mm2 ; Dynamic load 140N/mm2

Max Load Speed

Dry friction 2.5m/s ; Oil lubrication 5.0m/s

Max PV Value Limit

Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s

Friction Coefficient

Dry friction 0.08~0.20; Oil lubrication 0.02~0.07

Work Temperature

-195℃~+280℃

Thermal Conductivity

42w/m k

Production Process

Material cutting~Bronze sintering~ sintering~Sizing~Coiling~Surface finish~Packing

Application Feature

Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free

Woven  Thrust Washer Self Lubrication Wear Plates Stainless Steel

Characteristics



Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + /Fibre
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red


VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.


 Structure


1. /Polymer fibers mixture thickness 0.01~0.03mm. The lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface also serves as a reservoir for the mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm provides good corrosion resistance.



Composition



· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Fillers



OPERATING PERFORMANCE

Dry

Good

Oil-lubricated

Very Good

Grease lubricated

Good

Water lubricated

Fair

Process fluid lubricated

Good






Microsection



 Thrust Washer With Steel Backed PAW32P10 INA Part Number 2

Sliding layer
+ Fillers
Porous Bronze Sinter
Steel Backing





 Tech. Data



Max. load

Static

250N/mm2

Max.speed

Dry running

0.08~0.20

Very low speed

140N/mm2

Hydrodynamicoperation

0.02~0.08

Rotatingoscillating

60N/mm2

Friction coefficient

Dry

2m/s



Hydrodynamic

>2m/s



Max. PVdryrunning)

Short-term operation

3.6N/mm2*m/3

Thermal conductivity

42W(m*K)-1



Continuousoperation

1.8N/mm2*m/3



PV max. hydrodynamic

-195℃~+280℃

Coefficient of thermalexpansion

11*10-6*K-1





Availability



Bearing forms available in standard dimensions

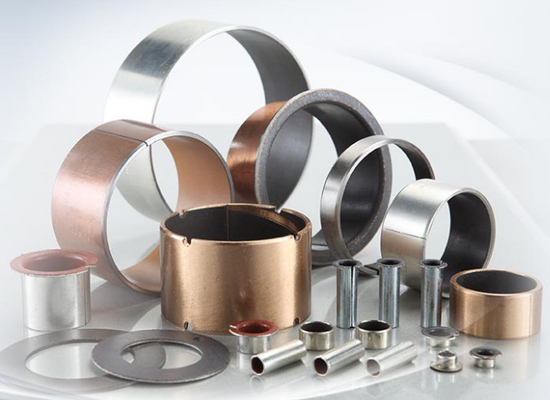

· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
