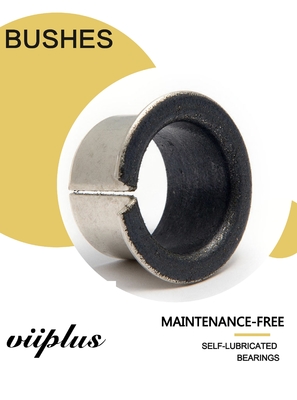

Accessories Stainless Steel Bushings For Solenoid Valve , Maintenance Free Plain Bearings
Place of Origin | Stainless Steel Backed Bushings |
---|---|
Brand Name | CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS |
Certification | WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE |
Model Number | CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE / GLASS FIBERS STAINLESS-STEEL 316 BEARINGS |
Minimum Order Quantity | >=500 Pieces |
Price | Negotiable |
Packaging Details | CARTONS,wOODEN CASES |
Delivery Time | 3-4 WEEKS |
Payment Terms | TT IN ADVANCE |
Supply Ability | Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Stainless Steel 316, Fibres Fabric | Characteristic | Low-maintenance And Maintenance-free Plain Bearings |
---|---|---|---|
Size | Standard Size Available | Port | Shanhai,or Ningbo |
Quality | OEM Stainless Steel (anti Corrosive) | Type | Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Sliding Plates |
Bearing | TEX Also Available With Leadfree , With A Variety Of Mixes Specialized For Various Industries | Areas Of Use | Foodstuff- And Pharmaceutical Industries. Offshore And Other Marine Applications. |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Stainless Steel Bushing Manufacturers | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
Highlight | steel backed bronze bushing,stainless steel sleeve bearing,Solenoid Valve Stainless Steel Bushings |
Stainless steel bushings designed specifically for solenoid valves are an essential component for ensuring smooth and reliable operation. These bushings are crafted from high-grade stainless steel, ensuring durability and corrosion resistance in various environments.
Maintenance-free plain bearings are an innovative solution that eliminates the need for regular lubrication or replacement. They are designed to provide long-lasting, low-friction performance, reducing wear and tear on solenoid valve components.
The combination of stainless steel bushings and maintenance-free plain bearings offers numerous benefits for solenoid valve applications. They improve the overall efficiency and reliability of the valve, reducing downtime and maintenance costs. Additionally, they are suitable for use in harsh or corrosive environments, ensuring consistent performance over extended periods.
Whether you're looking to upgrade existing solenoid valve components or designing a new system, stainless steel bushings and maintenance-free plain bearings are an excellent choice for ensuring optimal performance and durability.
Stainless Steel Bushings
Our Hydraulic Control Valves Slding Bearing Are Available In Level-Control, Pressure-Reducing And Pressure-Release Configurations To Be Paired With A Variety Of Self-Lubricating Bearing & Sleeve Bushings Piping Material And Joining Systems.
Special Manufacturing Upon Request, We Can Offer Inch-Sizes, Special Lengths, Bearings Acc. To Drawing And Various -Layers For Different Areas Of Use As Well As Different Backings In Bronze Or Stainless Steel Etc.Stainless Steel (Anti Corrosive) Maintenance-Free (Self-Lubricating) Shapes & Forms
Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Sliding Plates
Wrapped Composite Sliding Bearing Stainless Steel 316 / Fibres Fabric Gleitlager Valve Bushings Application
Viiplus Offers A Variety Of Services To Our Global Customer Base That Will Enhance The Experience Of Purchasing Valves Bushing & Bearings From Viiplus And Add Value To Your Investment From Pre-Sales Consultancy To Continuous Aftersales Service.
Technical data |
|
---|---|
Material: |
Stainless Steel/sintered bronze/ sliding layer |
Standard: |
Multilayer bearings |
Sliding layer (thickness): |
0.01-0.03mm |
Tensile strength Rm: |
- |
Yield strength Rp 0.2: |
- |
Elongation in % A10: |
- |
Hardness: |
- |
Friction coeff: |
0.03-0.20µ |
Thermal conductivity: |
40W/m·K |
Temperature range: |
-200°C/280°C |
Max. load static: |
Ca 250N/mm² |
Max. load, dynamic: |
80N/mm² |
Max. sliding speed (w.lubr.): |
w/o lubr. 2.5m/s – With lubr. 5m/s |
Pv-value, Mpa x m/s, kont / int: |
3.6/5 |
|
|
|
|
Counter material |
|
Recommended shaft hardness: |
>165HB |
Rec. shaft surface roughness (Ra) |
0.4 |
Recommended tolerance: |
f7-h8 |
House: |
H7 |
What Is A Solenoid Valve?
Professional miniature solenoid valve sleeve bushings manufacturers
A solenoid valve is an electrically operated valve that allows the control of compressed air, gas or fluid flows.Our company has develop and produce and manufacture the electromagnetic valves bushings, valve washer and other products for various valve bearings
Accessories Bushings For Solenoid Valve
Valve bushings are suitable for a wide range of pressures, various types of fluids and a gamut of working conditions.
What makes VIIPLUS BUSHINGS stand out from all other BUSHINGS on the market?
VIIPLUS valves BUSHINGS have the most compact design on the market.
Professional fluid solenoid valve bushings manufacturers
solenoid valves bushings & pumps bushings
Your Gateway To Excellence

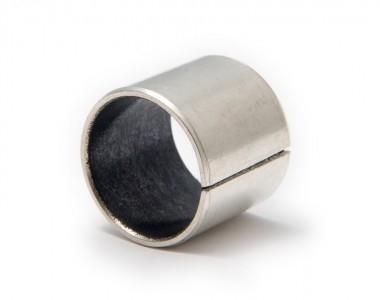

Stainless steel backing sintered with bronze powder overlaid with fibres fabric Suitable for dry running, low coefficient of friction, lower wear.
Application
Viiplus Make The Futuretog
Browse our viiplus catalogue
Viiplus Sliding Bearing Solutions For Your Application
Technische Daten
- Wrapped composite sliding bearing
- Carbon-steel / fibres fabric
- Maintentance-free
- Available on request
|
|||||
Max.Load |
Static |
350N/mm2 |
|
Temp. |
-50°C~+250°C |
Dynamic |
180N/mm2 |
||||
Friction coefficient |
0.03~0.20 |
||||
Max.speed |
Dry |
0.5m/s |
|||
Thermal conductivity |
42W(m x K) 1 |
||||
Grease |
1m/s~3m/s |
||||
Max.PV(Dry) |
Short-term |
3.6N/mm2 m/s |
Coefficient of thermal |
11 x 10- 6 x K-1 |
|
Continuous |
1.8N/mm2 m/s |
Properties
- Excellent sliding and wear behaviour, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption
Materials
- Support materialCarbon steel
- Sliding layer fibres fabric
- Support material: Stainless steel and bronze on request
Material Properties
- Specific load capacity static≤ 350 [N/mm2]
- Specific load capacity dynamic≤ 180 [N/mm2]
- Sliding speed< 0.5 [m/s] 1 [m/s] lubricated
- Friction value ***0.03 [µ] to 0.20 [µ]
- Temperature strain– 50 [°C] to + 250 [°C]
- Max. PV-value1.8 [N/mm² x m/s]
Mounting Advise
- The application of an adequate force fitting mandrel is advisable
Tolerance Details
- Housing ØH7
- Bushing inner-Ø after mountingH9
- Shaft tolerancef7 to h8
Maintenance
it is a dry sliding bearing with glued fibres fabric overlay. Lubrication is therefore not necessary and not allowed.
Range Of Application
- Machine and crane construction, apparatus engineering, agricultural machines, fittings, water pumps, chemical industry
Caption
This sliding bearing type and special dimensions are only available on request
