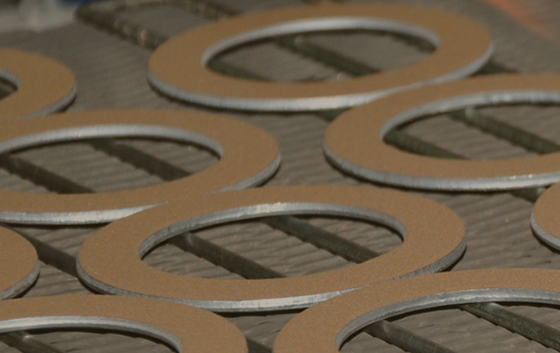

Metal - Polymer Bronze Thrust Plate Washer Excellent Heat Dissipation

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze + Plating Tin Or Copper
Types FLANGE/SLEEVE/WASHER Application Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc.
Production Feature Wrapped Application Plunger Pump Bushings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy Self Lubricating Graphite Plugged Bronze Plate Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite lube plate

,

brass wear plate

Leave a Message
Product Description

This metal-polymer composite bronze thrust plate, featuring a (Polytetrafluoroethylene) washer, offers exceptional heat dissipation capabilities. The bronze thrust plate provides the strength and durability required for demanding applications, while the washer ensures smooth operation and reduced friction.

The combination of metal and polymer materials allows for superior heat dissipation, effectively preventing the build-up of excessive heat that can lead to premature wear or failure. The washer further enhances this heat dissipation, as it has excellent thermal conductivity and low thermal expansion properties.

The excellent heat dissipation capabilities of this thrust plate and washer combination are ideal for applications where high temperatures and continuous operation are common. Whether it's in heavy-duty machinery, automotive components, or other industrial applications, this metal-polymer bronze thrust plate with washer is a reliable choice for ensuring smooth and efficient operation.



Bronze Wear Plate Sliding Bearing | Thrust Plates & Washers CYLINDRICAL RED | VSB-40



Plain Bearings hydraulic system plunger pump Metal-Polymer Low Friction Boccole  CYLINDRICAL RED |VSB-40

viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include: gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner and so on.



Typical Applications


Plain Bearings hydraulic system plunger pumpbushing gleitlager

 Bronze Wear Plate Sliding Bearing

Characteristics



Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + /Fibre


Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red


VSB-40 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.




Strusture




1. /Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.



Technical Data



STRUCTURE & COMPOSITION



· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· + Fillers



Microsection



Metal - Polymer Bronze Thrust Plate  Washer Excellent Heat Dissipation 1

Sliding layer
+ Fillers
Porous Bronze Sinter
Steel Backing




OPERATING PERFORMANCE
Dry Good
Oil lubricated Very Good
Grease lubricated Good
Water lubricated Fair
Process fluid lubricated

Good





Tech. Data



Max. load Static   250N/mm2 Max.speed Dry running 0.08~0.20
Very low speed   140N/mm2 Hydrodynamicoperation 0.02~0.08
Rotatingoscillating   60N/mm2 Frictioncoefficient Dry 2m/s
Hydrodynamic >2m/s
Max. PVdryrunning) Short-termoperation   3.6N/mm2*m/3 Thermal conductivity 42W(m*K)-1
Continuousoperation   1.8N/mm2*m/3
PV max. hydrodynamic   -195℃~+280℃ Coefficient of thermalexpansion 11*10-6*K-1





Availability




Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
