Contact Person : Tiffany

Customized Items Standard Solid Lubricant Bearings , Metric Sleeve Bearings Dies Assembly

Place of Origin Manufactured in China
Brand Name BRAND CHINA REPLACMENT OILES 500 GUIDE BUSHINGS
Certification SEA430B,C86300,DIN1709,FIBRO
Model Number Bronze Graphite plug Bushings met the tolerances
Minimum Order Quantity 300 Piece/Pieces (Min. Order)
Price $0.10 - $3.00 / Pieces
Packaging Details EXPORT CARTONS
Delivery Time 2-4 weeks
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Graphite Filled Bronze Bushes Types Silde Block
Description Solid Lubricating Bearings Application AUTOMOTIVE Core Boxes, Chillies And Dies,gasket
Size Standard,Drawings Shape Plate
Production Feature Casting Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light CuSn8P Bronze Perforated Bushings, Self Lubricating Bronze Perforated Bushings, Lifting Machinery Bronze Perforated Bushings
Item Sliding Bearing Bronze Bushing Specialty Бронзовые втулки
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

solid lube bearings

,

self lubricating bearing

Leave a Message
Product Description

When it comes to precision and reliability in dies assembly, customized standard solid lubricant bearings with metric sleeve bearings offer an optimal solution. These bearings are specifically designed to meet the unique requirements of dies assembly applications, providing superior performance and durability.

The solid lubricant bearings are made from high-quality materials that exhibit excellent wear resistance and lubrication properties. The solid lubricant used in these bearings ensures smooth and consistent operation, even under high loads and temperatures. This eliminates the need for external lubricants, reducing maintenance requirements and downtime.

The metric sleeve bearings are precision-made to fit specific shaft diameters and lengths, ensuring a precise fit and optimal performance. The sleeves are designed to withstand high pressures and temperatures, while maintaining their shape and stability. This ensures that the bearings can handle the rigorous demands of dies assembly applications.

The combination of solid lubricant bearings and metric sleeve bearings offers a complete bearing solution for dies assembly. The bearings can be customized to meet specific requirements, such as shaft diameter, length, and load capacity. This ensures that the bearings provide the optimal performance for your specific application.

In addition to their superior performance, these customized bearings also offer ease of installation and maintenance. The metric sleeve bearings can be easily assembled onto the shaft, while the solid lubricant bearings provide smooth and reliable operation. This reduces downtime and increases productivity in dies assembly applications.

In summary, customized standard solid lubricant bearings with metric sleeve bearings offer an optimal solution for dies assembly applications. Their superior performance, durability, and ease of installation and maintenance make them a valuable addition to any dies assembly process.



Bronze Plain Bearings



VIIPLUS provides cost-effective precision bronze bearings & wear plate solutions and assemblies for the medical industry, agricultural, mechanical handling and lifting applications.Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.we provide services for the automotive industry in the production and assembly of dies sliding bearing. we manufacture washer sliding plate and graphite bronze bushing for making mould components.customized items standard components for injection mold metric plate bronze gleitlager gasket.



We VIIPLUS bronze bearings offers various types of bronze wear plates, ranging from unfinished cast bronze plate to fully finished machined components. below are descriptions of the various types we offer.wear plates guide and control linear motion when there are heavy forces to contend with. these plates act as linear bearings to guide and control movement.



graphite plugged bronze bushing

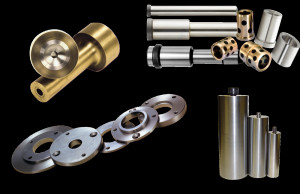

Standard Mold Components



Sliding Block olid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine



Cast Bronze Bearing with Graphite Plugs



Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃

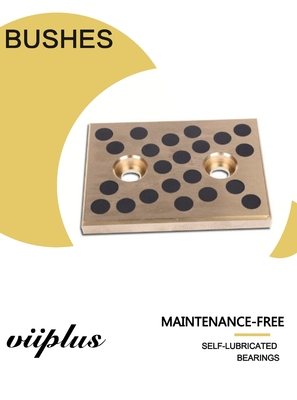

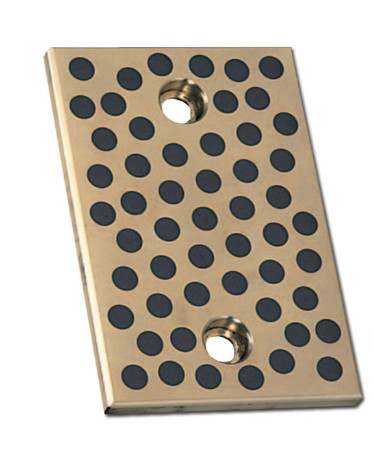

Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block



Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.



The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Strusture



VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Technical Data





Grade 50# 50S1 50S2 50S3 650S5
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAI10Ni5Fe5 CuSn12 CuZn25AI5Mn4Fe3
Density 8 8.9 7.8 8.9 8
Hardness ≥210 ≥70 ≥150 ≥75 ≥235
Tensile strength ≥750 ≥250 ≥500 ≥270 ≥800
Yield strength ≥450 ≥90 ≥260 ≥150 ≥450
Elongation ≥12 ≥13 ≥10 ≥5 ≥8
Coefficient o linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
Max.Temp. -40~+300℃ -40~+400℃ -40~+400℃ -40~+400℃ -40~+300℃
Max.dynamic load 100 60 50 70 120
Max.speed(Dry) 15 10 20 10 15
N/mm²*m/s(Lubrication) 200 60 60 80 200
Compression deformation < 0.01 mm < 0.05mm < 0.04mm < 0.05mm < 0.005mm




Chemical Compositions



Product NO. Chemical Compositions
    VSB-50 Cu Zn Al Fe Mn Si Ni Sn Pb
60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2





Availability



Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates



Typical Applications



This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...



Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances







START YOUR
PROJECTWITH AN APPLICATION ENGINEER

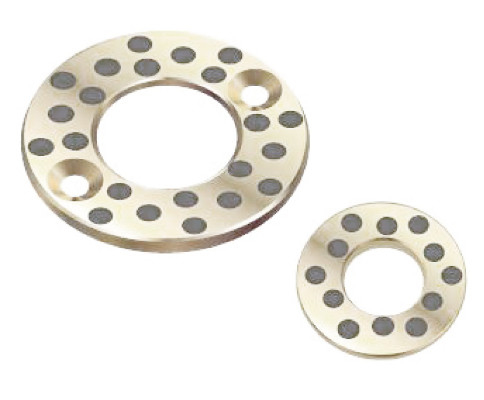

thrust washer&plate inch size
