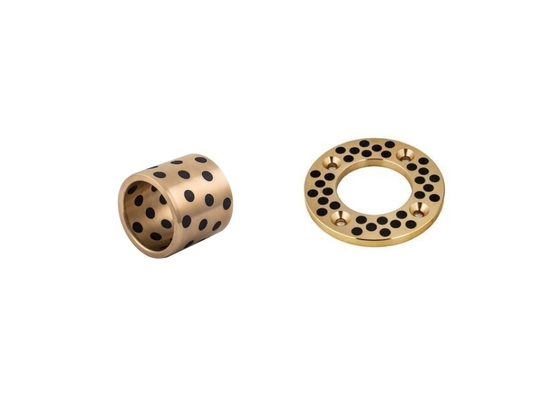

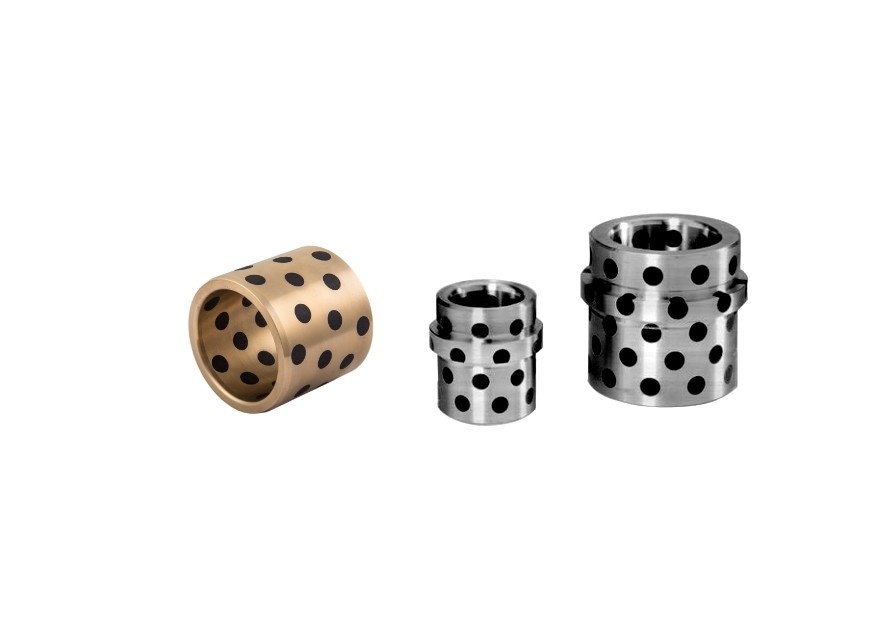

SOB Series Graphite Sleeve Bearings SOBF Flange Bearings Standard
| Place of Origin | Manufactured in China |
|---|---|
| Brand Name | BRAND CHINA REPLACMENT OILES 500 GUIDE BUSHINGS |
| Certification | SEA430B,C86300,DIN1709,FIBRO |
| Model Number | Bronze Graphite plug Bushings met the tolerances |
| Minimum Order Quantity | 300 Piece/Pieces (Min. Order) |
| Price | $0.10 - $3.00 / Pieces |
| Packaging Details | EXPORT CARTONS |
| Delivery Time | 2-4 weeks |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Bronze +Graphite，Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 | Model Number | Cylinder Bearings,Cylinder Bearings With Flange |
|---|---|---|---|
| Feature | Self Lubrication | Lubrication | Graphite |
| Application | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. | Type | FLANGE/SLEEVE/WASHER |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | CuSn8P Bronze Perforated Bushings, Self Lubricating Bronze Perforated Bushings, Lifting Machinery Bronze Perforated Bushings | Item | Sliding Bearing Bronze Bushing |
| Specialty | Бронзовые втулки | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | solid lube bearings,lubricated bronze sleeve bearings |
||
Product Description
When it comes to high-performance and reliable bearings, the SOB Series Graphite Sleeve Bearings and SOBF Flange Bearings from stand as the industry standard. These bearings are designed to meet the most demanding applications, providing exceptional durability and friction-reducing properties.
The SOB Series Graphite Sleeve Bearings feature a graphite sleeve that is precisely fitted into the bearing housing. Graphite is a natural mineral that exhibits excellent lubricating properties, making it an ideal choice for bearings that require self-lubrication. The graphite sleeve provides a smooth and consistent surface for rotating components, significantly reducing friction and wear.
The SOBF Flange Bearings, on the other hand, are designed with a flange for easy installation and integration into various equipment and machinery. These bearings also feature a graphite sleeve, ensuring the same superior friction-reducing properties as the SOB Series. The flange design provides additional stability and support, making the SOBF Flange Bearings suitable for heavy-duty and high-load applications.
Both the SOB Series and SOBF Flange Bearings from are manufactured to meet strict quality standards. They are precision-engineered to provide precise fit and smooth operation, ensuring reliable performance over extended periods. The bearings are also designed to be chemically resistant, making them suitable for use in various environments and applications.
In summary, the SOB Series Graphite Sleeve Bearings and SOBF Flange Bearings from represent the industry standard in terms of performance, durability, and friction-reducing properties. Their precision engineering and chemical resistance ensure that they are suitable for a wide range of applications, from light-duty to heavy-duty machinery and equipment.
Sob series bronze sleeve with graphite, sliding sleeve and guide plate bronzegleitlager.com offers us a wide variety of guide sleeve and guide plate.SIMILAR SOB,SOBF,SOBW,SOBB,SOST,SOSB
Technical Data
| item | ID | OD | L | F | R |
| BRONZE GRAPHITE BSUHING 8-12-8 | 8 | 12 | 8 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 8-12-10 | 8 | 12 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 8-12-12 | 8 | 12 | 12 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 8-12-15 | 8 | 12 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 10-14-8 | 10 | 14 | 8 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 10-14-10 | 10 | 14 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 10-14-12 | 10 | 14 | 12 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 10-14-15 | 10 | 14 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 10-14-20 | 10 | 14 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-10 | 12 | 18 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-12 | 12 | 18 | 12 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-15 | 12 | 18 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-16 | 12 | 18 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-20 | 12 | 18 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-25 | 12 | 18 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 12-18-30 | 12 | 18 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 13-19-10 | 13 | 19 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 13-19-15 | 13 | 19 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 13-19-16 | 13 | 19 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 13-19-20 | 13 | 19 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 14-20-10 | 14 | 20 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 14-20-12 | 14 | 20 | 12 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 14-20-15 | 14 | 20 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 14-20-20 | 14 | 20 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 14-20-25 | 14 | 20 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 14-20-30 | 14 | 20 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-10 | 15 | 21 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-12 | 15 | 21 | 12 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-15 | 15 | 21 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-16 | 15 | 21 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-20 | 15 | 21 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-25 | 15 | 21 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 15-21-30 | 15 | 21 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-10 | 16 | 22 | 10 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-12 | 16 | 22 | 12 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-15 | 16 | 22 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-16 | 16 | 22 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-20 | 16 | 22 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-25 | 16 | 22 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-30 | 16 | 22 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-35 | 16 | 22 | 35 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 16-22-40 | 16 | 22 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-15 | 18 | 24 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-16 | 18 | 24 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-20 | 18 | 24 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-25 | 18 | 24 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-30 | 18 | 24 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-35 | 18 | 24 | 35 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 18-24-40 | 18 | 24 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-15 | 20 | 28 | 15 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-16 | 20 | 28 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-20 | 20 | 28 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-25 | 20 | 28 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-30 | 20 | 28 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-35 | 20 | 28 | 35 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-40 | 20 | 28 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-28-50 | 20 | 28 | 50 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-30-16 | 20 | 30 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-30-20 | 20 | 30 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-30-25 | 20 | 30 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-30-30 | 20 | 30 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-30-35 | 20 | 30 | 35 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 20-30-40 | 20 | 30 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-16 | 25 | 33 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-20 | 25 | 33 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-25 | 25 | 33 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-30 | 25 | 33 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-35 | 25 | 33 | 35 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-40 | 25 | 33 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-50 | 25 | 33 | 50 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-33-60 | 25 | 33 | 60 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-16 | 25 | 35 | 16 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-20 | 25 | 35 | 20 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-25 | 25 | 35 | 25 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-30 | 25 | 35 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-35 | 25 | 35 | 35 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-40 | 25 | 35 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 25-35-50 | 25 | 35 | 50 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 28-38-30 | 28 | 38 | 30 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 28-38-40 | 28 | 38 | 40 | 0,5 | 0,5 |
| BRONZE GRAPHITE BSUHING 30-38-20 | 30 | 38 | 20 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-38-25 | 30 | 38 | 25 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-38-30 | 30 | 38 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-38-35 | 30 | 38 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-38-40 | 30 | 38 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-38-50 | 30 | 38 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-38-60 | 30 | 38 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-20 | 30 | 40 | 20 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-25 | 30 | 40 | 25 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-30 | 30 | 40 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-35 | 30 | 40 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-40 | 30 | 40 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-50 | 30 | 40 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 30-40-60 | 30 | 40 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 31,5-40-30 | 31,5 | 40 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 31,5-40-40 | 31,5 | 40 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 32-42-30 | 32 | 42 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 32-42-40 | 32 | 42 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-44-25 | 35 | 44 | 25 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-44-30 | 35 | 44 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-44-35 | 35 | 44 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-44-40 | 35 | 44 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-44-50 | 35 | 44 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-44-60 | 35 | 44 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-20 | 35 | 45 | 20 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-25 | 35 | 45 | 25 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-30 | 35 | 45 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-35 | 35 | 45 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-40 | 35 | 45 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-50 | 35 | 45 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 35-45-60 | 35 | 45 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 38-48-30 | 38 | 48 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 38-48-40 | 38 | 48 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-20 | 40 | 50 | 20 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-25 | 40 | 50 | 25 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-30 | 40 | 50 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-35 | 40 | 50 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-40 | 40 | 50 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-50 | 40 | 50 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-60 | 40 | 50 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-70 | 40 | 50 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-50-80 | 40 | 50 | 80 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-55-25 | 40 | 55 | 25 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-55-30 | 40 | 55 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-55-35 | 40 | 55 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-55-40 | 40 | 55 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-55-50 | 40 | 55 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 40-55-60 | 40 | 55 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-55-30 | 45 | 55 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-55-35 | 45 | 55 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-55-40 | 45 | 55 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-55-50 | 45 | 55 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-55-60 | 45 | 55 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-56-30 | 45 | 56 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-56-35 | 45 | 56 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-56-40 | 45 | 56 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-56-50 | 45 | 56 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-56-60 | 45 | 56 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-30 | 45 | 60 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-35 | 45 | 60 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-40 | 45 | 60 | 40 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-50 | 45 | 60 | 50 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-60 | 45 | 60 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-70 | 45 | 60 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 45-60-80 | 45 | 60 | 80 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-20 | 50 | 60 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-25 | 50 | 60 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-40 | 50 | 60 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-50 | 50 | 60 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-60 | 50 | 60 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-70 | 50 | 60 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-60-80 | 50 | 60 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-62-30 | 50 | 62 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-62-35 | 50 | 62 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-62-40 | 50 | 62 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-62-50 | 50 | 62 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-62-60 | 50 | 62 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-62-70 | 50 | 62 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-30 | 50 | 65 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-40 | 50 | 65 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-50 | 50 | 65 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-60 | 50 | 65 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-70 | 50 | 65 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-80 | 50 | 65 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 50-65-100 | 50 | 65 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 55-70-40 | 55 | 65 | 80 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 55-70-50 | 55 | 65 | 100 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 55-70-60 | 55 | 70 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 55-70-70 | 55 | 70 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-30 | 55 | 74 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-35 | 55 | 74 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-40 | 60 | 74 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-50 | 60 | 74 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-60 | 60 | 74 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-70 | 60 | 74 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-74-80 | 60 | 74 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-30 | 60 | 74 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-35 | 60 | 74 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-40 | 60 | 75 | 30 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-50 | 60 | 75 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-60 | 60 | 75 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-70 | 60 | 75 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-80 | 60 | 75 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 60-75-100 | 60 | 75 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 63-75-60 | 60 | 75 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 63-75-70 | 60 | 75 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 63-75-80 | 63 | 75 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 65-80-50 | 65 | 75 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 65-80-60 | 65 | 75 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 65-80-70 | 65 | 80 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 65-80-80 | 65 | 80 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-35 | 70 | 85 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-40 | 70 | 85 | 80 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-50 | 70 | 85 | 35 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-60 | 70 | 85 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-70 | 70 | 85 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-80 | 70 | 85 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-85-100 | 70 | 85 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-90-50 | 70 | 85 | 80 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-90-60 | 70 | 85 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-90-70 | 70 | 90 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 70-90-80 | 70 | 90 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-90-60 | 75 | 90 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-90-70 | 75 | 90 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-90-80 | 75 | 90 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-90-100 | 75 | 90 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-95-60 | 75 | 95 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-95-70 | 75 | 95 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-95-80 | 75 | 95 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 75-95-100 | 75 | 95 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-40 | 75 | 96 | 80 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-50 | 75 | 96 | 100 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-60 | 80 | 96 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-70 | 80 | 96 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-80 | 80 | 96 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-100 | 80 | 96 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-96-120 | 80 | 96 | 120 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-40 | 80 | 96 | 100 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-50 | 80 | 96 | 120 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-60 | 80 | 100 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-70 | 80 | 100 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-80 | 80 | 100 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-100 | 80 | 100 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-120 | 80 | 100 | 120 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 80-100-140 | 80 | 100 | 140 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 85-100-80 | 85 | 100 | 120 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 90-110-60 | 90 | 110 | 140 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 90-110-70 | 90 | 110 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 90-110-80 | 90 | 110 | 60 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 90-110-100 | 90 | 110 | 70 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 90-110-120 | 90 | 110 | 120 | 1 | 1 |
| BRONZE GRAPHITE BSUHING 100-120-60 | 90 | 120 | 60 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 100-120-70 | 90 | 120 | 70 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 100-120-80 | 100 | 120 | 60 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 100-120-100 | 100 | 120 | 70 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 100-120-120 | 100 | 120 | 120 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 100-120-140 | 100 | 120 | 140 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 110-130-80 | 110 | 130 | 120 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 110-130-100 | 110 | 130 | 140 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 110-130-120 | 110 | 130 | 120 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 120-140-80 | 120 | 140 | 100 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 120-140-100 | 120 | 140 | 120 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 120-140-120 | 120 | 140 | 120 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 120-140-140 | 120 | 140 | 140 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 125-145-100 | 120 | 145 | 120 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 125-145-120 | 120 | 145 | 140 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 130-150-100 | 130 | 145 | 100 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 130-150-130 | 130 | 145 | 130 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 140-160-100 | 140 | 150 | 100 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 140-160-140 | 140 | 150 | 130 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 150-170-100 | 150 | 170 | 100 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 150-170-150 | 150 | 170 | 150 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 160-180-100 | 150 | 180 | 100 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 160-180-150 | 150 | 180 | 150 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 160-180-100 | 160 | 180 | 100 | 1,5 | 1,5 |
| BRONZE GRAPHITE BSUHING 160-180-150 | 160 | 180 | 150 | 1,5 | 1,5 |
| Grade | 50# | 50S1 | 50S2 | 50S3 | 650S5 |
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | CuZn25AI5Mn4Fe3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| Hardness | ≥210 | ≥70 | ≥150 | ≥75 | ≥235 |
| Tensile strength | ≥750 | ≥250 | ≥500 | ≥270 | ≥800 |
| Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | ≥450 |
| Elongation | ≥12 | ≥13 | ≥10 | ≥5 | ≥8 |
| Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
| Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
| Max.dynamic load | 100 | 60 | 50 | 70 | 120 |
| Max.speed(Dry) | 15 | 10 | 20 | 10 | 15 |
| N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 80 | 200 |
| Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm | < 0.005mm |
Chemical Compositions
| Product NO. | Chemical Compositions | ||||||||
| VSB-50 | Cu | Zn | Al | Fe | Mn | Si | Ni | Sn | Pb |
| 60~66 | 22~28 | 5.0~8.0 | 2.0~4.0 | 2.5~5.0 | <0.1 | <0.5 | <0.2 | <0.2 | |
Bronze Gleitlager Main Base Alloy
Material
CuZn25AI5Mn4Fe3
Characteristics
The solid lubricated bearing is a self-lubricated bearing made by inserting into the holes properly arranged and arranged on the friction surface of the metal base of the bearing a shaped solid lubricant with unique self-lubricating properties (the area of the solid lubricant is generally 25%-35% of the friction surface).The bearing combines the advantages of the metal matrix and the special lubricating material, and breaks through the limitation of the general bearing depending on oil film lubrication.JDB solid lubricated bearings are especially suitable for non-oil, high temperature, high load, low speed, anti-fouling, anti-corrosion, anti-radiation, and in the water or vacuum solution infiltration of the special conditions can not be used with lubricating film.The products are widely used in metallurgical rolling equipment, filling equipment, water turbine, gas turbine, instrumentation and mining machinery, ship machinery, textile machinery, shipbuilding industry, aerospace navigation and other fields.At the same time also more and more widely used in other industrial and agricultural machinery.The matrix of JDB solid lubricated bearing shall be determined according to the working conditions of the bearing itself.More commonly used materials are high - strength brass, tin bronze, casting, etc.According to the working conditions of the bearing itself, the combination of different metal matrix and embedded solid lubricant can ensure that the product can meet the special needs of various working conditions such as temperature, load, movement and medium, and at the same time ensure stable and reliable work.
with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available.
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Strusture
VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plate
START YOUR
PROJECTWITH AN APPLICATION ENGINEER
Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings
Recommended Products
