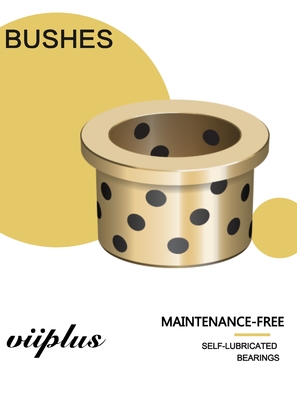

C90800 Tin Bronze Graphite Plugged Bushings CuSn12 for Injection Mold Machinery

Place of Origin Manufactured in China
Brand Name C90800 BRONZE BUSHINGS
Certification C90800 CUSN12
Model Number Bronze Graphite plug Bushings met the tolerances
Minimum Order Quantity 800 Piece/Pieces (Min. Order)
Price $0.10 - $3.00 / Pieces
Packaging Details EXPORT CARTONS
Delivery Time 2-4 weeks
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers
Product Details
Port Shanghai Type Flange Bushings,Cylinder Bearings With Flange
Delivery Fast Delivery Item Solid Lubricating Bearings
Characteristics Wear Resistance And Corrosion Resistance Material Tin Bronze C90800 Bearing Bronze
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light

solid lube bearings

,

lubricated bronze sleeve bearings

Leave a Message
Product Description

C90800 Graphite Inlaid CuSn12 Bronze Bushing & Bearings



Copper Bearing finished copper alloy bushings provide a simple, economical way to use bearings with high bearing, good corrosion resistance, dimensional processing any of the characteristics. Meanwhile VIIPLUS CHINA can provide different copper alloys according to different conditions, and in accordance with the requirements of processing different forms, it has a higher dimensional accuracy than class copper rolling bearings.

Bronze Plugged bronze bushing for High Temperature Applications. Reduced costs & downtime. Increased productivity. Highlights: Offering Custom Designed Products,Customized Drawings Available.Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking.Standard size and custom size Choose from our selection of graphite bronze bearings wheel, including stock products in a wide range of styles and sizes.BEARING WHEEL C90800 Graphite Inlaid Oiles Tin Bronze Bearing Graphite



Application:



Heavy Industries• Steel Tube Plant Machinery • Tire & Paper Mills • Power Generating Stations • Injection Mold Machine

Our range of flanged bearings are available in metric and imperial sizes. Our in-house machining service is able to produce non-standard sizes to suit specific customer requirements.Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking.



C90800 Bearing Bronze



Oilless Bearing

VIIPLUS Offer the C90800 Bearing Bronze,cast bronze bushing & plate.

Viiplus graphite plugged tin bronze oiles bearing is based on tin bronze material. This type of self-lubricating bearing is also called #500 oilless bearing,brass bearing,cooper bushing,solid sliding bearing,guide bushing and graphite filled bearing.

The tin bronze graphite inlaid bearing is based on CuSn12 material. Compared with CuSn5Zn5Pb5, CuSn12 increases the tin content and reduces the friction coefficient, but the relative cost increases.The product is embedded with graphite oil as solid lubricant, which can achieve the effect of lubrication without oil.The product is mainly used in low load, relatively high temperature, medium speed occasions, such as construction machinery 'metallurgy machinery, paper machinery, transport machinery in the lubrication difficult parts.

Solid bronze bearing is a standard item of our company. This type self-lubricating bearing is also called solid metal bearing,graphite plugged bearing,solid lubricating bearing,guide bushes,cast bronze bushing, #500 oilless bearing,oiles flange bearing and solid sliding bearing.



Advantages



In places where oil film formation is difficult, such as reciprocating movement, swing movement, frequent starting and stopping, excellent wear resistance can be exerted:
The arrangement principle of the lubricants of the solid lubrication bearing is to ensure that there are lubricants on all parts of the grinding parts in the running process. Therefore, the arrangement position of the lubricants must be determined according to the movement direction of the grinding parts.



C90800 Bearing Bronze Bushing

Tolerances

Inside Diameter

From Nominal Size

3" or Less

±.0010"

Over 3"

±.0015"

Outside Diameter

3" or Less

+.002" to .003"

Over 3"

+.003" to .005"

All Lengths

±.005"

Concentricity

.003" T.I.R.

Clearance
Greater than normal clearance must be allowed: (1) if exceptionally high speed is involved, (2) if higher than normal loading is encountered.

Material Structure
Standard material: CuSn12 + Graphite.



Characteristics


● Have Incomparable performance under a high load, low speed operation. Also perform well without lubrication;

● Excellent wear resistance in such places where an oil film is difficult to be formed due to reciprocating, oscillating motions and frequently intermittent operations;

● Remarkable resistance to corrosion and resistance to chemical attack;

Maintenance free and save operating cost.



Availability


● Cylindrical oiles bushing, flanged oilless bush, thrust washer and slide plate are standard fabrication.

● Special designed solid metal bearing and material can be made according to your design.

● Other material can be made based on your requirement.
Graphite Inlaid Oiles Tin Bronze Bearing CuSn12 Material

CuSn12 EN Casting Copper Alloy Tin Bronze Bushings



Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

85.0-88.5

11.0-13.0

0.01

0.2

0.2

2

0.7

0.01

0.6

0.5

Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

280

150

5

90

Note:



1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference

Graphite plugged tin bronze oiles bearing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc.

Technical Parameters

Trademark

650#

650S1

650S2

650S3

650S5

Material

CuZn25Al5Mn4Fe3

CuSn5Pb5Zn5

CuAl10Ni5Fe5

CuSn12

CuZn25Al5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness HB

>210

>70

>150

>95

>235

Tensile Strength

>750

>200

>600

>260

>780

Yield Strength

>450

>90

>260

>150

>450

Elongation %

>12

>15

>10

>8

>8

Linear Expansion Coefficient

1.9×10-5 /℃

1.8×10-5 /℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Operating Temperature

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+400℃

Max. Dynamic Load

100

60

50

70

120

Max Speed(Dry)

15

10

20

10

15

Maximum PV Value(Oil)

200

60

60

80

200

Compression 300N/mm2

<0.01mm

<0.05mm

<0.04mm

<0.05mm

<0.005mm

TIN BRONZE BUSHINGS CUSTOMER SIZE
