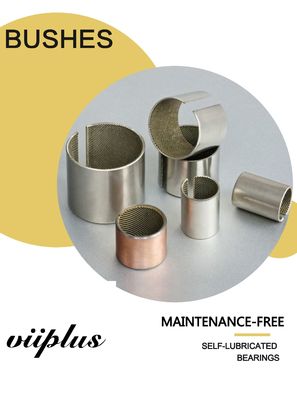

Why is Stainless Steel Bushings Corrosion Resistant? – Valve Steel Bushes 304 vs 316 stainless steel flanged bushings
| Place of Origin | Stainless Steel Backed Bushings |
|---|---|
| Brand Name | CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS |
| Certification | WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE |
| Model Number | CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS |
| Minimum Order Quantity | >=500 Pieces |
| Price | Negotiable |
| Packaging Details | CARTONS,wOODEN CASES |
| Delivery Time | 3-4 WEEKS |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers |
Product Details
| Meterial | Stainless Steel 316 Or 304 With Ptfe Bronze | Port | Shanghai |
|---|---|---|---|
| Quality | Sankyo Oilless Bearing Bushings,Daido Metal Bushings,FIRMET BUSHING FLANGE | Type | Self Lubricating Bearings |
| Shape | Cylindrical Bushes, Flanged Bushes, Thrust Washers, Flat Strip Material, Half Bearing, Wear Plate | Characteristic | Corrosion Resistance And Wear Resistance |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Stainsteel Steel 316 Backed Bushings | High Light | Stainless Steel Bushing Manufacturers |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | steel backed bronze bushing,stainless steel bushing sleeve |
||
Product Description
Stainless Steel Bushings
Check Valves Ball Valve Gate Valves all Valves Bushings. Valve Plain Bearings Accessories,Stainless Steel Bushings - Pipe Fittings Bearings provides our global Valves and pipelines and other chemical industries with unique design solutions to complex problems and an unparalleled level of service, quality, and support.
VIIPLUS Metal Sliding Bearing Stainless Steel PTFE/FABRIC Sliding Beaing & Bushing | The Tribology Solution
Why is Stainless Steel Bushings Corrosion Resistant? – Industrial Steel Bushes 304 vs 316 Stainless Steel Bushings
VIIPLUS offer Cylindrical bushes, flanged bushes, thrust washers, flat strip material, half bearing, wear plate.
The U.S. 's GGB, sankyo oilless and DAIDO are the world's top three makers of self-lubricated bearings, with strong positions in aerospace, automotive and transportation.VIIPLUS also established itself as an industry leader in self-lubricating bearings exported from China.
Wrapped Composite Sliding Bearing SS 316 / PTFE Fibres Fabric | Corrosion resistance
Stainless Steel Bushings That Can Withstand Moisture And A Number Of Corrosion Caused By Other Media.
We produce bearing made of stainless steel 304&316. Characteristics of high strength, wear resistance, corrosion resistance, and corrosion resistance etc.
Viiplus Is A Professional Production Of Stainless Steel Bearing Manufacturers.
Selecting Bronze Bushing Materials - Corrosion Protection & Resistance
high load corrosion resistance high temperature resistant
Self-lubricating Bearings Rolling Steel sleeve AISI 1008 STEEL BUSHINGS Wrapped PTFE | VSB-33
Stainless Steel Bushings Steel Ptfe Sleeve Bearing valves, mixers, blenders, swivels, extruders, etc.
Bushings and Bearings
Applications Applications include valves, mixers, blenders, swivels, extruders, etc.
•Case History:
•Very Low Friction Valve
•Reducing valve friction was the objective.
To achieve the customer’s goal, stainless steel bushing bearings and thrust washers.
The friction reduction was so great that the customer was able to use a smaller actuator, saving them money and making the valve more competitive in the market.
Performance Engineered Products and Solutions
Stainless Steel 316 Bearings +PTFE
Stainless Steel 316 PTFE +MOS2
mos2 ptfe bush
Stainless steel backing sintered with bronze powder overlaid with PTFE Suitable for dry running, low coefficient of friction, lower wear. Typical application: chemical valve, chemical pump, flow meter, food industry, medicine industry in the corrosion environment.
Wrapped PTFE Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with PTFE VSB-33 Dry bearing 316+PTFE Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of...
Characteristics
Wrapped PTFE Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with PTFE
It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers together, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.
Stainless Steel Bronze Powder + PTFE Self Lubricating Bearings Multilayer Composite
This new material use the PTFE fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.
Stainless Steel 316 Sleeve Bushing Specification & Tolerance
Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.
Plain bearings
VSB-33 Plain Bearings and Sleeve Bearings
Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...
Strusture
Technical Data
Max. load | Static | 250N/mm2 | Temp. | -195℃~+280℃ |
Dynamic | 140N/mm2 | Friction coefficient | 0.03~0.20 | |
Max. speed | Dry | 2m/s | Thermal conductivity | 42W (m·k)-1 |
Lubrication | >2m/s | |||
Max. PV (Dry) | Short-time | 3.6N/mm2*·m/s | Coefficient of thermal expansion | 11*10-6k-1 |
Continuous | 1.8N/mm2*·m/s |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.
Typical Applications
VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings +ptfe in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings +ptfe made in China with us.
Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.
