Hydraulic Cylinder Components: Self-Lubricating Wear Plates Made of High-Strength Brass Material, Ideal for Oil-Less Applications, Compliant with DIN and NAAMS Standards

These hydraulic cylinder parts, specifically the self-lubricating wear plates, are crafted from premium high-strength brass material. The unique feature of these plates lies in their ability to self-lubricate, eliminating the need for external lubrication in many applications, making them ideal for oil-less environments. This not only simplifies maintenance but also enhances operational efficiency and longevity.

Designed and manufactured to meet rigorous industry standards, these wear plates adhere to both DIN (Deutsche Institut für Normung e.V.) and NAAMS (North American Automotive Metric Standards) specifications. This ensures compatibility and interchangeability with a wide range of hydraulic systems and components, facilitating easy integration into existing systems or as replacements in maintenance procedures.

The high-strength brass material used in the construction of these wear plates provides exceptional resistance to wear and tear, even under heavy loads and in demanding operational conditions. This durability helps to minimize downtime due to maintenance or repairs, ultimately reducing overall operational costs.

Moreover, the self-lubricating property of these wear plates contributes to a smoother, more efficient operation of the hydraulic cylinder, reducing friction and enhancing the overall performance of the system. This is particularly advantageous in applications where lubrication may be difficult to maintain or where the use of traditional lubricants is undesirable.

In summary, these hydraulic cylinder wear plates, crafted from high-strength brass material and featuring self-lubricating properties, offer a reliable and cost-effective solution for oil-less hydraulic systems that require superior wear resistance and efficient operation. Compliant with DIN and NAAMS standards, they are suitable for a wide range of industrial and automotive applications.

The solid lubricant bronze bushing is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc.

Slide plate accordingly to VDI 3357, bronze with solid lubricant

Price and delivery time on request

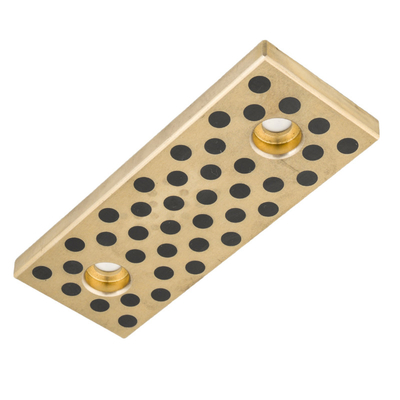

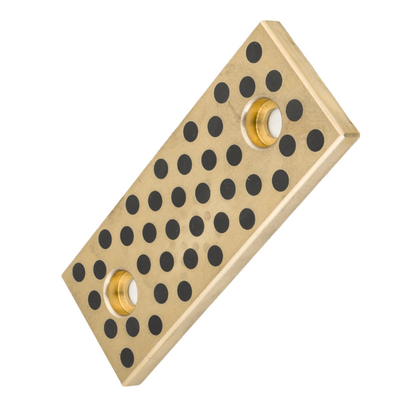

Self Lube Wear Plates


Bronze, Brass, and Copper Alloys Tin bronze/High strength brass material bronze bushing gleitlager | VSB-50P

CAM component slide plate and V plate have a wide range of products, which are in line with OILLESS, DIN, NAAMS Standard
And a series of market mainstream standards, at the same time, our company can also according to customer requirements for the standard system.

Best Partner – Slding Bearing Gleitlager Sliding Bearings
We are here for you! Qualified, reliable and fast! The key technical principle of self - lubricating bearing

Mosaic self-lubricating bearings used composite material is a new anti-extreme pressure solid lubricating material, from the metal substrate and embedded in the substrate hole or groove in the solid lubricant paste composition. In the friction process of the metal substrate to bear most of the load. The solid lubricant in the hole, the groove or the groove is transferred to the friction surface or reverse transferred to form a solid transfer film which is well lubricated, firmly adhered and evenly covered on the friction surface, thereby greatly reducing the friction and wear. With the friction, the embedded solid lubricants continue to provide the friction surface, to ensure long-term operation of the friction pair of good lubrication.


Your complete source for Bronze, Brass, and Copper Alloys


Our conmpany is specialized in the production of high brass, tin bronze, aluminumbronze, phosphor bronze, manganese silicon bronze, lead copper, we can produce according to customer requirements. Products are widely used in metallurgical machinery, shipping machinery, energy equipment, mining machinery, engineering machinery, plastic machinery and mould industries. After use under the same workingenvironment, feedback from many manufacturer which make our technology continuously improve, upgrate product quality, we will be the most enthusiastic attitude to serve every customer.


Application

• Bushings
• High Strength Machine Parts
• Bridge Pins
• Hydraulic Cylinder Parts
• Heavy Load Bearings
• Valve Stems
• Forming Dies
• Wear Rings

Tin bronze material bronze bushing gleitlager C86300 Manganese Bronze / C863 Manganese Bronze



These alloys are stocked in various shapes including bar, tube, plate, and sheet.We maintain one of the largest inventories of nonferrous copper alloys in the country. We specialize in Bronze, Brass and Copper.


Characteristics


VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings
Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding Block
Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃


• Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

• Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

• Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.

• The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Chemical Compositions

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances



Article name	Width W	Length L	Height H	l1	l2	l3	l4	M (ISO 4762)	Type
self lube wear plate with solid lubricant 50-80	50	80	20	25	30	-	-	2xM8	A
self lube wear plate with solid lubricant 50-100	50	100	20	25	50	-	-	2xM12	A
self lube wear plate with solid lubricant 50-125	50	125	20	25	75	-	-	2xM12	A
self lube wear plate with solid lubricant 50-160	50	160	20	25	110	-	-	2xM12	A
self lube wear plate with solid lubricant 50-200	50	200	20	25	150	-	-	2xM12	A
self lube wear plate with solid lubricant 50-250	50	250	20	25	60	80	-	4xM12	D
self lube wear plate with solid lubricant 50-300	50	300	20	25	80	90	-	4xM12	D
self lube wear plate with solid lubricant 50-350	50	350	20	25	100	100	-	4xM12	D
self lube wear plate with solid lubricant 50-400	50	400	20	25	120	110	-	4xM12	D
self lube wear plate with solid lubricant 50-450	50	450	20	25	140	120	-	4xM12	D
self lube wear plate with solid lubricant 50-500	50	500	20	25	150	150	-	4xM12	D
self lube wear plate with solid lubricant 80-50	80	50	20	25	0	-	30	2xM8	C
self lube wear plate with solid lubricant 80-80	80	80	20	25	30	-	-	2xM12	A
self lube wear plate with solid lubricant 80-100	80	100	20	25	50	-	-	2xM12	A
self lube wear plate with solid lubricant 80-125	80	125	20	25	75	-	-	2xM12	A
self lube wear plate with solid lubricant 80-160	80	160	20	25	110	-	-	2xM12	A
self lube wear plate with solid lubricant 80-200	80	200	20	25	150	-	-	2xM12	A
self lube wear plate with solid lubricant 80-250	80	250	20	25	60	80	-	4xM12	D
self lube wear plate with solid lubricant 80-300	80	300	20	25	80	90	-	4xM12	D
self lube wear plate with solid lubricant 80-350	80	350	20	25	100	100	-	4xM12	D
self lube wear plate with solid lubricant 80-400	80	400	20	25	120	110	-	4xM12	D
self lube wear plate with solid lubricant 80-450	80	450	20	25	140	120	-	4xM12	D
self lube wear plate with solid lubricant 80-500	80	500	20	25	150	150	-	4xM12	D
self lube wear plate with solid lubricant 100-50	100	50	20	25	-	-	50	2xM12	C
self lube wear plate with solid lubricant 100-80	100	80	20	40	-	-	50	2xM12	C
self lube wear plate with solid lubricant 100-100	100	100	20	25	50	-	-	2xM12	A
self lube wear plate with solid lubricant 100-125	100	125	20	25	75	-	-	2xM12	A
self lube wear plate with solid lubricant 100-160	100	160	20	25	110	-	-	2xM12	A
self lube wear plate with solid lubricant 100-200	100	200	20	25	150	-	-	2xM12	A
self lube wear plate with solid lubricant 100-450	100	450	20	25	140	120	-	4xM12	D
self lube wear plate with solid lubricant 100-500	100	500	20	25	150	150	-	4xM12	D
self lube wear plate with solid lubricant 125-50	125	50	20	25	-	-	75	2xM12	C
self lube wear plate with solid lubricant 125-80	125	80	20	40	-	-	75	2xM12	C
self lube wear plate with solid lubricant 125-100	125	100	20	25	50	-	75	3xM12	B
self lube wear plate with solid lubricant 125-125	125	125	20	25	75	-	75	3xM12	B
self lube wear plate with solid lubricant 125-160	125	160	20	25	110	-	75	3xM12	B
self lube wear plate with solid lubricant 125-200	125	200	20	25	150	-	75	3xM12	B
self lube wear plate with solid lubricant 125-450	125	450	20	25	140	120	-	4xM12	D
self lube wear plate with solid lubricant 125-500	125	500	20	25	150	150	-	4xM12	D
self lube wear plate with solid lubricant 160-50	160	50	20	25	-	-	110	2xM12	C
self lube wear plate with solid lubricant 160-80	160	80	20	40	-	-	110	2xM12	C
self lube wear plate with solid lubricant 160-100	160	100	20	25	50	-	110	3xM12	B
self lube wear plate with solid lubricant 160-125	160	125	20	25	75	-	110	3xM12	B
self lube wear plate with solid lubricant 160-160	160	160	20	25	110	-	110	3xM12	B
self lube wear plate with solid lubricant 160-200	160	200	20	25	150	-	110	3xM12	B
self lube wear plate with solid lubricant 100-250	100	250	20	25	60	80	-	4xM12	D
self lube wear plate with solid lubricant 100-300	100	300	20	25	80	90	-	4xM12	D
self lube wear plate with solid lubricant 125-250	125	250	20	25	60	80	-	4xM12	D
self lube wear plate with solid lubricant 125-300	125	300	20	25	80	90	-	4xM12	D
self lube wear plate with solid lubricant 125-350	125	350	20	25	100	100	-	4xM12	D
self lube wear plate with solid lubricant 160-250	160	250	20	25	60	80	-	4xM12	D
self lube wear plate with solid lubricant 160-300	160	300	20	25	80	90	-	4xM12	D
self lube wear plate with solid lubricant 160-350	160	350	20	25	100	100	-	4xM12	D
