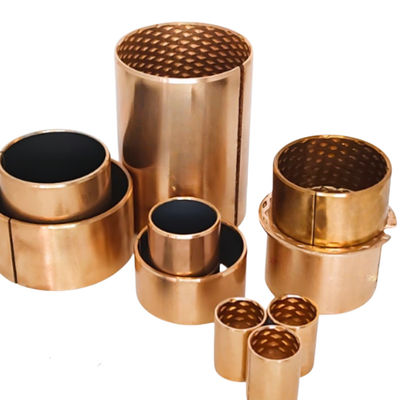

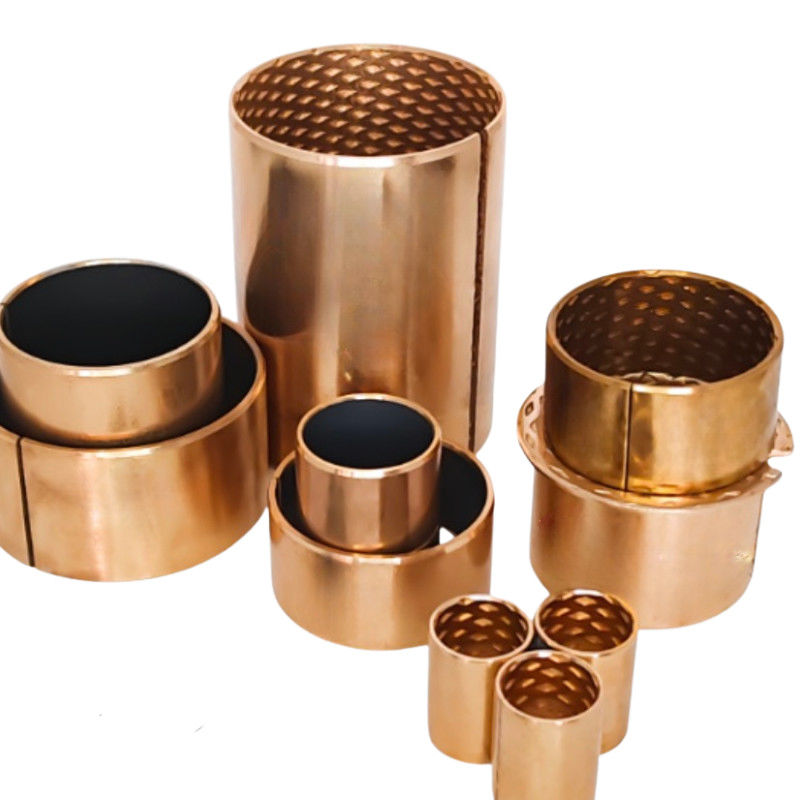

Wrought Bronze Bushing CuSn8 Material

Place of Origin Bronze Bushing Manufacturer
Brand Name CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Certification Bushing Standard Met:MBZ, B09 or MBZ B09
Model Number Bronze Bearings made of CuSn8 with Grease Reservoirs
Minimum Order Quantity phosphor bronze bush,tin bronze bearings,brass bushes
Price Precision Tolerance, Factory Price‎
Delivery Time 2-3 Weeks
Payment Terms TT IN ADVANCE, Western Union
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Bushings Meterial Bronze CuSn8,CuSn8 With Composition Sn 8 % P < 0.05 % Cu Rest Bearing Forms Made To Order Cylindrical Bushes With Non-standard Dimensions, Customized Bearing Designs
CHARACTERISTICS Solid Bronze Strip With Perforation For Lubricated Applications Performance Larger Grease Reservoirs Increase Maintenance Intervals, Dirt And Debris Swept Into Perforations, Thereby Reducing Wear
Bushing Feature High Loads And Low Speeds,with Grease Reservoirs For Long Term Lubrication Bushings Application Agricultural, Building And Engineering Machines, Etc
Bushing Standard Wear Resistant Bearing,met ROHS Bushing Online FB090 & FB092 BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary .
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

metric bronze bushings


wrapped bronze bushings

Leave a Message
Product Description

The wrought bronze bushing, constructed from CuSn8 material, is a precision-made component designed to provide superior performance in a wide range of industrial applications. CuSn8, a high-quality tin-based bronze alloy, offers excellent wear resistance, corrosion resistance, and mechanical properties, making it an ideal material for bushings that require durability and reliability.

The wrought bronze bushing features a robust and sturdy design that can withstand high loads and frequent motion. The precision manufacturing process ensures that the bushing fits securely and precisely into the desired application, minimizing friction and wear.

The CuSn8 material's self-lubricating properties contribute to the bushing's smooth operation, reducing the need for frequent lubrication and maintenance. This material also exhibits good thermal conductivity, helping to dissipate heat generated during operation, further enhancing the bushing's performance and lifespan.

Wh used in heavy machinery, motor vehicles, or other mechanical systems, the wrought bronze bushing made of CuSn8 material is an excellent choice for reducing friction, wear, and downtime. Its precision manufacturing, high-quality material, and robust design ensure reliable and efficient performance in various industrial applications.


Lead-Free Wrought Copper Alloys for Bushings - Wrought Bronze Bushing CuSn8 Material

As manufacturers, we produce almost every dimension possible. Economic pricesNo minimum quantities.Customized solutions.Highlights: Made in China, no minimum quantities, offering short delivery times, product catalog available.

Bronze bushing flange F090 ID25 OD28 F35 L25.pdf


FB090 wrought bronze bushing, surface rolled diamond, plays the role of oil storage, it has good fatigue strength and bearing capacity, corrosion resistance, wear resistance. In practice, according to the different working conditions, different grades of alloy can be used in the matrix, and the surface can be processed into other forms of oil holes and grooves.

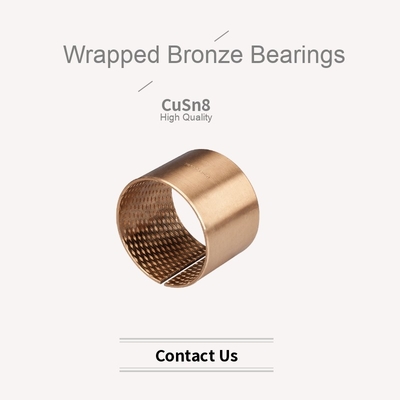

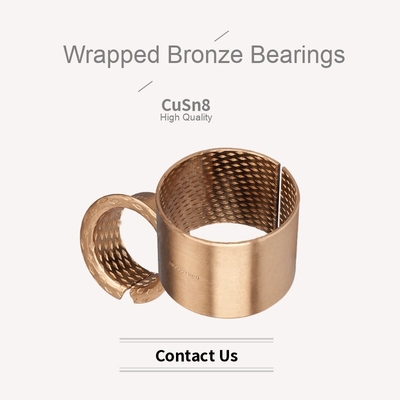

Wrapped Bronze Bearings | Bushings | Bronze CuSn8

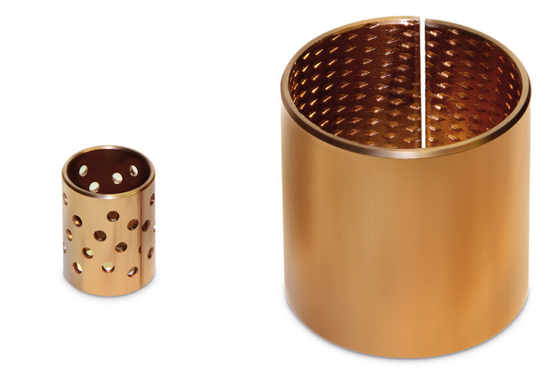

FB092 Wrapped Bronze bushing with Oil Holes Standard Sleeve Bushings Met BK-080, BRM 80, COB-092, FB 092, WB 702, WF-WB 702 Purchase By The Inch Bronze Buehes Rolled CuSn8 sliding bearings Gerollte Gleitlager aus CuSn8 wrapped bushing, with diamond oil socket 090 bushing | ONLINE
CUSN8/CUSN6 092 Bronze bearing material is bronze matrix, uniform and orderly processing of the filling hole by rolling a thin wall bearing, oil or grease in the assembly, and then configure the seal and use. The bearing has the advantage of large oil deposit, easy installation, design, small size, and can replace copper set can greatly reduce costs. The product has been used in conveyors, elevators, Roll field machine, leveling machine, etc. load, low-speed applications.


Rolled CuSn8 sliding bearings

Compared to solid bronze sliding bearings, these sliding bearings have the following benefits:
High load capacity
• Chemical resistance to aggressive media
• High thermal conduction capacity
• Simple installation and maintenance
• Good availability of standard dimensions
• Economical production of special items
• Low space requirements

wrapped bronze bushings
In addition to having high levels of corrosion resistance, this metal alloy is particularly suitable for use in connection with steel components. The lubrication of the sliding surface is guaranteed thanks to the integrated pockets, recesses and fluting. This ensures a uniform film of lubricant between the sliding bearing and the shaft.


This series includes cylindrical sliding bearings and a number of other items made of bronze panels of 1, 1.5, 2 and 2.5 mm in thickness. The products contain all of the most common sliding components, such as thrust washers and customised panels.


Bronze wrapped bushing, with diamond oil socket to preserve oil grease. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. It can be proudced by different tin-bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition, The material structure, application fields, and technical parameter are as follows.



Bronze Wrapped Bearing with Oil Pockets(090 CYLINDRICAL BUSHES)
CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets CuSn8P Wrapped Bearings
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip

  • Easy for fitting and lubricating

  • High load capacity

  • Inner Diameter machineable parts are available against order

  • High level thermal conductivity

  • Minimum overall dimensions

  • Chemical resistance.

  • Initial pre-lubrication at assembly required...

  • Bearing material made of solid bronze strip with indents for lubrication

  • Good wear resistance, suitable for rough conditions

  • Optimum performance under relatively high loads and low speeds




The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Structure And Composition



Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents



Wrought Bronze Bushing CuSn8 Material 1

CuSn8 with
Sn 8 %
P < 0.05 %
Cu Rest





Oil lubricated


Grease lubricated


Water lubricated


Process fluid lubricated




Bearing Properties














Coefficient of friction






Thermal conductivity






Coef. of thermal expansion


Tensile strength

Tensile strength







HB 100-150


Product NO.

Chemical Compositions









Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs


Typical Applications

This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.



Wrapped bronze bearing 090 series


Data Grade Wrapped bronze bearing 090 Wrapped bronze bearing 092 Wrapped bronze bearing 09G

CuSn8P CuSn8P CuSn8P+Graphite
Typicai applicaton Products are suitable for lifting machinery, construction machinery, mining machinery, agricultural machinery, forest machinery and so on Products are widely used in agricultural machinery, construction machinery, construction machinery and so on. It has the advantages of low friction coefficient, good wear resistance and so on, and can work under the condition of no oil or little oil. The products are widely used in starting motors and hoist, construction machinery, cars, trucks, tractors and so on.
Densityg/cm3 8.8 8.8 8.8
Max. dynamic loadN/mm2 100 120 100
Max. linear speed (grease lubrication) m/s 2 2.5 2.5
Max. PV value (grease lubrication)N/mm2·m/s 2.8 2.8 2.8
Tensile strength N/mm2 >460 >460 >460


Yield Strength N/mm2

>280 >280 >280
HB 90~150 90~150 90~150
Matching shaft HRC ≥50 ≥50 ≥50
Roughness 0.4~1.0 0.4~1.0 0.4~1.0
proper temperature ℃ -40~150 -40~150 -40~150
Friction coefficient 0.06~0.15 0.06~0.15 0.03~0.1
Heat conductivity coefficient W/m·K 58 58 58
Coefficient of linear expansion (axial) 18.5×10-6/K 18.5×10-6/K 18.5×10-6/K
