| Brand Name: | VIIPLUS |
| Model Number: | pom |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | Self-Lubricating Bushings manufacturing |

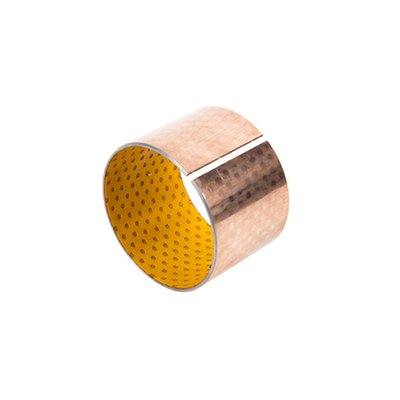

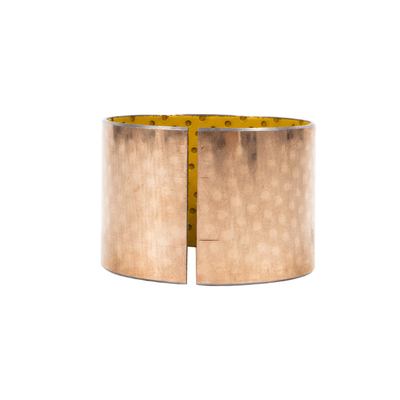

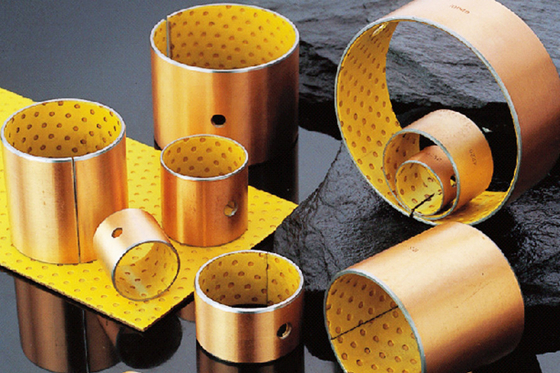

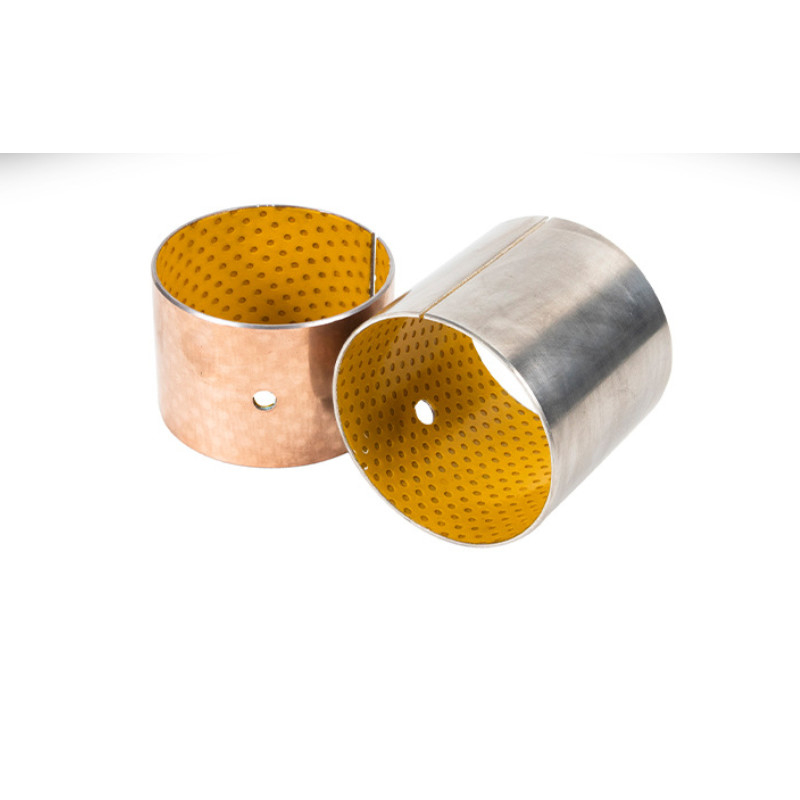

The Metal Yellow POM Bush Wrapped Bronze Bearings with Self-Lubricating Properties are high-performance components designed to provide smooth and reliable rotation in a range of industrial applications.
Constructed with a metal core wrapped in yellow POM (Polyoxymethylene) material, these bearings offer excellent durability and wear resistance. The POM bush provides a hard and smooth surface that reduces friction and extends the bearing's lifespan.
The bronze material used in the bearings' construction ensures excellent corrosion resistance and mechanical strength. This combination of materials creates a bearing that can withstand high loads and speeds while maintaining smooth operation.
The self-lubricating properties of these bearings eliminate the need for regular lubrication or maintenance. The special coating or material used ensures continuous lubrication, reducing friction and wear, and enhancing the bearing's performance.
Wh used in machinery, pumps, motors, or other industrial equipment, the Metal Yellow POM Bush Wrapped Bronze Bearings with Self-Lubricating Properties offer a robust and reliable solution for smooth rotation and load bearing. Their precision engineering, high-quality materials, and self-lubricating properties make them a trusted choice for industrial applications that demand the best in performance and durability.

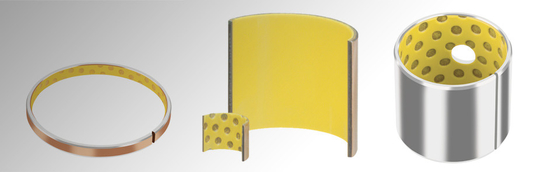

Metal Pom Bush Self-Lubricating Bushings Catalogue Cylindrical bushings
Flanged bushings
Thrust washers
Strips
Self-lubricating and relubricate bushings Technical catalog
offers the following:
DU,DX, Bushes or Similar type
Bronze Bushes
Bronze & Graphite Bushes
Manufacturer
CNC Machining
Grinding
| d | D |
d SHAFT (mm) |
D HOUSING (mm) |
WIDTH L (mm) 0 - 0.4 |
f mm. |
|||||||||||||||||||
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 95 | 100 | 115 | ||||||
| 45 | 50 | 45 – 0.025 | 50 (H7) | + 0.025 | 4520 | 4525 | 4530 | 4540 | 4550 | |||||||||||||||
| – 0.037 | + 0 | |||||||||||||||||||||||
| 50 | 55 | 50 ” | 55 (H7) | + 0.030 | 5020 | 5030 | 5040 | 5050 | 5060 | |||||||||||||||
| – 0 | ||||||||||||||||||||||||
| 55 | 60 | 55 – 0.025 | 60 (H7) | ” | 5530 | 5540 | 5550 | 5560 | ||||||||||||||||
| – 0.055 | ||||||||||||||||||||||||
| 60 | 65 | 60 ” | 65 (H7) | ” | 6030 | 6040 | 6050 | 6060 | 6070 | 1.2 | ||||||||||||||
| 65 | 70 | 65 + 0.005 | 70 (H7) | ” | 6530 | 6540 | 6550 | 6560 | 6570 | |||||||||||||||
| – 0.035 | ||||||||||||||||||||||||
| 70 | 75 | 70 ” | 75 (H7) | ” | 7040 | 7050 | 7060 | 7070 | 7080 | |||||||||||||||
| 75 | 80 | 75 ” | 80 (H7) | ” | 7530 | 7540 | 7550 | 7560 | 7580 | |||||||||||||||
| 80 | 85 | 80 ” | 85 (H7) | + 0.035 | 8040 | 8060 | 8080 | 80100 | ||||||||||||||||
| – 0 | ||||||||||||||||||||||||
| 85 | 90 | 85 + 0.005 | 90 (H7) | ” | 8540 | 8560 | 8580 | 85100 | ||||||||||||||||
| – 0.030 | ||||||||||||||||||||||||
| 90 | 95 | 90 ” | 95 (H7) | ” | 9040 | 9050 | 9060 | 9090 | 90100 | |||||||||||||||
| 95 | 100 | 95 ” | 100 (H7) | ” | 9550 | 9560 | 95100 | 1,4 | ||||||||||||||||
| 100 | 105 | 100 ” | 105 (H7) | ” | 10050 | 10060 | 100115 | |||||||||||||||||
| 105 | 110 | 105 ” | 110 (H7) | ” | 10560 | 105115 | ||||||||||||||||||
| 110 | 115 | 110 ” | 115 (H7) | ” | 11060 | 110115 | ||||||||||||||||||
| 120 | 125 | 120 ” | 125 (H7) | + 0.040 | 12060 | 120100 | ||||||||||||||||||
| – 0 | ||||||||||||||||||||||||
| 125 | 130 | 125 + 0.005 | 130 (H7) | ” | 125100 | 125115 | ||||||||||||||||||
| – 0.045 | ||||||||||||||||||||||||
| 130 | 135 | 130 ” | 135 (H7) | ” | 13060 | 130100 | ||||||||||||||||||
| 140 | 145 | 140 ” | 145 (H7) | ” | 14060 | 140100 | ||||||||||||||||||
| 150 | 155 | 150 ” | 155 (H7) | ” | 15050 | 15080 | 150100 | |||||||||||||||||
| 160 | 165 | 160 ” | 165 (H7) | ” | 160100 | 1,6 | ||||||||||||||||||
| 180 | 185 | 180 ” | 185 (H7) | + 0.046 | 180100 | |||||||||||||||||||
| – 0 | ||||||||||||||||||||||||
| 200 | 205 | 200 + 0 | 205 (H7) | ” | 200100 | |||||||||||||||||||
| – 0.071 | ||||||||||||||||||||||||
| 220 | 225 | 220 ” | 225 (H7) | ” | 220100 | |||||||||||||||||||
| 250 | 255 | 250 ” | 255 (H7) | + 0.050 | 250100 | |||||||||||||||||||
| – 0 | ||||||||||||||||||||||||
| 300 | 305 | 300 + 0 | 305 (H7) | ” | 300100 | |||||||||||||||||||
