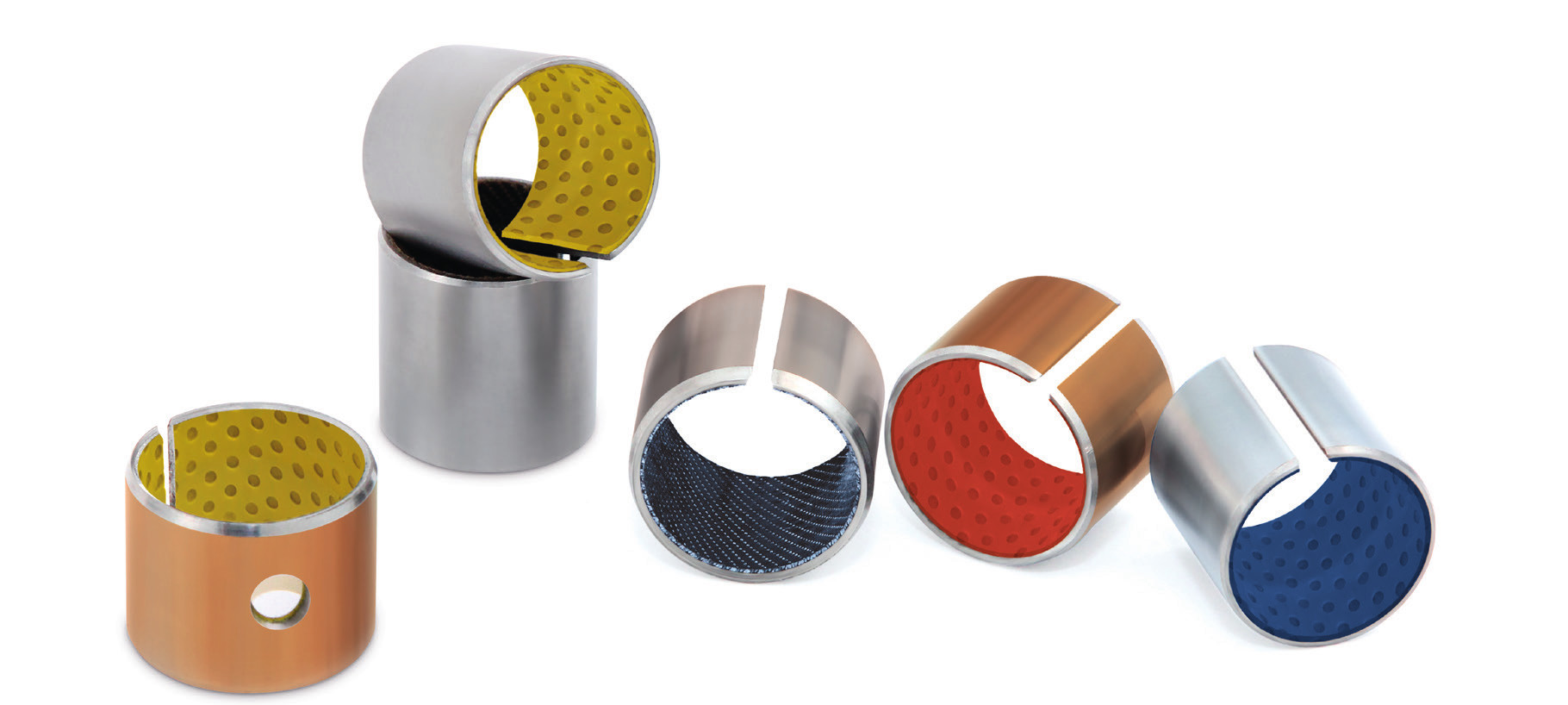

Tin / Zinc Plating POM Flanged Self-Lubricated Bearings Standard Dimensions Size

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve & Bearing
Certification FIBRO Standard
Model Number C86300 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze + Yellow POM Plating Tin Or Copper Boundary Lubricating
Type Wrapped Bushes, Thrust Washer Customized Based On Drawing Or Sample
Color Black,red,yellow,blue POM Application Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc.
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite bronze bushing

,

bronze plain bearing

Leave a Message
Product Description

When referring to Tin/Zinc Plated POM (Polyoxymethylene) Flanged Self-Lubricated Bearings with standard dimensions, the description can vary depending on the specific manufacturer and application. However, here's a general way to write about these bearings in English:
"Tin/Zinc plated POM flanged self-lubricated bearings are designed for applications requiring high wear resistance, low friction, and corrosion protection. These bearings feature POM (Polyoxymethylene) as their base material, which offers excellent mechanical properties and dimensional stability. The tin/zinc plating provides an additional layer of corrosion resistance, enhancing the bearing's durability in various environments.
The flanged design of these bearings allows for easy installation and secure positioning within the application. The self-lubricating properties of POM ensure smooth and consistent operation with minimal maintenance requirements.
Standard dimensions for these bearings vary depending on the specific series and size. Common sizes range from small metric dimensions suitable for precision equipment to larger dimensions for industrial applications. The manufacturer's catalog or specification sheet should be referenced for detailed dimensions and technical specifications of the desired bearing."
Please note that this is a general description, and specific technical details may vary based on the manufacturer and application.


POM self-lubricating bearings have been specially developed for lightly lubricated applications and can therefore operate for long periods of time with minimal lubrication.

China Sliding Sleeve Bushing & Sliding Bearing Technologies

Your recognised china partner for sliding plain bearing applications. Working tog to create solutions for the most demanding sleeve bushing applications.
Self‐lubricated Sliding bearings without any added grease or oils and ensuring clean, maintenance free operation in the most challenging application



Composite Bearing Material



  • POM Modified (Lead free)

  • Sintered Bronze

  • Low Carbon Steel

  • Tin / Zinc Plating



 Gleitlagerbuchsen



Standard dimensions POM Bushes

Materiai


Carbon Steel + Copper Powder + POM
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs



Bearing forms available in standard dimensions


· Cylindrical bushes
· Thrust washers
· Sliding plates



Typicai applicaton


It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.



Characteristics



VSB-20 Boundary lubrication bearing High Quality DX Bushing POM Bush China Manufacturer
· marginally lubricated bushings for grease or oil lubricated applications
· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
· Optimum performance under relatively high loads and low speeds
· Suitable for linear, oscillating and rotating movements
· Wide range of parts available from stock

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.



Strusture



1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.


Techinical Data



Technical parameterUnitValue
Maximum load (static)Mpa250
Temperature range°C-40 / +130
Coefficient of friction0.05 – 0.15
Maximum sliding velocitym/s2.5
Size range (inner dia.)mm10 – 300


Structure And Composition

  • Metal-Polymer Composite Bushing Material

  • Steel Back + Porous Bronze Sinter +

  • POM with Lubrication Indents





OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor



Avaibearing Properties



Performance

Data

Max load capacity P

Static load

140N/mm²

Max load capacity P

Dynamic load

70N/mm²

Max line speed V

Greaes lubrication

2.5m/s

PV value limit

Greaes lubrication

2.8N/mm²· m/s

Friction coef μ

Greaes lubrication

0.06~0.12

Mating Axis

Hardness

>270 HB



Typical Application


Recommended for applications involving intermittent operation or boundary lubrication... Automotive: suspension joints, kingpin assemblies and stub axles of trucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers... Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multi-ram presses... Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters... It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.

BUSHING APPLICATION - agriculture
