Product Details
Meterial Stainless Steel 316 With FABRIC Type Bushes (cylindrical)
Port Shanghai Main Function Self Lubricating Bearings
Quality OEM CATALOGUE Available
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Stainless Steel Bushing Manufacturers Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

steel backed bronze bushing

,

stainless steel sleeve bearing

Leave a Message
Product Description

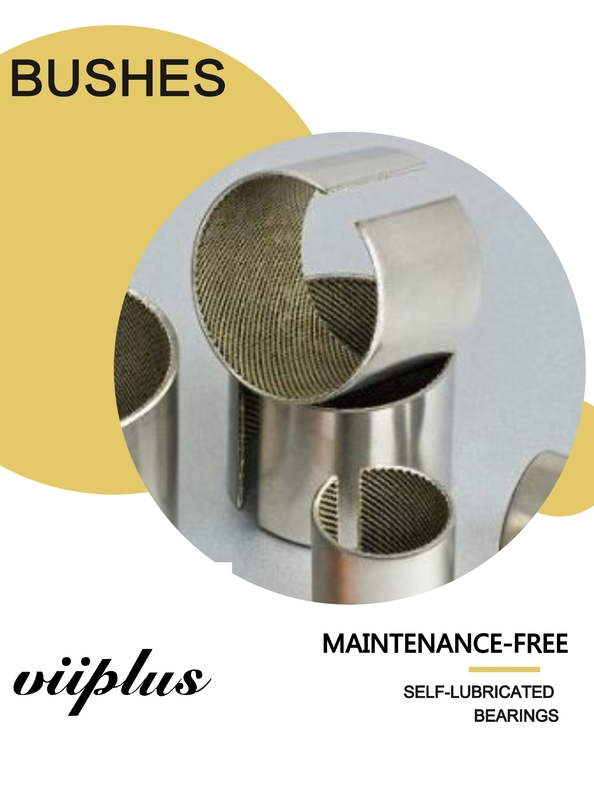

Woven Fabric Stainless Steel Bushings Self-Lubricating Bearing VSB-36 refers to a type of self-lubricating bearing that utilizes a woven fabric material, often combined with stainless steel, to create a bushing that can operate with minimal external lubrication. The "VSB-36" designation likely refers to a specific model or series within this bearing type.
The woven fabric material, typically a synthetic fiber like Kevlar or nylon, is used to provide a low-friction surface and good wear resistance. The stainless steel component adds strength and corrosion resistance, ensuring the bearing can withstand harsh environments and demanding applications.
The self-lubricating property of this bearing is achieved through the use of materials that have inherent lubricating properties or through the incorporation of solid lubricants within the fabric or metal components. This allows the bearing to operate smoothly and efficiently without the need for frequent lubrication or maintenance.
VSB-36 bearings are often used in applications where lubrication may be difficult or impractical, such as in high-temperature or high-pressure environments. They are also suitable for applications where chemical resistance and corrosion protection are important, such as in chemical processing, food processing, and marine industries.


Stainless Steel Bushings


MADE TO ORDER FROM CHINA TEX FABRIC STAINLESS STEEL 316 BEARINGS BUSHINGS material are specifically designed for bearings. They consist of a unique fabric weave of / Glass fibers which is bonded to a stainless-steel backing with a durable adhesive. The fibers provide extremely low friction while the glass fibers provide structural support and a surface for bonding.Plain Bearings and Sleeve Boccole Self-Lubricating Bearings, Valve Bush Woven Fabric Stainless Steel 316 Bushes.The stainless-steel 316 backing provides extreme load-bearing capabilities beyond the range of solid and any other solid-lubricant bearing.

Woven Glide Bushing CATALOG

Plastic Bearing VIIPLUS Technologies PLASTIC BEARINGS MANUFACTURERS FOR Oil & Gas INDUSTRY



Bushes (cylindrical) Stainless Steel Bushes
Plain bearing product versions



Oil-free self-lubricating bearings use a very wide range


Oil-free self-lubricating bearing is the absence of oil is no need to refuel or less refueling, our goal is to ensure that the bearings in this condition can also show good performance, and extend its service life as much as possible. It works in the initial stage of operation, the bearing surface of the solid lubricant due to the friction between each other to form a transfer film and cover the workpiece, the final formation of solid lubricating film to achieve the purpose of self-lubricating, it cut off the workpiece Between the direct contact, thus a good protection of the wear parts to extend the life of the bearing and the workpiece. Therefore, this kind of bearing in our lives are used in a variety of, it is used in special circumstances need additional fuel supply device, can reduce bearing operating costs, reduce equipment downtime maintenance, but also to mechanical maintenance more convenient. So now it is in the light industrial machinery, heavy machinery, construction machinery and other fields used in a lot of performance in our lives is perfect.



Low Friction Woven Fabric Oilless TEX Bearing


TEX Bushing,Customized Bushing , Fiber Bush
Plain Bearings and Sleeve Bearings Self-Lubricating Bearings, Liner Type Non-Metallic woven Stainless Steel 316 with fabric

Stainless steel 316 and steel-base polytetrafluoroethylene aramid fiber braid bearings are self-lubricating materials with wear-resistant fibers as the main surface material.The product has low friction coefficient, good bearing capacity, abrasion resistance and self-lubrication performance, mainly used in various high-grade valves and go-kart.



metal composite bearing base fabric is based on steel substrate, the surface adhesion of ethylene fiber and aramid fiber woven fabric, after rolling processing into a collar or stamping processing into a variety of forms such as gasket. The product has the characteristics of high precision, high load bearing pressure and excellent low speed and heavy friction performance. It can be widely used in heavy load equipment such as engineering machinery and agriculture and forestry machinery.


Characteristics


VSB-36 Bushing  slide bearing bushings, oilless plain bearing

Stainless Steel316+/FABRIC
Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.
VSB-36 Bushing
Stainless Steel316+/FABRIC
is of oil resistant, acid resistant, alkali resistant and seawater resistant, more over, there is no lead in the surface layer and so is particularly fit for application in food machinery, alkali flow meters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines and other ocean industry. The bushing is a triple layers composites one, the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.



Strusture


Technical data



Max. load

Static

350N/mm2

Dynamic

180N/mm2

Max. speed

Dry

0.5m/s

Lubrication

>1m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-50℃~+250℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1




Availability




Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers




Basic advantages of Stainless Steel 316 fabric bushings

ADVANTAGES:
Have a higher carrying capacity.
High-temperature.
Longer life.

Stainless Steel Bushings



Typical Applications

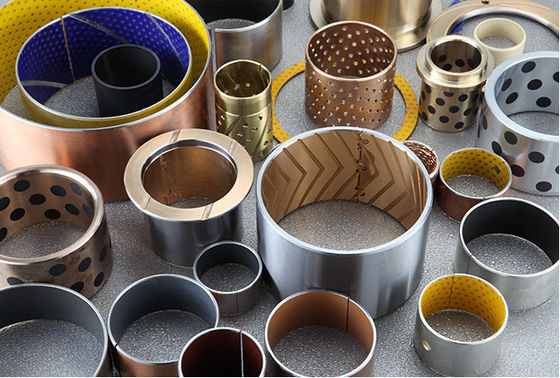

VIIPLUS bearing is a leading self-lubricating bearing manufacturer and supplier in China. We are highly proficient in the production of various self-lubricating bearings, bushes, and the sliding blocks, etc. Our main product catalogue now includes the oilless self-lubricating bearing, composite bearing, copper bearing, wrapped bronze bearing, bimetallic bearing, thermoplastic bushes, and more. All our products are characterized by reliable performance and low price. They are very popular and widely applicable in different industries including the automobile, machine tools, moulds, metallurgical machinery, mining machinery, textile machinery, hoisting machinery, construction machinery, printing machines, irrigation machinery, injection molding machines, food machinery, ports, marine machinery, and the agricultural and forestry machinery, etc.

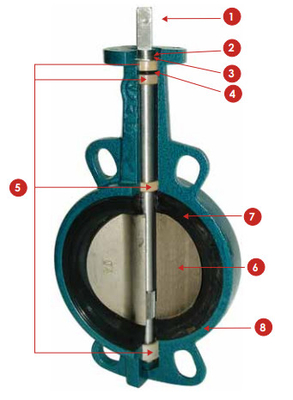

Low friction woven fabric oilless bearing VSB-36 TEX is widely used in high temperature production lines, construction machinery, automobile chassis parts, ball valves, butterfly valves, pumps and chemical industries and high-speed trains and other heavy low and cannot refuel occasion etc.
