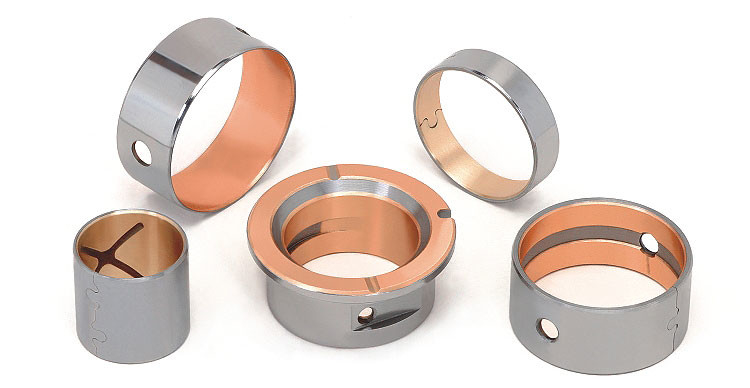

CuPb10Sn10 Bimetal Bushing , Flanged Bimetal Steel Bearings By Size
| Place of Origin | Bimetal Bearing Manufacturers |
|---|---|
| Brand Name | bimetal SAE-797 SAE 48 SAE-799 bushings |
| Certification | Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4... |
| Model Number | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
| Minimum Order Quantity | 800 Piece/Pieces (Min. Order) |
| Price | $0.20 - $2.00 / Pieces ,Negotiable |
| Packaging Details | export & import bimetal bushings International carton standard |
| Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
| Payment Terms | TT IN ADVANCE Western Union |
| Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10) | Plating | Tin Plating, Cooper Plating |
|---|---|---|---|
| Type | Bushes，Wrapped Bushes With Flange，Strips | Application | Gear Box |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | bimetal bush,bimetal bearings |
||
Product Description
CuPb10Sn10 bimetal bushings and flanged bimetal steel bearings are essential components in various industrial applications, offering excellent wear resistance, corrosion protection, and load-bearing capacity. These bushings and bearings are available in a range of sizes to meet the specific requirements of different machines and equipment.
The CuPb10Sn10 bronze alloy used in these bushings and bearings provides superior sliding properties and high ductility, ensuring smooth and reliable operation. The bimetal construction, with a steel backing and a bronze lining, combines the strength and dimensional stability of steel with the wear resistance and corrosion protection of bronze.
Flanged bimetal steel bearings are designed with integral flanges that provide additional support and stability. These flanges help distribute the load evenly across the bearing surface, reducing wear and extending the service life. The flanged design also allows for easier installation and removal, reducing maintenance costs and downtime.
When selecting CuPb10Sn10 bimetal bushings or flanged bimetal steel bearings, it is important to consider the size and specifications that are most suitable for your specific application. By choosing the right size and type of bushing or bearing, you can ensure optimal performance and reliability in your machinery and equipment.
Wh you need standard sizes or custom-made bushings and bearings, suppliers can provide a wide range of options to meet your needs. With their expertise and experience in bimetal bearing technology, they can help you select the best solution for your industrial application.
OEM Knuckle Bimetal Bushing China factory Suspension bushes chassis bushing bronze steel
Bimetal bushing is based on steel and sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer.
The strongest type of bimetal bushings and widely applicated in so many fields. This type has the best performance within the range of Cu-Pb alloy construcured bushing. Therefor it has a wide application and is mostly suitable for where is middle speed and high impact etc.
SAE‐797 Bi-metal Bearings Sleeve Bushings flanged,thrust washers,bimetal bushing strips,made to order from china,bimetal bushes are composed of two metal strips, in two different materials; the first is normally in steel, the second is normally constituted by an alloy containing copper, which when coupled with the steel strip acts as an internal covering. Furthermore, some sizes also have an external relubrication hole.Bi-metallic composite bearings to high-quality low-carbon steel substrate, the surface of the sintered copper alloy with low friction characteristics (CuPb10Sn10, CuPb6Sn6Zn3, CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as bearing wear layer ......
Plain Bimetal Bearings Strips, Slide paths Sliding Plate Bimetallic Strip Materia For Transmission Gear Box
Bimetal Bearings Strips, Slide paths Sliding Plate Bimetallic strip Materials
Bimetal Bearings /AUTOMOBILE GEAR Plain Bimetal Bearings Sliding bearings
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties, it is widely used in automotive applications such as compressors
| Load capacity | 150N/mm2 | |
| Speed limit | Oil lubricating | 2.5m/s |
| Dry Friction | 0.4m/s | |
| PV value limit | Oil lubricating | 10N/mm2.m/s |
| Dry friction | 2.8 N/mm2.m/s | |
| Mating axis required | Hardness | >=48~53HRC |
| Roughness | Ra=0.16~0.63 | |
| Friction coef | 0.05-0.22 | |
| Working temperature max. | 200°C |
For Transmission Gear Box
Characteristics
VSB-80 Bimetallic composite bearings
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.
· Bimetal bearing with steel backing and bronze overlay
· Particularly suitable for high specific loads with oscillating motion and low frequency
· Applicable in rough operation conditions
· High load capacity, very good resistance to fatigue strength at higher temperatures
Strusture
1.Sintered bronze lazer: Good wear resistance and excellent load carrying capacity.
2.Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
Technical Data
Structure And Composition
Steel Backing and Leaded Bronze Overlay
Steel + CuPb10Sn10 with indents
Microsection
|
|
Sliding layer with |
|
OPERATING PERFORMANCE |
|||||||||||||||||||||||||||||||||
|
Dry |
Poor |
||||||||||||||||||||||||||||||||
|
Oil lubricated |
Good |
||||||||||||||||||||||||||||||||
|
Grease lubricated |
Very Good |
||||||||||||||||||||||||||||||||
|
Water lubricated |
Poor |
||||||||||||||||||||||||||||||||
|
Process fluid lubricated |
Poor |
||||||||||||||||||||||||||||||||
BEARING PROPERTIES
|
|
||||||||||||||||||||||||||||||||
Alloy Chemical Compositions
|
Content |
Cu |
Pb |
Sn |
Zn |
P |
Fe |
Ni |
Sb |
Others |
|
Remainder |
9-11 |
9-11 |
0.5 |
0.1 |
0.7 |
0.5 |
0.2 |
0.5 |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
Bearing forms made to order: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs
Typical Applications
The main applications in which bimetal bushes are used are the following:
* automotive (motors, motorcycle clutches, frames, chassis, tyre changers, etc…);
* agricultural machinery;
* lifting equipment (hydraulic cranes, platform lifts, etc…);
* pumps;
* compressors;
* etc.
