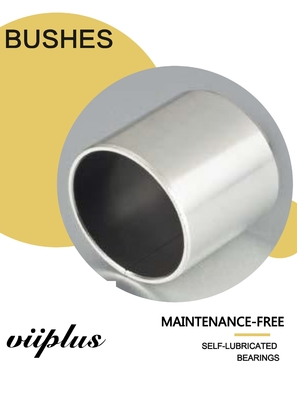

Chemical Valve 316 Stainless Steel Bushings , Steel Backed Bronze Bushing

Place of Origin Stainless Steel Backed Bushings
Brand Name CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE / GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Minimum Order Quantity >=500 Pieces
Price Negotiable
Packaging Details CARTONS,wOODEN CASES
Delivery Time 3-4 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Stainless Steel 316 + Port Shanghai
Quality OEM Type Self Lubricating Bearings
STRUCTURE Bushes Application GLOBE VALVES
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Stainless Steel Bushing Manufacturers Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

stainless steel sleeve bearing

,

stainless steel bushing sleeve

Leave a Message
Product Description

When it comes to chemical valves, the selection of bushings is crucial for ensuring smooth operation, durability, and resistance to corrosion. Two popular options for chemical valve bushings are 316 stainless steel and steel-backed bronze bushings.
316 Stainless Steel Bushings:
316 stainless steel bushings are an excellent choice for chemical valves due to their exceptional corrosion resistance. This alloy contains molybdenum, which gives it superior resistance to acids, chlorides, and other harsh chemicals compared to other stainless steel grades. As a result, 316 stainless steel bushings can withstand harsh environments and chemicals commonly used in chemical processing.
In addition to corrosion resistance, 316 stainless steel bushings also offer good strength and wear resistance. They can maintain their dimensional stability and mechanical properties even under extreme operating conditions, ensuring reliable performance for chemical valves.
Steel-Backed Bronze Bushing:
Steel-backed bronze bushings are another popular choice for chemical valves. These bushings combine the strength and durability of steel with the lubricity and corrosion resistance of bronze. The steel backing provides the necessary structural support, while the bronze layer offers superior wear resistance and lubricity.
Steel-backed bronze bushings are often used in applications where a high degree of lubrication is required. The bronze layer can be impregnated with lubricants or oil, which helps reduce friction and wear during operation. This makes them an ideal choice for chemical valves that require smooth and reliable movement.
In summary, both 316 stainless steel and steel-backed bronze bushings offer excellent performance for chemical valves. The choice between the two depends on the specific requirements of the application, including the chemicals used, operating conditions, and lubrication requirements.



Stainless Steel Bushings


Guide Engineering SST Metal with Kevlar Liner / Self-lubricating Type bearing provides high load capacity and low friction in the form of a thin-walled sleeve for use in butterfly valves, trunnion bearings, ball and plug valve stem bushings, hydraulic and pneumatic cylinder guide bushings, food handling machinery, and door hinge bushings.
Excellent corrosion proof performance and superior abrasion proof performance OIL & GAS Bushings & Self Lubricating Bearings

Wherever you’re operating your rig or refinery, VIIPLUS Self-Lubricating Bearings solutions are right there with you.
Bronze Bushing Self-lubricating Bearings
Compared with normal plain bearings, VIIPLUS CHINA self-lubricating bearings are superior in wear resistance, seizure resistance and friction properties, and realize performance enhancement and maintenance-free.

Globe Valves Chemical Valve Chemical Pump Bushings Bushing Stainless Steel Backing Sintered With Bronze Powder Overlaid With | Vsb-33
Stainless Steel 316 Bearings +
Stainless steel backing sintered with bronze powder overlaid with Suitable for dry running, low coefficient of friction, lower wear.

AISI 316 bushing material


Typical application



Chemical valve, chemical pump, flow meter, food industry, medicine industry in the corrosion environment.



Characteristics

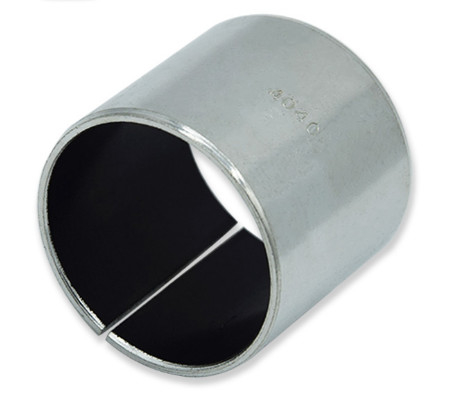

Wrapped Lined (maintenance-free), self lubricated plain bearings, thrust washer and strip, stainless steel shell with sintered bronze layer filled with
It is backed with stainless steel with porous bronze sintered on it and polymers imbedded into the bores of the bronze. The stainless steel back provides the bush with stronger mechanic strength and load capability. By combining the metals and the polymers tog, the products are endowed with the lower friction coefficient and good capacity of anti-abrasion and self-lubrication. Moreover, the stainless steel back can be effectively preventing chemical erosion. This series are widely applied in printing and dyeing machines, and machines used in the ocean industry, etc.
Stainless Steel Bronze Powder + Self Lubricating Bearings Multilayer Composite
This new material use the fibre fabric overlay on metal backings, the fabric have very high load capacity and much longer operating life compare with conventional 3-layer bushes. The metal can be carbon steel. stainless steel.



Stainless Steel 316 Sleeve Bushing Specification & Tolerance



Product Overview:Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.

VSB-33 Plain Bearings and Sleeve Bearings


Stainless steel bearing is of oil resistant,acid resistant,alkali resistant and seawater resistant,more over,there is no lead in the surface layer and so is particularly fit for application in food machinery,alkali flow meters,pumps motion elements in pharmaceutical machines,printing machines chemical engineering machines and other ocean industry.The bushing is a triple layers composites one,the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. Stainless steel backing provides improved corrosio...


Strusture



Technical Data



Max. load

Static

250N/mm2

Temp.

-195℃~+280℃

Dynamic

140N/mm2

Friction coefficient

0.03~0.20

Max. speed

Dry

2m/s

Thermal conductivity

42W (m·k)-1

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Coefficient of thermal expansion

11*10-6k-1

Continuous

1.8N/mm2*·m/s



Availability


Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes.




Typical Applications



VSB is professional as one of the leading manufacturers and suppliers of VSB-33 stainless steel 316 bearings + in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy VSB-33 stainless steel 316 bearings + made in China with us.


Plain bearings are available as bushes, collar bushes, washers, strips or special designs.


Packaging & Shipping
Packaging Details: Standard export packing, or as customers' requirement.
