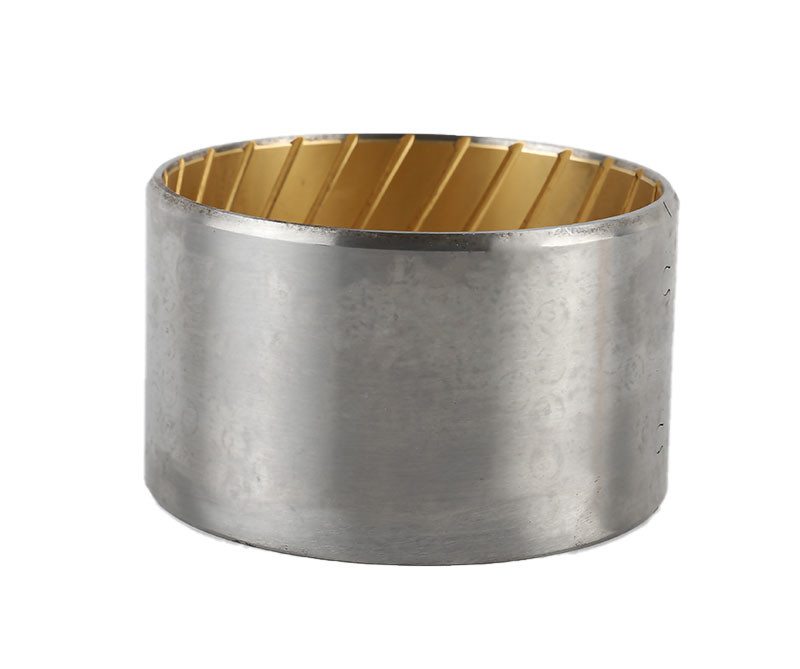

SAE - 797 Bimetal Bronze Steel CuPb10Sn10 Bushing For Pumps Tin - Plating

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces (Min. Order)
Price $0.20 - $2.00 / Pieces ,Negotiable
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT IN ADVANCE Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bimetal, Bronze, Steel Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Quality OEM High Quality Bushings
Type Bushes, Collar Bushes, Washers, Strips Or Special Designs Bearing BIMETAL BEARINGS BUSHINGS
Bushing Sample Available Application Gas Heat Pumps Bushing,Agricultural Machine
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush

,

bimetal bearings

Leave a Message
Product Description

Bimetal bearing profile, Bimetal bushing Can be customized

Bimetal Bushings Competitive Price,High Quality Standard SAE-797 bimetal bushing is based on steel and sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer. The strongest type of bimetal bushings and widely applicated in so many fields.

This type has the best performance within the range of Cu-Pb alloy constructured bushing.Thereforce it has a wide application and is mostly suitable for where is middle speed and high impact etc.







The bimetal bearing specialist with custom material manufacture design size
VIIPLUS has been proving its vast experience and technical know-how in manufacturing and marketing bimetal bearings bushings and drive units. Benefit from experts who seek the perfect sliding bearing solution for you, designed for your special applications.



SAE - 797 Bimetal Bronze Steel CuPb10Sn10 Bushing For Pumps Tin - Plating 0



Wrapped composite sliding bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets or groove design



CuPb10Sn10 is a higher lead content giving it a better advantage for higher rotational speeds. Also, the bimetal sliding layer has lubrication pockets that are also suitable for oil lubrication and thus allowing this bushing material to run at much higher rotational speeds.



Metallic Self-lubricating Maintenance-free Bearings,Flanged bushings gear pumps Bimetal Bushing & Self Lubricating Bearing

Specifications for Bi-Metal Bronze Alloys:
Material Type Specification of Bronze Alloy Hardness of Bronze Alloy HB Allowable Max Dynamic Load Max. Temperature °C
Bi-Metal-800 CuPb10Sn10 or CuSn6Zn6Pb3 70~100 65 260
Bi-Metal-720 CuPb24Sn4 45~70 38 200
Bi-Metal-700 CuPb30 30~45 25 170
Bi-Metal-20 AlSn20Cu 30~40 30 150
Bi-Metal-930 CuSn6.5P0.1 60-90 65 200



Bronze/Steel Bushing


VIIPLUS Self Lubricating Bearing are used on a variety of rotating equipment, including pumps bushing, compressors bushing, mixers bushing, steam turbines bushing and other specialty equipment bushing. They have application in the oil and gas, pharmaceutical, chemical processing, mineral and ore processing, and general industries.whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation. It can be made from a variety of different materials, depending on the application, use conditions and lubrication.



Bimetal bushing Load capability can be improved by oil holes, grooves, etc., depending on lubrication conditions. In some cases, a dry bearing can also be used under lubricated conditions.

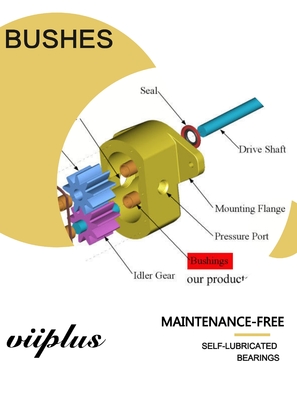

Gear pump self-lubricating bearing is a core part of the gear pump, installed on both sides of the uranium gear pump, its support and anti-friction role, its size accuracy and wear resistance is directly related to the volumetric efficiency and service life of the gear pump.



Gear pump shaft sleeve steel bushes bronze bushing parts are provided by our company, and the use of automatic pressure and assembly and key size automatic detection technology, can effectively solve the problem of pressure and assembly tolerance accumulation, product accuracy decline, to ensure that 100% qualified products provided to customers.

The Bearing Gard employs static and dynamic sealing technologies to prevent ingress of contaminants into the bearing housing and ensure oil retention, even when the equipment is shut down.

Gear pump oiles bearing & bushings



Bimetallic bearing round hole  Bimetallic bearing oil groove type   Steel base bimetallic bearing   Rolled diamond groove with graphite bimetallic bearing

How to choose the gear pump bushings | shaft sleeve bushes oil-free lubrication bearing

VIIPLUS Company providing technical bushes, in various sectors such as steel bushes, bronze bushes, graphite bronze bushings, stainless steel bearings for Water, Waste water, Industrial and Oil & Gas fields in solutions. Delivers quality products combined with outstanding service. We are committed to revitalizing our domestic and international partnerships—with a passion for quality and restoring customer dedication”Your Powerful Assistant,We are Providing Good Services



Individual sliding bearings & bimetal bearings according to customer requirements

Gearbox Bushings Valves Bushings Self lubricating bearings for Power Transmission,Flow Control We supply and market Gate, Ball, Plug, Check, and Butterfly valves bushings and their respective controls and actuators. These valves bushes are used primarily in the water, wastewater, and industrial markets.we provide a wide range of Valves bushes in different sectors a lot of which are in stock for immediate purchase.


Our Product Range:         Bimetallic bearings are applied to mechanical construction
• Butterfly Valves bushes
• Gate Valves bushes
• Globe Valves bushes
• Check Valves bushes
• Ball Valves bushes
• Plug Valves bushes
• Plastic Valves bushes
• Safety Valves bushes
• Diaphragm Valves bushes
• Fire Fighting Valves bushes













How to choose the gear pump shaft sleeve bushes?





VIIPLUS Main production gear pumps shaft sleeve bushing sliding bearings.Gear pumps in operation in the event of unusual noise, it should immediately check stands.

The gear pump sleeve bushings the selection principle is not high demand, for the occasion, but by experience, not to replace gear pump sleeve bushings timely selection.If the first gear pump operation, or long-term idle after use, preferably in small load or no-load circumstances running One hour.
At the beginning of operation, to gear pump within the shell filled with liquid to be delivered, for safety launch.

viiplus gear pump bushings Oil-free bearing maintenance-freeThe quality and capability of gear pump bushing affect the characteristics of gear pump machines directly.

The pump bushing out of the shackles of traditional design, making gear pump bushings in the design, production and use into a new area.By using viiplus gear pump bushings, production efficiency and product quality can be improved and production cost can be reduced in the processing and repairing.



Characteristic





This bearing is the kind of Flange bush with the steel backing sintered with bronze powder through the friction welding. The surface may be incorporated with various kinds of oil grooves, pockets to meet different necessities of various lubricating
conditions.
Typical application

This product is widely applied in various automobile engines, vehicle hassis, motorcycle clutches, rubbing plate of gear pumps and other hoist machines.







Gear Pump Bushing Manufacturing
Bimetal bearing profiles are used in mechanical structures





VIIPLUS specializes in the manufacture of Pump bushing, hydraulic bushing, self lubricating bearings.

Gear pumps one of the most common types of pumps for hydraulic fluid power applications.

A gear pump uses the meshing of gears to pump fluid by displacement.



• Hydraulic pump

• Vane pump





Gear Pump Bushing Range



Hydraulic Pump Bushings Applications

China Pump Bushing, China Pump Bushing Suppliers and Manufacturers

Vane pump Bushing

Hydraulic bushings & Valves bushings

Manufacturers of Superior Quality Hydraulic Pumps bushings



Bimetal Bushing Technical Data





Dynamic load limit

60N/mm²

Static Load

120N/mm²

frictional coefficient

0.08~0.2

PV limit

2.8N/mm²*m/s

Max Speed

>2m/s

Temp.limit

-40°C~+250°C



  • Fork lifts

  • Pallet Trucks

  • Cranes

  • Excavators





Technische Daten



  • Wrapped composite sliding bearing

  • Copper-plated or tin-plated steel / bronze

  • Low-maintenance

  • With lubrication pockets

Properties



  • For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.



Materials



  • Support materialSteel copper-plated / tin-plated

  • Sliding layerCuPb10Sn10



Tolerance Details



  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8



Maintenance



  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!CAPTION:Special dimensions are available on requestGet in touch-Industrial Catalogue Oil & Gas bushes Catalogue!You can use our “Enquiry Form” to get in touch with us. One of our sales team will contact you immediately.
