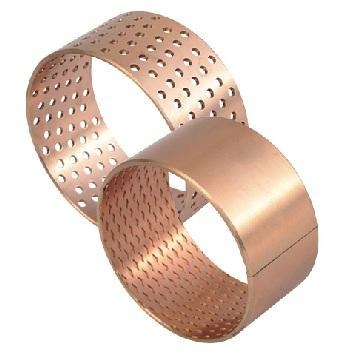

CUSN6 / CUSN8 CW453K Phosphor Tinbronze 090 & 092 Sliding Bearing

Place of Origin Bronze Bushing Manufacturer
Brand Name CHINA wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Certification Bushing Standard Met:MBZ, B09 or MBZ B09
Model Number Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
Minimum Order Quantity phosphor bronze bush,tin bronze bearings,brass bushes
Price Precision Tolerance, Factory Price‎
Packaging Details EXPORT CARTONS
Delivery Time 2-3 Weeks
Payment Terms TT IN ADVANCE
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Bronze CuSn8,CuSn6.5 Type Wrapped Bushes, Flanged Bearing, Thrust Washer
Feature BRO-MET, FB090, BRM10, WB800 Lubrication Oil Lubrication
Quality OEM Quality Application Agricultural, Building And Engineering Machines, Etc
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing
Specialty Бронзовые втулки Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

metric bronze bushings


flanged bronze bushings

Leave a Message
Product Description

CUSN6 and CUSN8 CW453K Phosphor Tinbronze bearings, including their 090 and 092 sliding versions, sleeves, and flanges, are constructed from high-grade tin bronze materials that offer excellent corrosion resistance and wear durability. These bearings are designed for various industrial applications where reliability and long-term performance are crucial.

When it comes to selecting the right wrapped bronze bushing material, CuSn8 is a popular choice. This alloy is known for its purity and mechanical properties, making it suitable for bearings that require both strength and precision. The indented inside surface of the bushing further enhances lubrication and reduces friction, resulting in smoother and more efficient operation.

Wrapped bronze bushings are available in a range of outer diameters (OD), inner diameters (ID), and lengths to suit different applications. Whether you need a bearing for a specific machine or equipment, we can provide you with the right size and material to meet your requirements.

Our team of experts is here to help you select the best wrapped bronze bushing material for your application. We understand the importance of choosing the right bearing material to ensure optimal performance and durability. Contact us today to discuss your specific needs and find the perfect solution for your project.


Wrapped Bronze Bushings.pdf


Alternative BRO-MET L/BRM 80 FB092 rolled bronze bushing CuSn8 090 & 092 BRONZE BUSHES, BUSHES –VIIPLUS Sliding Bearing

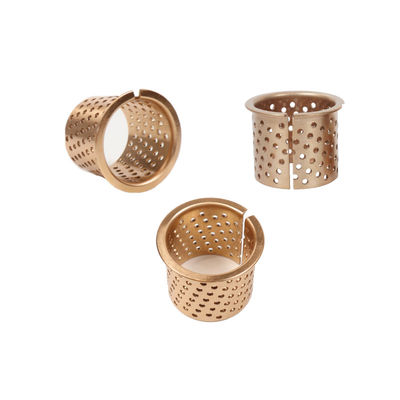

CuSn8/CuSn6 092 bronze wrapped bearing gleitlager with holes made to order 092

Bronze wrapped bushing Bronze sleeve Bronze oilles self lubrication bearing

Wrapped Bronze Bushing - FB092(BMZ/L,WB702,WB802).  FB090 Wrapped Bronze Bearings, CuSn6.5P, CuSn8P, Diamond oil pocket.


tin bronze bearing cusn8


Id 45 (mm) diameter 50 (mm) Length70 (mm)


Material:CuSn8/CuSn6 wrapped bronze bushings


Chemical composition (nom for Cu Sn8/CW453K)

– Cu Rest

– Sn 7.5-8.5%

– P 0.01-0.04%

Max impurities

– Ni <0.01%

– Pb <0.01%

– Zn <0.01%

– Fe <0.01%

Chemical composition (nom for Cu Sn6/CW452K)

– Cu Rest

– Sn 5.5-7.0%

– P 0.01-0.04%

Max impurities

– Ni <0.01%

– Pb <0.01%

– Zn <0.01%

– Fe <0.01%


bronze bushing size chart
[mm] d D L D1
BRONZE BUSHING-FBB090-2515 25 28 15 35
BRONZE BUSHING-FBB090-2525 25 28 25 35
BRONZE BUSHING-FBB090-3020 30 34 20 45
BRONZE BUSHING-FBB090-3030 30 34 30 45
BRONZE BUSHING-FBB090-3520 35 39 20 50
BRONZE BUSHING-FBB090-3530 35 39 30 50
BRONZE BUSHING-FBB090-4025 40 44 25 55
BRONZE BUSHING-FBB090-4040 40 44 40 55
BRONZE BUSHING-FBB090-4530 45 50 30 60
BRONZE BUSHING-FBB090-4545 45 50 45 60
BRONZE BUSHING-FBB090-4550 45 50 50 60
BRONZE BUSHING-FBB090-5030 50 55 30 65
BRONZE BUSHING-FBB090-5050 50 55 50 65
BRONZE BUSHING-FBB090-5530 55 60 30 70
BRONZE BUSHING-FBB090-5550 55 60 50 70
BRONZE BUSHING-FBB090-6030 60 65 30 75
BRONZE BUSHING-FBB090-6035 60 65 35 75
BRONZE BUSHING-FBB090-6060 60 65 60 75
BRONZE BUSHING-FBB090-6530 65 70 30 80
BRONZE BUSHING-FBB090-6560 65 70 60 80
BRONZE BUSHING-FBB090-7040 70 75 40 85
BRONZE BUSHING-FBB090-7070 70 75 70 85
BRONZE BUSHING-FBB090-7540 75 80 40 90
BRONZE BUSHING-FBB090-7570 75 80 70 90
BRONZE BUSHING-FBB090-8040 80 85 40 100
BRONZE BUSHING-FBB090-8080 80 85 80 100
BRONZE BUSHING-FBB090-9050 90 95 50 110
BRONZE BUSHING-FBB090-9070 90 95 70 110
BRONZE BUSHING-FBB090-9090 90 95 90 110
BRONZE BUSHING-FBB090-10050 100 105 50 120
BRONZE BUSHING-FBB090-10090 100 105 90 120
BRONZE BUSHING-FBB090-11050 110 115 50 130
BRONZE BUSHING-FBB090-11090 110 115 90 130
BRONZE BUSHING-FBB090-12050 120 125 50 140
BRONZE BUSHING-FBB090-12090 120 125 90 140
BRONZE BUSHING-FBB090-13060 130 135 60 155
BRONZE BUSHING-FBB090-13090 130 135 90 155
BRONZE BUSHING-FBB090-14060 140 145 60 165
BRONZE BUSHING-FBB090-14090 140 145 90 165
BRONZE BUSHING-FBB090-15060 150 155 60 180
BRONZE BUSHING-FBB090-15090 150 155 90 180
BRONZE BUSHING-FBB090-16060 160 165 60 190
BRONZE BUSHING-FBB090-16090 160 165 90 190
BRONZE BUSHING-FBB090-17060 170 175 60 200
BRONZE BUSHING-FBB090-17090 170 175 90 200
BRONZE BUSHING-FBB090-18060 180 185 60 215
BRONZE BUSHING-FBB090-18090 180 185 90 215
BRONZE BUSHING-FBB090-19060 190 195 60 225
BRONZE BUSHING-FBB090-19090 190 195 90 225
BRONZE BUSHING-FBB090-20060 200 205 60 235
BRONZE BUSHING-FBB090-20090 200 205 90 235
BRONZE BUSHING-FBB090-22560 225 230 60 260
BRONZE BUSHING-FBB090-22590 225 230 90 260
BRONZE BUSHING-FBB090-25060 250 255 60 290
BRONZE BUSHING-FBB090-25090 250 255 90 290
BRONZE BUSHING-FBB090-26560 265 270 60 305
BRONZE BUSHING-FBB090-26590 265 270 90 305
BRONZE BUSHING-FBB090-28560 285 290 60 325
BRONZE BUSHING-FBB090-28590 285 290 90 325
BRONZE BUSHING-FBB090-30060 300 305 60 340
BRONZE BUSHING-FBB090-30090 300 305 90 340


Bronze Warpped Bearings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions


·Easy for fitting and lubricating

·High load capacity

·Inner Diameter machineable parts are available against order

·High level thermal conductivity

·Minimum overall dimensions

·Chemical resistance Initial pre-lubrication at assembly required...

·Good performance in lubricated application

·Good performance in greased applications

·Suitable for linear, oscillating and rotating movements


With the increasing number of types of bearings
Now the advantage of self-lubricating bearings is obvious The advantages of sliding bearings are obvious.

Bronze Wrapped Bearing with Oil Pockets

Bronze Bushes and Oil Pockets 090 & 092 BRONZE BUSHES

CuSn8P Wrapped Bronze Bearing Diamond Or Ball Shape Oil Sockets

Bronze Warpped Bearings used CuSn8/CuSn6.5P0.1 as base, designed regular oil holes bestrewn working surface, it has high load capacity, well wearing resistance and low friction coefficient, if has been widely applied to transportation machinery, elecator, coiling machinery and agriculture equipment.


Products Show


We provide professional sliding bearing solution (FB090) CuSn8P(Qsn8-0.3)


Technical Date



Bronze(CuSn8Pb/ CuSn6.5Pb)




Bronze(CuSn8Pb/ CuSn6.5Pb)


Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings


Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite

Load capacity



Speed limit



PV value limit



Tensile Strength



Yeild Strength






Mating axis required





Friction coef



Working temperature max.





VIIPLUS wrapped bronze bushing is made of tin-bronze CuSn8P with its surface punched with diamond oil sockets which are preserved for oil saving. It has good anti-fatigue, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.

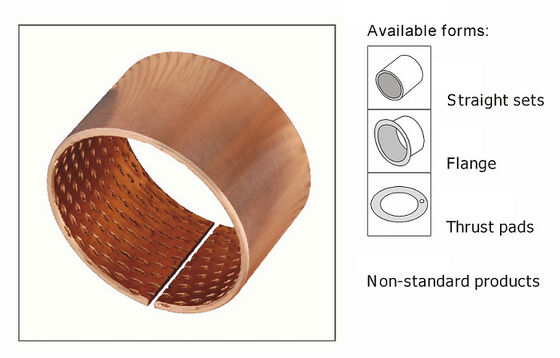

Wrapped Bronze Bearing

VSB-22 series wrapped bronze bushing is made of tin-bronze CuSn8P with its surface punched with diamond oil sockets which are preserved for oil saving. It has good anti-fatigue, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.

Description CuSn6 CuSn6.5 CuSn8 Tin Copper Bronze bearing bushing

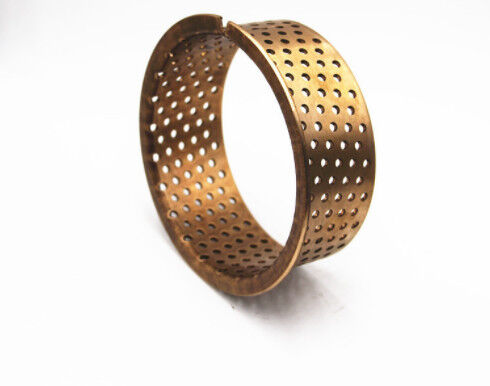

This product is made of high-density tin bronze CuSn8P, and its surface is evenly arranged with lubrication through-hole at a certain Angle and density, which is easy to form oil film at startup, thus reducing friction coefficient.It has good fatigue strength and bearing capacity, corrosion resistance, wear resistance.Widely used in agricultural machinery, construction machinery, construction machinery and other high load low speed occasions.

The main features of viiplus bearings 090 and 092 bronze bushes are: high load capacity, high thermal conductivity and good resistance against bumps and oscillations.090 and 092 bronze bushes are made from phosphorous bronze, and are ideal to create couplings with construction steel. These types of bushes, both cylindrical and flanged, are cut from bronze sheets with a thickness between 1 and 2.5 mm.

The bearing is wrapped of a cold formable homogenous bronze (CuSn8), which will obtain exceptional material properties. The standard bearing is fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film in the start movement and there with reduce the start friction.

Typical Application


·Agricultural machinery


·Other high load and slow movement occur

 wrapped bronze bushings



090 and 092 bronze bushes are very easy to mount in various applications, thanks to their minimal bulk. In addition to being easy to mount, this type of bush is set apart by its excellent sliding capacity and simplified lubrication (long lubrication intervals).


Special technical features

The internal surface of 090 and 092 bronze bushes can be supplied with spherical pockets
(spherical cap pockets) or with diamond shaped pockets (lozenge cap pockets). The vast VIIPLUS range also includes a series of entirely bronze bushes, originating from the 090 series, with the difference being that the spherical and lozenge pockets on the sliding surface are replaced by through-holes (092 type), therefore with greater lubrication capacity and high resistance against chemical agents.


(090 & 092 CYLINDRICAL BUSHES standard stock size online sales) CuSn8P Wrapped Bearings

Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip
· Bearing material made of solid bronze strip with indents for lubrication
· Good wear resistance, suitable for rough conditions
· Optimum performance under relatively high loads and low speeds


Size 090 & 092 Bronze wrapped bushing
